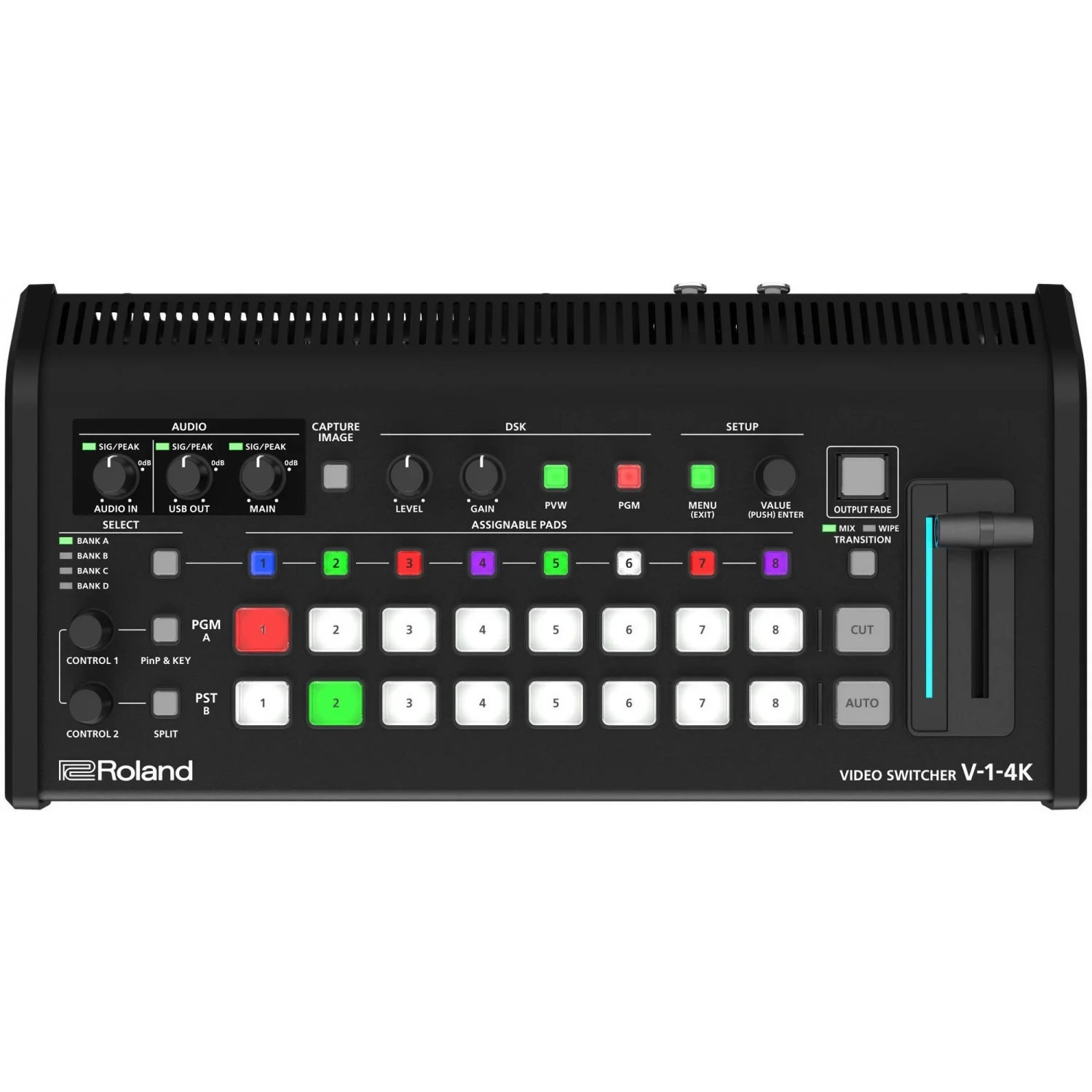

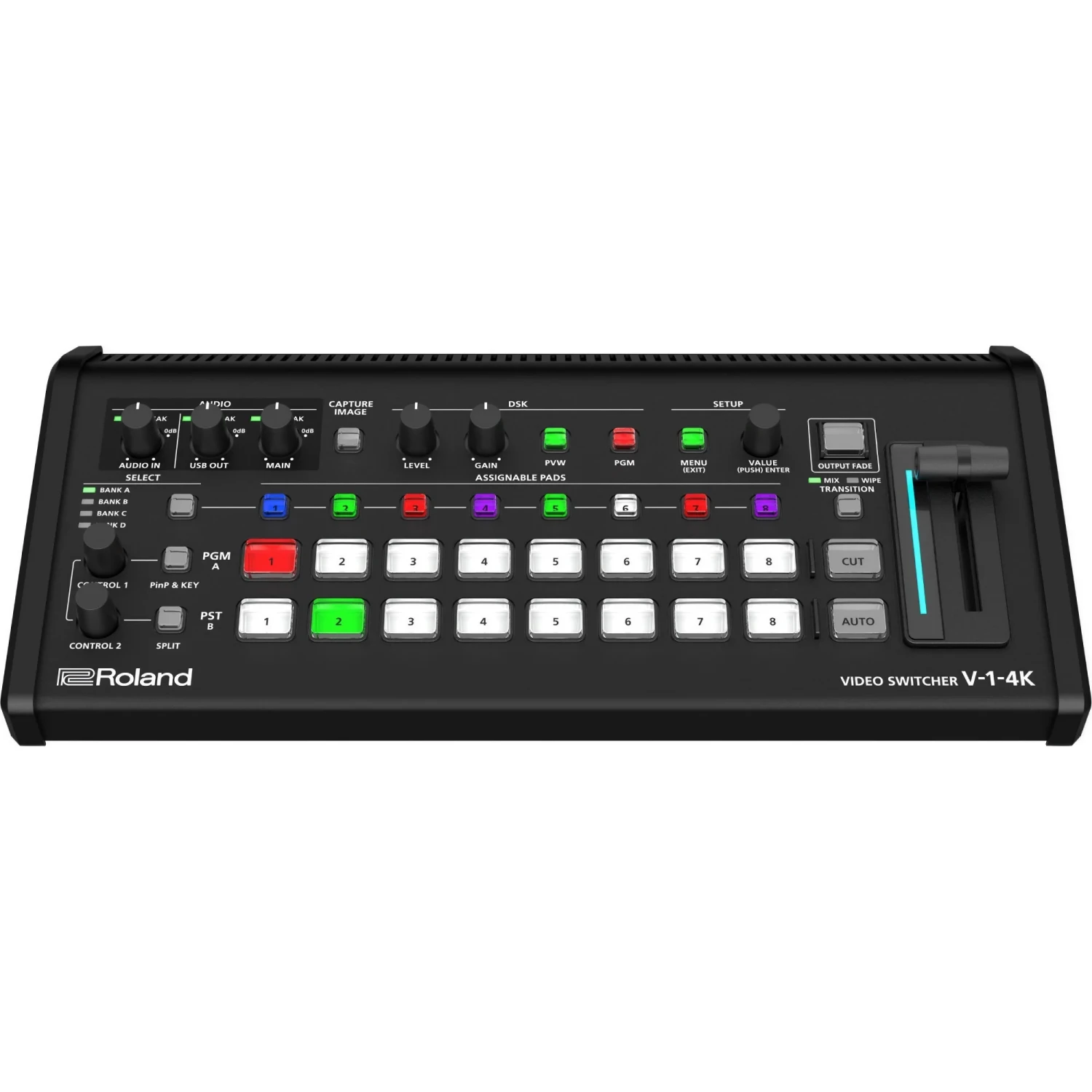

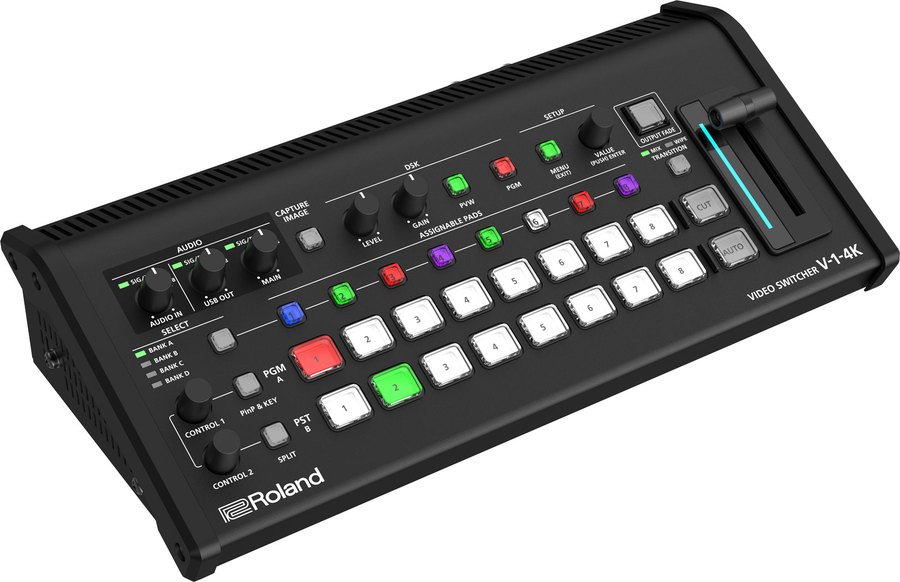

Roland V-1-4K Video Switcher

The Roland V-1-4K Video Switcher is a compact, versatile solution for live streaming and small productions, supporting up to UHD 4K60 HDR. With 5 HDMI inputs, 5 HDMI outputs, USB-C streaming, and tactile control, it enables seamless switching, cropping, and downscaling for professional-quality video in corporate, educational, or house-of-worship setups.

The V-1-4K is a compact 4K video switcher for live events, houses of worship, conference rooms and livestreaming. Five HDMI inputs with scalers, four HDMI outputs, a multi-view and USB-C streaming up to 4K 60p are joined by a 14-channel audio mixer, PTZ camera control and remote control apps.

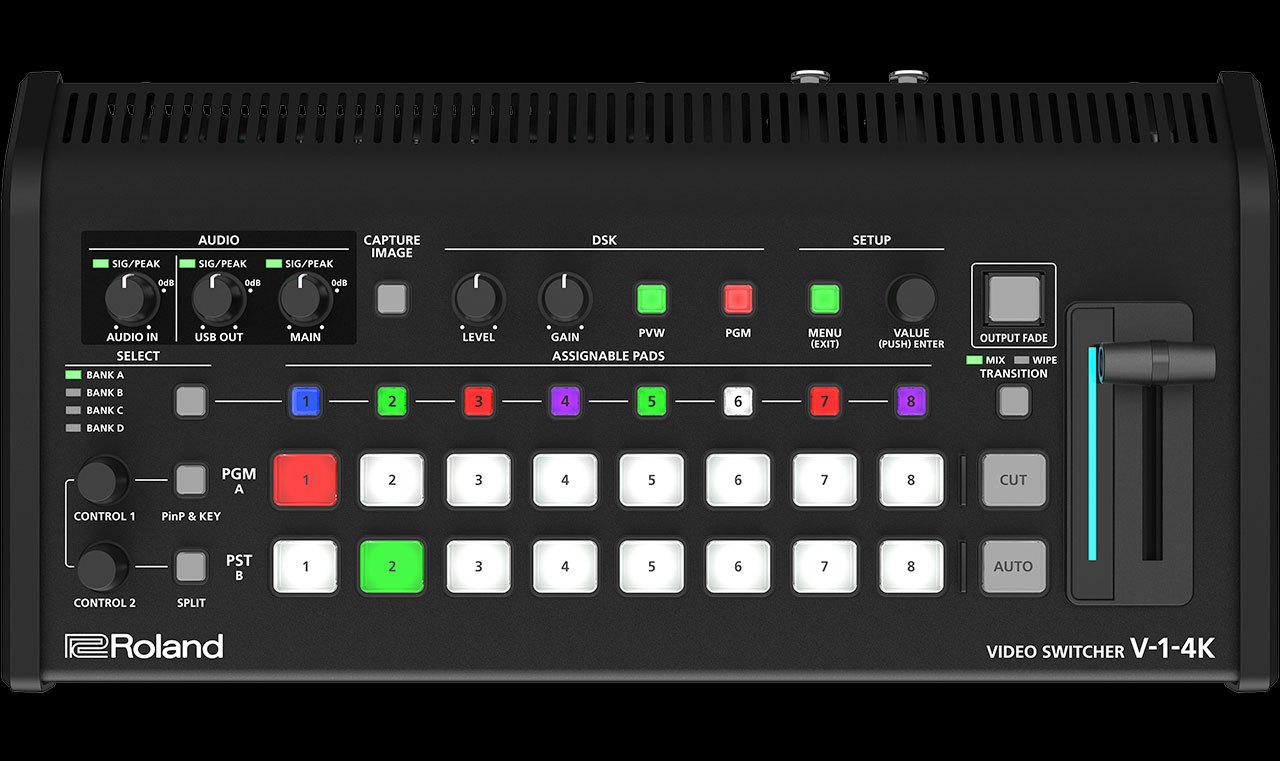

Complete 4K 60p switching in a compact console

Five HDMI 2.0 inputs, HDR, ROI cropping, webcam-style USB-C streaming and control of up to five PTZ cameras.

5× HDMI 2.0 input4K 60p HDRUSB-C stream 4K60ROI: 4 shots from 1 cameraUp to 5 PTZ cameras14 audio channels

A scaler on every input

All five HDMI inputs have their own scaler, so you can switch seamlessly between HD and 4K 60p HDR sources. Five HDMI outputs including multi-view feed a main and a confidence monitor without a distribution amplifier.

Multiple shots from one camera

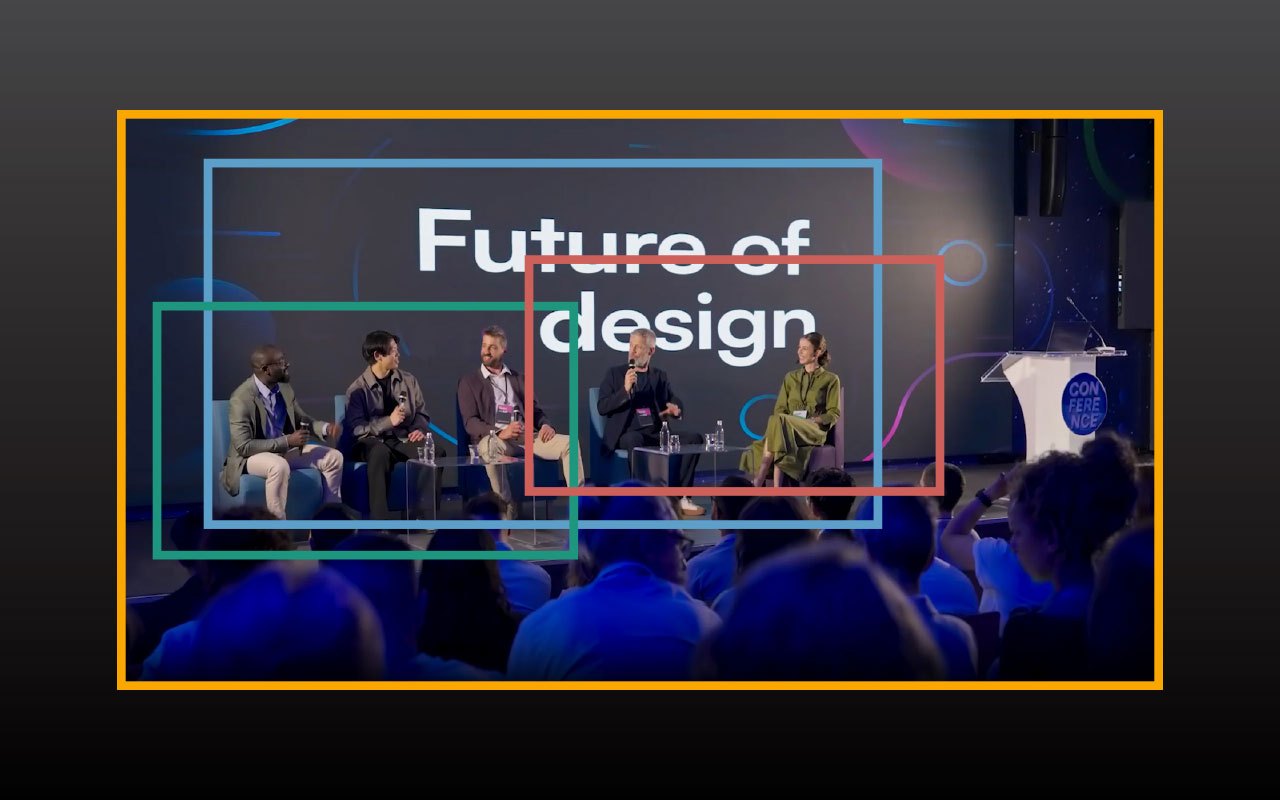

The ROI function crops up to four shots from a single 4K image: a wide shot of the stage, the speaking panel and close-ups of each speaker. Crops are set from a computer or an iPad.

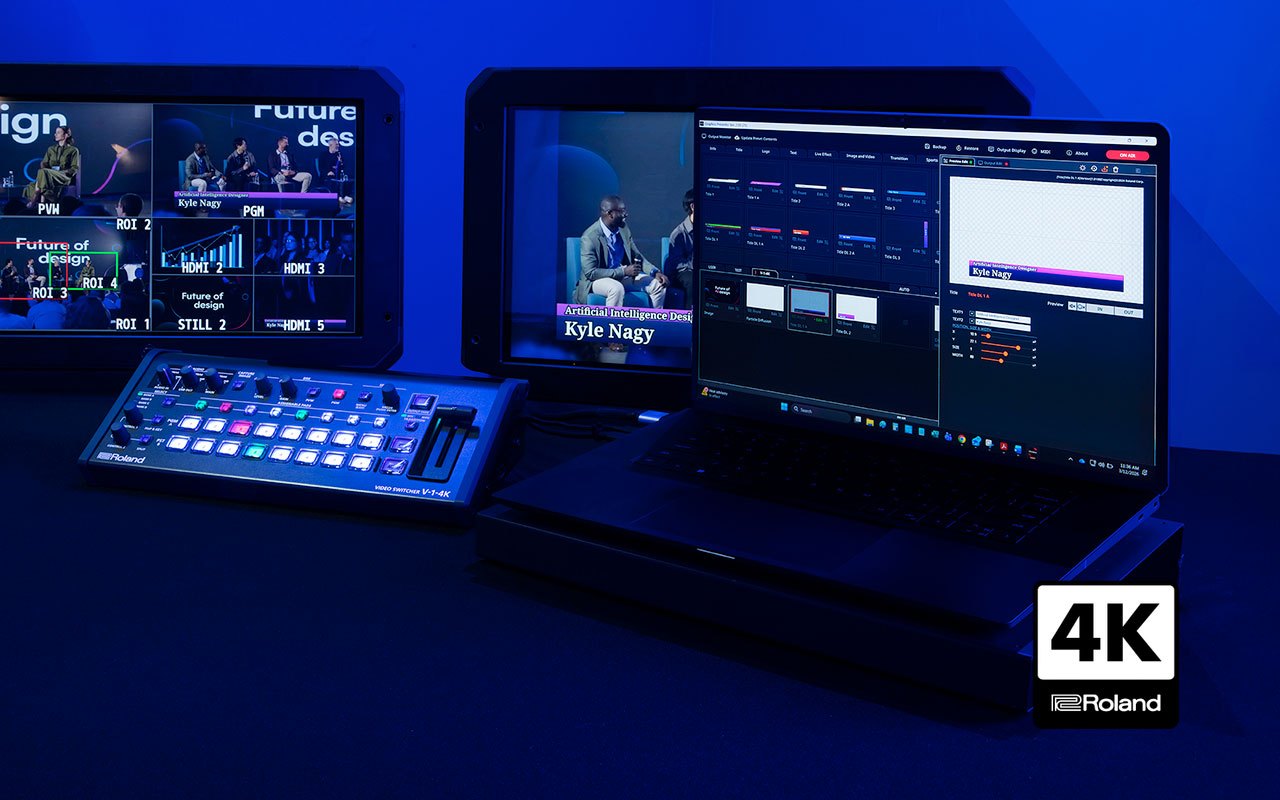

Free 4K graphics

Graphics Presenter software for Windows adds titles, scores and motion graphics. A single HDMI cable carries both fill and key to the switcher, and the templates are free.

Plug-and-play streaming

The USB-C output connects to a computer just like a webcam. Plug it in and stream at up to 4K 60p with Zoom, Microsoft Teams or any platform that supports a standard webcam connection.

3 composition layers

Scalable PinP, a keyer with chroma and luma key, and a DSK for titles, logos and social media comments.

14 audio channels

Equalizers, compressors, sync delays and main, monitor and two aux buses for hybrid events.

PTZ control

Up to five Canon, JVC, Panasonic, Sony, PTZOptics, Avonic and VISCA LAN cameras at once, brands mixed.

Remote control

V-1-4K Remote for iPad, V-1-4K RCS for macOS and Windows, VenuSet and Smart Tally.

The Roland V-1-4K Video Switcher delivers professional-level video production in a portable, user-friendly package. It features 5 HDMI inputs with scalers, 5 HDMI outputs, and a USB-C streaming output, allowing seamless integration of multiple cameras, laptops, or other HDMI sources. The switcher supports UHD 4K60 HDR, as well as downscaling to 1080p, and includes region-of-interest (ROI) cropping, chroma key, and luma key effects for creative live production. Audio is handled via 2 XLR inputs and output through RCA and 3.5 mm ports, with a 14-channel mixer for professional control. Free companion software—V-1-4K RCS, V-1-4K Remote, and Graphics Presenter—offers intuitive control over effects, titles, and motion graphics. Lightweight and compact, it’s ideal for live events, corporate presentations, classrooms, or houses of worship.

Key Features:

• 5 HDMI inputs with built-in scalers
• 5 HDMI outputs + USB-C streaming output + USB-A host port
• Supports UHD 4K60 HDR, 1080p, 1080i, 720p
• ROI cropping for multi-shot creation from a single camera
• Chroma key and luma key effects, downstream key
• 14-channel audio mixer, XLR/3.5 mm/RCA audio support
• Free software control: V-1-4K RCS, V-1-4K Remote, Graphics Presenter
• Compact design: 330 × 164 × 79 mm, 1.9 kg

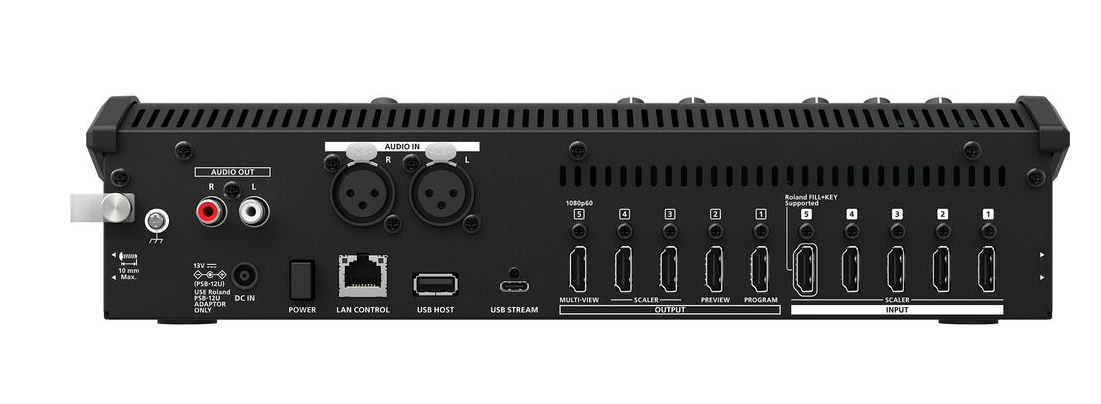

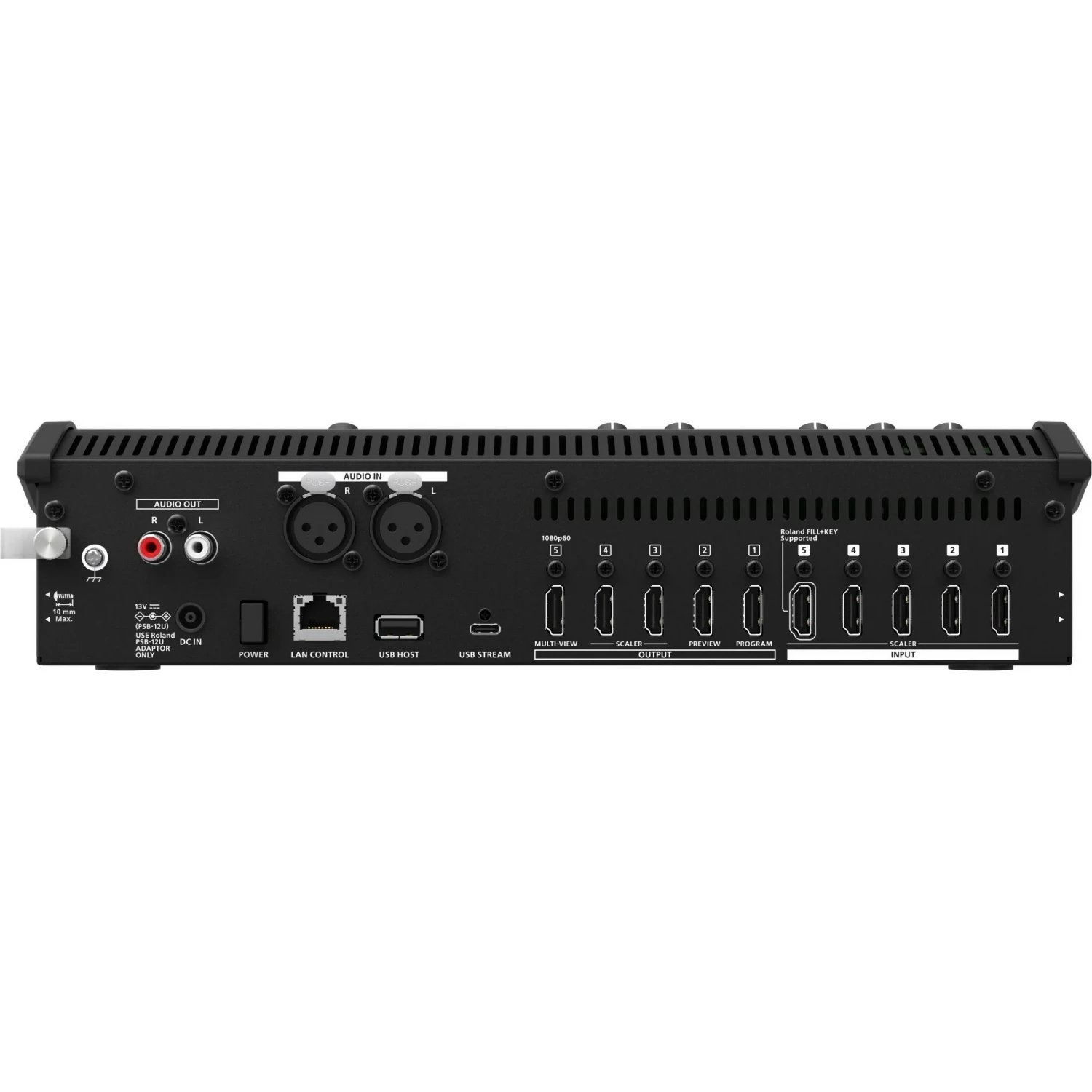

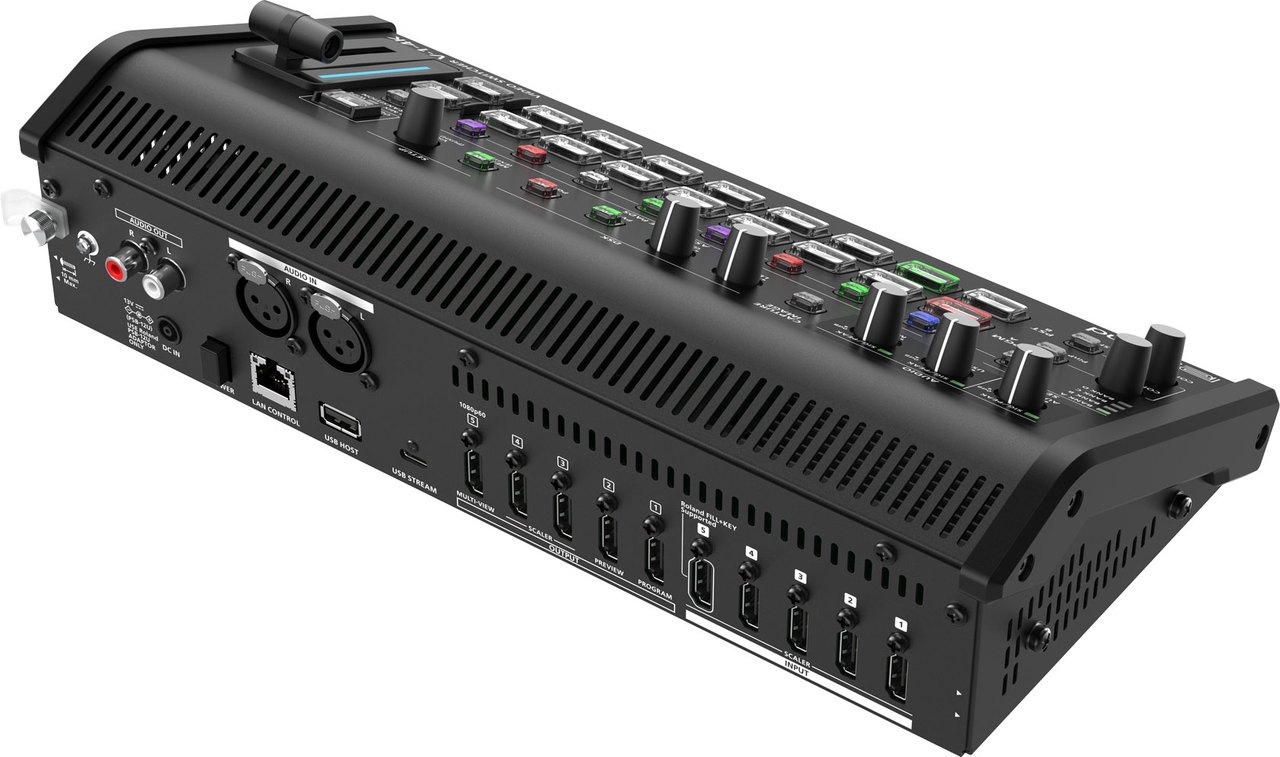

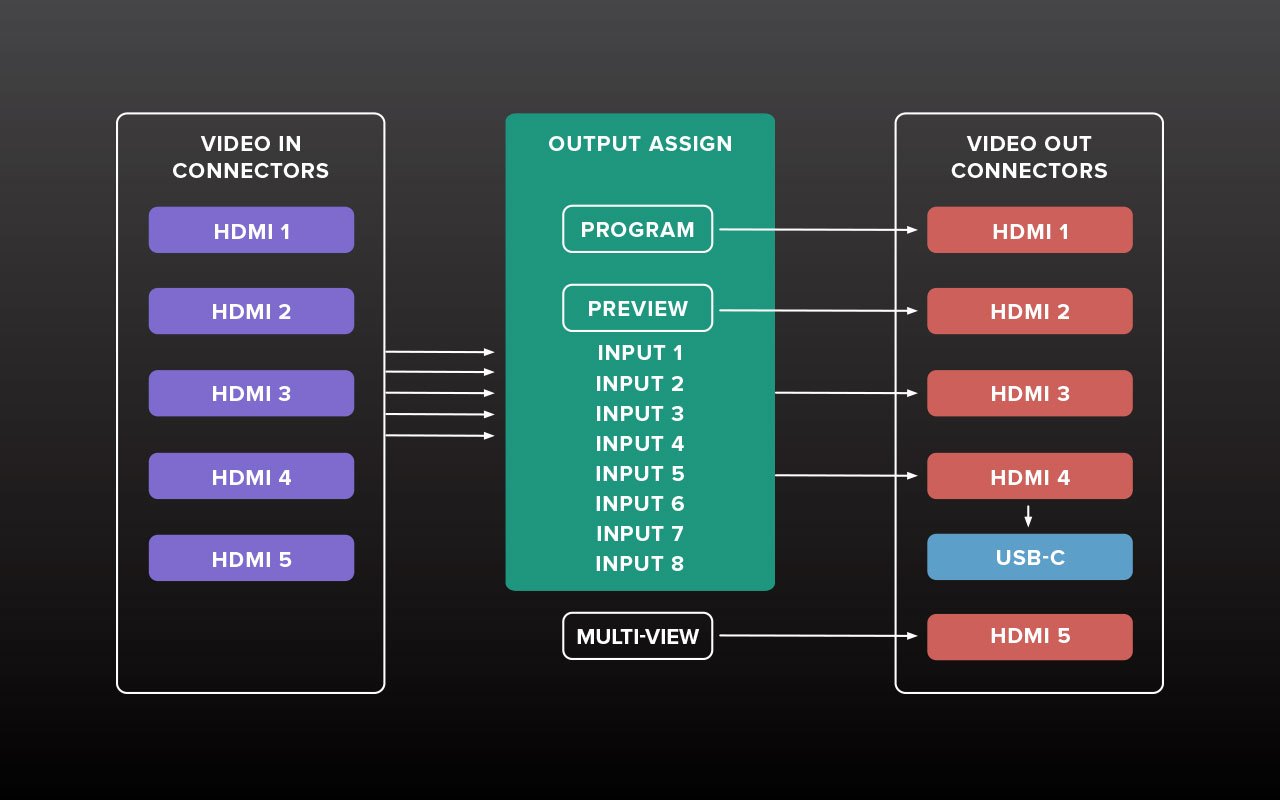

Flexible routing. Five inputs and six outputs (HDMI plus USB streaming). Besides program, preview and multi-view, outputs 3 and 4 can be assigned to any bus or input via 4K-to-HD downscalers.

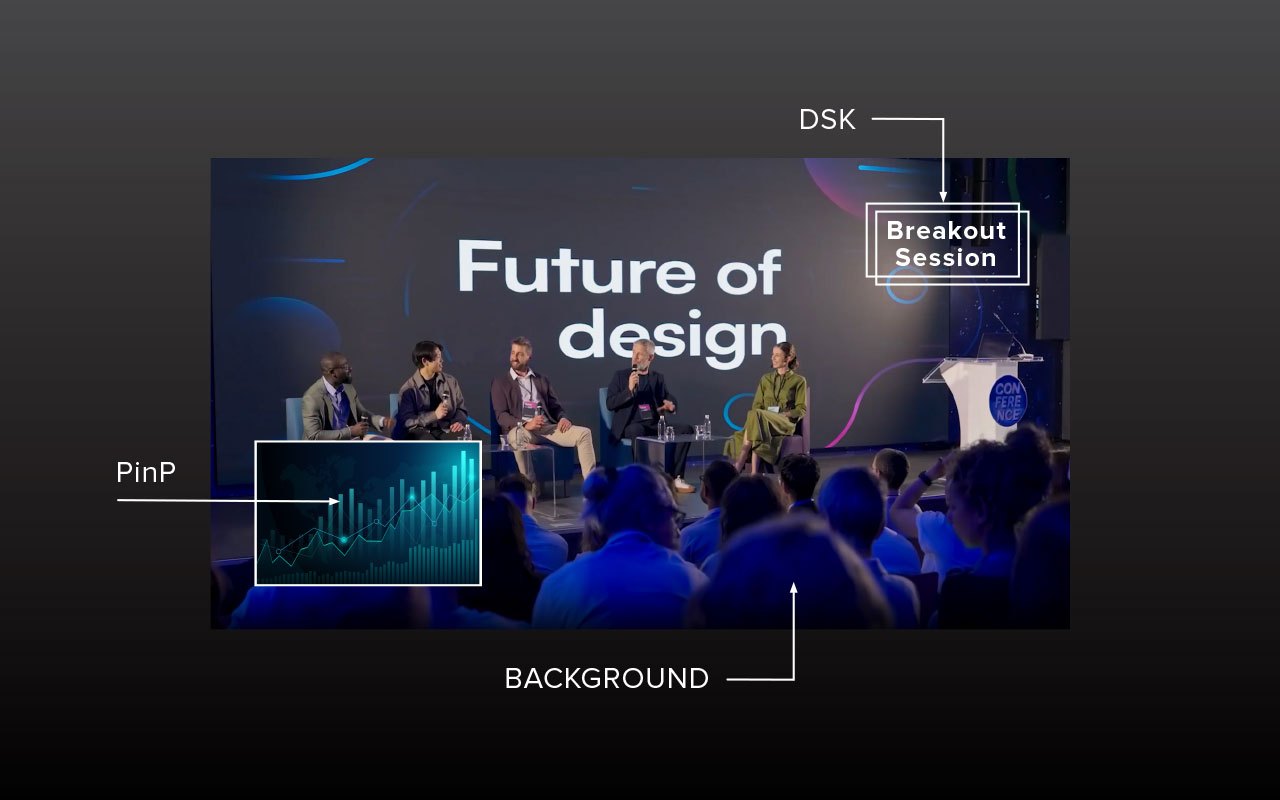

Picture layers. Background, a PinP window and a DSK for titles and logos keep audiences engaged without extra hardware.

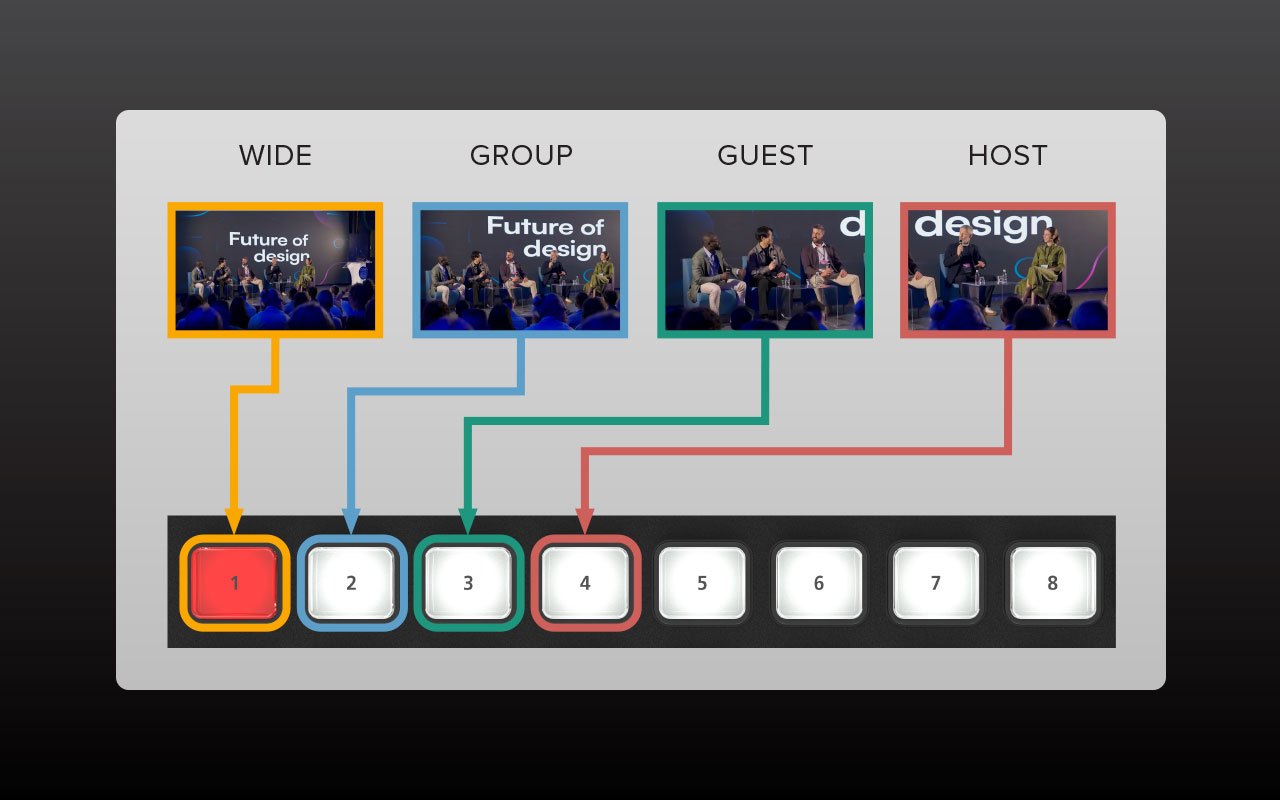

ROI crops on the buttons. Up to four shots from one 4K camera are assigned to input buttons and switched like separate cameras.

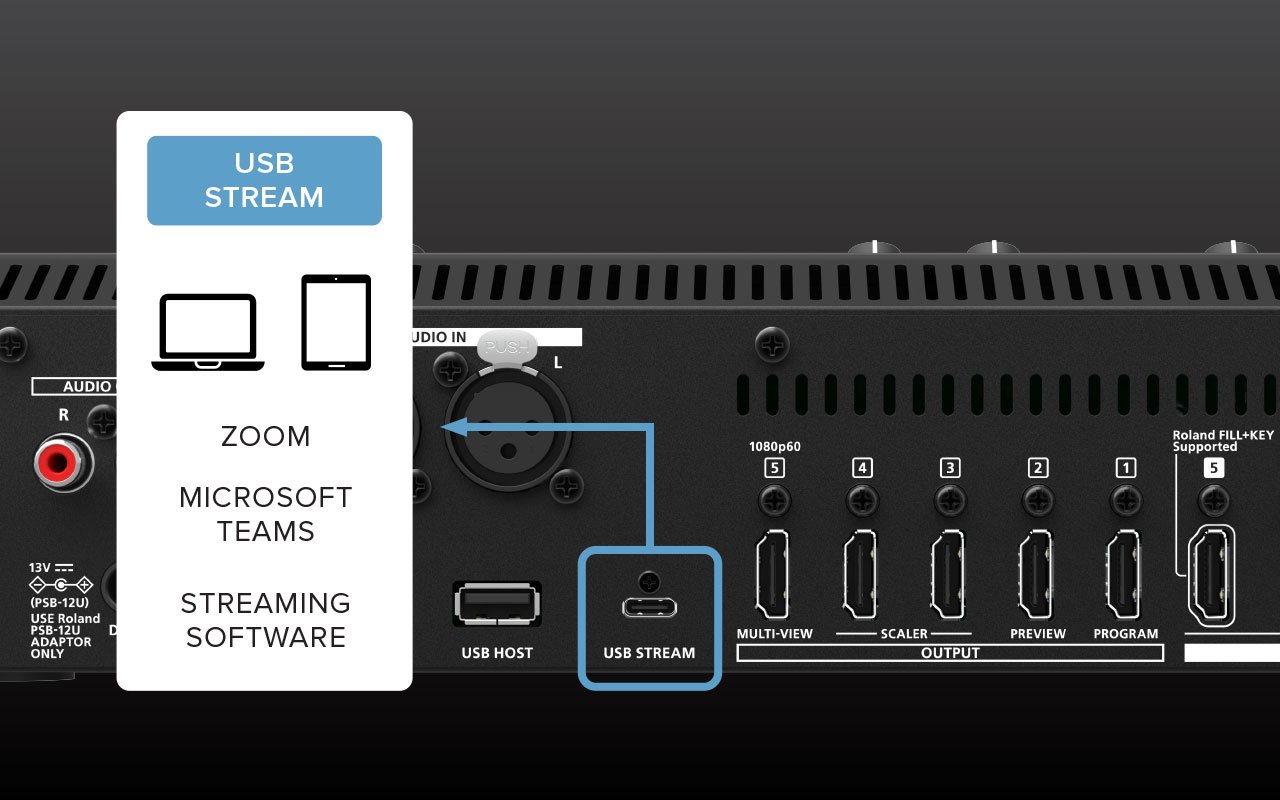

Plug in and stream. Connect a USB-C cable to the computer and the V-1-4K works as a webcam for Zoom, Microsoft Teams and streaming software.

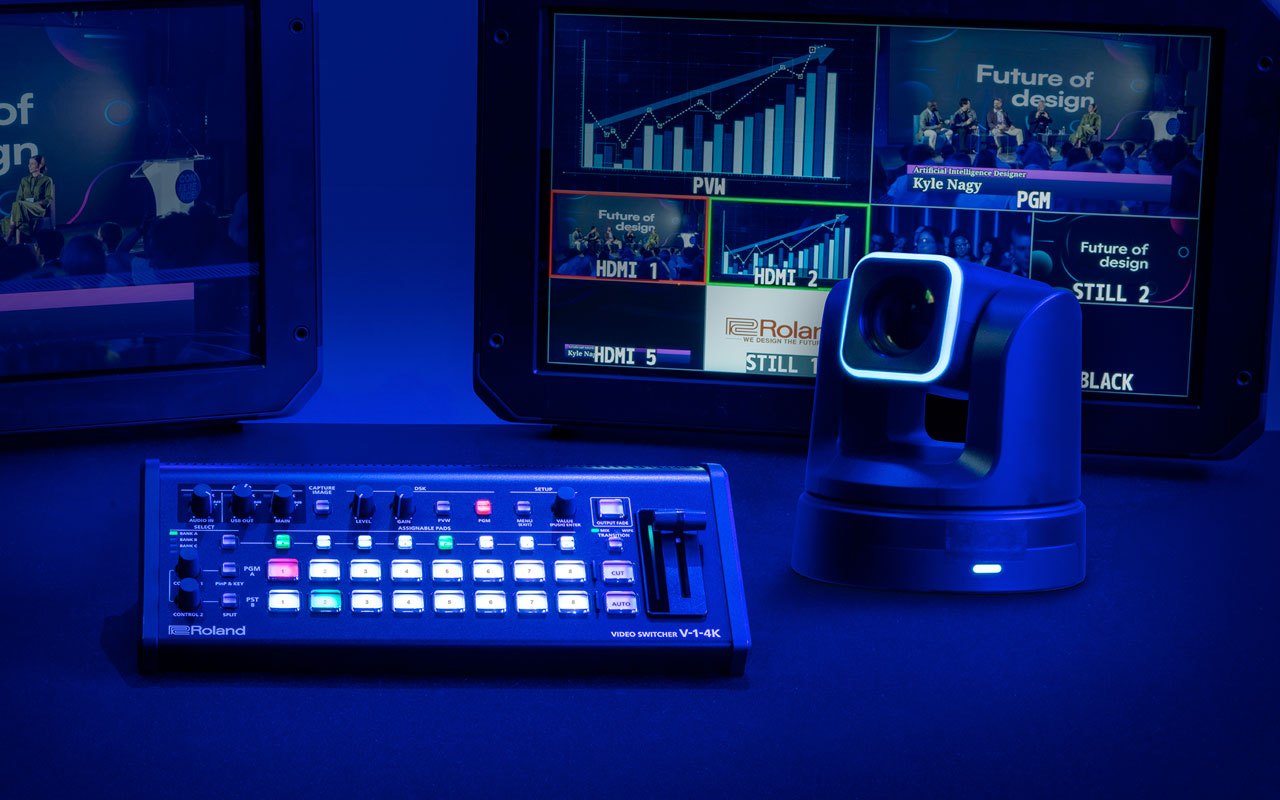

PTZ cameras from the console. Built-in control of PTZ cameras from several brands at once; the V-1-4K Remote app on an iPad makes it even easier.

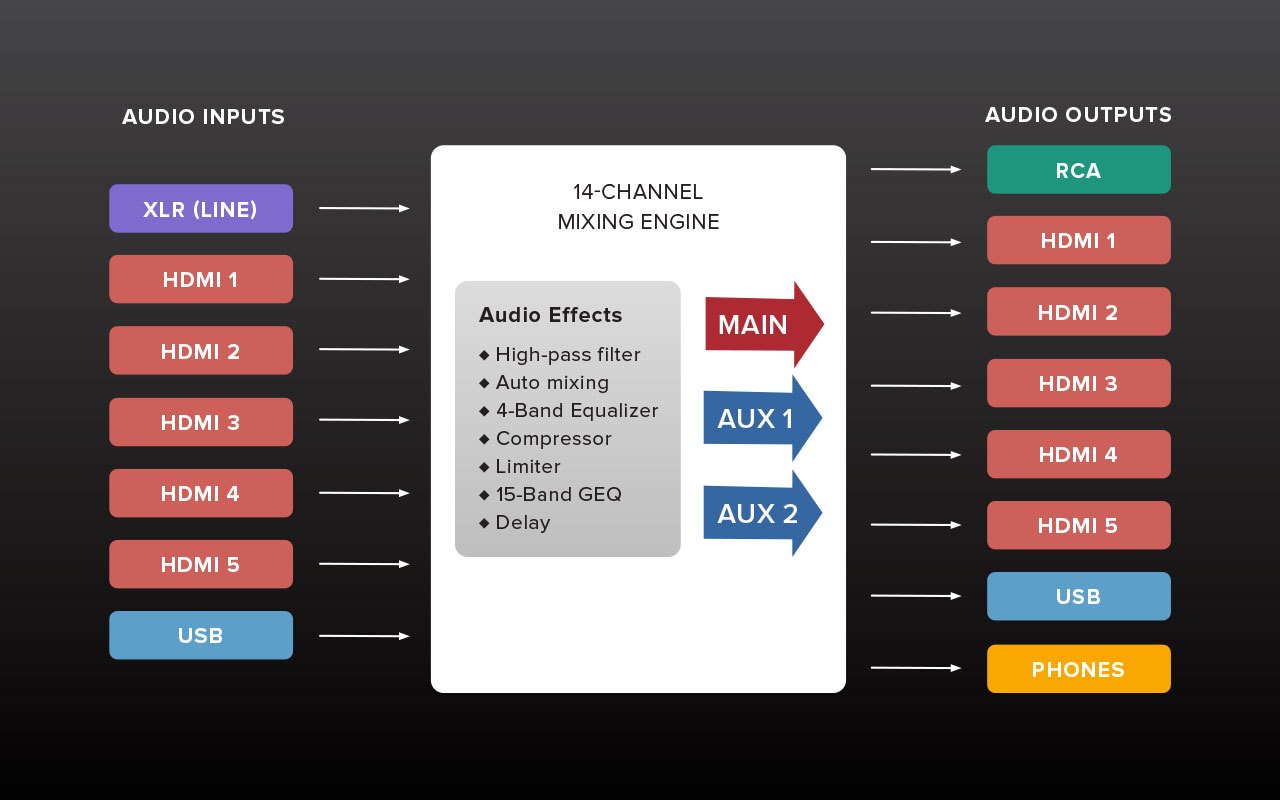

Audio mixing. 14 channels with high-pass filter, auto mixing, equalizers, compressor and a 15-band GEQ, routed to the main, aux 1 and aux 2 buses.

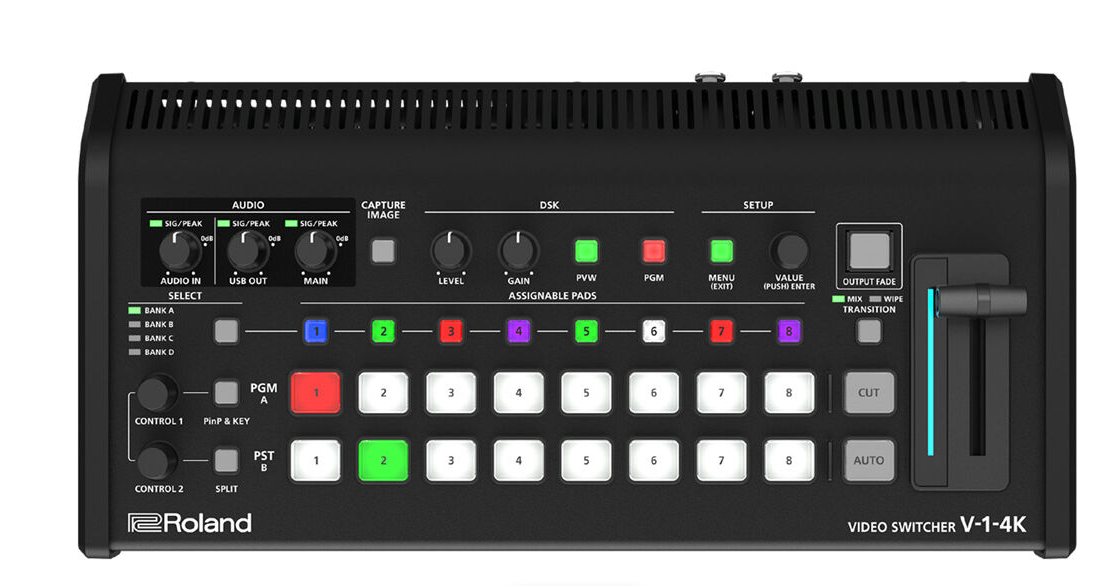

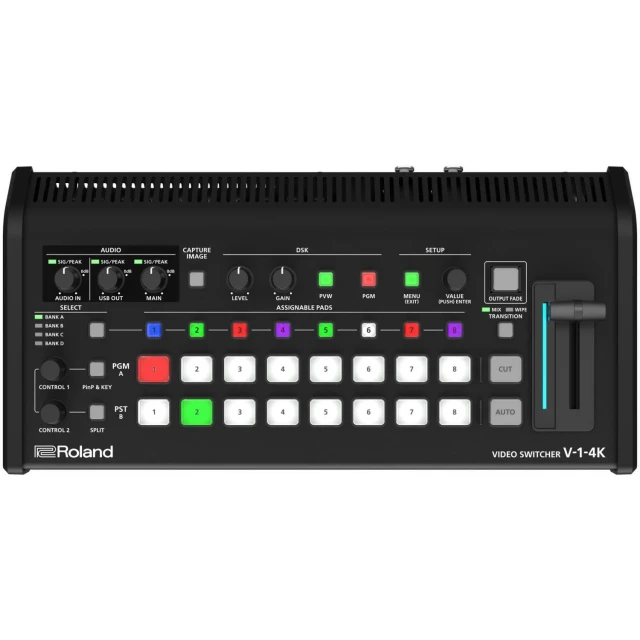

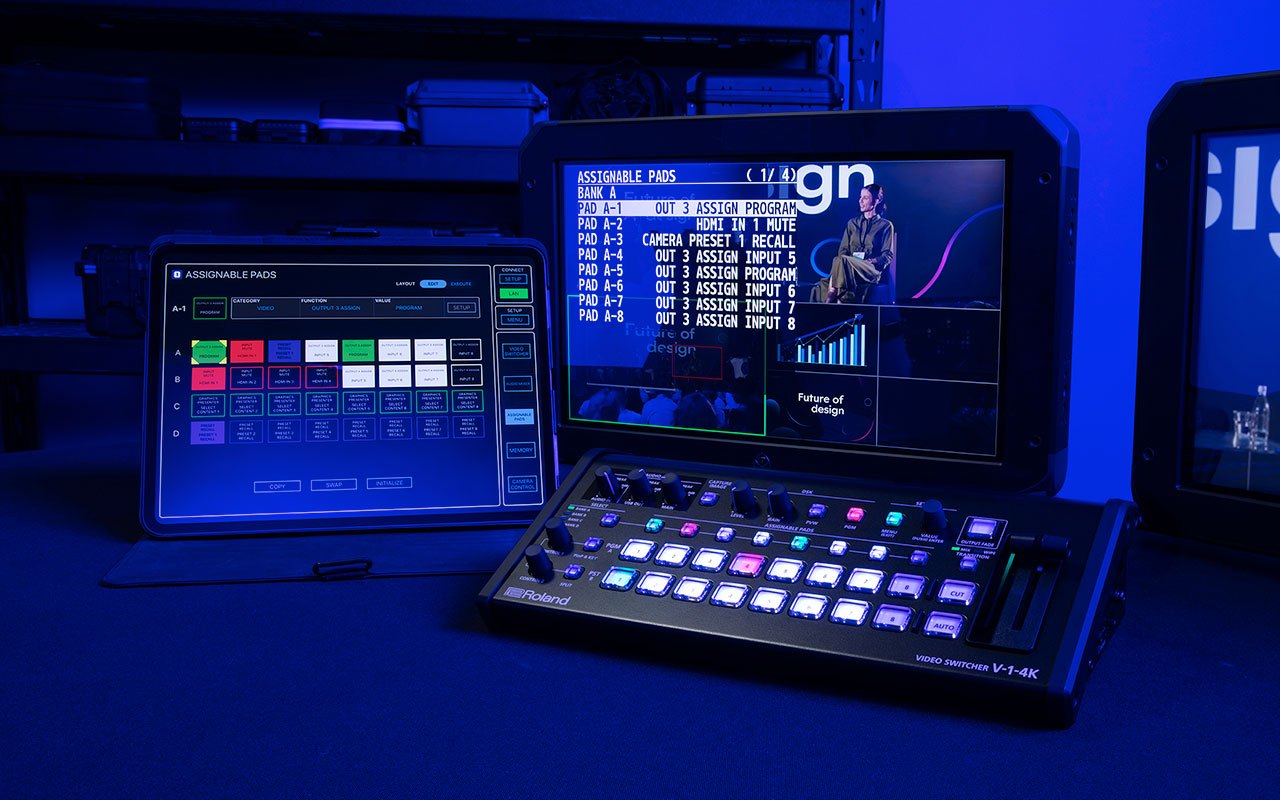

Assignable pads. Eight pads in four banks give direct access to 32 operations, from input routing and audio muting to Graphics Presenter control.

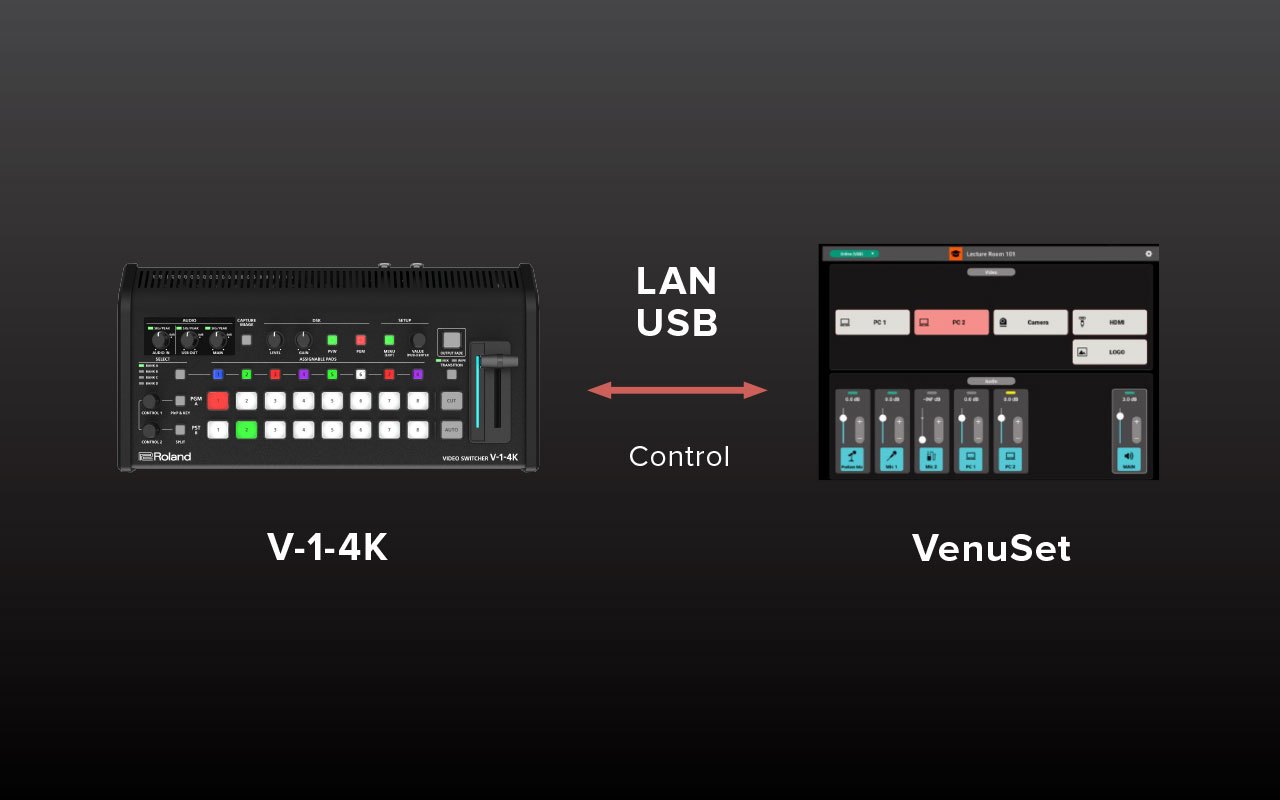

VenuSet. The iPadOS, Mac and Windows app lets integrators build panels tailored to the operator; it controls the switcher over LAN or USB.
