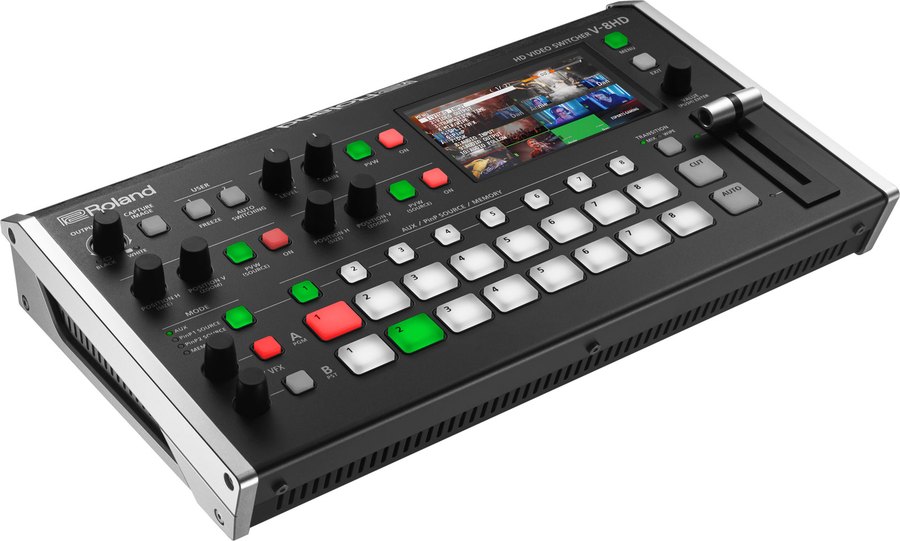

Roland V-8HD

The versatile, portable and reliable Roland V-8HD brings creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software crashes, while the HDMI workflow streamlines production.

The Roland V-8HD is a compact HD video switcher for live events. It mixes eight HDMI sources even with mismatched frame rates and colour spaces, has scalers on inputs 7 and 8 for computers and tablets, offers three HDMI outputs including a separate AUX and weighs just 2 kg.

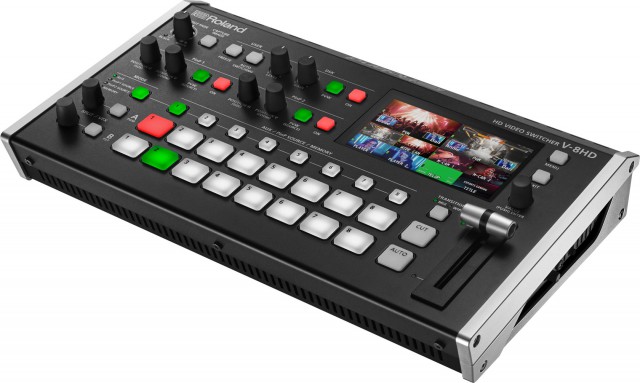

Eight HDMI sources in a compact console

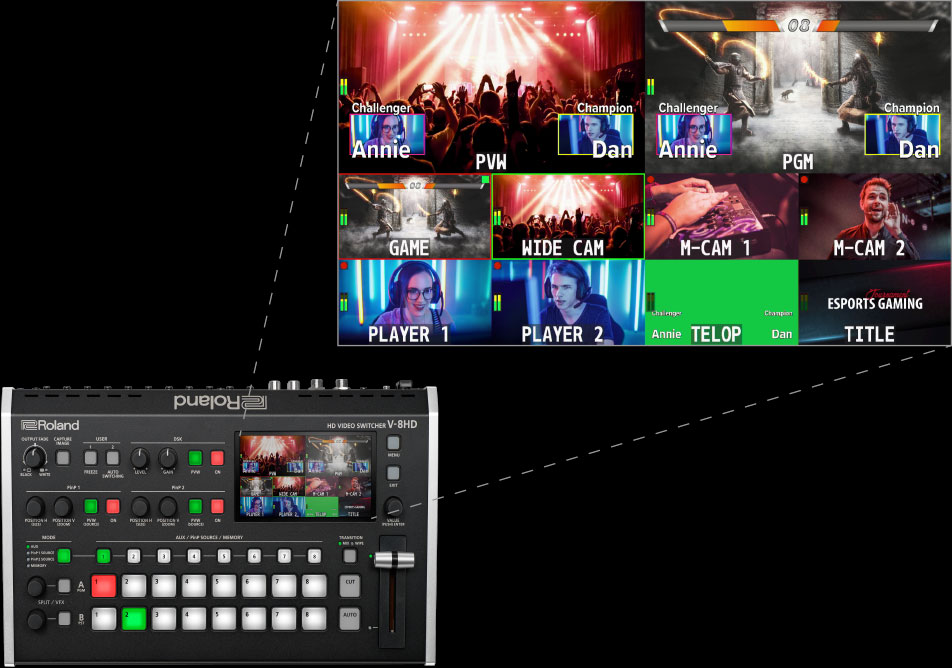

A hardware HD switcher with five effect layers, a multi-view display, an 18-channel audio mixer and a sequencer with up to 1,000 steps.

8× HDMI input3× HDMI outputFive effect layers18 audio channels1,000-step sequencerOnly 2 kg

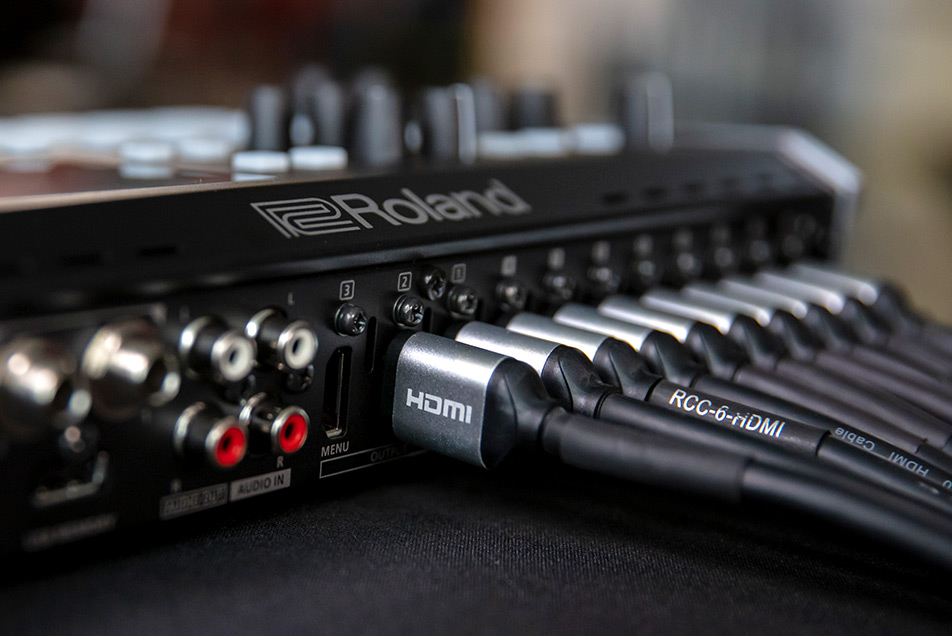

Eight HDMI inputs

Cameras, computers, tablets, game consoles and legacy 4:3 devices. Inputs 7 and 8 have scalers for computer resolutions up to 1920 × 1200, and input 8 also accepts a Roland FILL+KEY signal.

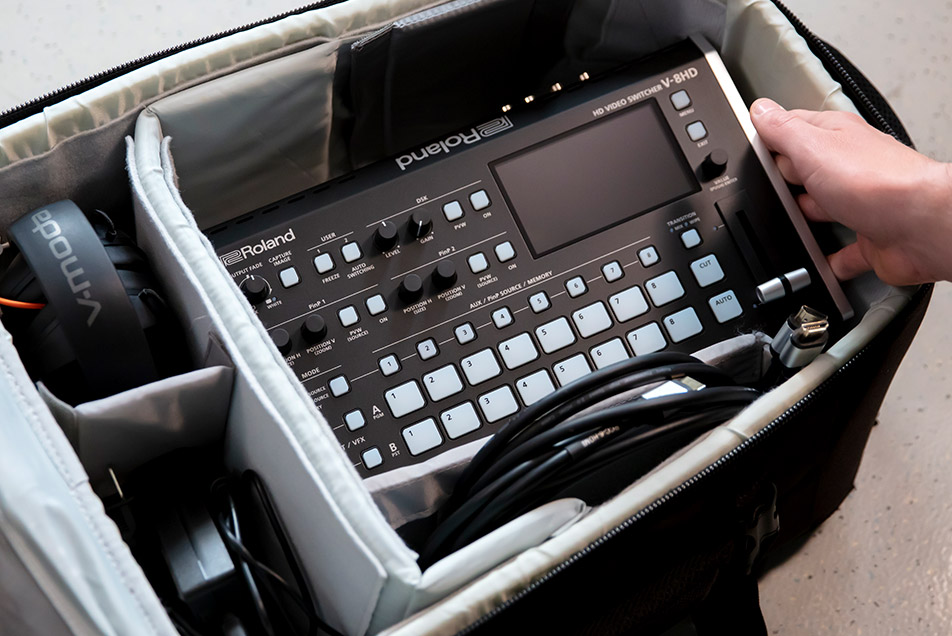

Fits in a backpack

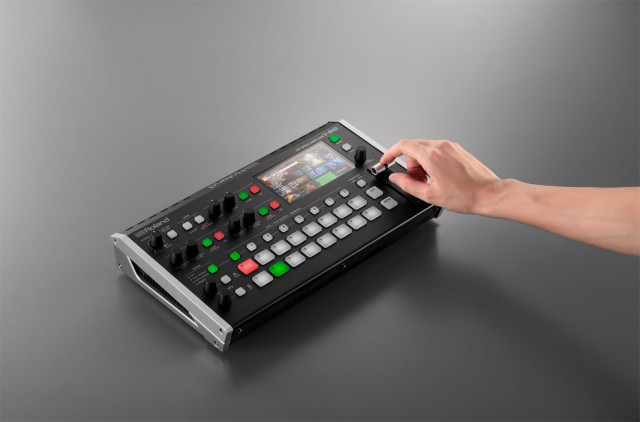

The 317 × 193 × 70 mm console weighs 2 kg and can also run on an external battery. It still has a solid T-bar and full hands-on controls.

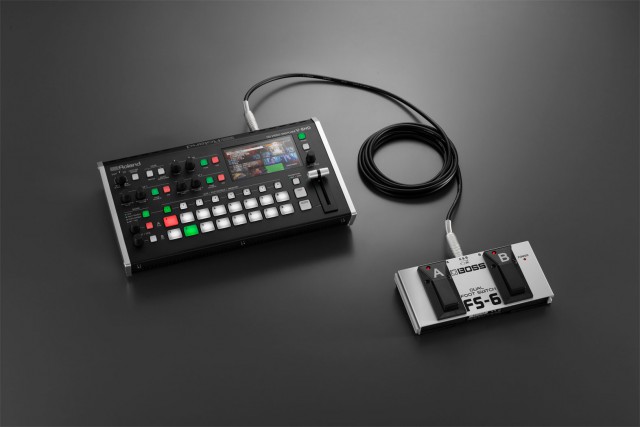

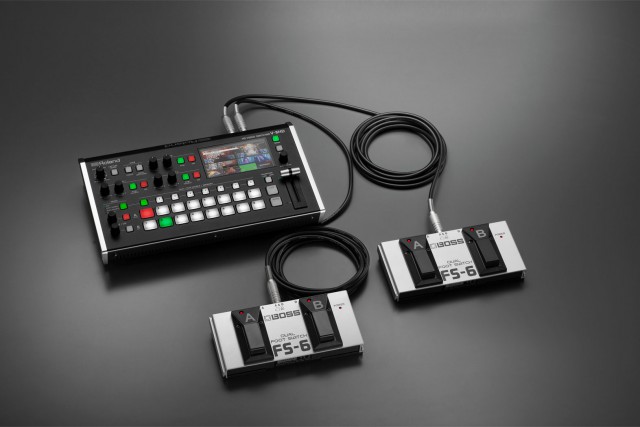

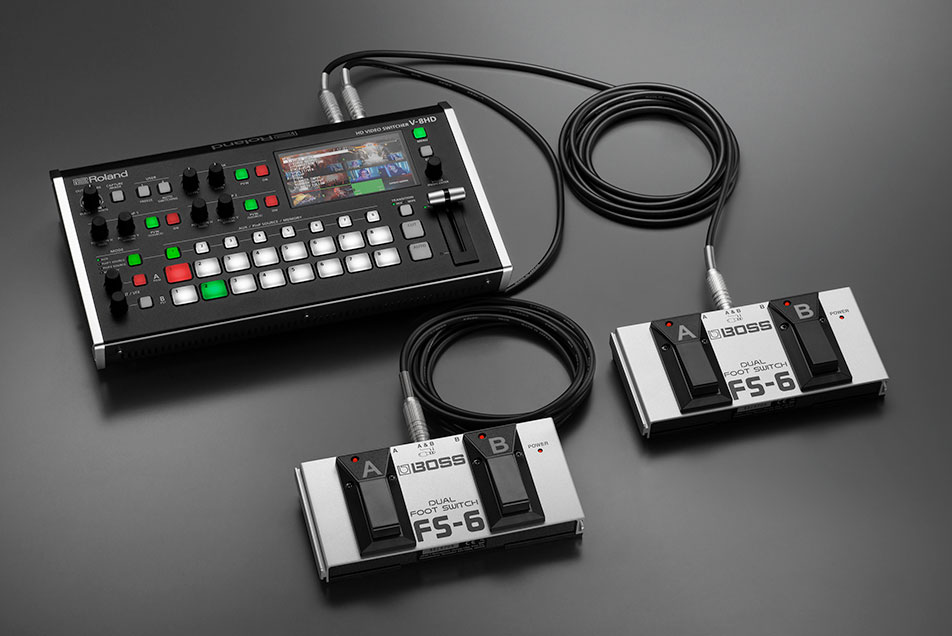

Hands-free switching

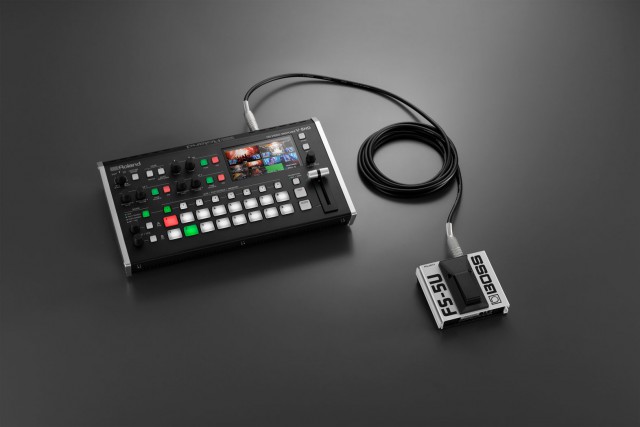

BOSS FS-5U, FS-6 or FS-7 footswitches can trigger over 100 commands: cut to a still image, bring PinP on or off, drop in a title or switch the AUX output.

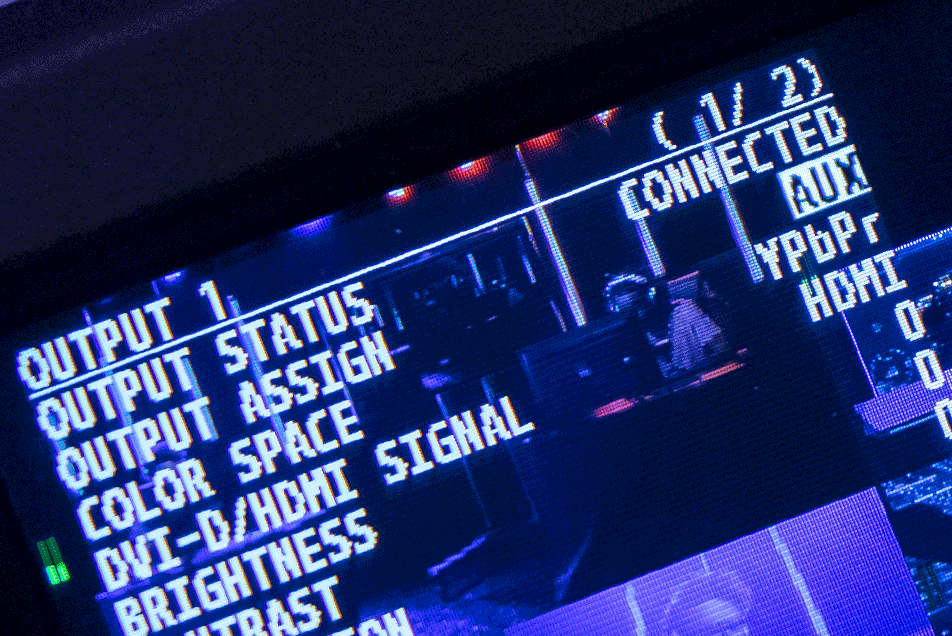

A separate AUX output

Send any input to the AUX output for a presenter confidence monitor, a livestream or a recording without touching the main programme. Synced with the programme it works as a built-in 1:2 distribution amp, and with the UVC-01 it feeds streams to YouTube, Facebook, Twitch or Zoom.

5 effect layers

Two PinP windows with chroma and luminance keys and a DSK with alpha key, external key and Roland FILL+KEY mode.

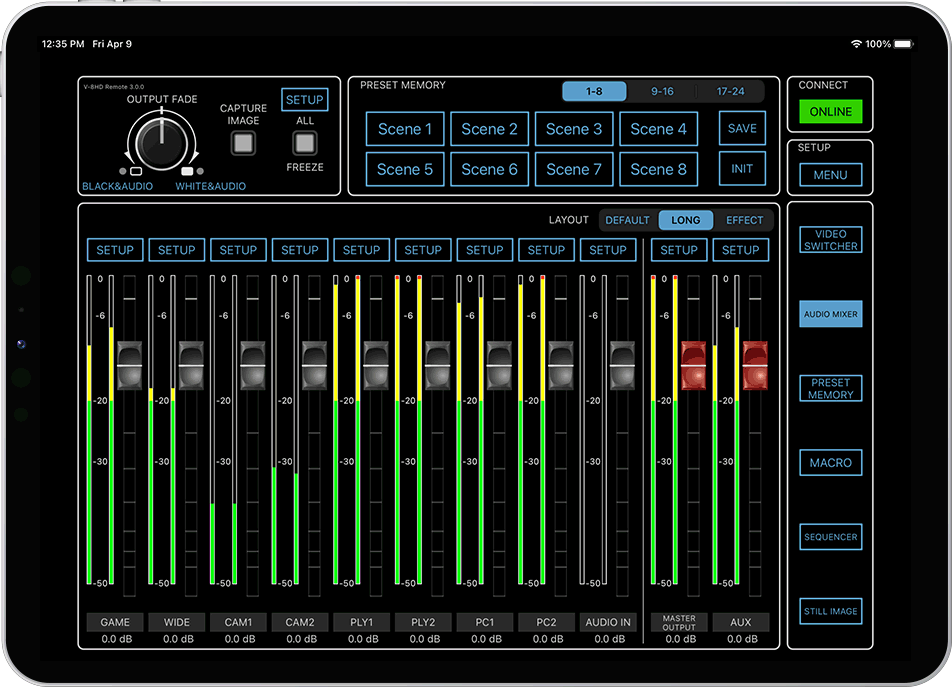

18 audio channels

Mixes eight HDMI inputs and stereo RCA with compressor, EQ, noise gate and delay on every channel.

Automation

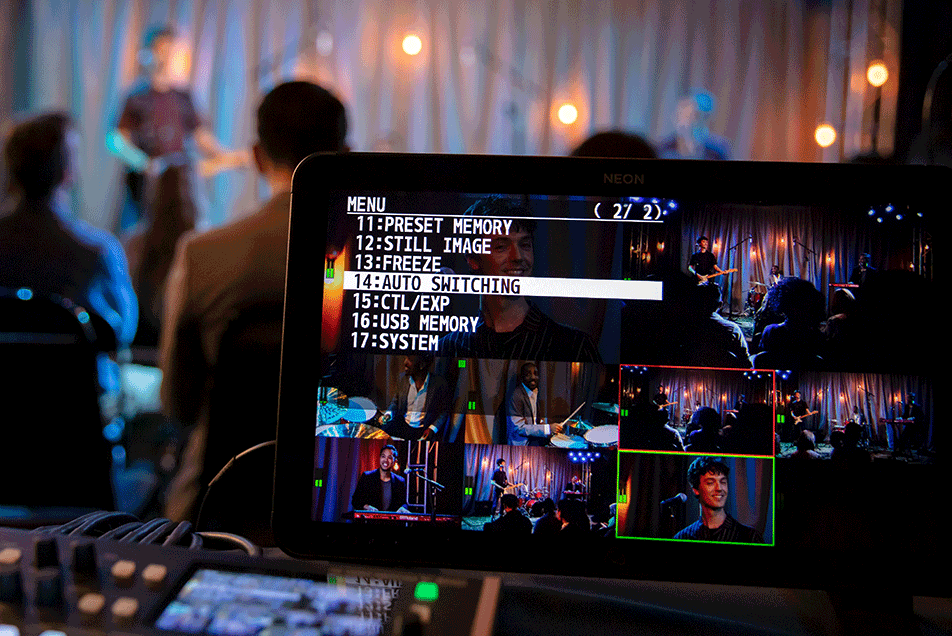

24 preset memories, 100 macros and a 1,000-step sequencer; automatic switching by input, memory or BPM.

Remote control

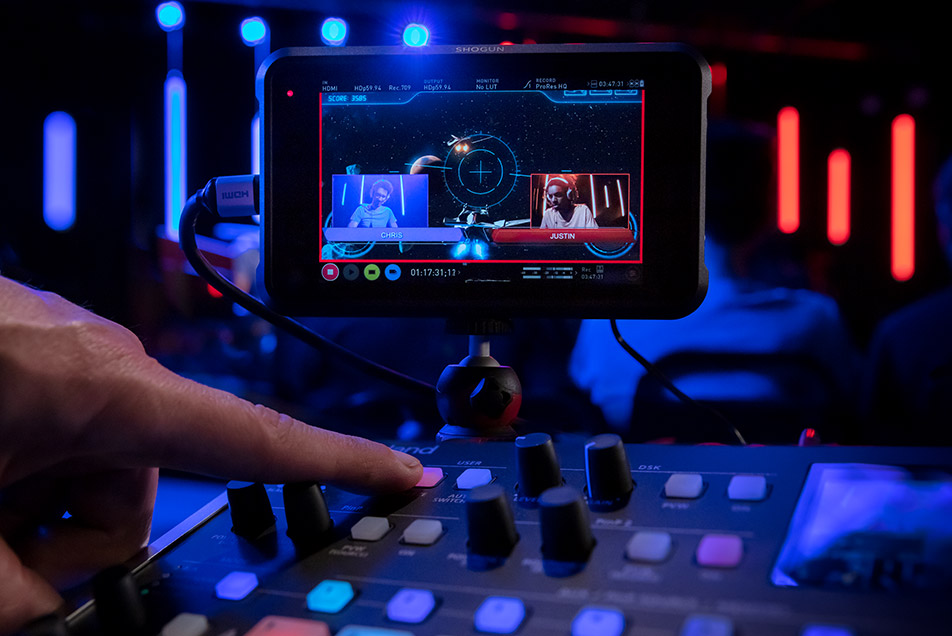

Apps for iPad, macOS and Windows, VenuSet, Graphics Presenter and record triggering for Atomos recorders.

• Roland V-8HD multi-format SD/HD-HDMI live video mixer
• All-HDMI workflow withintegrated multiview 4.3" TFT display
• Video formats: 480, 576, 720, 1080p
• Computer formats: 640×480, 800×600, 1024×768, 1280×800, 1280×1024, 1366×768, 1400×1050, 1600×1200, 1920×1200/60Hz
• 18-channel digital audio mixer with effects integrated
• 5-Layer Effects and keying processor
• AUX output for separate video feed
• automatic switchover possible
• iPad remote control app available (USB-B connection)

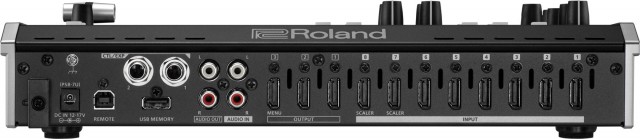

• Video Inputs: 8x HDMI Type-A HDCP support, Scaler on inputs 7-8
• Video Outputs: 3x HDMI Type-A, HDCP support;
• Audio: 2x In (L / R, RCA Phono), 2x Out (L / R, RCA Phono)
• 1x USB-A (for USB Flash Drive); 1x USB-B (iPad control)
• Foot Switch Remote: 2x 1/4 "CTL / EXP (TRS Phone)
• 4:2:2 / 8-bit internal processing
• Dimensions (LxWxH): 317 x 193 x 70 mm; Weight: 2 kg

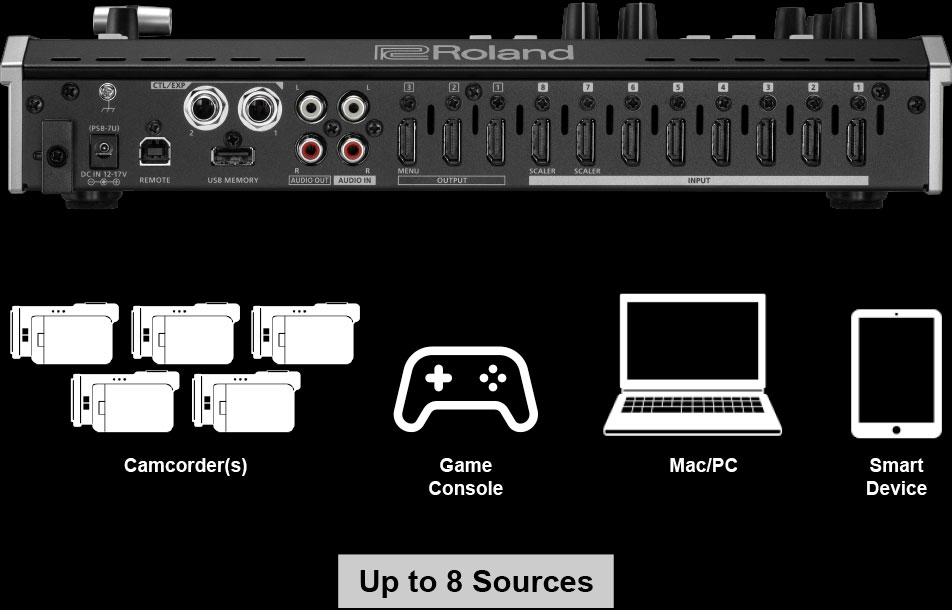

Up to eight sources. Eight HDMI inputs take camcorders, game consoles, computers and smart devices; inputs 7 and 8 also convert computer resolutions.

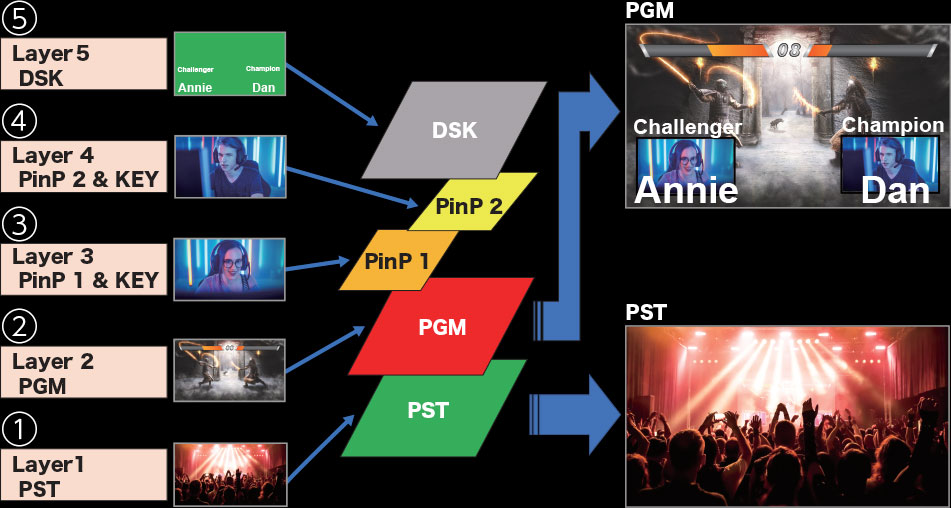

Five video layers. A PST/PGM background, two keyable PinP windows and a DSK for titles and logos are composited into the final programme.

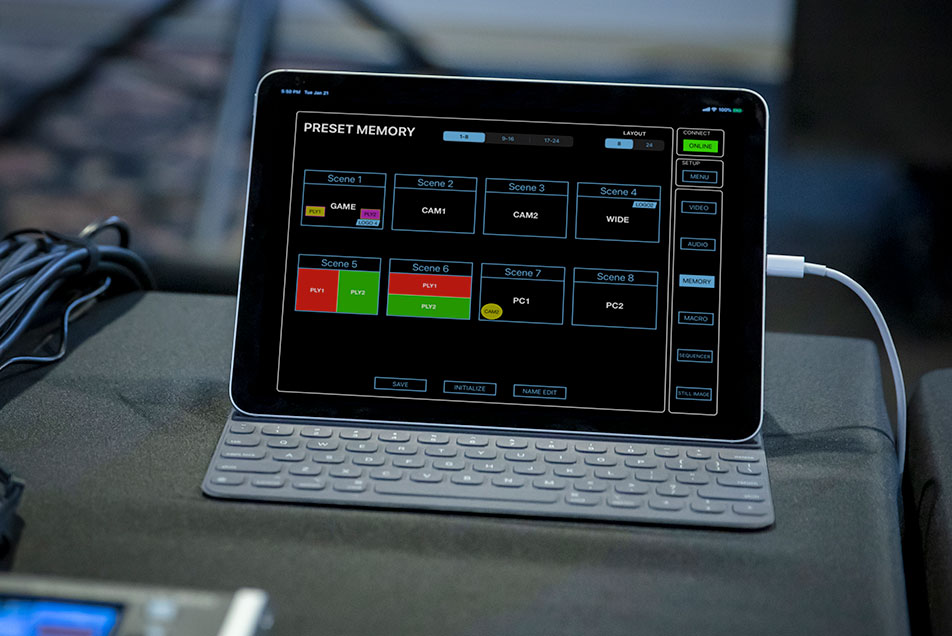

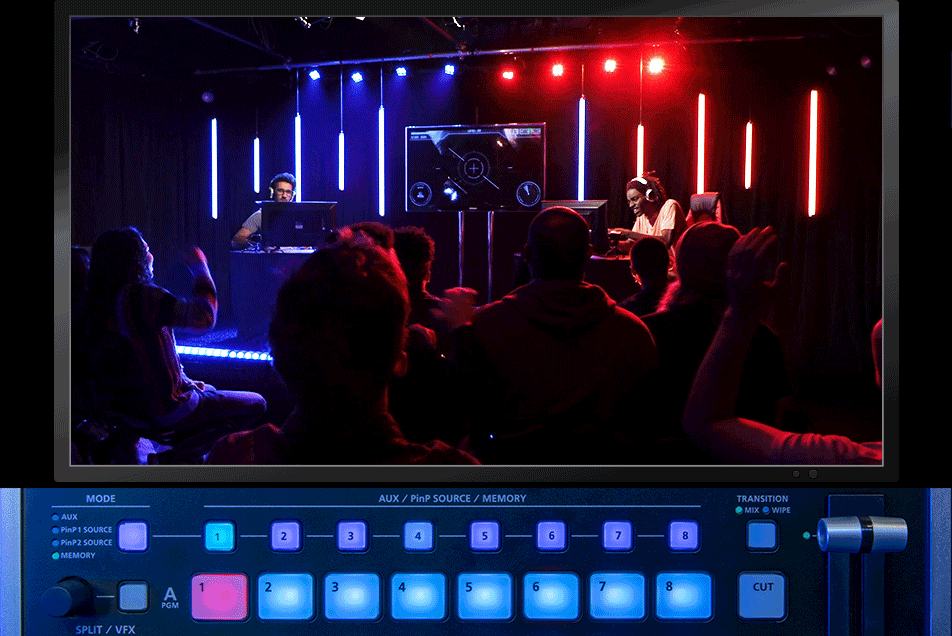

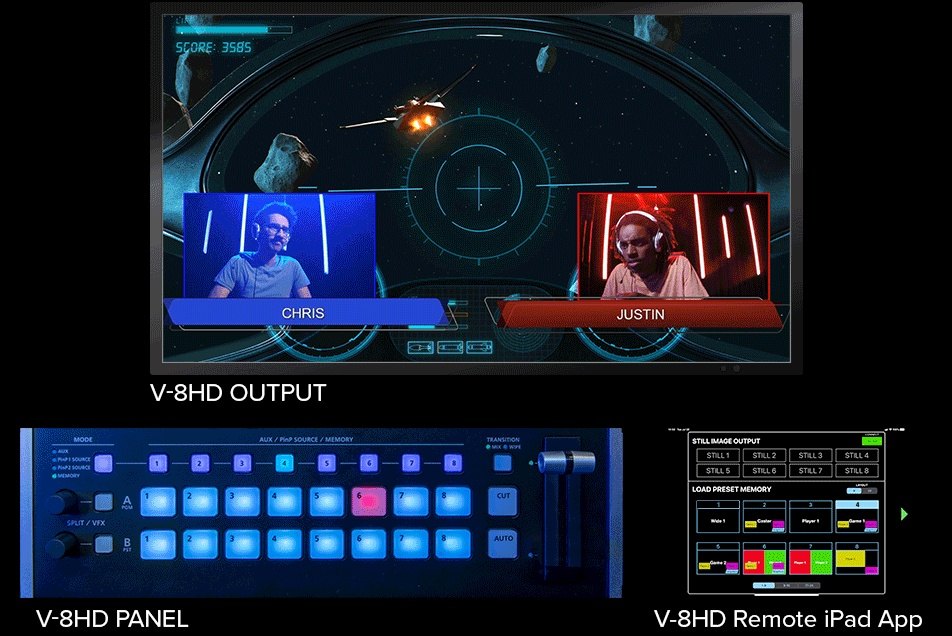

Scene memories. A stored look including all layers is recalled with a single button on the panel or in the V-8HD Remote app for iPad.

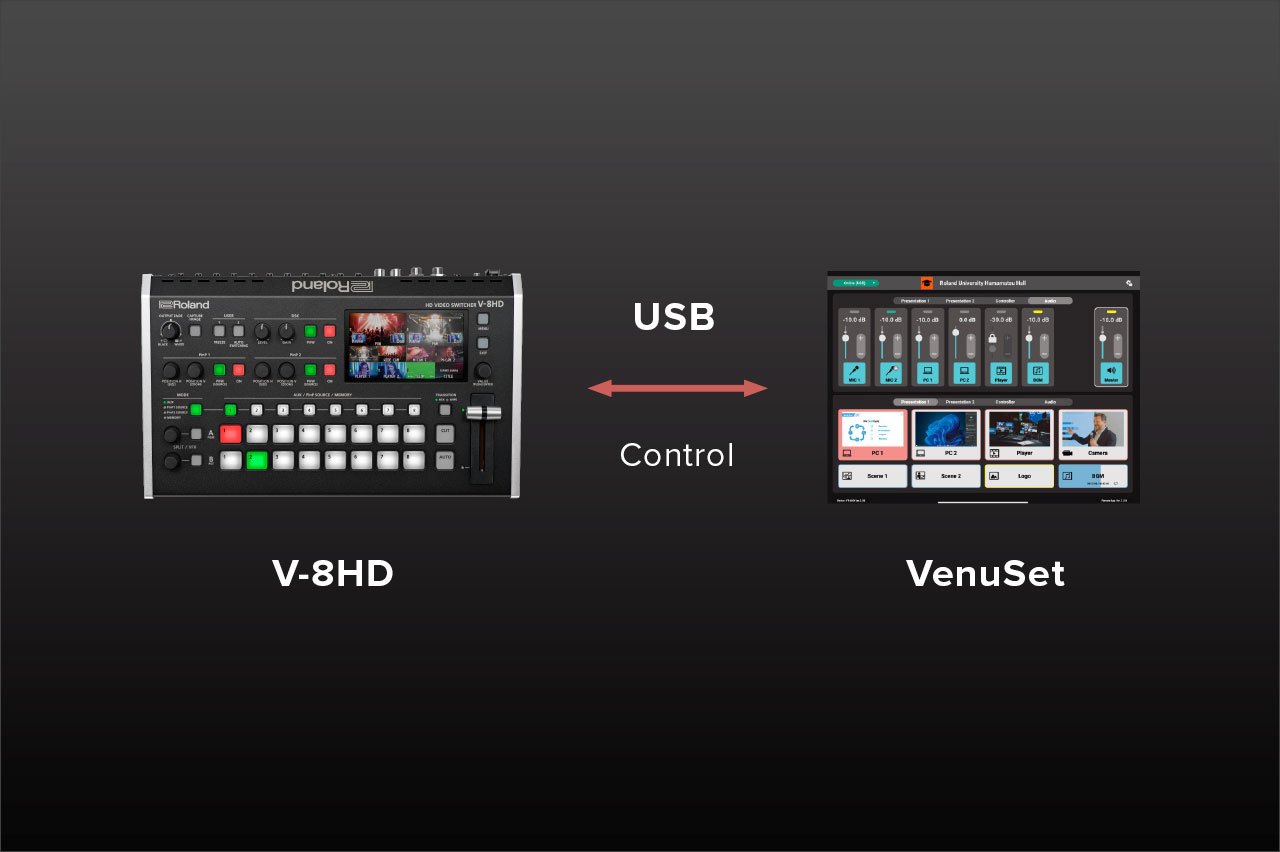

Control with VenuSet. The VenuSet app for iPadOS, macOS and Windows connects to the V-8HD over USB and lets you build your own control panel.
