Roland BOSS FS-7

FS-7 is a compact dual footswitch for remote control of effect pedals or amp channel switching. Two footswitches are arranged in tandem, which saves space on effects pedal boards. Two selectable modes for latch or momentary allow for control of a wide range of equipment.

The BOSS FS-7 is a compact dual footswitch for remote control of effects pedals and amp channel switching. Switches A and B sit in tandem on the footprint of a single pedal, so they take up minimal space on a pedalboard.

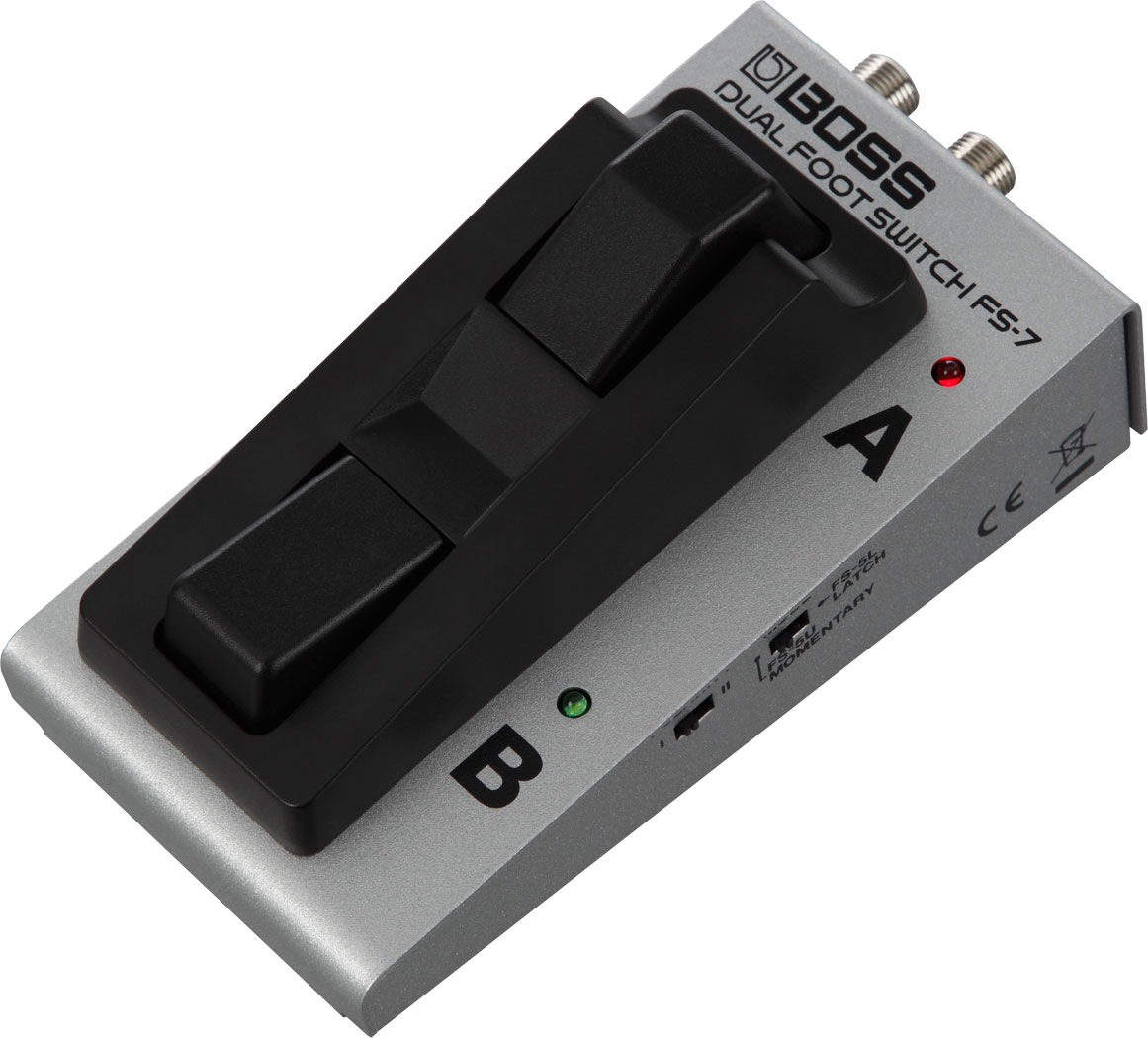

Two switches in the footprint of one pedal

Steel chassis, latch or momentary switching, powered from your pedalboard via the included parallel DC cable.

2 switches A + BLatch / momentarySteel chassisBattery-free62 × 131 mm

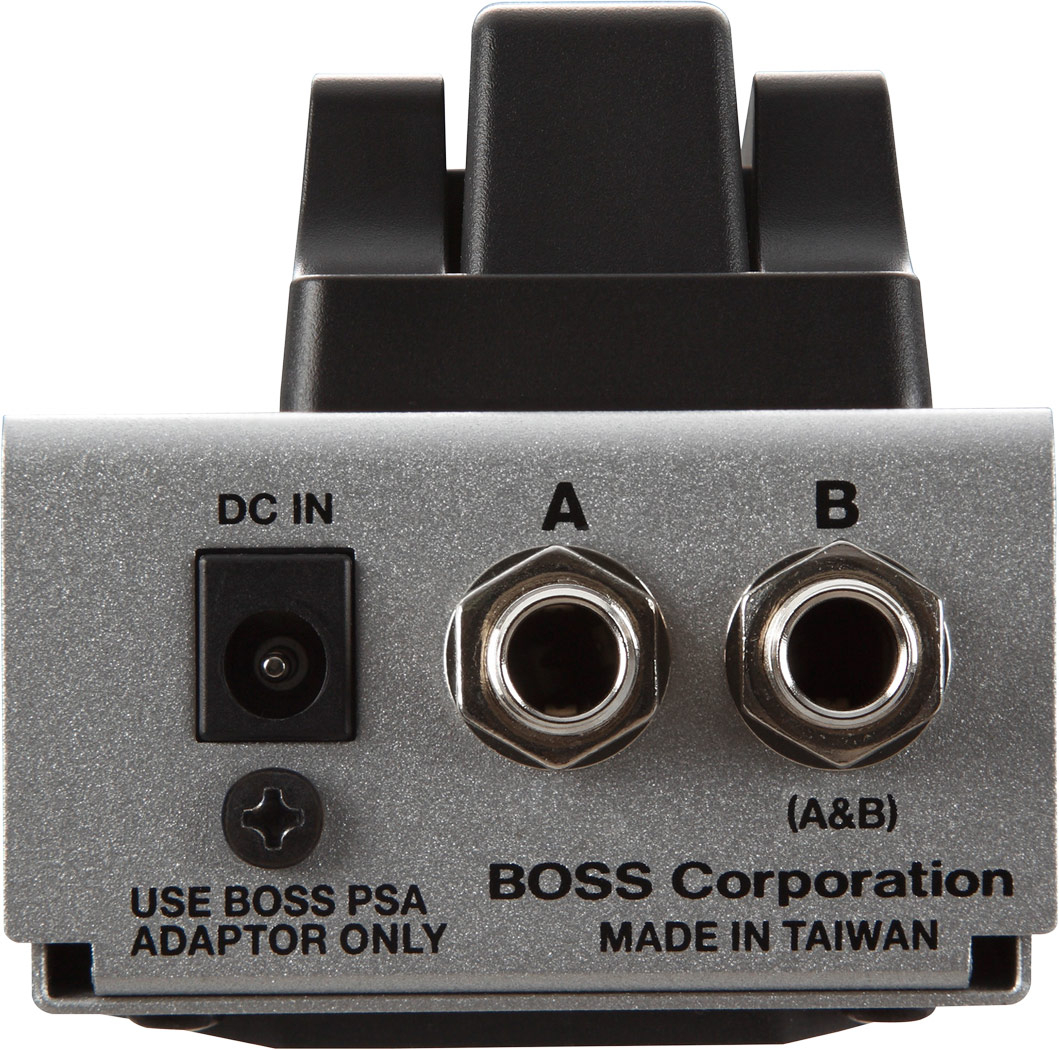

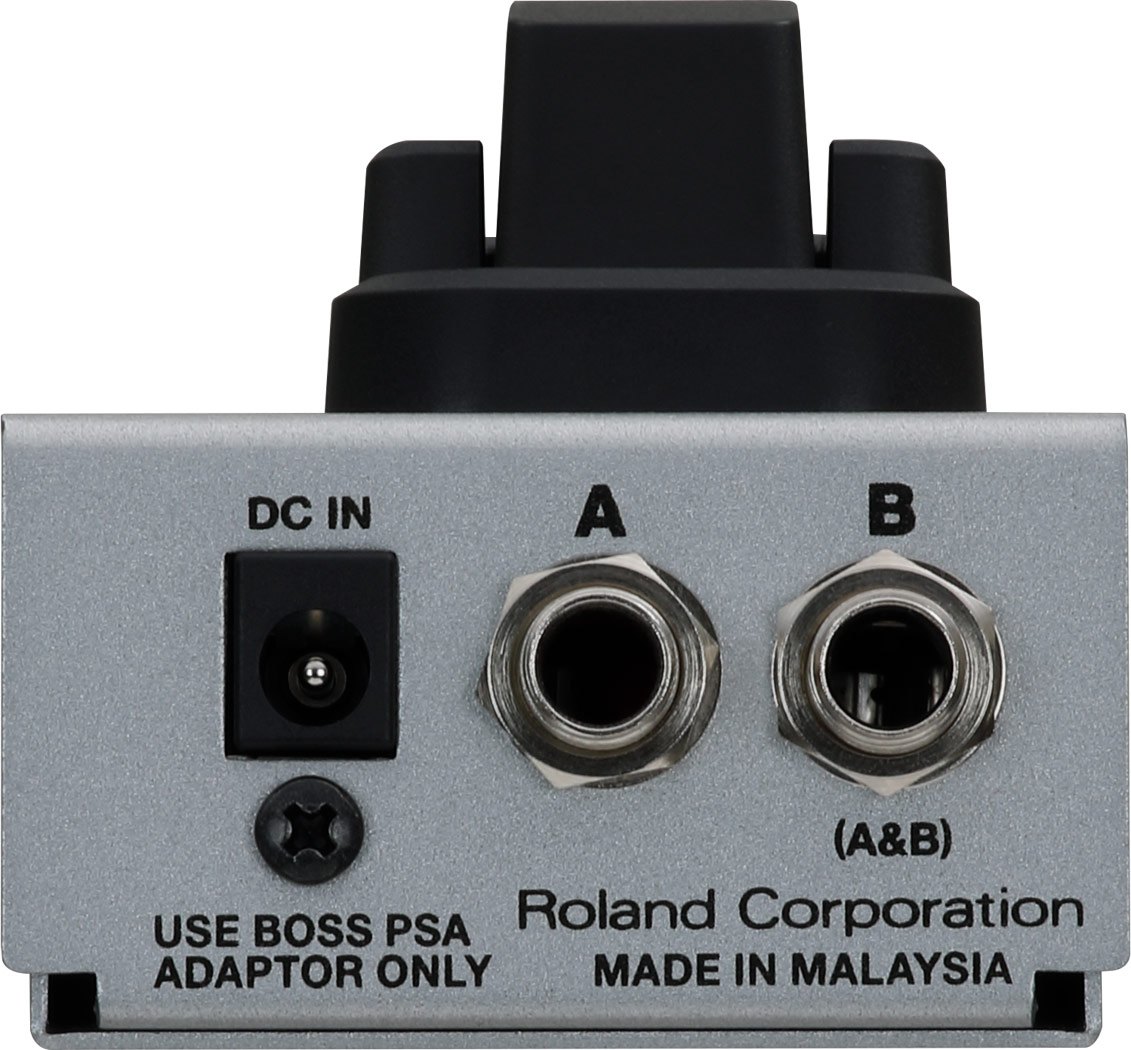

Connectors at the rear

Jack A is a 1/4-inch phone jack and jack B is a 1/4-inch TRS jack that carries both switches over a single stereo cable. Next to them is a DC IN jack for a BOSS PSA-series adaptor.

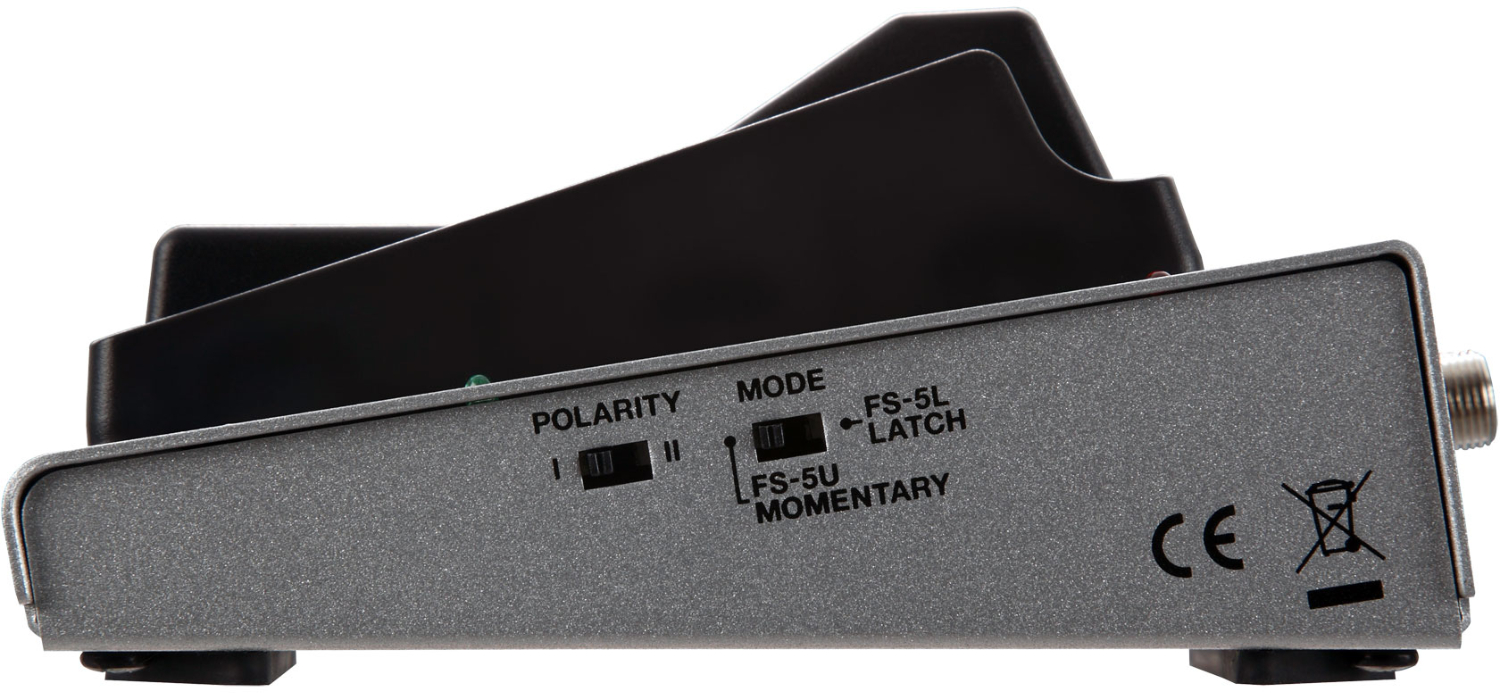

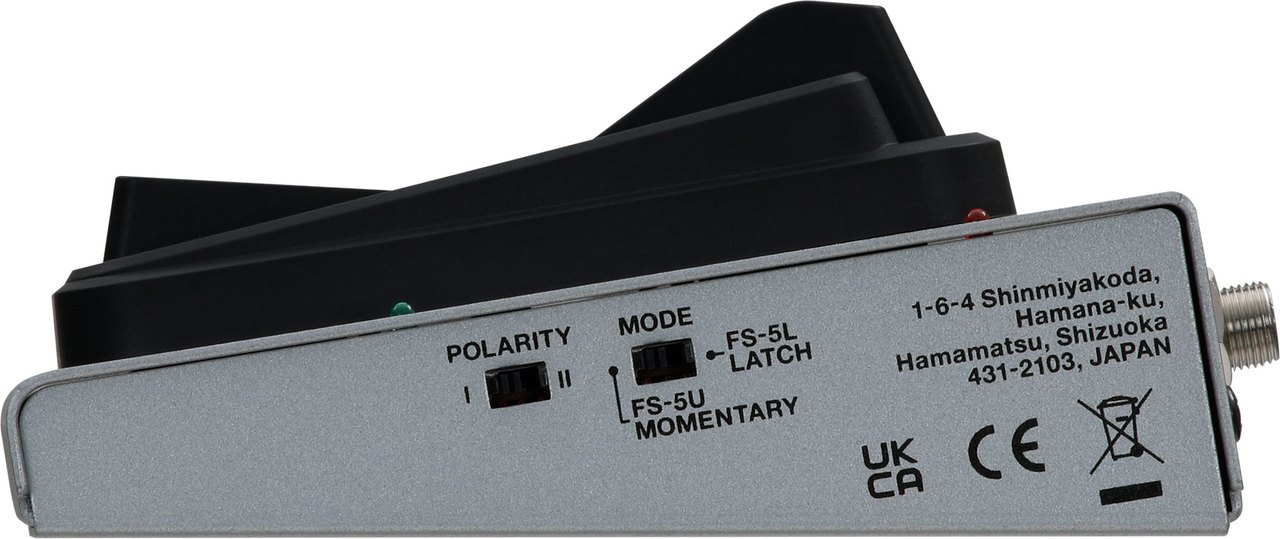

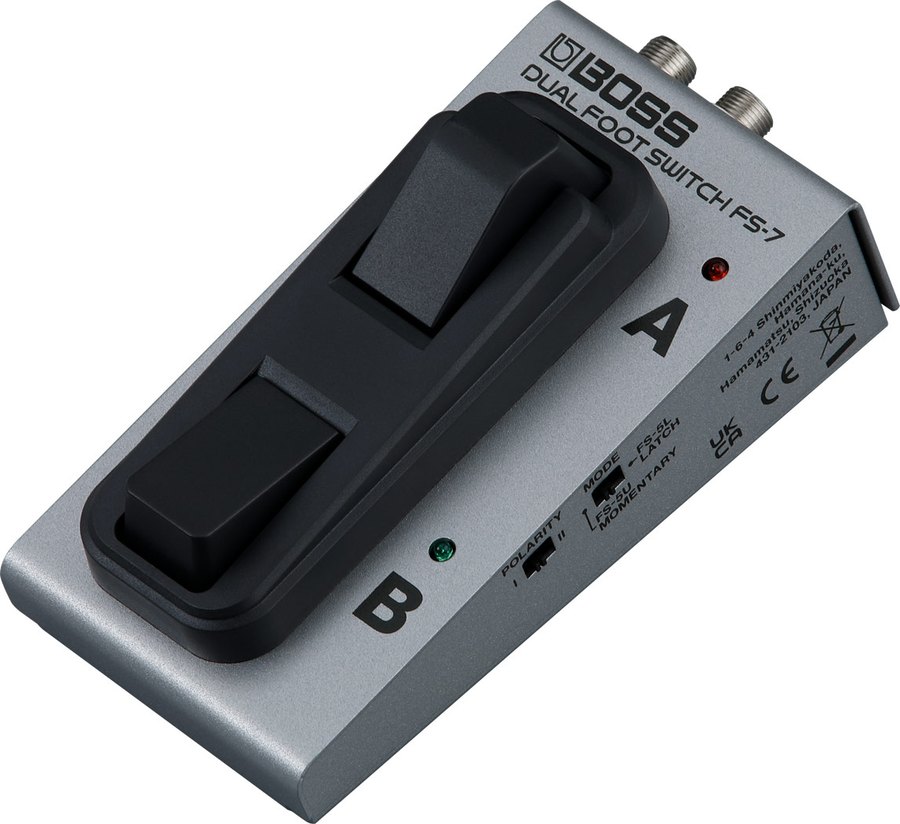

Mode and polarity on the side

The MODE switch selects latch or momentary operation for A and B together, and the POLARITY switch matches the FS-7 to the connected device.

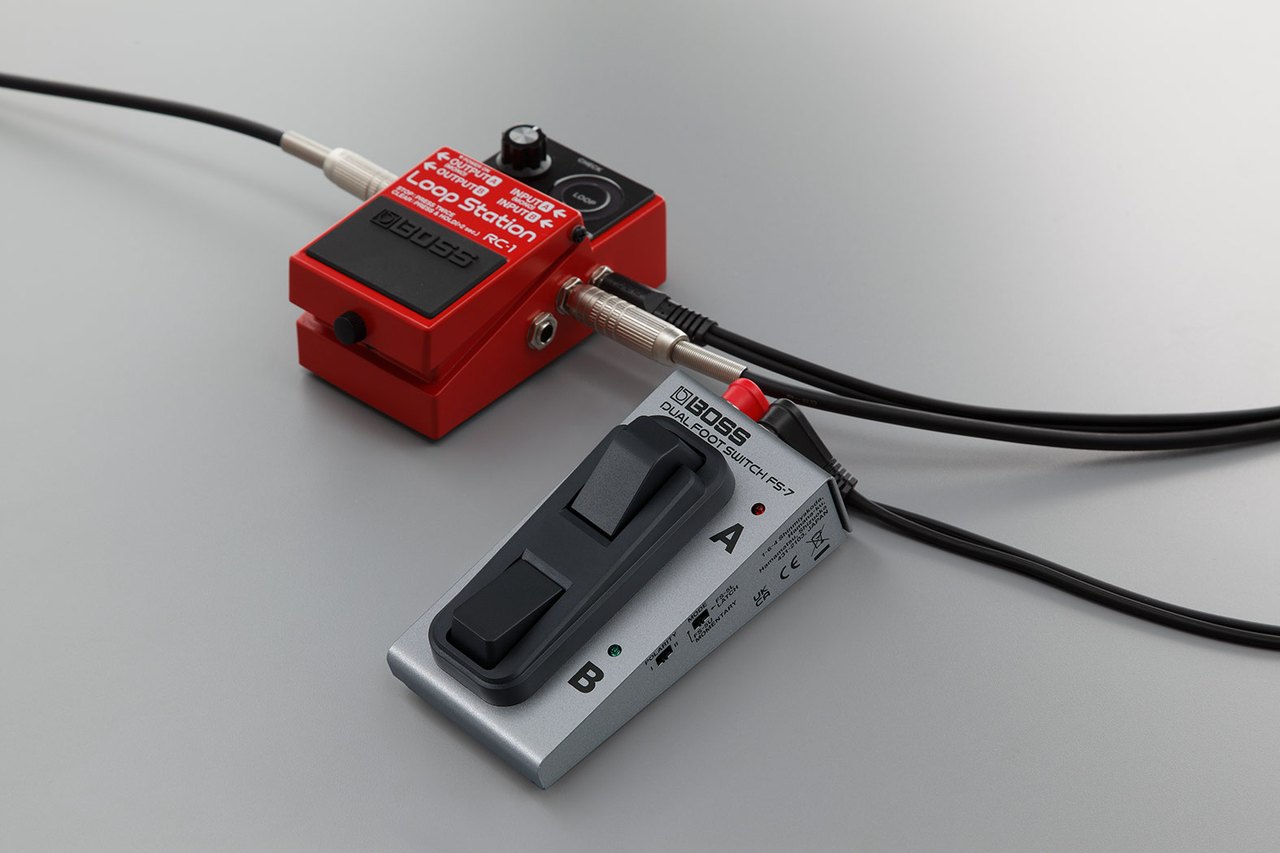

Room on the pedalboard

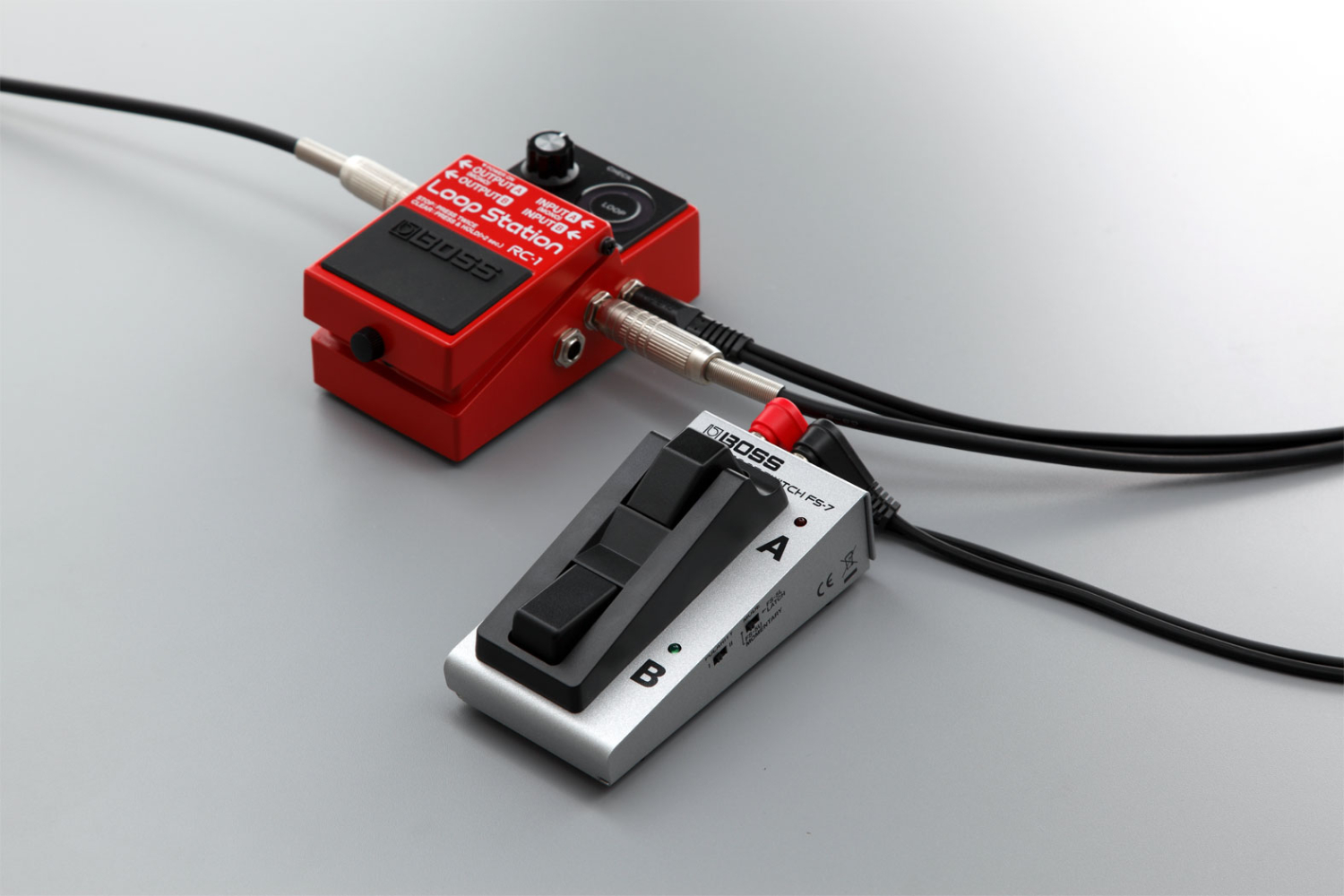

At just 62 mm wide, the FS-7 fits between your pedals and controls a looper or amp channels without a second footswitch alongside.

Works even without power

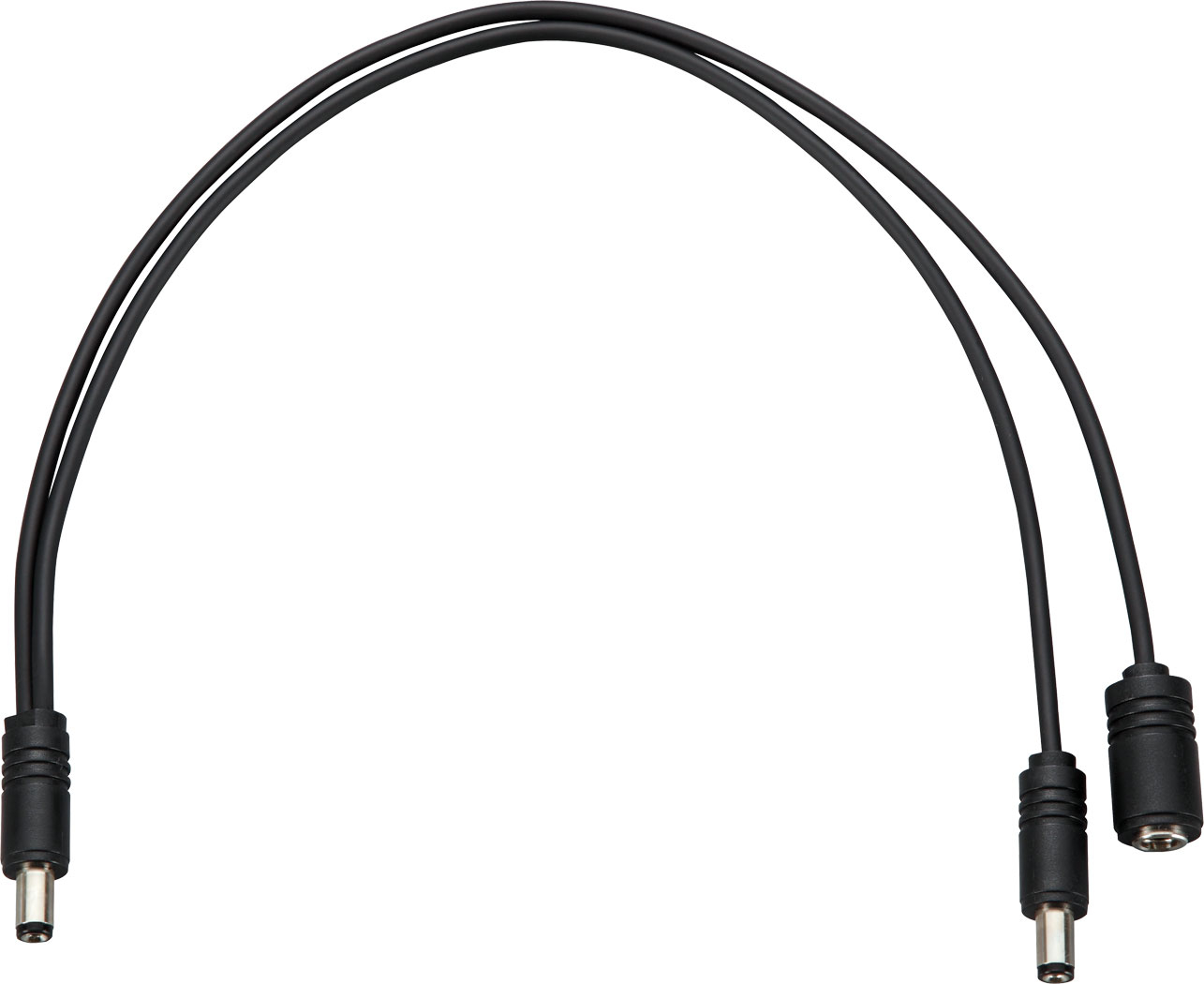

Without an adaptor the FS-7 operates as a momentary switch; only the LEDs stay dark. With 9 V power supplied from the pedalboard over the included parallel DC cable, it also offers latch mode and status indication.

Latch and momentary

A single MODE switch sets the mode for both footswitches at once.

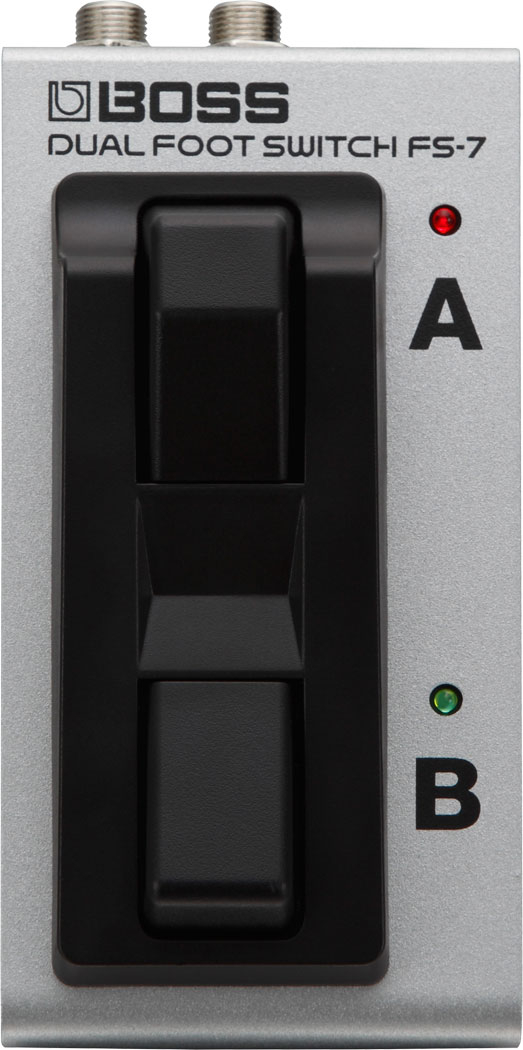

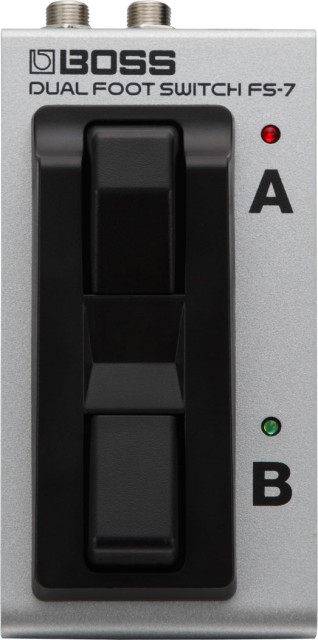

LED indicators

Each switch has its own A and B status indicator.

Steel construction

A durable steel chassis, with rubber feet in the box.

Low current draw

Just 25 mA from a BOSS PSA adaptor or pedalboard power.

• Dual footswitch in a small footprint
• Latch/momentary switching function (common to A and B)
• Durable steel chassis
• Battery-free operation ideal for pedal boards
• Power via 9v adapter (power splitter included)
• Operates as momentary switch with no power*

  *LEDs will not illuminate without AC power.
