BOSS FS-6

Two switches in one, BOSS’s FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.

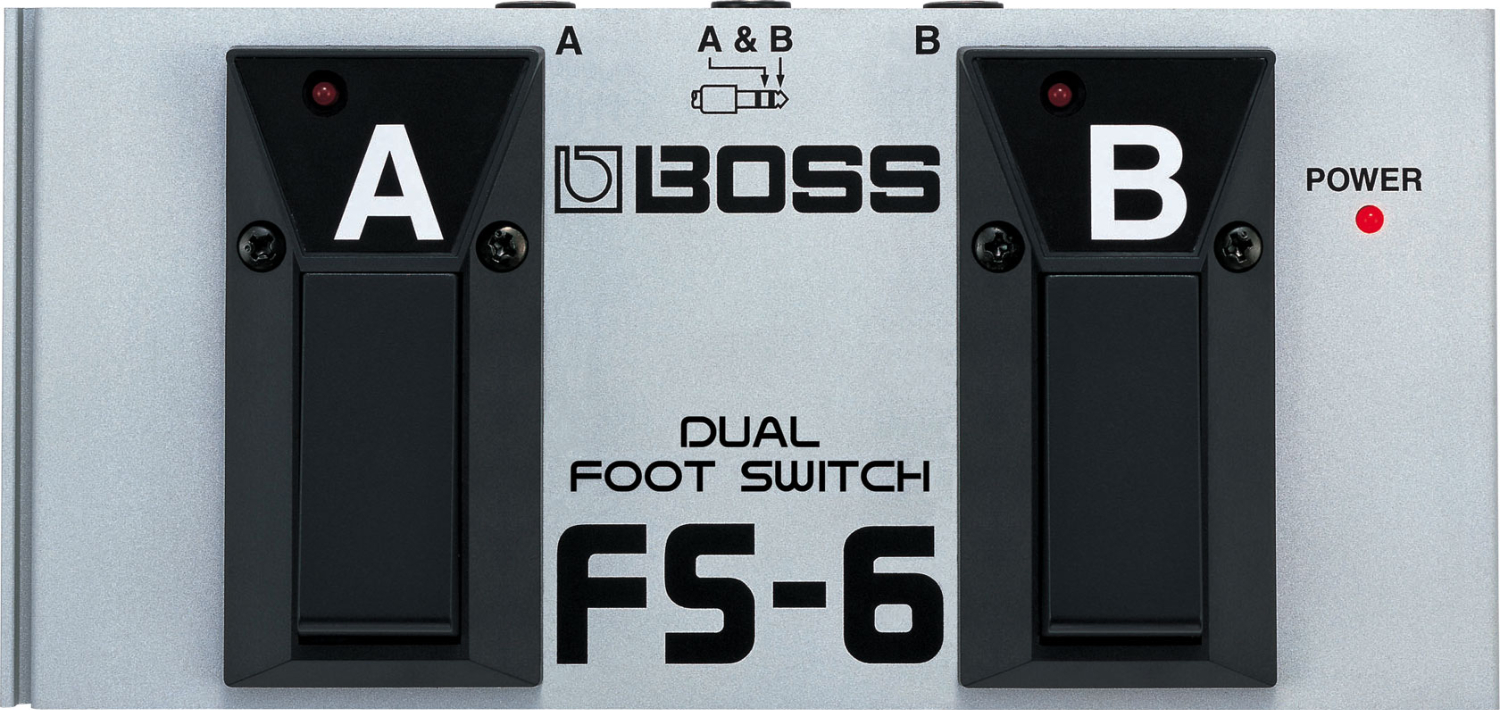

The BOSS FS-6 houses two footswitches, A and B, in a single metal enclosure. Each can work as a latch type (FS-5L) or a momentary type (FS-5U), so the FS-6 controls instruments, rhythm machines, guitar amps and other gear with a footswitch control input.

Two switches, each with its own mode

Latch or momentary set separately for A and B, adjustable polarity and connection over a single stereo cable.

2 switches A + BLatch / momentaryTRS output A & B9 V batteryUp to 100 h runtime

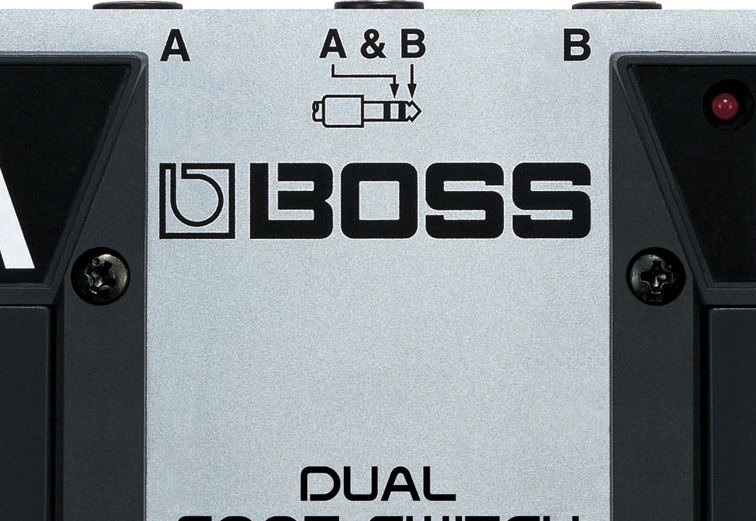

Three jacks on top

Jacks A and B each control one device, while the A & B jack (1/4-inch TRS) carries both switches over a single stereo cable to gear with a TRS input.

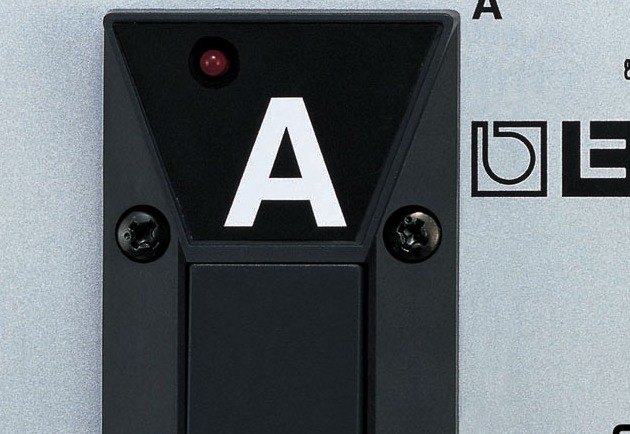

Switch A with its own LED

The MODE switches set latch or momentary operation for each footswitch. The indicator above the pedal shows whether the switch is on.

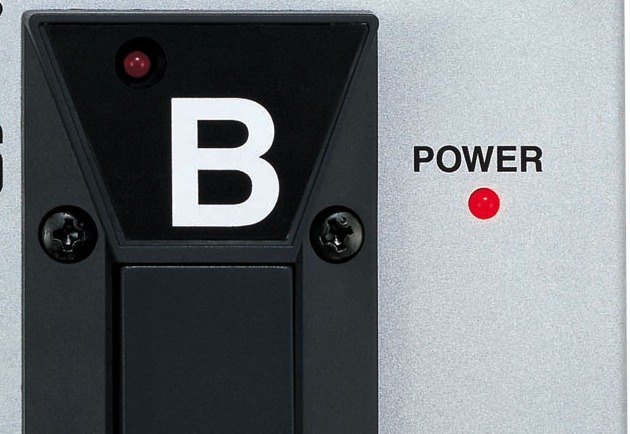

Switch B and the POWER indicator

Power turns on automatically as soon as a cable is plugged into a jack. When the POWER indicator dims, it is time to replace the 9 V battery.

FS-5L and FS-5U in one

The FS-6 combines the functions of the FS-5L latch-type and FS-5U momentary-type footswitches. For extended control it can be connected to another FS-6, to FS-5U/FS-5L footswitches or to an AB-2.

Polarity for A and B

POLARITY switches match each footswitch to the requirements of the connected device.

Up to 100 hours on a battery

An alkaline 9 V battery lasts up to 100 hours of continuous use.

One cable

Gear with a TRS input needs just one cable with stereo plugs at both ends.

Metal enclosure

188 × 91 × 43 mm and 470 g including battery.

• Each footswitch can be assigned latch- or momentary-type
• Stereo input jack for single stereo cable connection
• Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
• Connect to a wide variety of instruments, rhythm machines, guitar amps, and electronic devices that have control input jacks compatible with FS-5L/FS-5U
