Roland VC-1-DMX

Dynamic lighting elevates the energy and excitement of any interactive event, from music concerts and dance clubs to house parties and the local karaoke bar. With the VC-1-DMX Video Lighting Converter, it’s never been easier to bring the impact of a pro light show to any event you put on.

More information

Promotion: -12%
668.53 € 585.46 € with VAT 483.85 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

Dynamic lighting elevates the energy and excitement of any interactive event, from music concerts and dance clubs to house parties and the local karaoke bar. With the VC-1-DMX Video Lighting Converter, it’s never been easier to bring the impact of a pro light show to any event you put on.

The VC-1-DMX is a converter that turns video and audio into DMX control data for lighting. The colour and brightness of the lights follow the current HDMI image, flashes and mirror balls run in time with the music, and MIDI control can take the show further.

A light show with no lighting operator

Connect a source over HDMI or analogue audio and the VC-1-DMX creates lighting effects for 512 DMX channels on its own.

HDMI IN + THRU512 DMX channelsLights follow the pictureLights follow the musicMIDI IN + USB MIDI

Lights that follow the picture

HDMI video is analysed in up to 32 colour areas. Split the image into eight vertical segments, assign them to eight lights in a row, and the lights track horizontal movement in the shot.

Bars, clubs and halls

In bars, nightclubs, banquet halls and at business events, lighting synced to video or presentation slides brings the space to life.

Karaoke like a concert

Dynamic lighting that matches the music gives singers and the audience the feel of a real concert, with no one at the lighting desk.

Want more? Add MIDI

A hardware MIDI controller switches DMX maps and adjusts global dimming, tilt or pan. Notes from keyboards, electronic drums or a DJ controller create lighting effects that follow the live performance, and USB MIDI lets you drive the lights from software on a computer.

4 maps, 512 channels

Four channel maps selected by DIP switches, with daisy-chaining of multiple lighting devices.

15-band filter

Since Version 2.0 lights can be tied to specific frequency bands, with bandwidth and gain per band.

Audio Link

Version 2.1 added Color Enhance and lighting brightness controlled by the audio input level.

Setup Tool

Software for macOS and Windows to assign channels and share settings between units.

The VC-1-DMX automatically generates control commands for your DMX lighting setup based on input from video and audio sources, eliminating the need for a dedicated lighting operator. Color and brightness change based on the current video image, and lights and mirror balls operate in sync with the music tempo. And if you want to dive deeper, the VC-1-DMX supports external MIDI operation from hardware control surfaces, electronic musical instruments, and computer-based production software.

  • Automatically generates dynamic lighting effects to enhance any event
  • Outputs a DMX signal synchronized with incoming video and audio signals
  • Real-time analysis and lightning-fast processing with advanced Roland technology
  • Connect your A/V source to the HDMI input for analysis and distribute the unprocessed signal to a monitor or switcher via HDMI thru
  • Analog audio also supported with stereo I/O
  • Supports external MIDI control via dedicated MIDI input and USB MIDI
  • Customize DMX settings with dedicated software for macOS and Windows
  • Remotely choose maps with the default settings of the BOSS FS-1-WL MIDI footswitch (a TRS to 5-pin MIDI cable such as the BOSS BMIDI-5-35 is required for connection)

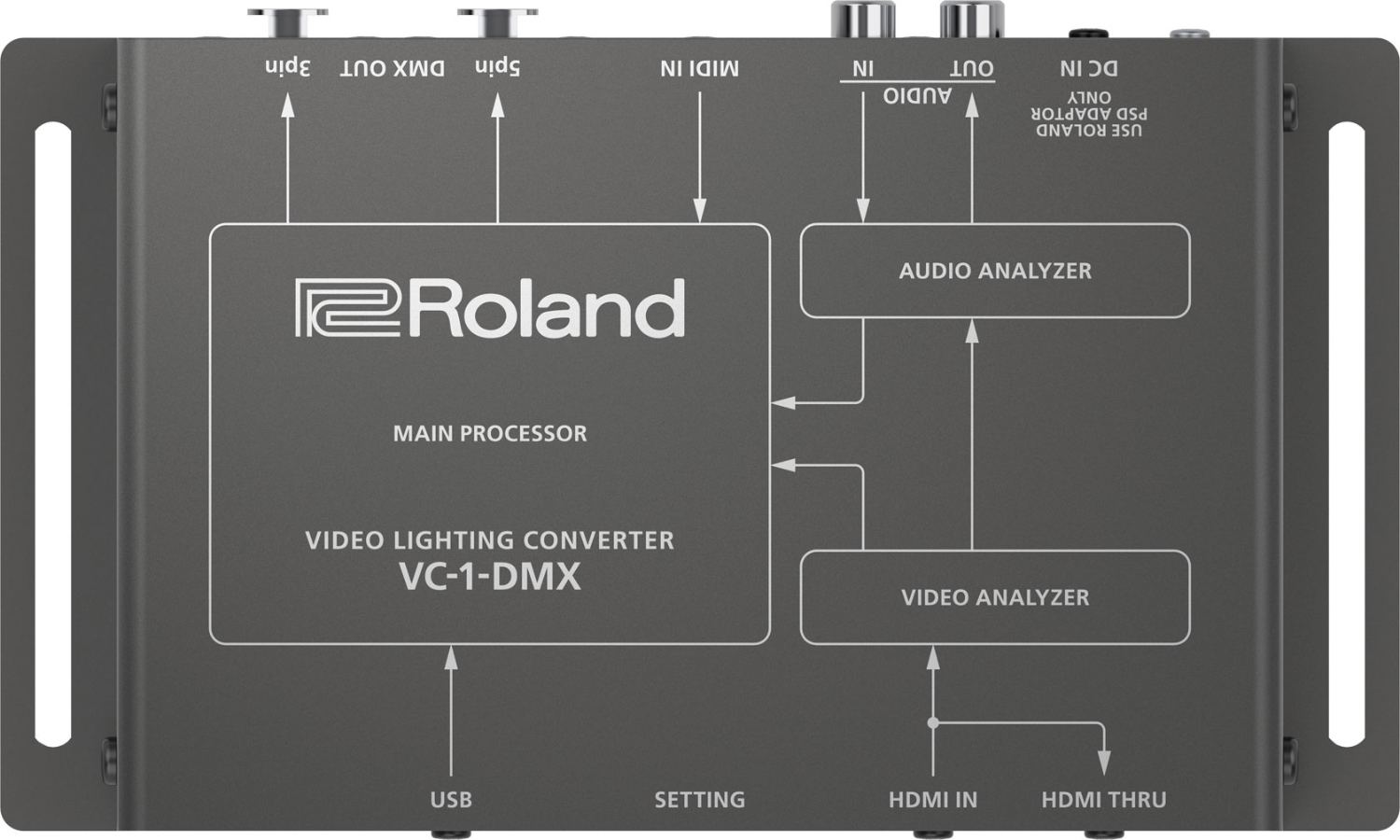

How it works. HDMI video and audio pass through the video and audio analysers, analogue audio goes to the audio analyser, and MIDI and USB feed the lighting controller directly, which builds the DMX signal from them.

Video analysis. The brightness of each of up to 32 colour areas in the image can be assigned to DMX channels, so the colour and brightness of the lights match what is on screen.

Lights in time with the music. From audio on the HDMI and analogue inputs, the VC-1-DMX derives the beat for flashes and the rotation speed of a mirror ball, and it can turn the lights off when the music stops.

Setup on a computer. The VC-1-DMX Setup Tool for macOS and Windows freely assigns the 512 DMX channels to your fixtures and makes it easy to copy settings to other units.

PACKAGE CONTENT

  • VC-1-DMX converter ×1
  • AC adaptor ×1
  • Plug holder ×1
  • Rubber feet
  • Owner's Manual ×1
  • Leaflet "Using the Unit Safely" ×1

SPECIFICATIONS

  • Brand: Roland
  • Model: VC-1-DMX
  • Type: video lighting converter (video/audio to DMX)

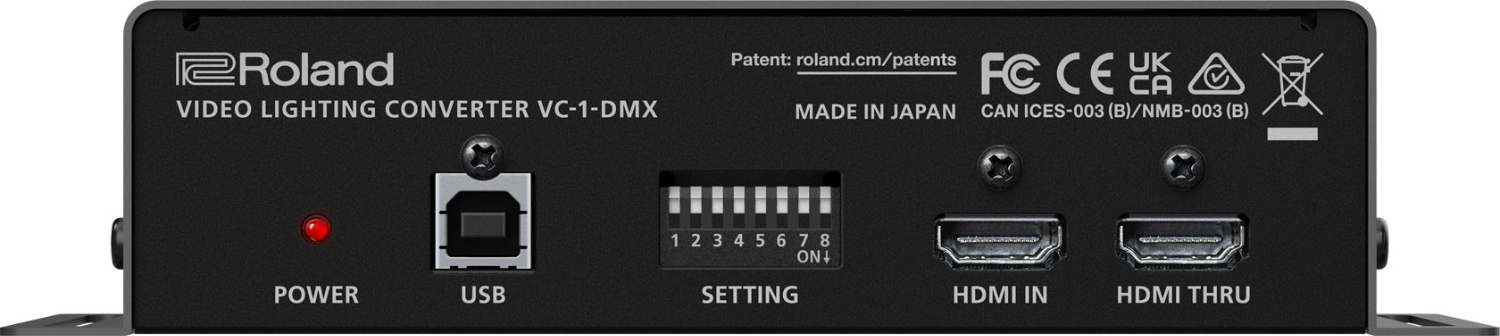

  • Video input: HDMI IN (type A), HDCP, multi-format
  • Video output: HDMI THRU (type A)
  • Video formats: 480i/576i to 1080p (50/59.94 Hz), VESA VGA to FHD 1920 × 1080/60 Hz
  • Audio inputs: AUDIO IN (RCA), HDMI IN
  • Audio outputs: AUDIO OUT (RCA), HDMI THRU
  • Audio format: linear PCM, 48 kHz, 24-bit, stereo
  • Input / output level: −10 dBu (max. +8 dBu)
  • Impedance: input 15 kΩ, output 1 kΩ

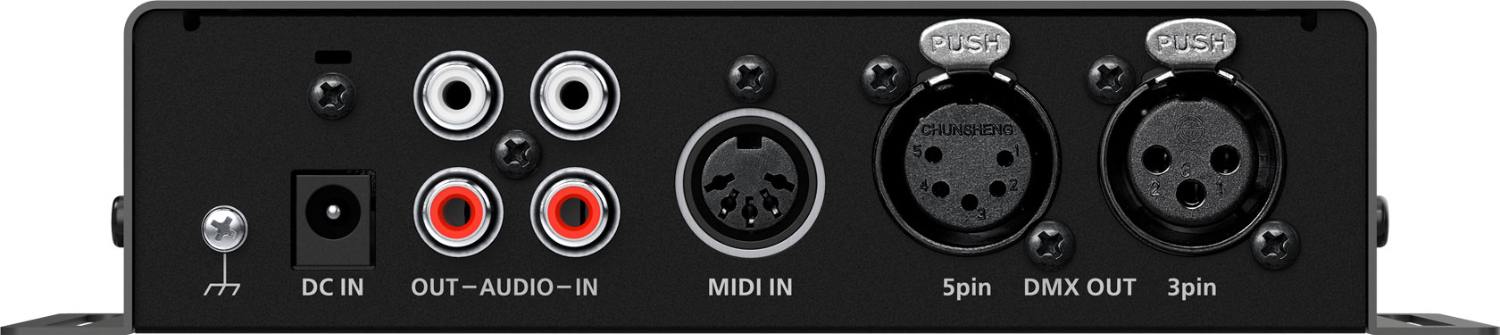

  • DMX outputs: XLR 3-pin, XLR 5-pin
  • DMX channels: 512 (1 universe)
  • Control: MIDI IN, USB (USB MIDI), SETTING switch (8 positions)
  • Functions: video, audio and MIDI synchronised lighting control, lighting speed control, HDMI audio de-embedder
  • Power: AC adaptor, 1,000 mA, 5.7 W
  • Operating temperature: 0 to 40 °C
  • Dimensions: 180 × 115 × 41 mm (W × D × H)
  • Weight: 570 g (without AC adaptor)

ARTICLES

WE RECOMMEND

The Roland VC-1-DMX is an innovative converter designed for automating light shows based on real-time analysis of video and audio signals. To get the most out of it, it is essential to ensure high-quality connectivity using SDI cables and compatible video control systems, which serve as the primary signal sources.

SDI Cables - High-quality SDI cables for stable video signal transmission to the converter’s input and subsequent distribution.

Audio and DMX connection cables - Cables with XLR and TRS connectors for connecting to lighting equipment via the DMX interface and for audio signal transmission.

Video Switches and Signal Sources - Compatible Roland video switches that provide HDMI or SDI output for image analysis in the VC-1-DMX converter.
