Roland VC-1-SH

The Roland VC-1-SH losslessly converts level A and B 3G/HD/SD-SDI to HDMI while passing the SDI signal on through a thru output. It de-embeds SDI audio to analogue TRS or AES3, or embeds it, and can be controlled with the VC-1 RCS app.

More information

659 € with VAT 544.63 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The Roland VC-1-SH losslessly converts level A and B 3G/HD/SD-SDI to HDMI while passing the SDI signal on through a thru output. It de-embeds SDI audio to analogue TRS or AES3, or embeds it, and can be controlled with the VC-1 RCS app.

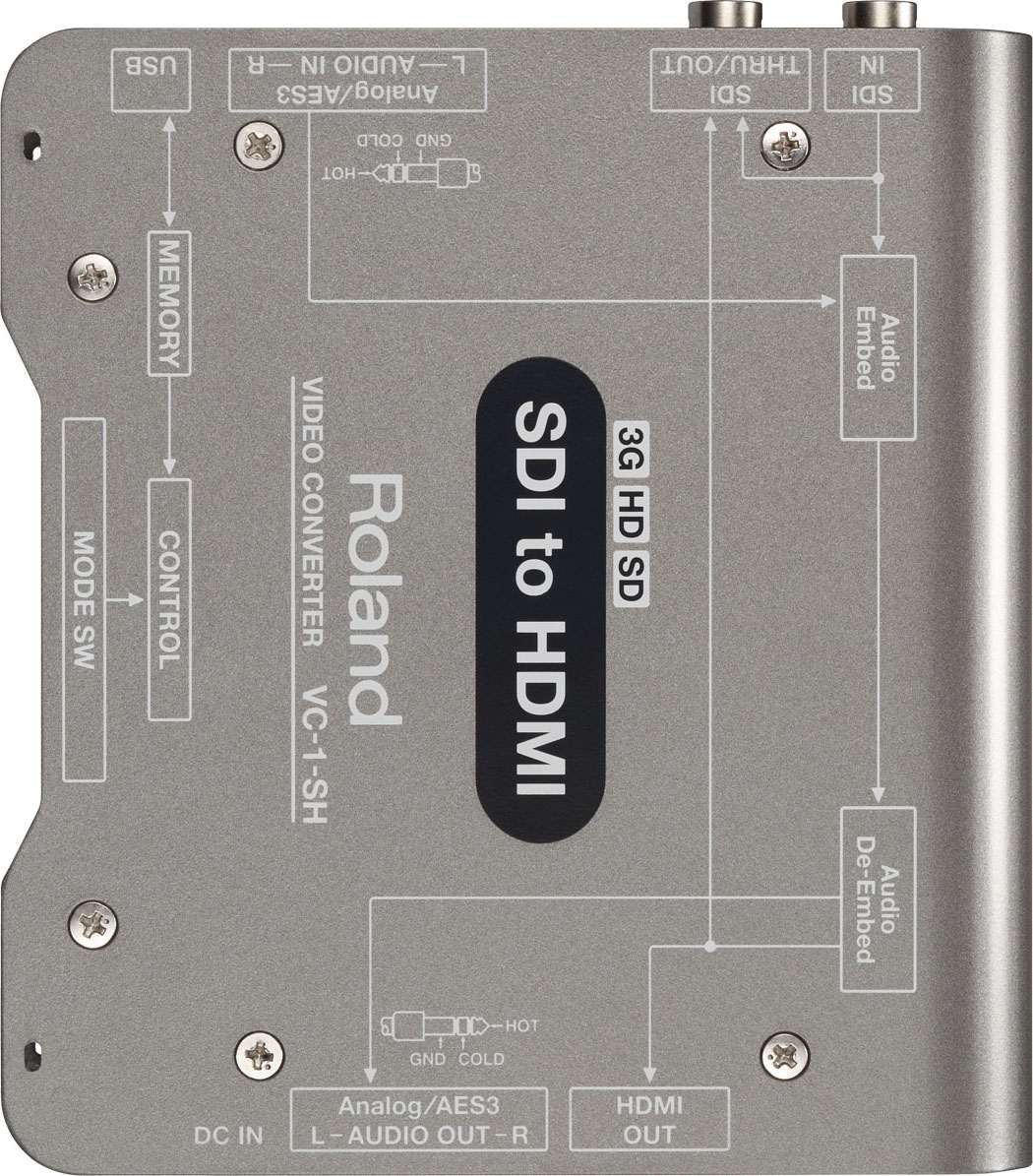

The VC-1-SH converts video and audio from SDI to HDMI. Show the signal from an SDI camera or production system on an ordinary HDMI monitor or TV, or feed it into the HDMI input of a video mixer.

SDI to an HDMI monitor, no compromise

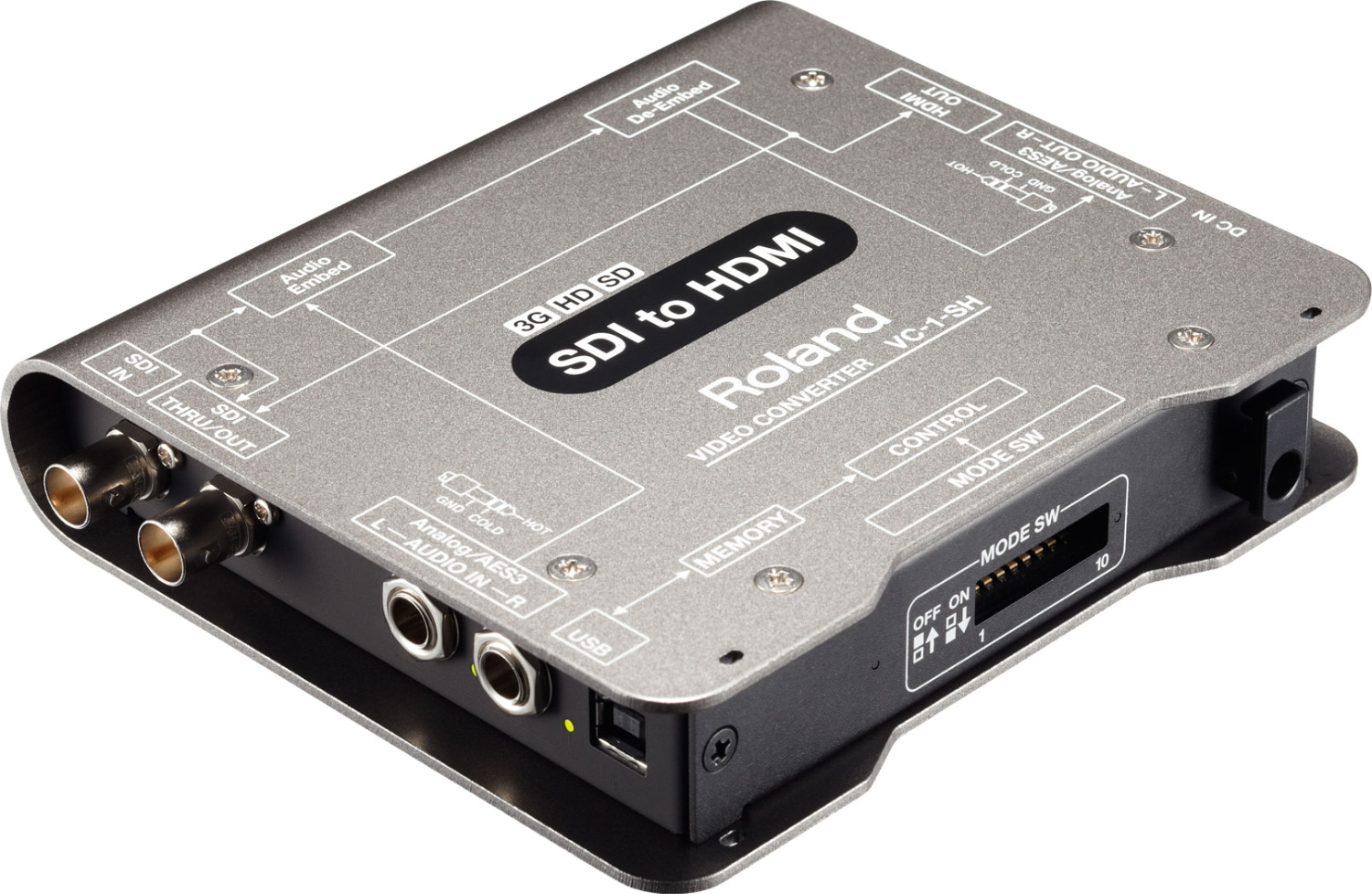

Lossless 3G-SDI to HDMI conversion with SDI thru, audio de-embedding and embedding in a compact metal housing.

3G/HD/SD-SDI → HDMISDI THRULevel A and BAudio de-embeddingRe-clockerVC-1 RCS

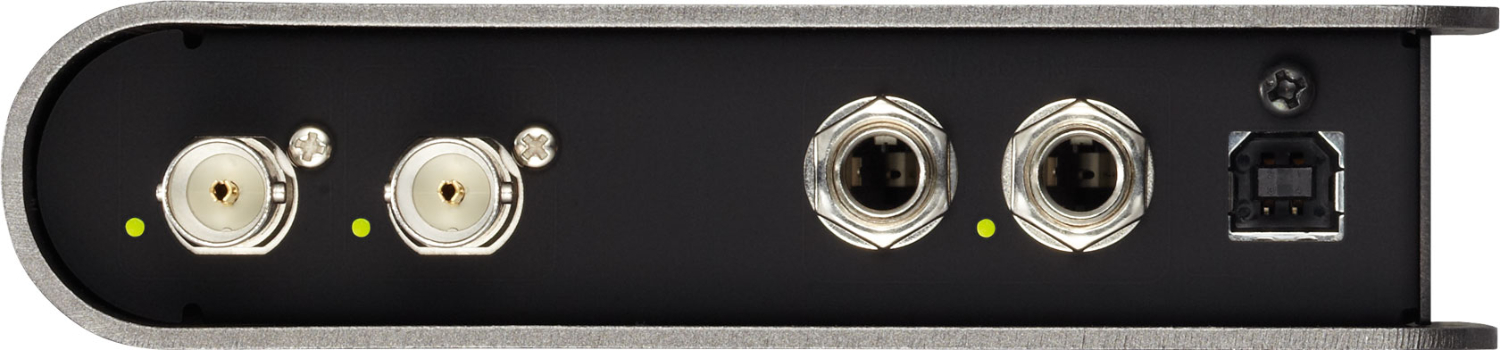

SDI input with thru output

The SDI signal enters on a BNC connector and continues out of a second one, so the converter can sit in an existing signal path. The built-in re-clocker compensates for attenuation over long cables.

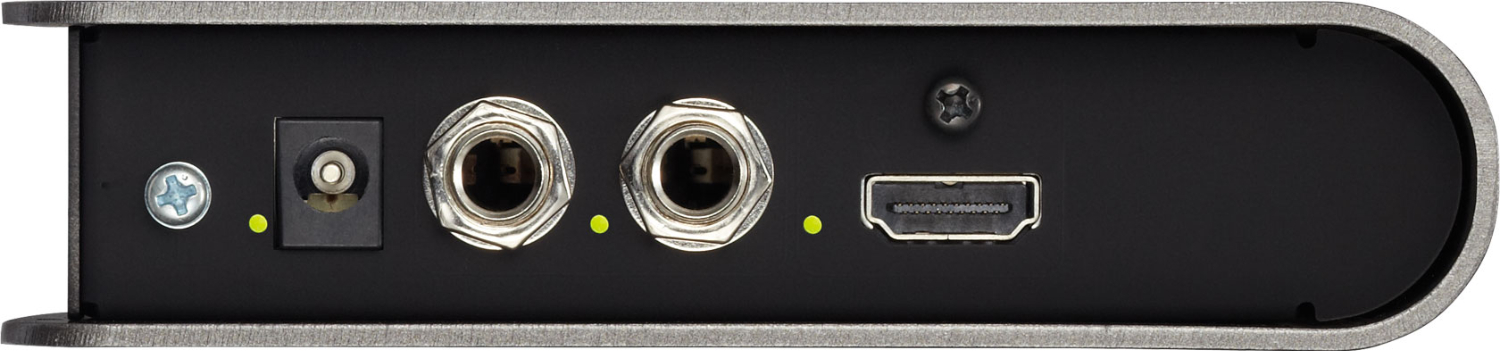

HDMI output for monitoring

The HDMI output feeds an affordable monitor, TV or projector. SDI audio can be de-embedded to balanced 1/4" TRS jacks or to AES3 digital audio.

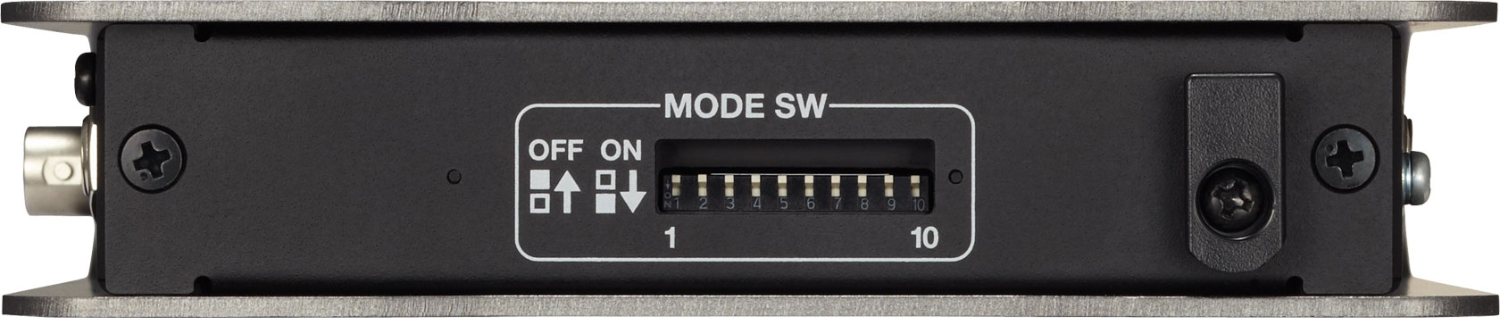

Set up by switches or computer

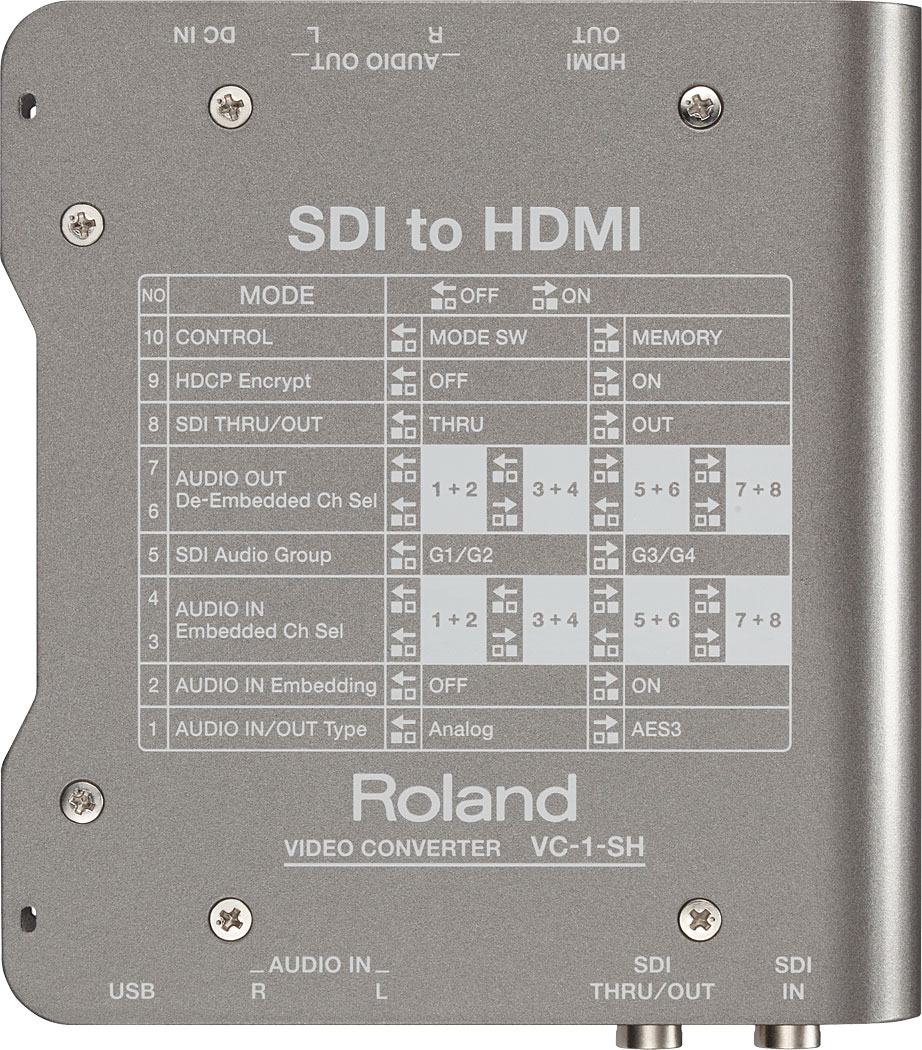

Audio channels, output mode and other options are set with DIP switches on the unit or over USB in the VC-1 RCS app for PC and Mac.

More affordable SDI monitoring

Monitors with SDI inputs can be prohibitively expensive for some applications. The VC-1-SH converts SDI to HDMI so you can monitor on ordinary screens. It also lets SDI cameras feed video mixers with HDMI inputs such as the Roland V-40HD.

Uncompromising picture

Conversion keeps the character of the original signal with rich blacks and clean whites, free of interlacing artefacts.

3G-SDI level A and B

Input to SMPTE 424M, 292M and 259M-C for 3G, HD and SD SDI.

Audio as you need it

Selectable channels for de-embedding or embedding analogue or AES3 audio.

STAR Award

The VC-1 series won TV Technology’s STAR Award at NAB 2013.

Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems.

The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

Roland VC-1-SH.

The cost of SDI monitoring sometimes can be prohibitive for certain applications.  The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.

  • SDI to HDMI Conversion
  • Lossless Image Conversion
  • 3G (Level A&B) /HD/ SD SDI
  • HDCP Support
  • VC-1 RCS, PC/MAC Control Application
  • Selectable Channel for Embedded/De-Embedded Audio

PACKAGE CONTENT

  • VC-1-SH converter ×1
  • AC adaptor ×1
  • Power cord ×1
  • Rubber feet ×4
  • Owner's Manual ×1

SPECIFICATIONS

  • Brand: Roland
  • Model: VC-1-SH
  • Type: SDI to HDMI converter
  • Inputs: SDI (BNC) ×1, analogue audio 1/4" TRS (balanced) L/R, AES3 digital audio (shared with R channel)
  • Outputs: HDMI type A ×1, SDI (BNC) ×1 (THRU/OUT), analogue audio 1/4" TRS L/R, AES3
  • SDI standards: SMPTE 424M (425M-AB), 292M, 259M-C
  • Video formats: 1080p (23.98–60 Hz), 1080i, 720p, 480i, 576i
  • SDI audio: linear PCM, 24-bit, 48 kHz, 16 ch
  • HDMI audio: linear PCM, 24-bit, 48 kHz, 8 ch
  • Analogue audio: input +4 dBu (max. +24 dBu), output +4 dBu
  • Processing: audio embedding and de-embedding
  • Control: DIP switches, USB type B (VC-1 RCS app for PC and Mac)
  • Power: DC 9 V (AC adaptor), 8 W
  • Operating temperature: 0 to 40 °C
  • Dimensions: 150 × 130 × 30 mm (W × D × H)
  • Weight: 500 g
