Roland V-1HD

Compact Roland HD video switcher with four HDMI inputs and up to 1080p resolution. It has a 12-channel audio mixer, two HDMI outputs with multi-viewer, a T-Fader, picture-in-picture, keying and control from an iPad or computer.

More information

Promotion: -13%
900.45 € 780.2 € with VAT 644.79 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

Compact Roland HD video switcher with four HDMI inputs and up to 1080p resolution. It has a 12-channel audio mixer, two HDMI outputs with multi-viewer, a T-Fader, picture-in-picture, keying and control from an iPad or computer.

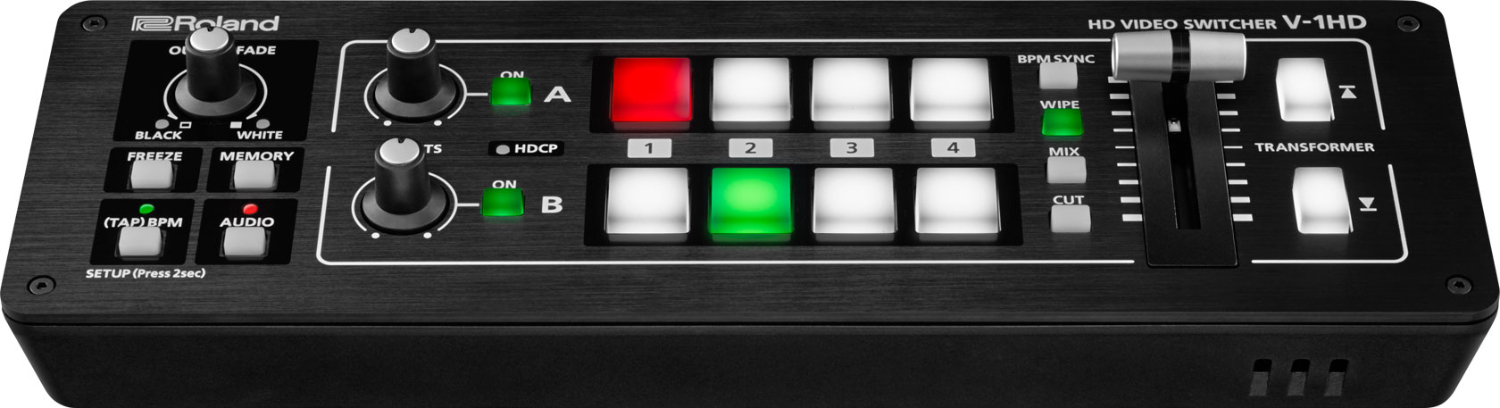

The V-1HD is a compact four-channel HDMI video switcher with a 12-channel digital audio mixer. It switches cameras, computers, tablets and players at up to 1080p with a button or the T-Fader, and its small size makes it easy to carry.

Four HDMI sources in one small console

Switching, effects, audio mixing and a preview multi-viewer in a compact 313 × 102 mm body weighing 1.2 kg.

4× HDMI inputUp to 1080p12-channel audio mixer2× HDMI outputT-FaderiPad app

Mixes anything with HDMI

Cameras, action cameras, computers, smartphones, tablets and game consoles. The V-1HD switches between them seamlessly even when sources are mismatched, interlaced or progressive.

Two independent outputs

The OUTPUT port carries the main programme for a projector, recorder or livestream. The PREVIEW port shows a four-way multi-viewer, an up-next preview or a copy of the programme.

Remote control

The V-1HD Remote app turns an iPad into a touch console, and the RCS software for Windows and macOS controls switching, audio mixing, effects and up to eight scenes over USB. MIDI control is also available.

The standard in four-channel switching

The V-1HD is used for webcasts, live performances, sports production, presentations, conferences, house of worship services and training. Basic operation takes just a few buttons, and amateurs and professionals alike appreciate the backlit buttons and the familiar T-Fader.

Three-layer effects engine

Picture-in-picture, split screen, chroma and luminance keying and effects such as silhouette, colorpass or negative.

12 audio channels

Embedded audio from four HDMI inputs, an RCA line input and a microphone, plus EQ, delay, reverb and mastering.

Automated switching

Input Scan cycles through sources every 1–120 s, and BPM Sync switches to the tempo of the music.

Free version 2.0

PinP at 1/3 size, Auto Scan, audio meters on the multi-viewer and panel lock.

The V-1HD makes it easy to connect and switch video cameras, smartphones, computers, tablets, Blu-ray players, and other HDMI video sources with a simple push of a button or slide of the T-Fader.

  • 4 HDMI inputs
  • Supports up to Full HD 1080p
  • Easy-to-use interface
  • Full 12-channel audio mixer included
  • Easy to operate with hardware controls
  • Two HDMI outputs
  • Picture-in-picture and split functions
  • Two EFFECTS knobs deliver genuine visual performance
  • Remote control via USB or MIDI connection
  • Software control using V-1HD RCS Application for Mac, PC, and iPad

Every source over HDMI. Cameras, action cameras, Mac and PC computers, smartphones and Blu-ray players connect with a single cable type, the most common A/V connector on the planet.

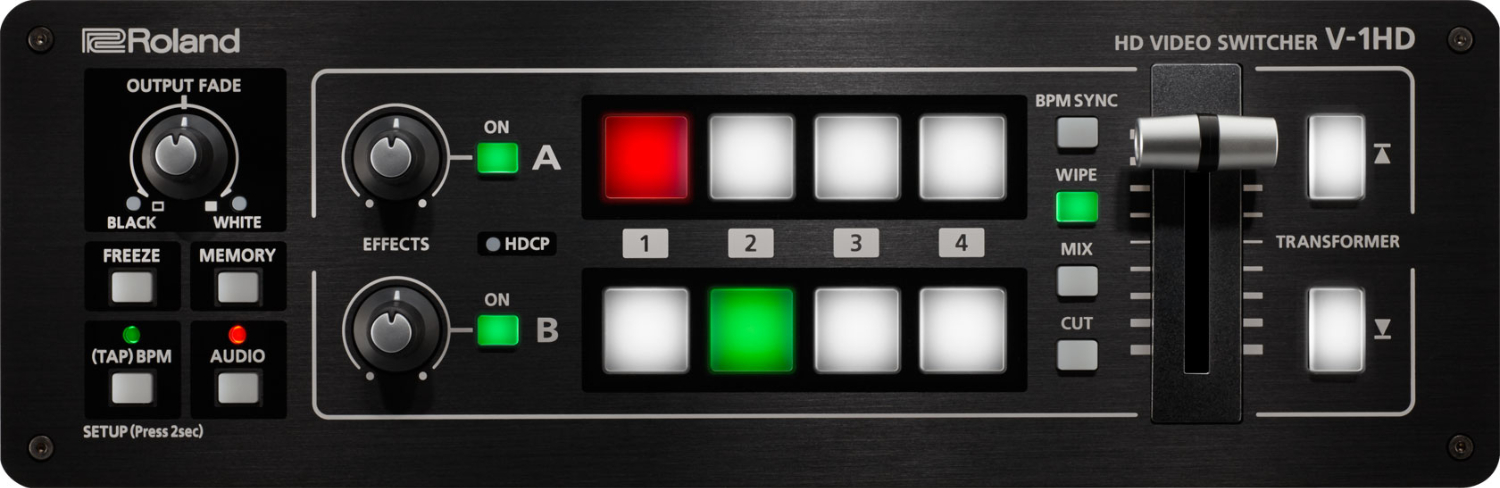

Simple interface. Setup and control take place on a monitor connected to the PREVIEW output. Basic operation needs just a few buttons and the T-Fader, and the output fade dial fades the picture to black or white.

Layers and keying. The three-layer effects engine creates picture-in-picture and split-screen compositions and combines chroma and luminance keying with visual effects.

Two EFFECTS knobs. Effects such as silhouette, colorpass, negative or findedge are added with a turn of a knob, one for each of the A and B buses.

Digital audio mixer. Embedded audio from all four HDMI inputs is mixed with the RCA line input and a microphone. Every input has delay and EQ, the microphone adds HPF, gate and compressor, and the outputs get reverb and multi-band mastering.

Switching to the beat. Input Scan switches sources in sequence every 1 to 120 seconds, and BPM Sync alternates Preview and Program at a specified song tempo.

PACKAGE CONTENT

  • V-1HD video switcher ×1
  • AC adaptor ×1
  • Power cord ×1
  • Cord hook ×1
  • Owner’s manual ×1

SPECIFICATIONS

  • Brand: Roland
  • Model: V-1HD
  • Type: compact HD video switcher
  • Video processing: 4:2:2 (Y/Pb/Pr), 8-bit

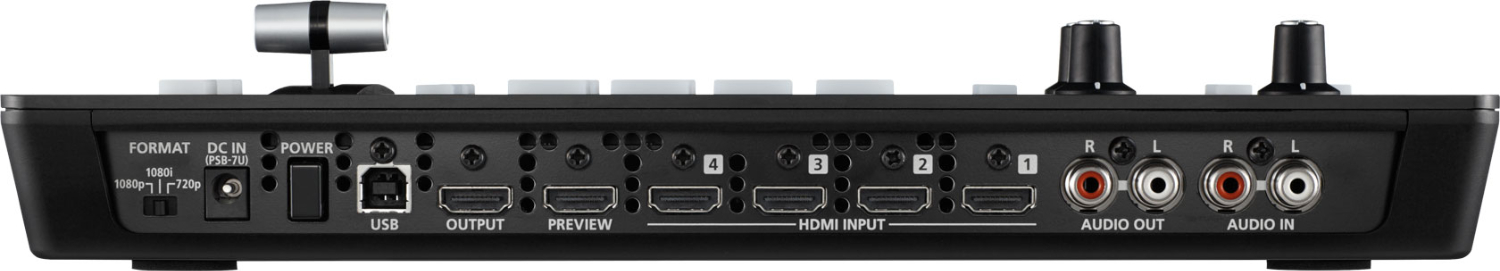

  • Video inputs: HDMI type A ×4 (HDCP)
  • Video outputs: HDMI OUTPUT ×1, HDMI PREVIEW ×1 (HDCP)
  • Input formats: 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
  • Output formats: 720p, 1080i, 1080p (59.94 or 50 Hz)
  • Transitions: CUT, MIX, WIPE (30 types), TRANSFORMER (11 types)
  • Audio processing: 24-bit / 48 kHz

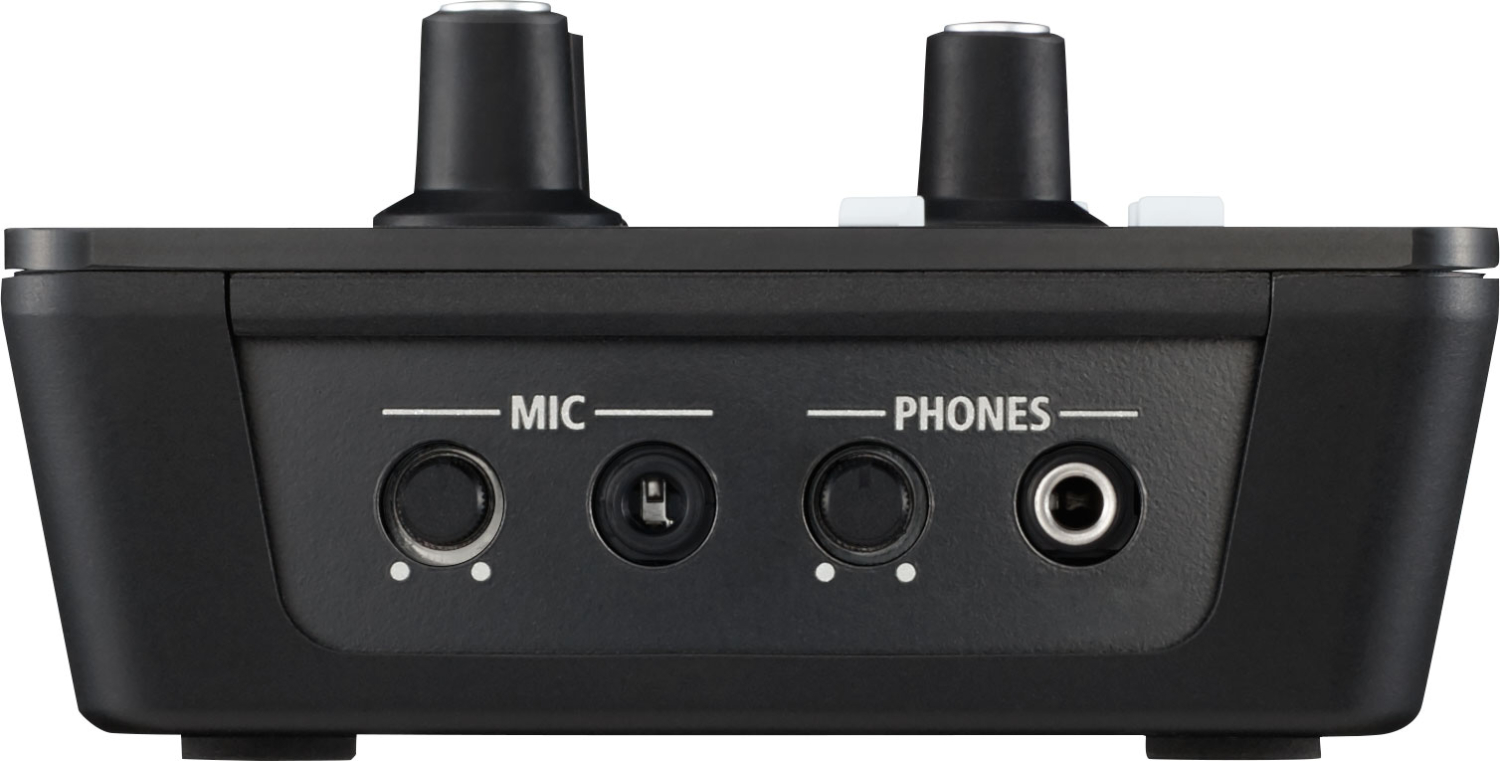

  • Audio inputs: HDMI ×4 (embedded), AUDIO IN (RCA), MIC (stereo mini jack, plug-in power)
  • Audio outputs: HDMI ×2, AUDIO OUT (RCA), PHONES (stereo mini jack)
  • Audio effects: EQ, delay, compressor, HPF, gate, reverb, mastering

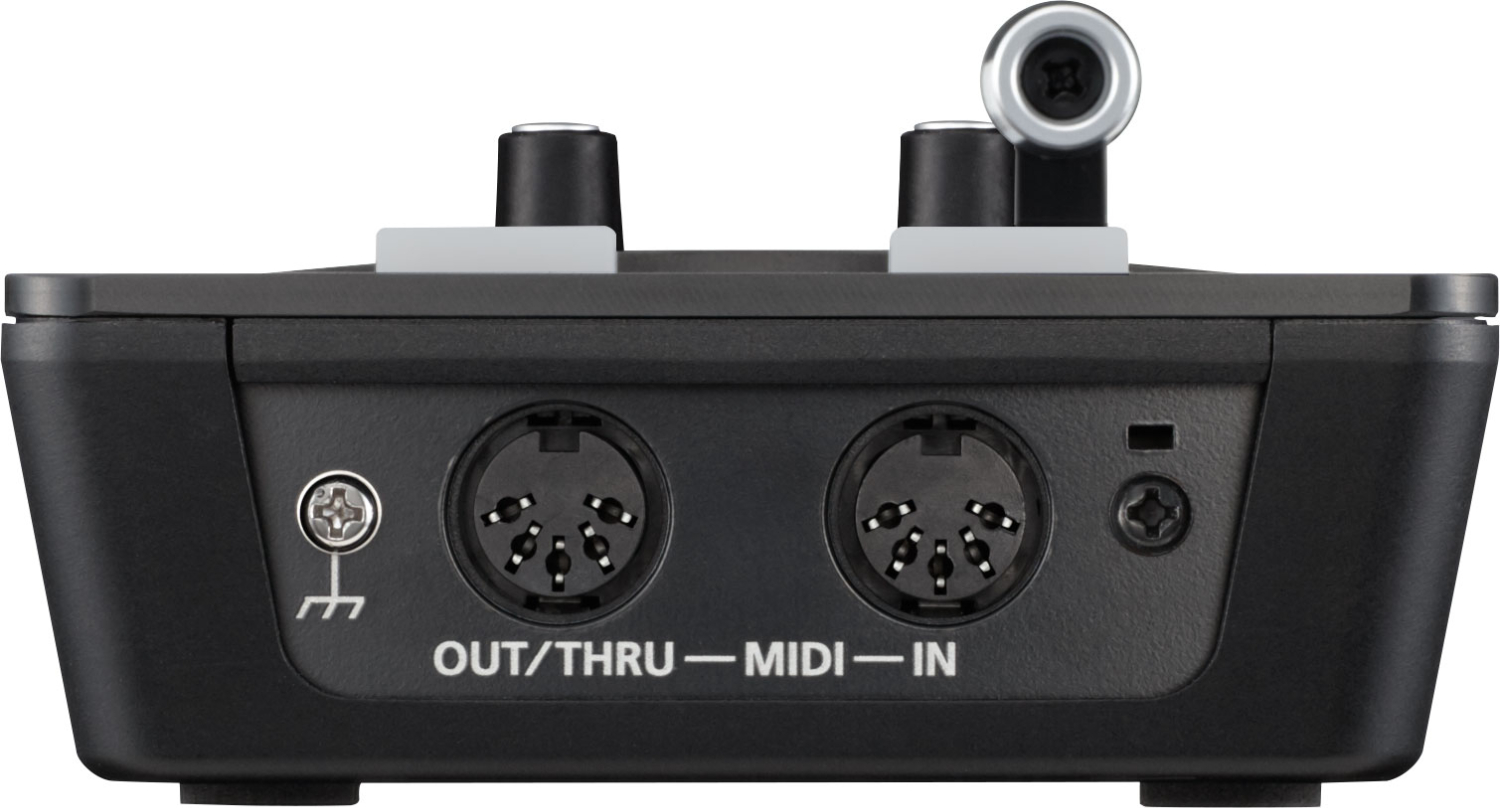

  • Control: USB type B (computer), MIDI IN, MIDI OUT/THRU
  • Memories: 8
  • Power: AC adaptor, 18 W consumption
  • Dimensions: 313 × 102 × 59 mm
  • Weight: 1.2 kg (excluding AC adaptor)
