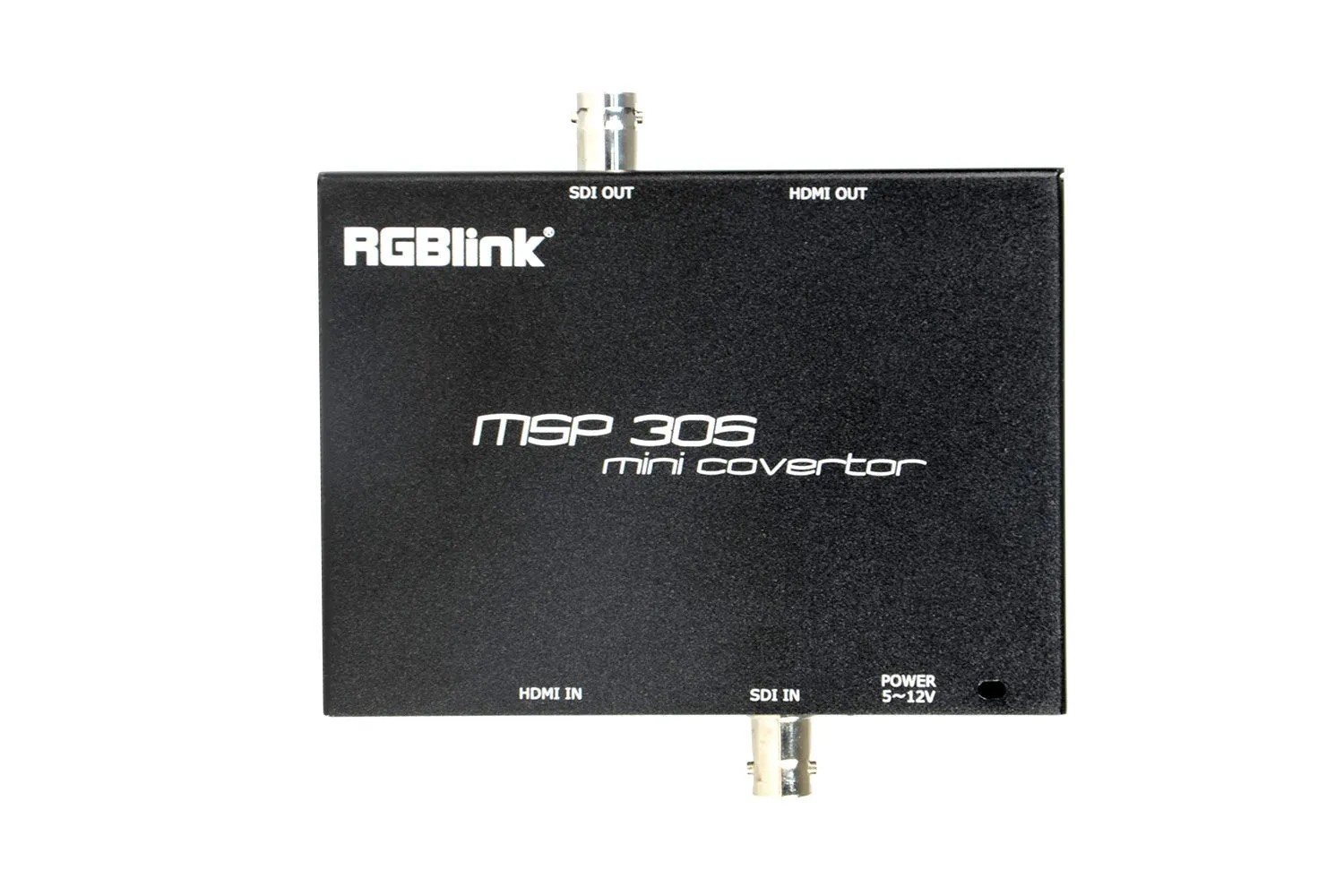

RGBlink MSP 305

Name: RGBlink MSP 305
Brand: RGBlink
SKU: 621-0305-01-0
Price: 198 EUR
Availability: OutOfStock

SKU: 621-0305-01-0

The RGBlink MSP 305 is a bidirectional 3G SDI/HDMI converter that allows seamless conversion between HDMI 1.3 and 3G SDI signals, supporting resolutions up to 1080p60. With embedded audio, auto-detection of SD/HD/3G formats, and compact design, the MSP 305 is ideal for professional AV, broadcast, and long-distance signal transmission appl…

More information

198 € with VAT 163.64 € without VAT

Price history

Availability

on request

SKU:
621-0305-01-0

Price history

DESCRIPTION AND PARAMETERS
Alternative 2

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The RGBlink MSP 305 is a compact, high-performance bidirectional converter designed for professional video workflows. It enables HDMI signals to be displayed on SDI monitors and vice versa, supporting high bit rates of up to 2.970 Gbit/s to maintain signal integrity without any loss. The device supports HDMI 1.3 input/output and 3G SDI input/output, with auto-detection of SD, HD, and 3G formats for hassle-free operation.

With embedded audio support, the MSP 305 ensures audio and video remain synchronized during conversion, making it ideal for live events, broadcast studios, video conferencing, and other professional AV setups. It supports a wide range of resolutions including SMPTE 720p and 1080i standards as well as VESA computer resolutions, ensuring flexibility across multiple display types. Compact and lightweight, the MSP 305 can be easily integrated into mobile setups, OB vans, and fixed installations.

Key Features:

Bidirectional conversion: HDMI ↔ SDI
Supports HDMI 1.3 and 3G SDI
Embedded audio support
Auto-detects SD/HD/3G SDI formats
Resolution support up to 1080p60
Compatible with SMPTE and VESA video standards
Compact, lightweight, and plug-and-play

PACKAGE CONTENT

RGBlink MSP 305 Bidirectional HDMI/SDI Converter
Power Adapter (DC 5–12V)
User Documentation

SPECIFICATIONS

Input: 1 × HDMI Type A, 1 × SDI BNC
Output: 1 × HDMI Type A, 1 × SDI BNC
Input Resolutions: SMPTE: 720p @ 23.98/24/25/29.97/30/50/59.94/60, 1080i @ 23.98/24/25/29.97/30/50/59.94/60; VESA: 800×600 @ 60, 1024×768 @ 60, 1280×768 @ 60, 1280×1024 @ 60, 1366×768 @ 60, 1600×1200 @ 60, 1920×1080 @ 60
Output Resolutions: Same as input
Supported Standards: SDI: SMPTE 425M, 424M, 292M, 259M-C; HDMI: 1.3
Power Input Voltage: DC 5–12V
Operating Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 60°C
Humidity: 20–90%
Net Weight: 0.25 kg
Packaged Weight: 0.5 kg
Dimensions (Net): 112 × 106 × 24 mm
Dimensions (Packaged): 160 × 120 × 80 mm

WE RECOMMEND

The RGBlink MSP 305 is a versatile bidirectional converter between HDMI 1.3 and 3G-SDI, serving as a key component for integrating diverse video equipment into professional production workflows. To take full advantage of its features, it is recommended to pair it with compatible video production systems, PTZ cameras, and wireless signal transmission systems that utilize HDMI and SDI standards.

Video production and streaming - Equipment for processing, mixing, and distributing signals converted using the MSP 305.

PTZ Cameras - Video sources with SDI or HDMI outputs that can be easily connected using the MSP 305 converter to extend the cable run or change the format.
