Desview S24F

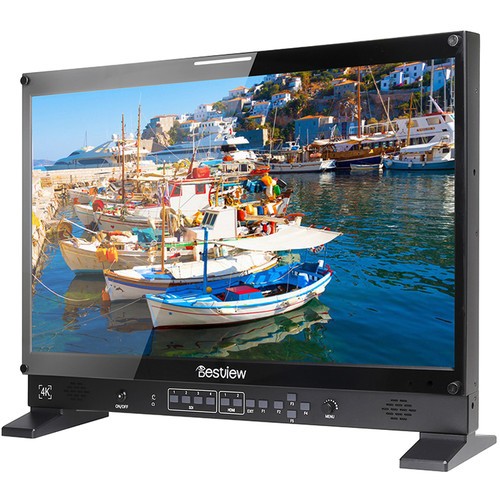

The Desview S24F is a 24-inch broadcast monitor with 4K UHD 3840 × 2160 resolution and 400 cd/m² brightness, built around SDI work: it has four 3G-SDI inputs and four 3G-SDI outputs plus two HDMI inputs. It supports HDR (PQ), built-in 3D LUTs for SMPTE, EBU, Rec.709 and DCI-P3 and PIP/PBP display. It comes with a sun hood.

More information

1 759 € with VAT 1 453.72 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Desview S24F is a 24-inch broadcast monitor with 4K UHD 3840 × 2160 resolution and 400 cd/m² brightness, built around SDI work: it has four 3G-SDI inputs and four 3G-SDI outputs plus two HDMI inputs. It supports HDR (PQ), built-in 3D LUTs for SMPTE, EBU, Rec.709 and DCI-P3 and PIP/PBP display. It comes with a sun hood.

Four SDI camera feeds on one 24-inch screen, each passed on at the same time: the S24F is built for directing and multi-camera broadcasts.

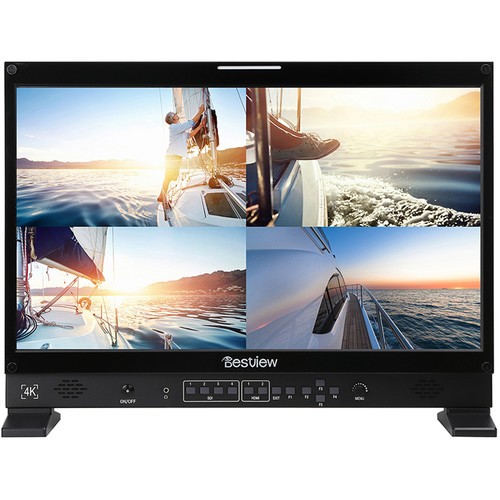

Four cameras at once

In quad view the monitor shows four sources on one screen, in PIP and PBP modes two. The 3840 × 2160 resolution gives each quarter of the picture enough pixels to check focus and framing.

Four cameras at once

Four 3G-SDI inputs and four outputs

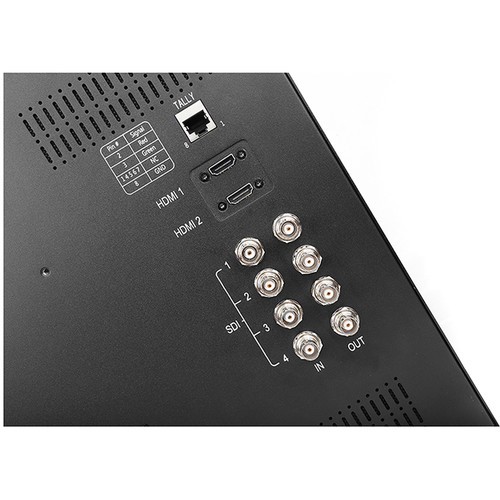

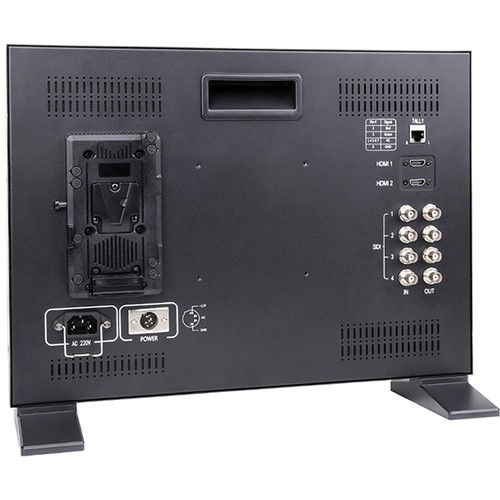

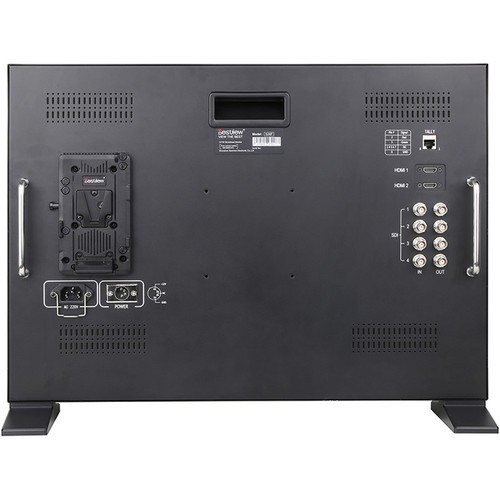

The back has four pairs of BNC connectors for 3G-SDI inputs and outputs, two HDMI inputs and an RJ45 tally connector, so every SDI signal continues from the monitor to further equipment.

Four 3G-SDI inputs and four outputs

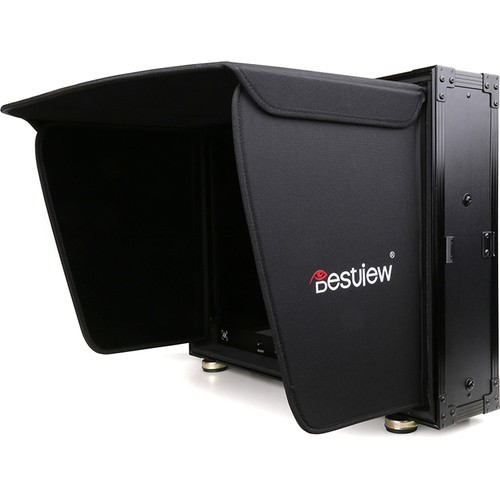

Sun hood included

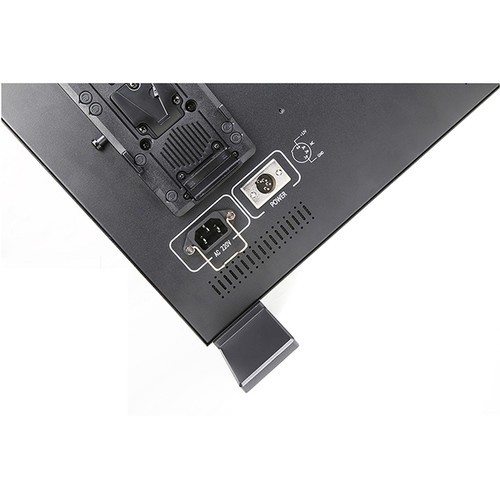

The supplied sun hood shades the screen from side light, so the picture stays readable in bright surroundings. The monitor runs on mains power, via a 4-pin XLR connector or from a V-mount battery on the back plate.

Sun hood included

More information

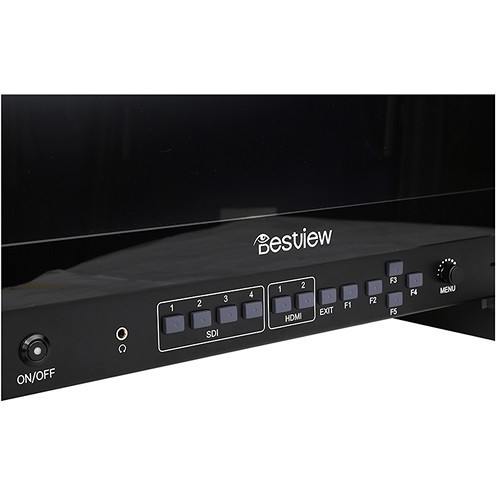

The Desview S24F is a professional 24-inch 4K UHD broadcast monitor for video production, live streaming and multi-camera studio setups. Its 3840 × 2160 resolution and wide 178° viewing angle ensure a detailed picture from any perspective, while 400 cd/m² brightness and professional color calibration suit indoor and controlled outdoor shooting. With four 3G-SDI inputs and outputs, two HDMI inputs and PIP/PBP and quad display, it allows several cameras to be monitored at once. Audio can be monitored via a 3.5 mm headphone jack, and the tally light is controlled through an RJ45 input. The monitor runs on mains power, via a 4-pin XLR connector or from a V-mount battery (sold separately) and comes with a removable sun hood, HDMI and SDI cables and a cleaning cloth. It suits studio, field and live broadcast work.

  • Inputs: 4× 3G-SDI with thru-puts, 2× HDMI 2.0; 16:9 aspect ratio
  • Audio: 3.5 mm headphone jack and built-in stereo speakers; tally light via RJ45 input
  • Power: AC 110–265 V, 4-pin XLR or V-mount battery (sold separately)
  • 24" 10-bit IPS UHD display with 3840 × 2160 resolution at 60 Hz
  • Panel type: IPS-type LCD; color support: 1.07 billion colors (10-bit)
  • Rec.709 color calibration, acrylic screen for panel protection
  • Professional imaging tools: peaking, safe area, center mark, R/G/B check field, display ratio, underscan
  • Dimensions: 21.9 × 15.5 × 1.6" / 556 × 394 × 40 mm
  • Weight: 25.35 lb / 11.5 kg

PACKAGE CONTENT

  • Desview S24F monitor
  • Sun hood
  • HDMI cables
  • SDI cable
  • Cleaning cloth
  • Warranty card
  • User manual

SPECIFICATIONS

  • Model: S24F
  • Screen size: 24" (23.8" panel)
  • Aspect ratio: 16:9
  • Resolution: 3840 × 2160 (4K UHD)
  • Brightness: 400 cd/m²
  • Contrast ratio: 1000:1
  • Viewing angle: 178° (H/V)
  • HDR: HDR monitoring support (PQ)
  • Color spaces (LUT): SMPTE, EBU, Rec.709, DCI-P3 (3D LUT)
  • Gamma: 1.8 / 2.0 / 2.2 / 2.4
  • Multiview: PIP, PBP, quad view
  • Inputs: 2× HDMI 2.0, 4× 3G-SDI (BNC)
  • Outputs: 4× 3G-SDI (BNC)
  • Audio output: 3.5 mm stereo headphone output; built-in stereo speakers
  • Tally: RJ45
  • Power: AC mains 110–265 V; 4-pin XLR; V-mount plate (battery sold separately)
  • Battery status: battery information display

WE RECOMMEND

The Desview S24F is a professional 24" 4K UHD monitor designed for demanding broadcast and studio environments, featuring 10-bit color support and extensive SDI/HDMI connectivity. For effective use in multi-camera productions, it is recommended to pair it with wireless video transmission systems and professional teleprompters for presenters.

Wireless Video Transmission - Enables wireless signal transmission to the monitor via HDMI or SDI interfaces.

Prompter - Essential accessories for studio production and broadcast that complement the monitoring chain.

Parameters

Parameters

Manufacturer: Desview
Category: Studio Monitors

Main parameters

Size24"
Monitor inputs3G-SDI · HDMI
Luminosity400cd/m2
Panel resolution3840x2160
Monitor power supply12V XLR · AC 110–265V · V-Mount

Other parameters

TallyYes
Other featuresHDR · Multiview · Quad split
