Roland VC-1SC-4K

The VC-1SC-4K is a compact video converter and scaler that goes beyond basic signal conversion. It offers reliable signal conversion and easy adjustment of resolution and aspect ratio without the need for dedicated high-end processors, thereby meeting modern requirements that extend beyond standard video conversion. It helps…

More information

1 319 € with VAT 1 090.08 € without VAT
-+
Availability
Backordered 3 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The VC-1SC-4K is a compact video converter and scaler that goes beyond basic signal conversion. It offers reliable signal conversion and easy adjustment of resolution and aspect ratio without the need for dedicated high-end processors, thereby meeting modern requirements that extend beyond standard video conversion. It helps reduce the size of the system and supports LED wall applications.

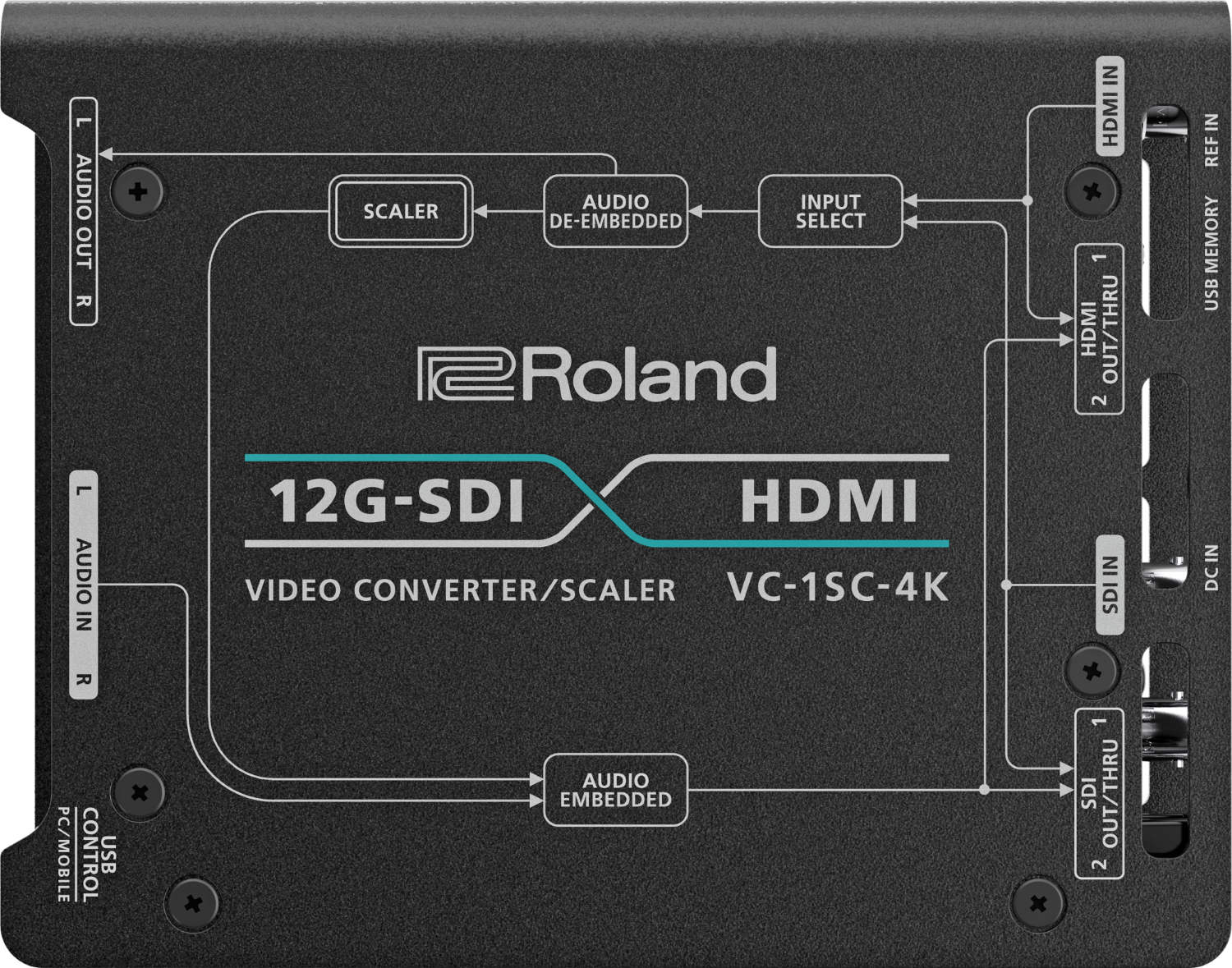

The VC-1SC-4K is a compact 4K converter and scaler for LED walls and other displays. It cross-converts between 12G-SDI and HDMI 2.0, processes 4:4:4 10-bit video with HDR and sends the result to two SDI and two HDMI outputs at once.

A picture made to fit any LED wall

Scaling, ROI cropping and format conversion in a palm-sized metal chassis. Set it up from an app on your phone, tablet or computer.

12G-SDI ↔ HDMI 2.04K60p HDR 4:4:4 10-bit2× SDI + 2× HDMI outROI and scalerXLR audioMade in Japan

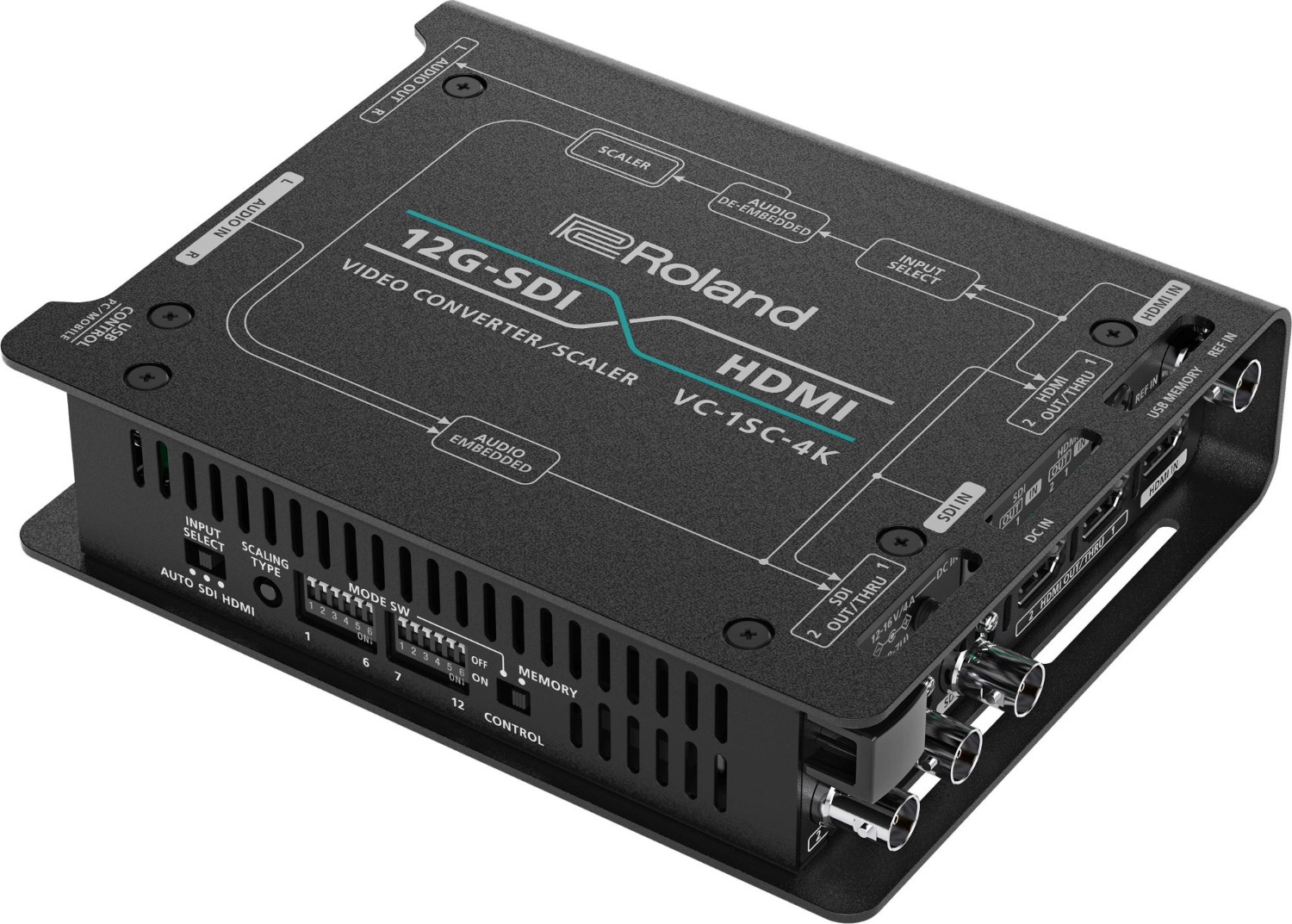

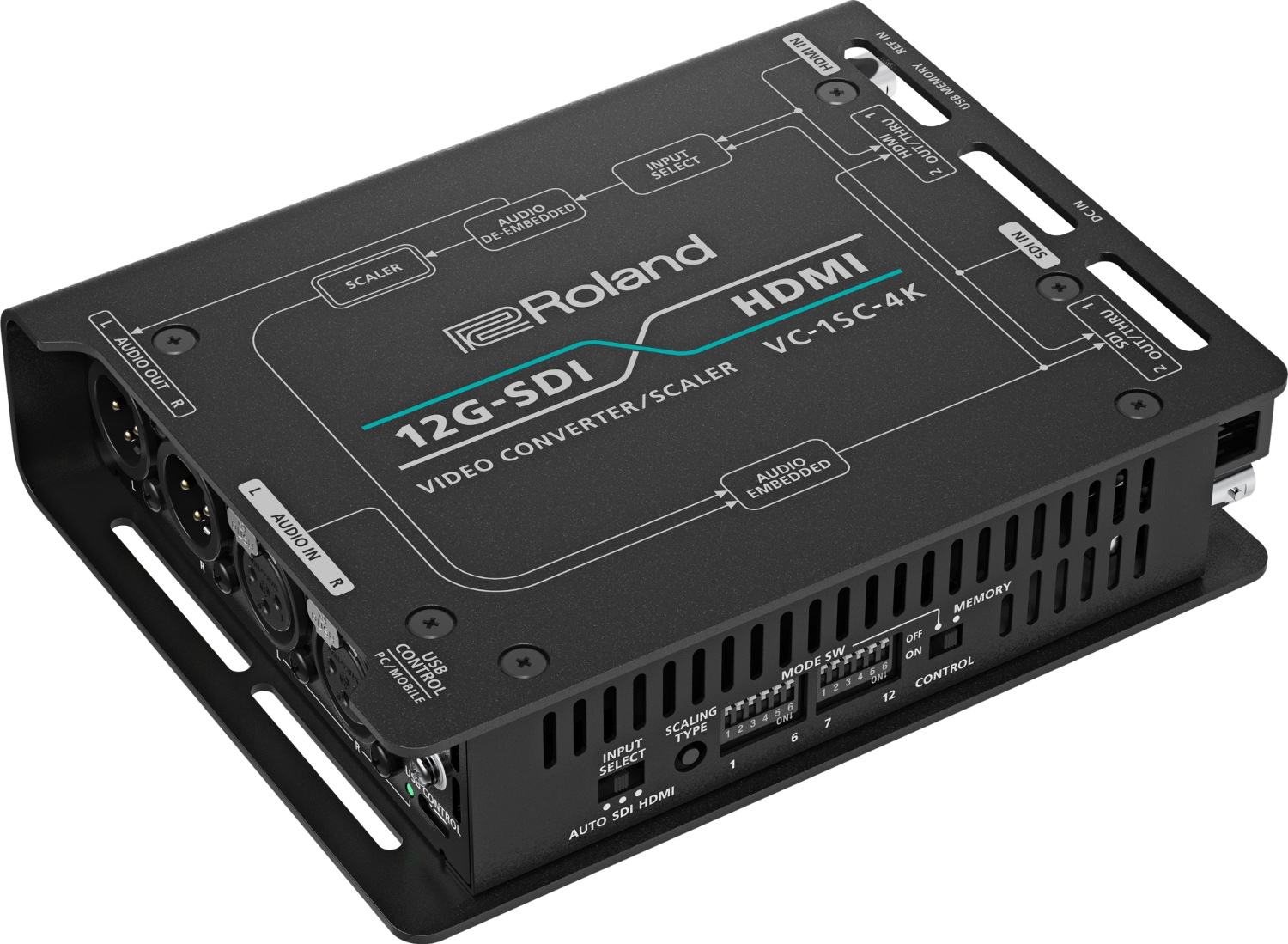

Every connector you need

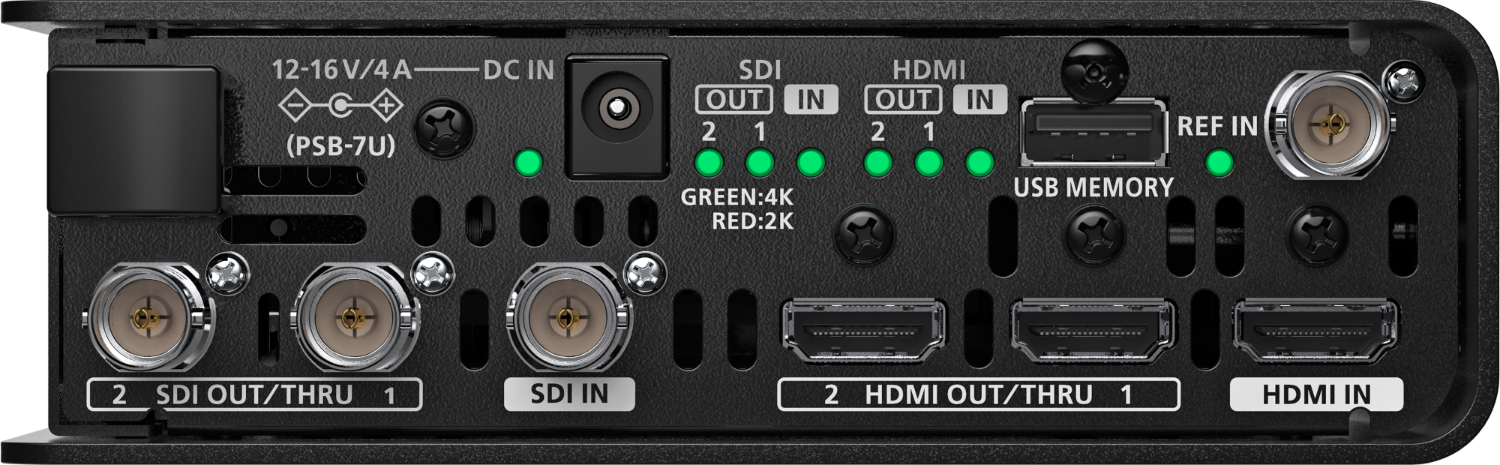

12G-SDI and HDMI 2.0 inputs, two SDI OUT/THRU and two HDMI OUT/THRU outputs, a reference input for genlock, balanced XLR audio, USB-C for control and USB-A for a flash drive.

Control from phone or computer

Apps for iOS, iPadOS, Android, macOS and Windows show the status of every signal, offer editors for layout, ROI, colour and audio, and store setups in a library for the next event.

Developed and built in Japan

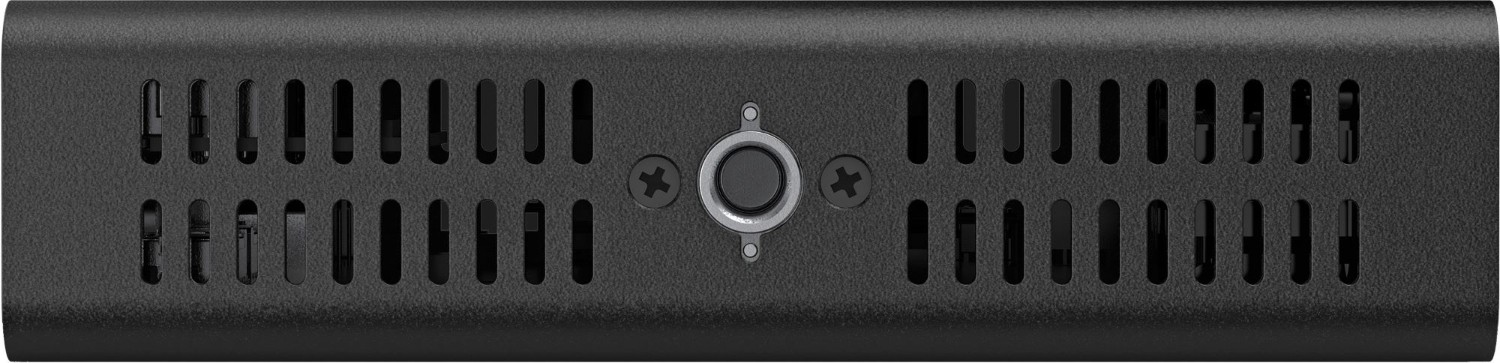

The rugged metal chassis with protected connectors can be hung from its M10 screw holes. The RAD-3 tray holds up to three units in a single 1U rack space.

One source, multiple screens

The THRU outputs cascade several converters with no delay. Each unit crops a different region from the same source and sends it to its own screen, so a single signal becomes a wide image spread across several displays.

4:4:4 at 10 bits

4K60p processing with HDR, dynamic range and frame rate conversion and colour correction.

ROI and scaler

Free size and position control plus cropping of a selected area for non-16:9 displays.

Audio in sync

Embedding and de-embedding via XLR and up to 3 seconds of delay to match audio to video.

Genlock

Reference input for black burst, bi-level and tri-level sync, plus an EDID emulator on HDMI.

Setup is quick and intuitive thanks to a dedicated app. The device supports cross-conversion up to 12G-SDI and HDMI 2.0, as well as audio embedding and de-embedding via balanced XLR connectors.

What is it used for?

Primary Use.

Event and rental companies will benefit from a converter/scaler that supports multiple formats and offers flexible image scaling. This makes installation easier, and the resolution and aspect ratio of the LED wall can always be precisely adjusted to the desired display.

Secondary use.

System integrators designing AV solutions for customers need reliable and versatile scaling that allows them to adapt the signal to any resolution or aspect ratio of the LED wall, thereby meeting diverse display requirements.

Reliable 4K/HD format conversion at different frame rates.

  • Over 20 years of experience in professional video signal conversion.
  • State-of-the-art 4:4:4 10-bit image processing with HDR support.
  • Two SDI outputs and two HDMI outputs for distributing the signal to multiple devices.
  • Developed and manufactured in Japan.

Simplifies LED wall setup.

  • The use of LED walls is growing rapidly, both for live events and in permanent installations.
  • ROI (Region of Interest) and flexible scaling features make it easy to adapt any input signal to the specific resolution and aspect ratio of the LED wall.
  • When combined with Roland Corporation video switchers, systems with ultra-wide screens can be configured seamlessly.

Dedicated app for easy setup and signal monitoring.

  • Set up your device instantly using the app’s intuitive interface.
  • Easily adjust the image layout and ROI (Region of Interest) using clear controls.
  • Save, copy, archive, and share multiple configuration presets.
  • Real-time status monitoring enhances operational safety and simplifies troubleshooting.
  • A dedicated app is available for iOS, iPadOS, macOS, Android, and Windows.

Flexible format conversion and intuitive image adjustment for HD and 4K systems.

  • Universal bidirectional conversion between SDI and HDMI supports standards up to 12G-SDI and HDMI 2.0.
  • 4K60p HDR 4:4:4 10-bit image processing ensures accurate and high-quality display.
  • Optimized for environments where both HD and 4K systems are used simultaneously.
  • Simultaneous signal output via a pair of SDI ports and a pair of HDMI ports allows the device to also function as a powerful signal distribution amplifier.

Roland’s expanded ecosystem of event solutions with seamless integration.

  • Enables advanced production workflows, including support for ultra-wide screens.
  • When combined with Roland Corporation’s video switchers, it expands the capabilities of Roland’s event and rental solutions.
  • Sets a new standard for Roland converters and scalers in the professional AV market.

Professional connectivity.

  • 12G-SDI and HDMI 2.0 inputs and outputs.

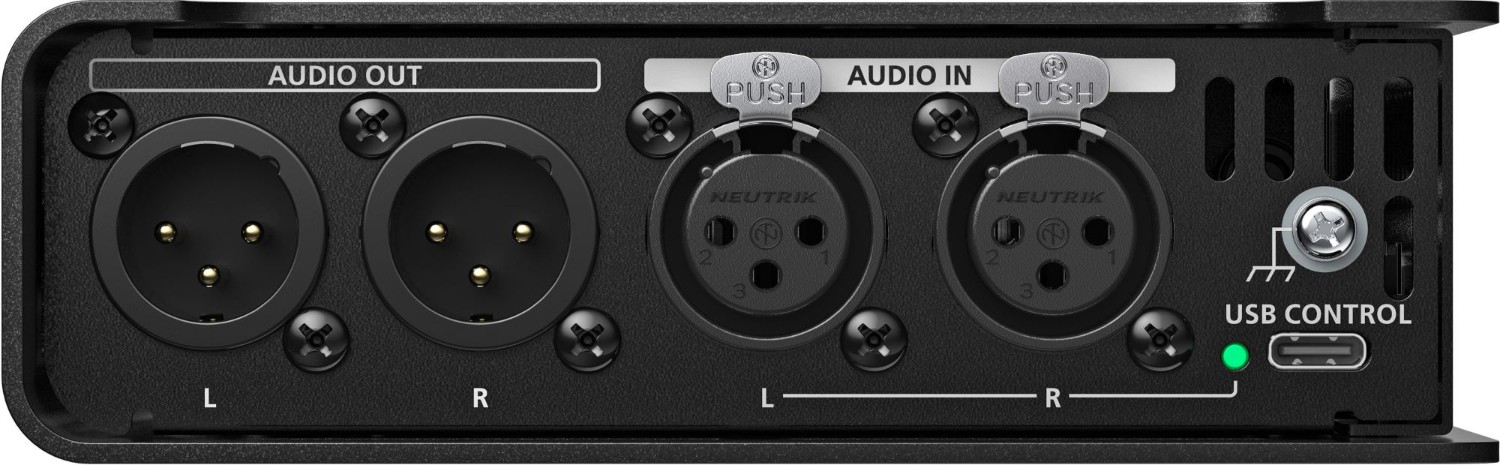

  • Audio embedding and de-embedding via balanced XLR connectors.
  • Support for reference synchronization (genlock/reference sync).

Exceptional reliability and rugged, rack-mountable construction.

  • Rugged metal chassis.
  • Developed and manufactured in Japan.
  • M10 mounting point for suspension.
  • The RAD-3 accessory allows for mounting up to three units in a 1U rack.

Compact control of LED wall images.

  • ROI (Region of Interest) and flexible scaling adapt the image to any resolution and aspect ratio of the LED wall.
  • The compact design is tailored for modern event and rental workflows.
  • A dedicated app simplifies setup and minimizes complexity, saving time.

Multi-platform control app for easy setup and monitoring.

  • Fast and intuitive configuration and setup.
  • The built-in scaler allows for conversion of input and output formats and adjustment of size, position, cropping of selected areas, and color settings.
  • Easy saving, sharing, and archiving of settings.
  • Real-time status monitoring for reliable operation and troubleshooting.
  • Compatible with iOS, iPadOS, macOS, Android, and Windows.

PACKAGE CONTENT

  • VC-1SC-4K converter ×1
  • AC adaptor PSB-7U ×1
  • Power cord ×1
  • Rubber feet ×4
  • Spacer ×1
  • Startup Guide ×1
  • Leaflet "Using the Unit Safely" ×1

SPECIFICATIONS

  • Brand: Roland
  • Model: VC-1SC-4K
  • Type: 4K video converter / scaler
  • Video processing: 4:4:4 (Y/Cb/Cr), 10-bit
  • Video inputs: 12G-SDI (BNC) ×1, HDMI 2.0 ×1
  • Video outputs: SDI OUT/THRU (BNC) ×2, HDMI OUT/THRU ×2
  • Formats: up to 2160p (DCI and UHD) 60 Hz, 1080p, 1080i, 720p
  • HDCP: 1.4, 2.2
  • Video functions: 4K scaler, ROI, down converter, test patterns, flip H/V, deinterlacer, colour correction, dynamic range and frame rate conversion
  • Audio: 24-bit / 48 kHz
  • Audio inputs and outputs: XLR L/R (+4 dBu), embedded HDMI and SDI audio
  • Audio functions: level, patchbay, delay up to 3 s, test tone
  • Sync: REF IN (BNC): black burst, bi-level, tri-level; genlock
  • Other connectors: USB-C (control), USB-A (flash drive)

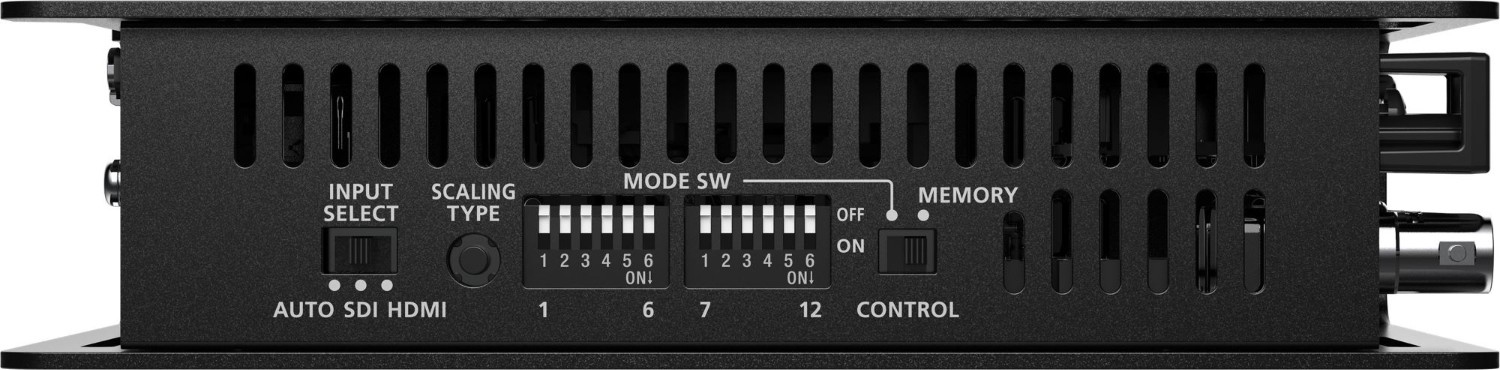

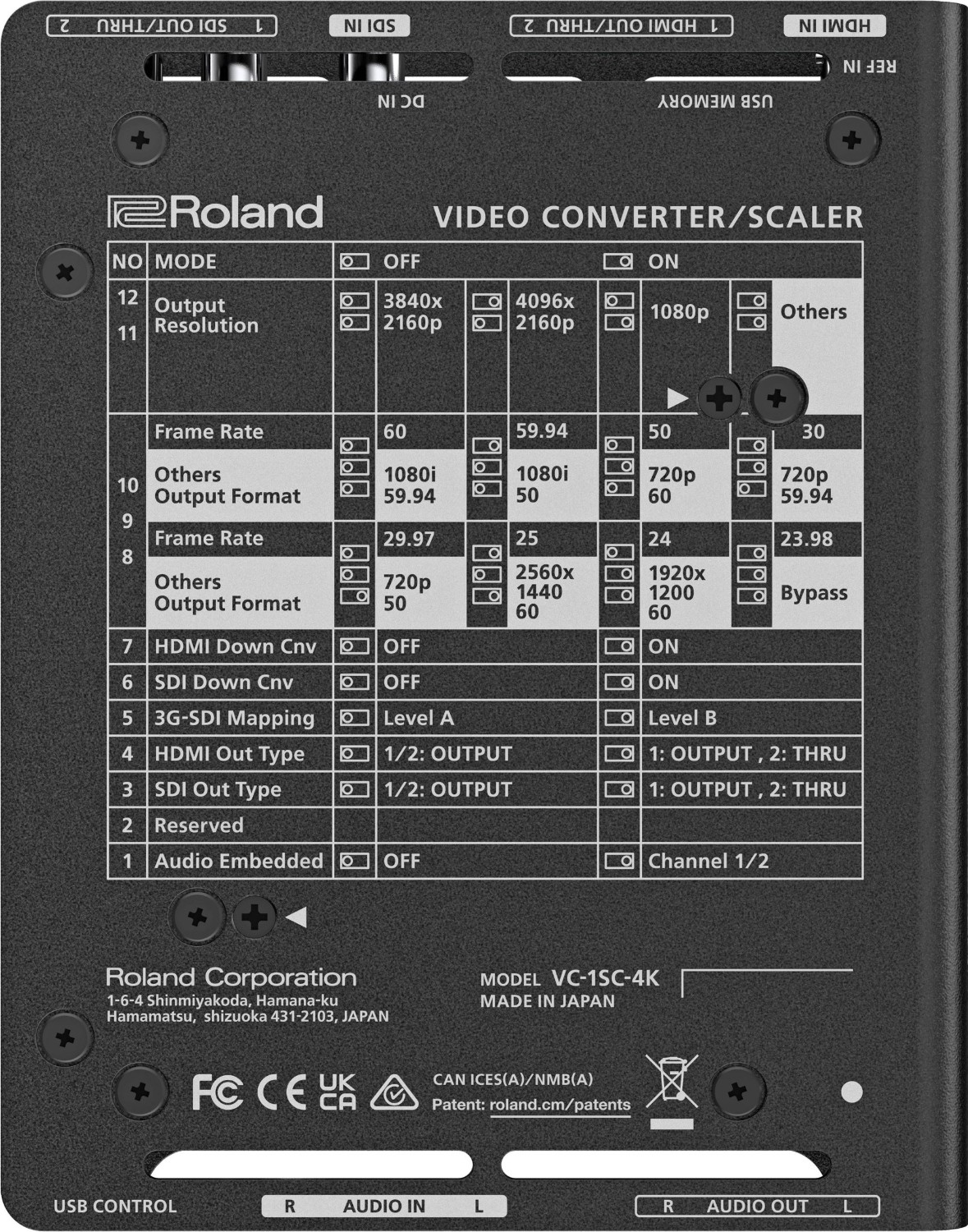

  • Control: apps for iOS, iPadOS, Android, macOS and Windows; buttons and DIP switches
  • Power: AC adaptor or external 12–16 V supply, 48 W
  • Operating temperature: 0 to 40 °C
  • Dimensions: 136 × 172 × 42 mm (W × D × H)
  • Weight: 710 g (without accessories)
  • Mounting: M10 screw holes, RAD-3 rack tray (up to 3 units in 1U)
  • Country of origin: Japan
