SWIT S-2820 | Professional 200W RGBW light, SWIT Free Design for Lighting Studios

The SWIT S-2820 is a powerful 200W RGBW 1:1 LED panel delivering 5000 lux at 1 meter with an ultra-wide 2800K–10000K color temperature range. Featuring DMX control, smartphone app operation, and advanced color modes including HSI, CIE, and RGB, it’s a versatile lighting solution for broadcast, studio, and film production.

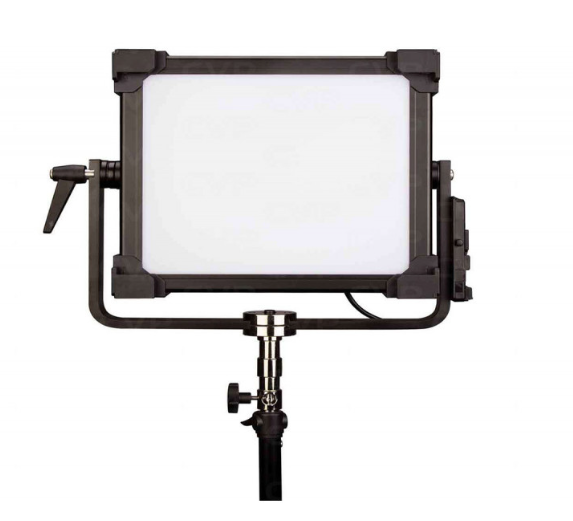

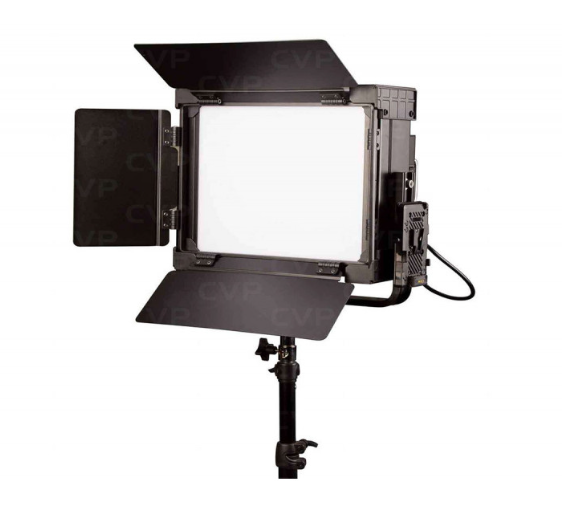

The SWIT S-2820 is a professional 1:1 RGBW LED light panel designed for studio, broadcast, and cinematic applications. Equipped with 280 high-quality RGBW SMD LEDs, it produces a strong 200W output with 5000 lux at 1 meter and a 65° beam angle, ensuring powerful and even illumination.

With an extended color temperature range from 2800K to 10000K and precise Green/Magenta (±1.00) adjustment in CCT mode, the S-2820 provides exceptional flexibility for matching ambient light or creating stylized looks. In addition to CCT mode, it supports HSI, CIE, and RGB color modes for full-spectrum creative lighting. The panel also includes 20 Rosco and 20 Lee gel presets for quick access to popular lighting effects.

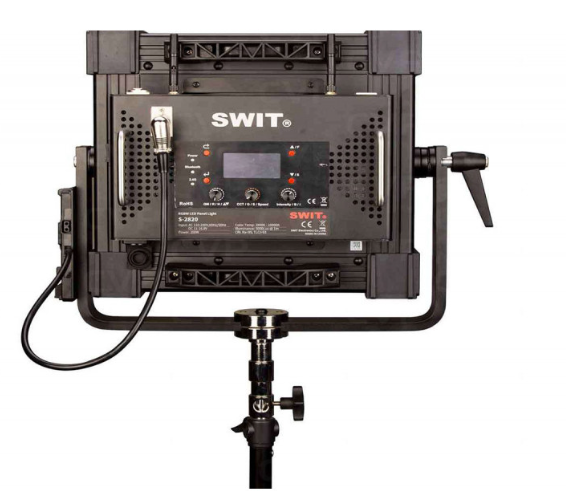

Control options are comprehensive, including an onboard rear control panel, 8-channel DMX control, and smartphone app operation (iOS and Android). The fixture supports AC power via SpeakOn input and DC power (14.8–26V) through 4-pin XLR, and comes with a V-mount battery plate. For mobile operation, it is recommended to use compatible SWIT high-capacity batteries such as S-8183S, PB-R290S, PB-H290S, or PB-H260S.

With high color accuracy (CRI 95, TLCI 93) and robust professional build quality, the S-2820 is ideal for interviews, film sets, television studios, and commercial productions requiring powerful and flexible RGBW lighting.

Key Features

• 280 RGBW SMD LEDs

• 200W high-output LED panel

• 5000 Lux @ 1 meter

• 2800K–10000K color temperature range

• Green/Magenta adjustment ±1.00

• HSI, CIE, and RGB color modes

• 20 Rosco + 20 Lee gel presets

• CRI 95, TLCI 93

• 8-channel DMX control

• iOS & Android smartphone app control

• SpeakOn AC input & 4-pin XLR DC input

• V-Mount battery plate included
