Lilliput RM-7026-12G dual rack-mount

The LILLIPUT RM7026-12G is a professional 3RU dual rack-mount monitor featuring two high-brightness 7-inch Full HD displays with 12G-SDI and HDMI 2.0 connectivity. Designed for broadcast, live streaming, OB vans, and production studios, it supports HDR monitoring, advanced waveform analysis tools, LAN remote control, tally integration, and independent monitoring of two video sources in a compact 19-inch rack format.

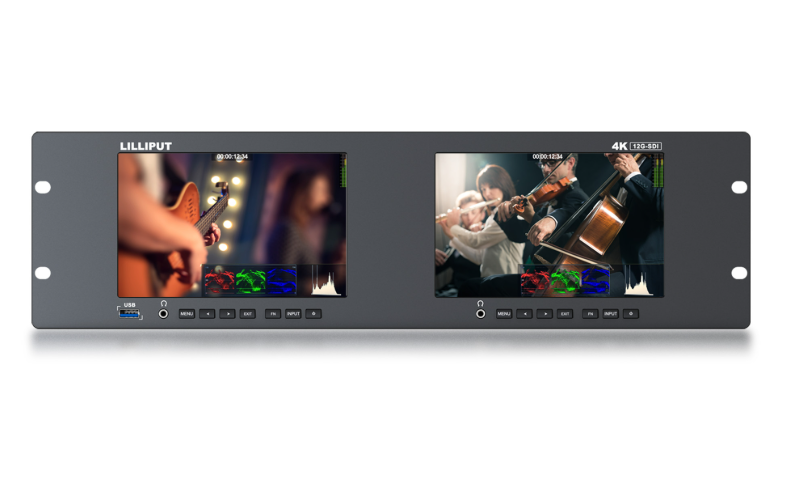

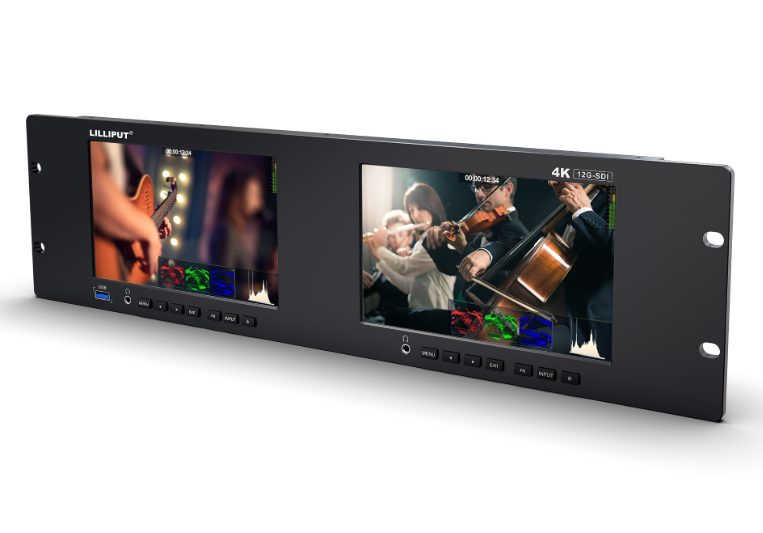

The LILLIPUT RM7026-12G is a professional dual-display rack mount monitor engineered for broadcast, live production, video streaming, and studio monitoring applications. Housed in a compact 3RU chassis for standard 19-inch equipment racks, it features two independent 7-inch Full HD displays, allowing operators to monitor multiple video sources simultaneously while saving valuable rack space.

Each monitor utilizes a high-brightness LTPS panel with a native resolution of 1920 × 1200 and an impressive brightness of 1000 nits, providing outstanding visibility even in brightly lit control rooms or outdoor production environments. HDR support for ST2084 (300, 1000 and 10000) as well as Hybrid Log Gamma (HLG) enables accurate monitoring of high dynamic range content with enhanced detail and color reproduction.

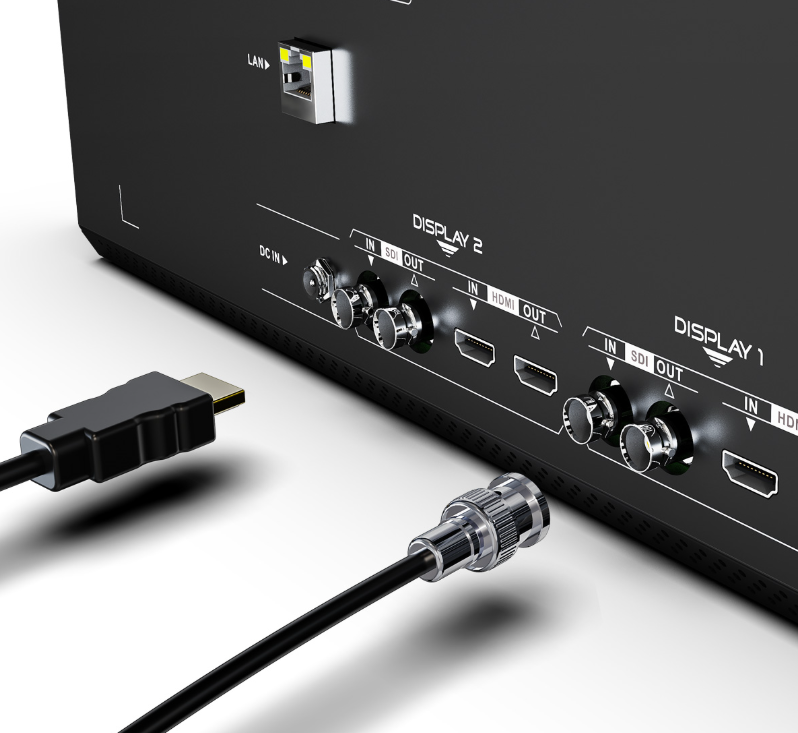

Designed for modern 4K production workflows, the RM7026-12G offers independent 12G-SDI and HDMI 2.0 inputs and loop outputs for each display. Both interfaces support UHD signals up to 2160p at 60 Hz, while loop-through outputs simplify signal distribution and daisy-chaining of additional monitors.

The monitor includes a comprehensive suite of professional monitoring tools including waveform, histogram, false color, focus peaking, check field, and color bars, helping camera operators and engineers ensure precise exposure, focus, and color accuracy during production.

For integration into professional broadcast environments, the RM7026-12G supports LAN-based remote control, allowing users to manage inputs, functions, and audio settings from a connected PC. A tally interface enables seamless integration into live production workflows, while HDMI and SDI embedded audio monitoring and a 3.5 mm headphone output provide flexible audio monitoring capabilities.

Key Features

• Professional dual 7-inch rack mount monitor

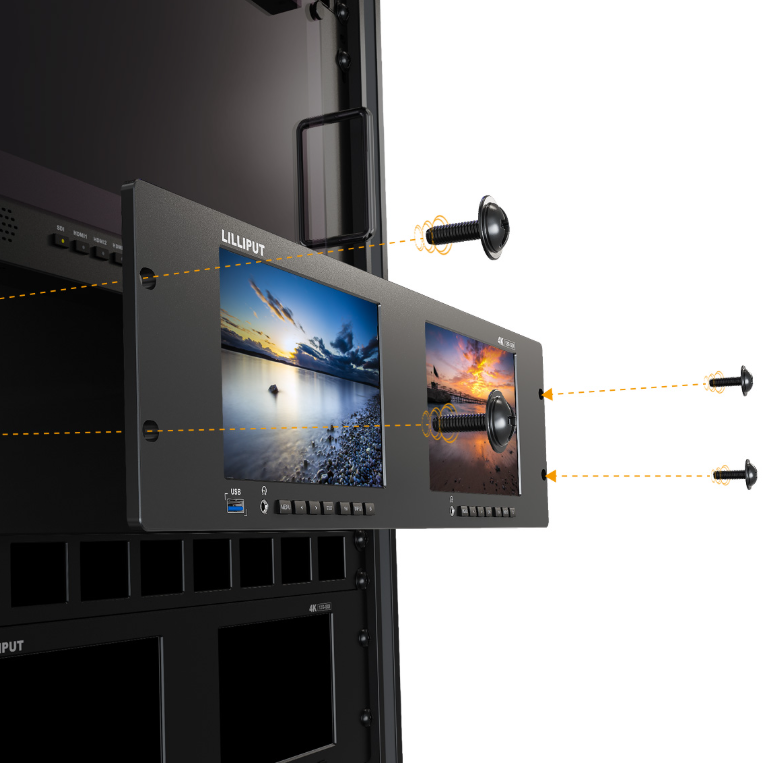

• Compact 3RU design for standard 19-inch equipment racks
• Two independent Full HD displays (1920 × 1200)
• High-brightness LTPS panels with 1000 nits brightness
• HDR support:
  • ST2084 300
  • ST2084 1000
  • ST2084 10000
  • HLG (Hybrid Log Gamma)
• 12G-SDI and HDMI 2.0 inputs with loop outputs for each display
• Supports UHD video up to 2160p at 60 Hz
• Professional monitoring tools:
  • Waveform
  • Histogram
  • False Color
  • Focus Peaking
  • Check Field
  • Color Bars
• LAN remote control via PC software
• Tally interface for broadcast workflows
• HDMI 8-channel and SDI 16-channel embedded audio support
• 3.5 mm headphone output
• Ideal for broadcast studios, OB vans, live streaming, and production monitoring
