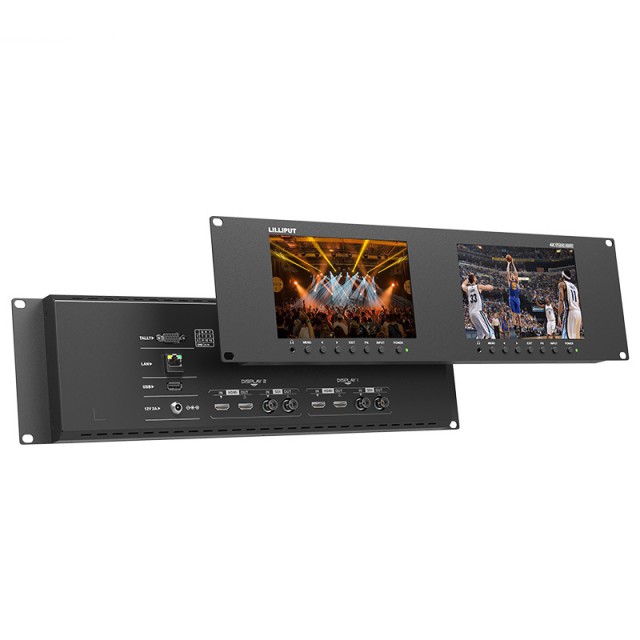

Lilliput RM-7029S Dual 7" Rackmount Monitors with 3G-SDI & HDMI
SKU: Lilli-rm-7029s
The Lilliput RM-7029S is a 3U dual rackmount monitor with two 7″ 1920 × 1200 displays for watching two different cameras at once during a live broadcast. Each display has its own 3G-SDI and HDMI input (up to 4K 60 Hz) with loop outputs and independent assist tools – false color, histogram, time code and custom 3D LUTs via USB. Ideal for video walls and…
849 € with VAT
701.65 € without VAT
Availability
14-30 days
Top accessories for Lilliput RM-7029S Dual 7" Rackmount Monitors with 3G-SDI & HDMI
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Canare HDMI Cable 3 m
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs
Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput RM-7029S is a 3U dual rackmount monitor with two 7″ 1920 × 1200 displays for watching two different cameras at once during a live broadcast. Each display has its own 3G-SDI and HDMI input (up to 4K 60 Hz) with loop outputs and independent assist tools – false color, histogram, time code and custom 3D LUTs via USB. Ideal for video walls and broadcast trucks.

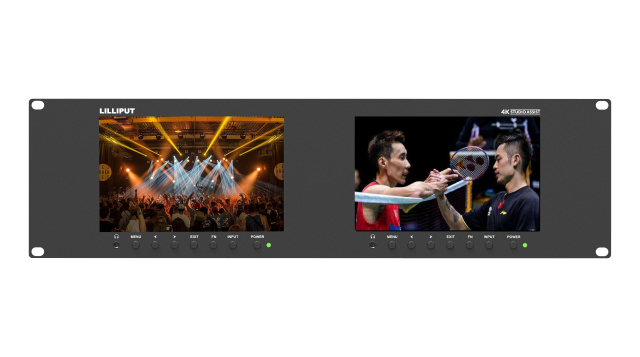

Two independent 7" displays in 3U
A Full HD pair with 1920 × 1200 resolution, 3G-SDI and HDMI inputs and accurate scopes for each image separately.
2× 7" 1920 × 12003G-SDI + HDMI3D LUT & logsLAN control3U rackmount
Each display on its own
Each display is an independent device receiving its own source and working with its own functions – for example a level meter on one and a different 3D LUT on the other – so production managers can judge both images easily and precisely.
1920 × 1200 displays
7" 16:10 LCD, 2,000:1 contrast, 160° viewing angles and 400 cd/m².

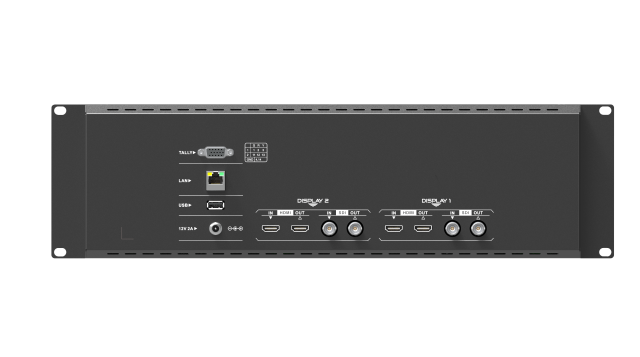

Inputs and outputs
Monitors SDI up to 1080p 60 Hz and HDMI up to 2160p 60 Hz with loop outputs.
Easy remote control
Adjust all monitors from a computer running the software over LAN.
3U mounting
For 19" cabinets, slim metal design with a flat front.
More information
About the monitor
Monitor two different cameras simultaneously for your live broadcast: thanks to its 3U form factor the RM-7029S fits easily into a video wall or broadcast truck. Assist functions such as false color, histogram and time code are available independently for each monitor, allowing production managers to analyze image quality easily and precisely. Custom 3D LUTs can be uploaded via the USB Type-A input.
PACKAGE CONTENT
- 1× monitor Lilliput RM-7029S
- 1× 12 V DC power adapter
- 1× tally connector
- 1× e-user manual card
SPECIFICATIONS
- Brand: Lilliput
- Model: RM-7029S
- Display: 2× 7" LED backlit
- Resolution: 1920 × 1200 (per display), 16:10
- Brightness: 400 cd/m²
- Contrast: 2,000:1
- Viewing angle (H/V): 160° / 160°
- Supported log formats: S-Log2, S-Log3, ArriLog, C-Log, J-Log, V-Log, N-Log and user
- LUT: 3D LUT (.cube) via USB, 17 default and 6 user logs
- Video inputs: 2× 3G-SDI, 2× HDMI (up to 4K 60 Hz)
- Video outputs: 2× 3G-SDI, 2× HDMI 2.0 (loop)
- SDI formats: 720p 60/50, 1080i 60/50, 1080PsF 24/25/30, 1080p 24/25/30/50/60
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- Audio: 2× 3.5 mm headphones
- Other interfaces: LAN (remote control), tally
- Functions: 3D LUT, time code, level meter, histogram, peaking, false color, exposure, check field, color bar, pixel zoom, pixel to pixel, markers, freeze; independent per display
- Power: DC 10–24 V (1.5 A)
- Power consumption: ≤ 16 W
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 70 °C
- Dimensions (L × W × D): 480 × 131.6 × 29.3 mm
- Weight: 2.2 kg
- Mounting: 3U 19" rack
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 7" |
| Monitor inputs | HDMI · SDI · 4K HDMI · 3G-SDI · HDMI 2.0 |
| Luminosity | 400cd/m2 |
| Panel resolution | 1920x1200 |
| Monitor power supply | DC 10–24 V |
Other parameters
| Tally | Yes |
| Other features | Rack-mountable · Tally · 3D LUT correction |
