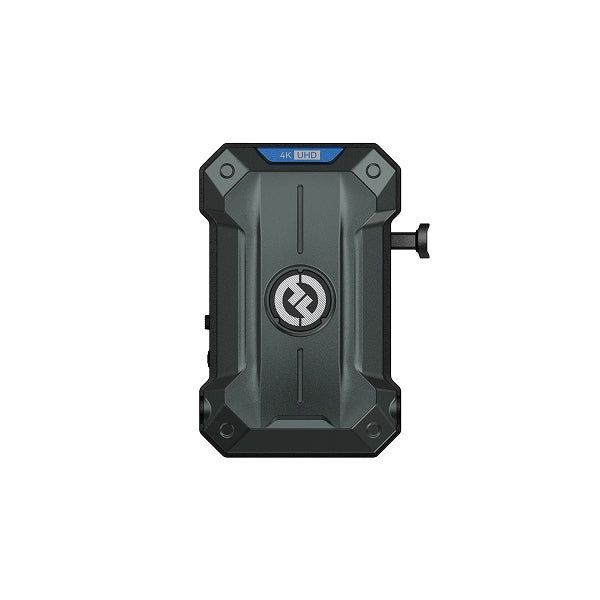

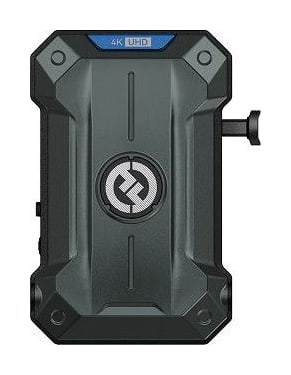

Hollyland Pyro Ultra RX Receiver

  • New
SKU: 9851-RX

Standalone Hollyland Pyro Ultra RX receiver for an additional monitor in a Pyro Ultra system. It receives video up to 4K60, outputs it via HDMI 2.0 (up to 4K60) and 3G-SDI (up to 1080p60) and can send it to a computer over USB-C as a UVC device. It adapts the output resolution to the connected monitor and runs on a V-Mount battery or a 6–16 V DC supply.

More information

669 € with VAT 552.89 € without VAT
Add to Compare Price history
Availability
on request
SKU:
9851-RX
Add to Compare Price history

Top accessories for Hollyland Pyro Ultra RX Receiver

SmallRig V-Mount Battery Mini VB99 Pro 4292

  • SHOWROOM PRAHA
The highly integrated BMS chip, with fast charging protocols, bi-directional 100W
351 €
In stock > 5 pcs

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs

ZGCINE ZG-V99ProV-Mount Battery

  • SHOWROOM PRAHA
The ZGCINE ZG-V99Pro V-Mount battery is an upgraded version of the V99 battery, featuring
153 €
In stock 5 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Standalone Hollyland Pyro Ultra RX receiver for an additional monitor in a Pyro Ultra system. It receives video up to 4K60, outputs it via HDMI 2.0 (up to 4K60) and 3G-SDI (up to 1080p60) and can send it to a computer over USB-C as a UVC device. It adapts the output resolution to the connected monitor and runs on a V-Mount battery or a 6–16 V DC supply.

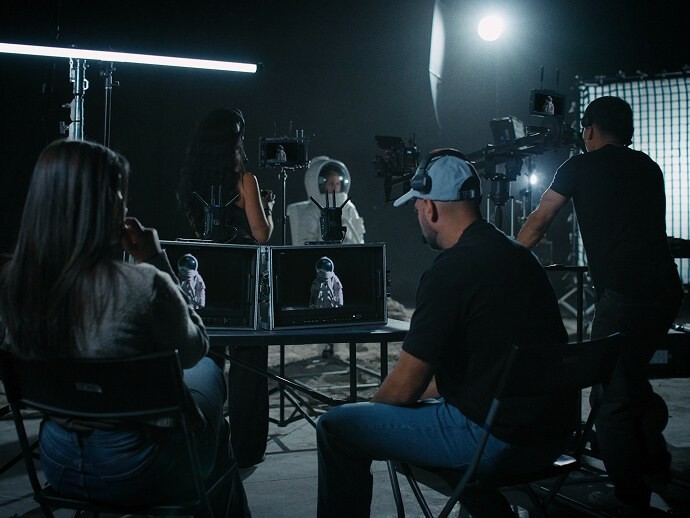

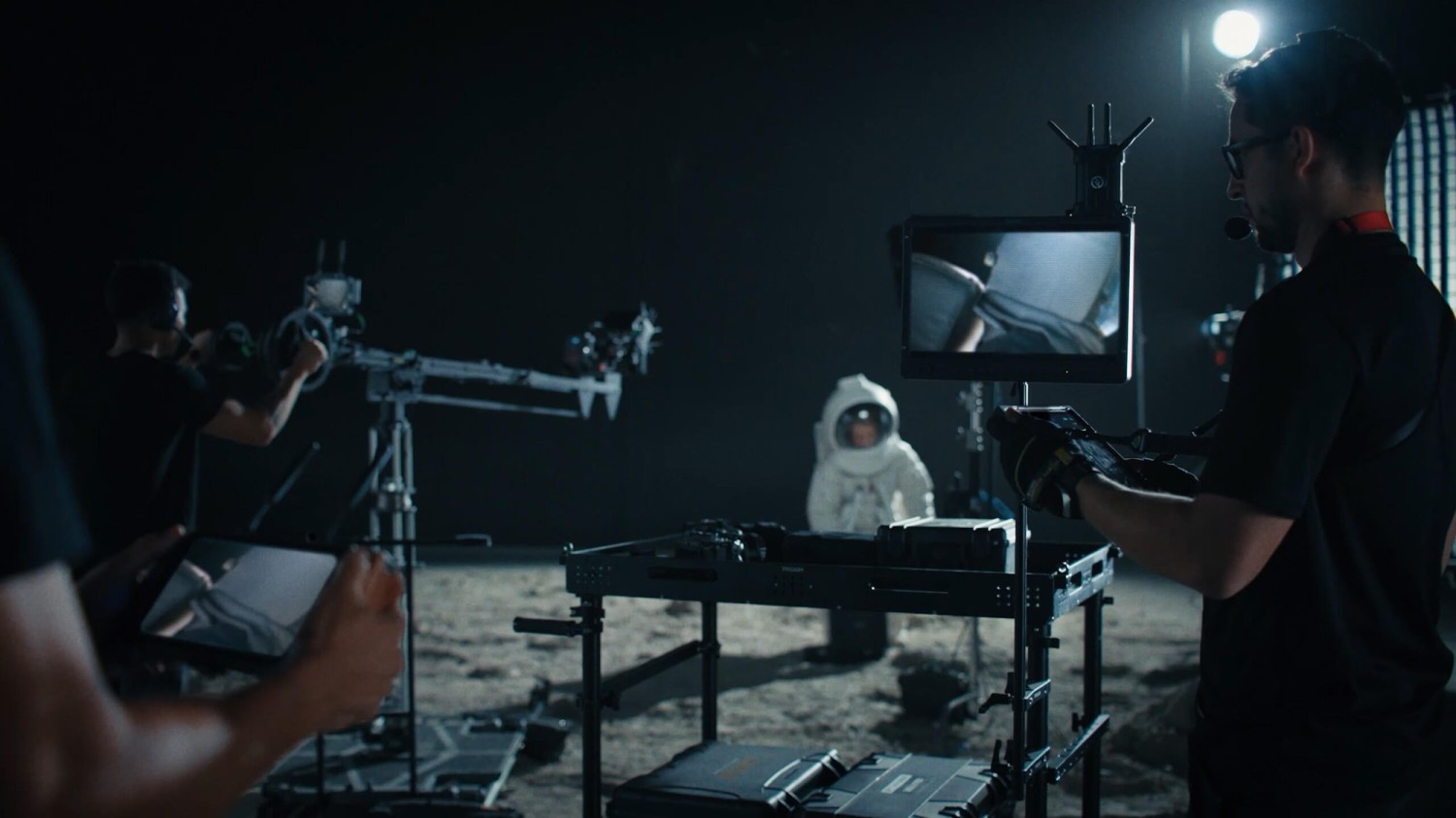

One more monitor for the director and focus puller

Receiver for the Pyro Ultra system with HDMI and 3G-SDI outputs, Focus Mode and adaptive output resolution.

4K60HDMI 2.0 + 3G-SDIUVC up to 4K60V-Mount

Adaptive output resolution

Even when transmitting 4K60, the receiver can send 1080p to a Full HD monitor while the source signal stays intact.

Focus Mode from 20 ms

≥ 20 ms at 1080p25/30, ≥ 40 ms at 1080p60 and ≥ 45 ms at 4K60.

V-Mount power

V-Mount battery 11.8–16.8 V or 6–16 V DC supply, 7 W power consumption.

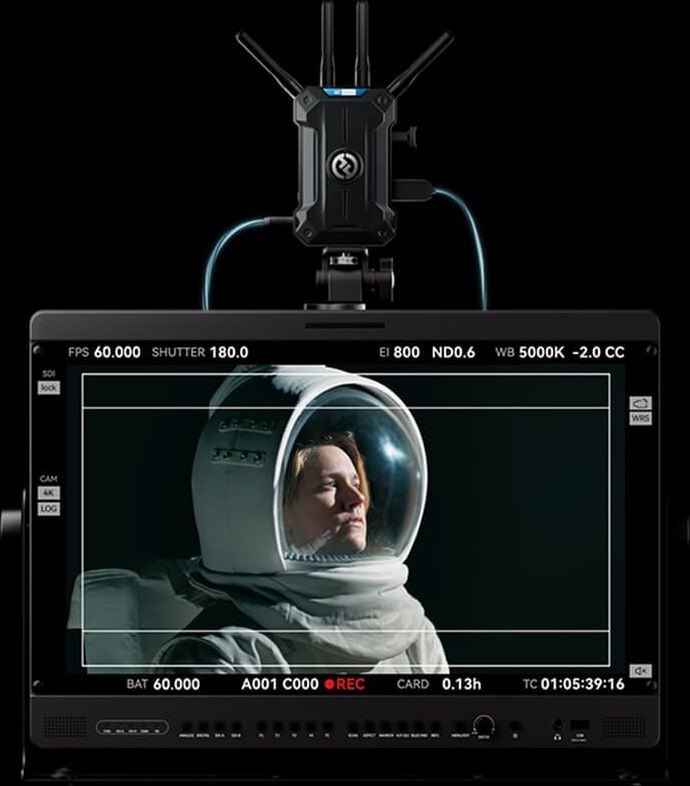

A picture for every monitor

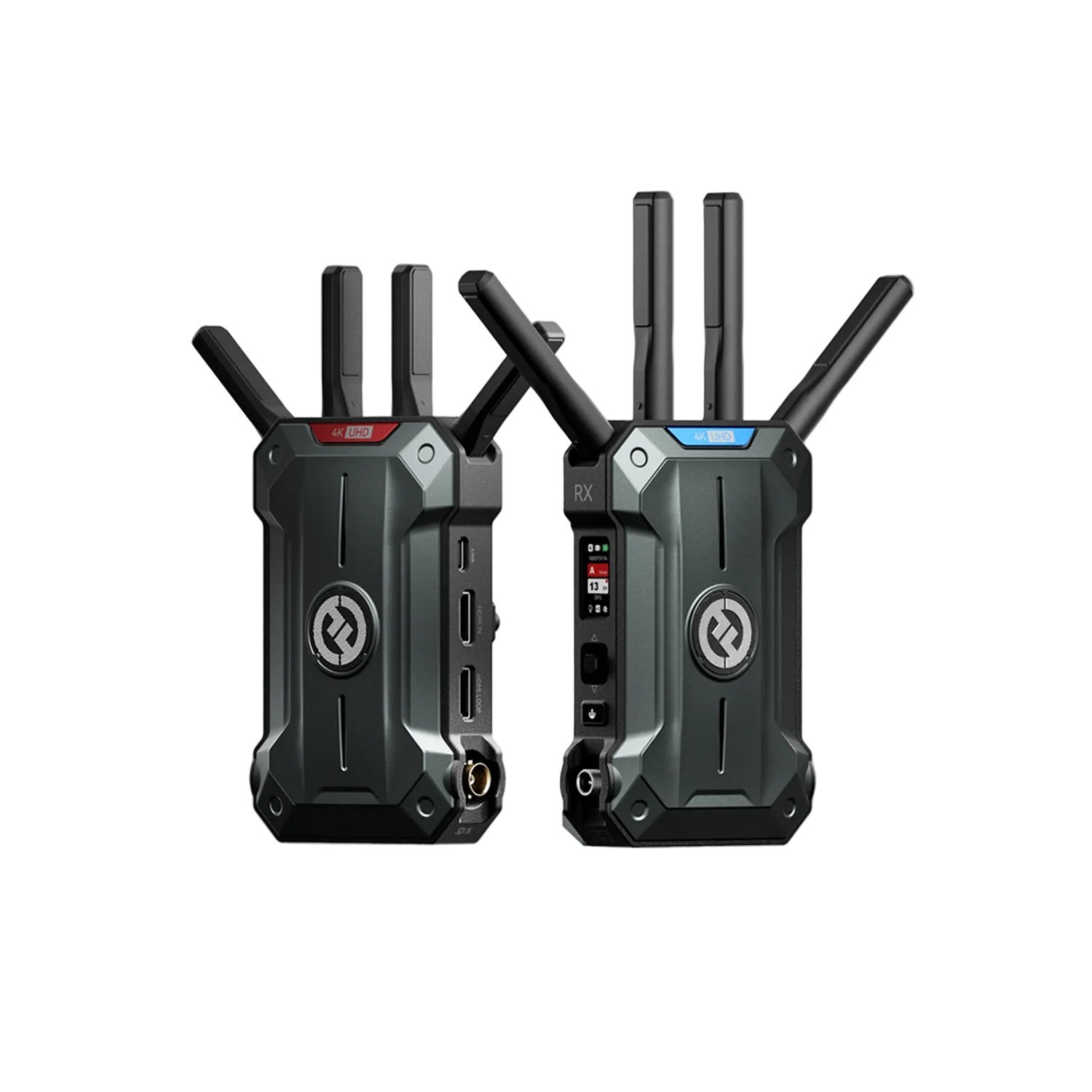

The receiver links with the Pyro Ultra transmitter and sends the picture to a monitor via HDMI 2.0 or 3G-SDI. The output resolution adapts to the device automatically, so a UHD monitor gets 4K60 and a Full HD monitor gets 1080p.

Hollyland Pyro Ultra RX – A picture for every monitor

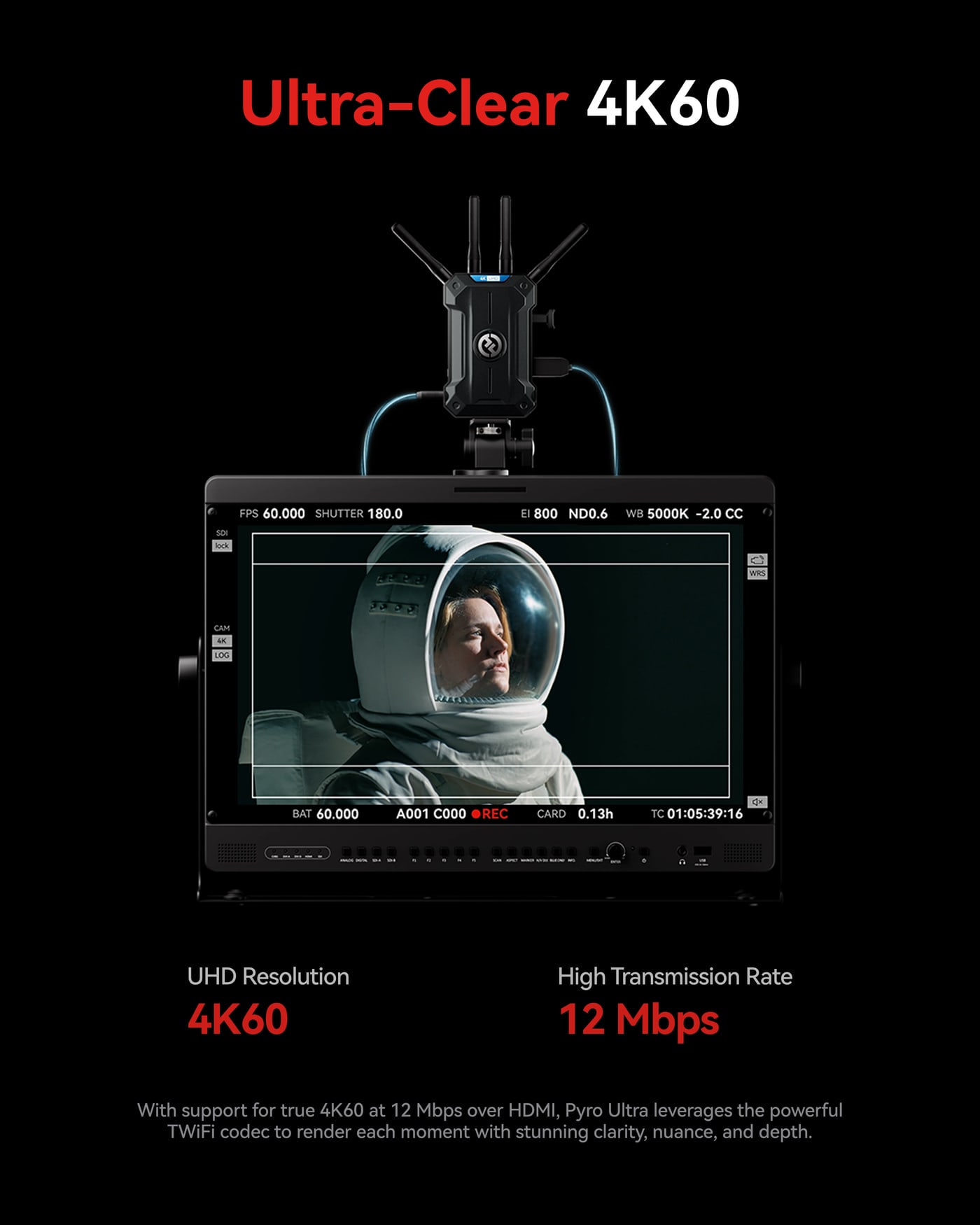

True 4K60 at 12 Mbps

Pyro Ultra transmits true 4K at 60 frames per second over HDMI at a bitrate of 12 Mbps. The TWiFi codec preserves detail, subtle gradations and depth.

Hollyland Pyro Ultra RX – True 4K60 at 12 Mbps

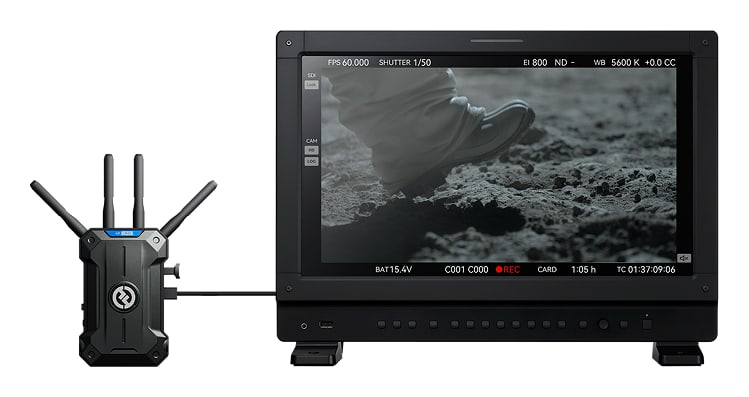

Freeze frame

During a brief signal interruption the last frame stays on the monitor. A custom 1920 × 1080 image (JPG under 1 MB named logo.jpg) can be set instead.

Hollyland Pyro Ultra RX – Freeze frame

Proprietary TWiFi technology

TWiFi combines the 2.4 GHz and 5 GHz bands into a single composite link that is more resilient than conventional dual-band transmission. Automatic frequency hopping avoids congested channels without manual intervention.

Hollyland Pyro Ultra RX – Proprietary TWiFi technology

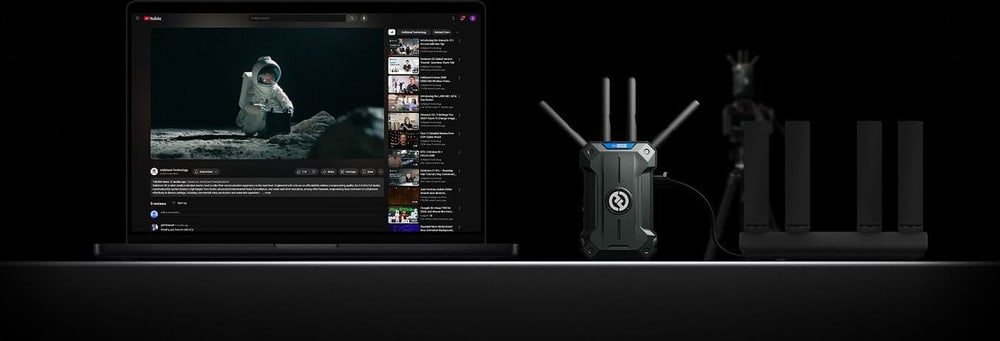

UVC capture and RTMP streaming

Over USB-C (USB 3.0) the receiver connects to a computer as a UVC capture device up to 4K60. For live broadcasting it handles RTMP streaming up to 1080p60.

Hollyland Pyro Ultra RX – UVC capture and RTMP streaming

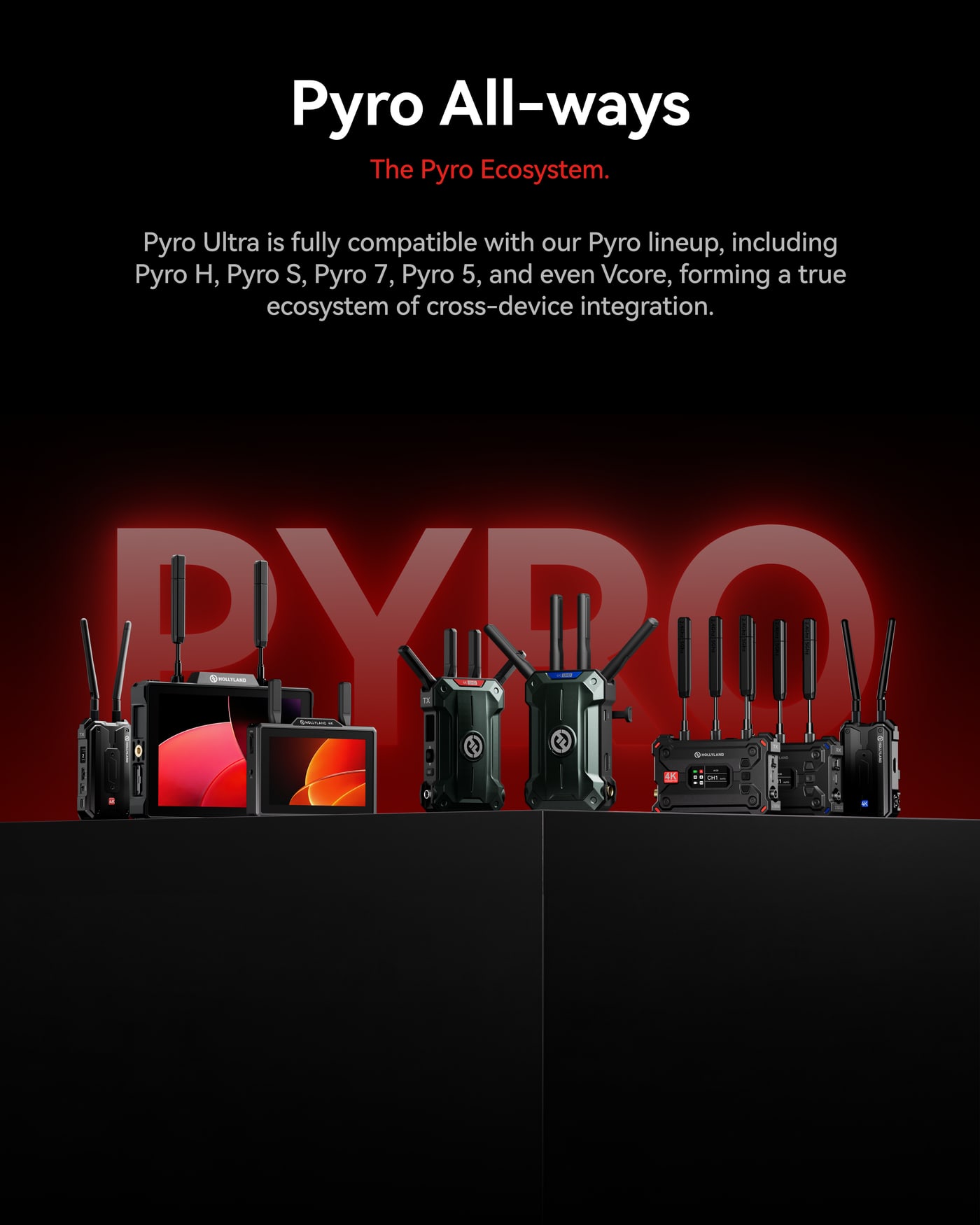

The whole Pyro ecosystem

Pyro Ultra works with Pyro 5 and Pyro 7 in both Broadcast and non-Broadcast Mode, and with Pyro H and Vcore in non-Broadcast Mode. Pyro S currently supports non-Broadcast Mode only; Broadcast support will come with a firmware update.

Hollyland Pyro Ultra RX – The whole Pyro ecosystem

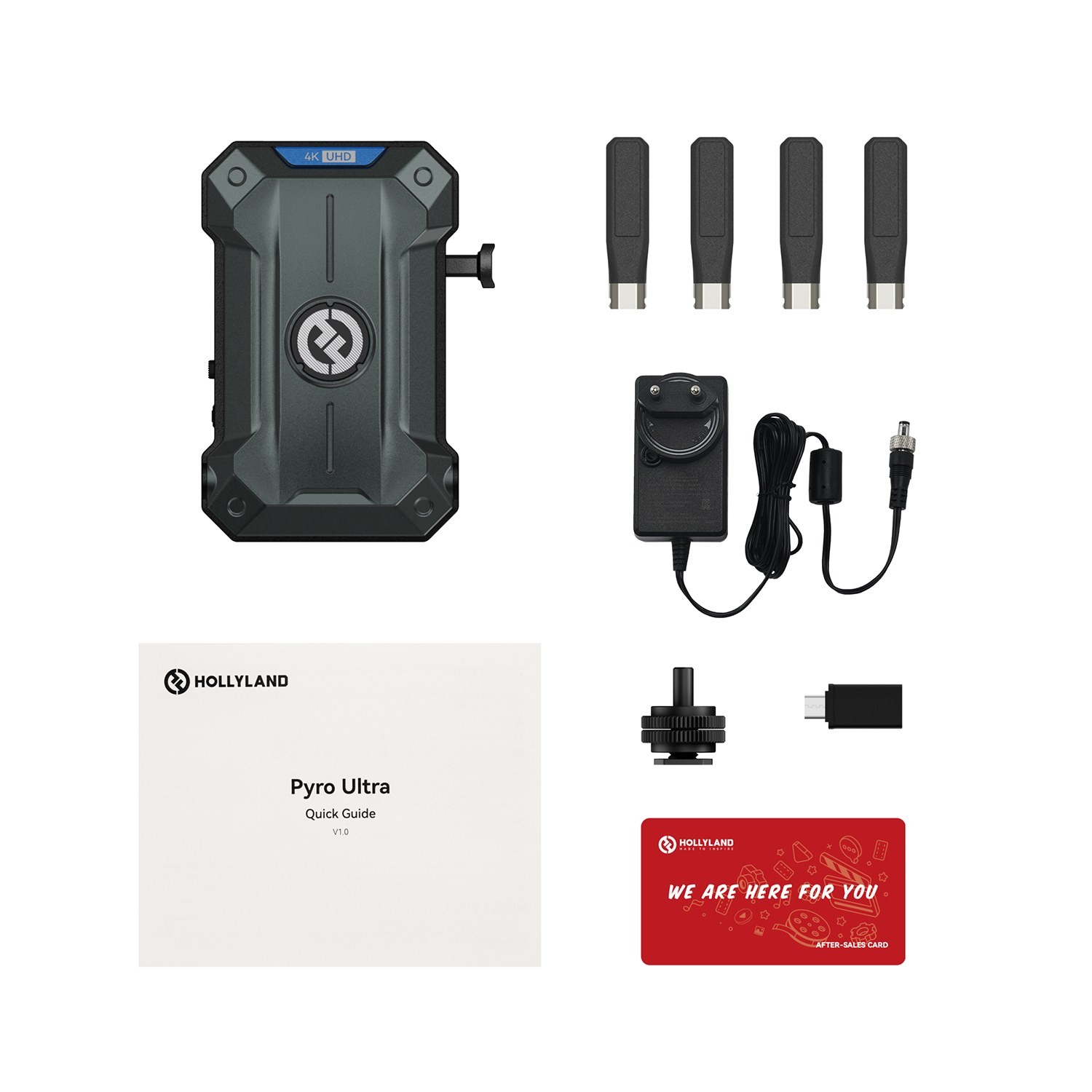

PACKAGE CONTENT

  • 1× Pyro Ultra RX receiver
  • 4× Easy-Install short antenna
  • 1× USB-C OTG adapter
  • 1× 12 V / 2 A DC power adapter
  • 1× quick guide
  • 1× warranty card

SPECIFICATIONS

  • Transmission technology: TWiFi, 2.4 GHz and 5 GHz bands
  • Range (line of sight): up to 1.5 km (4,900 ft), up to 700 m (2,300 ft) in Broadcast Mode
  • Resolution and bitrate: up to 4K60, 12 Mbps
  • Latency (Focus Mode): ≥ 20 ms 1080p25/30, ≥ 40 ms 1080p60, ≥ 45 ms 4K60
  • Receiver interfaces: HDMI OUT (HDMI 2.0), 3G-SDI OUT, USB-C (USB 3.0), DC IN (2.0 mm)
  • HDMI formats: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 4K (3840 × 2160) 23.98/24/25/29.97/30/50/59.94/60
  • SDI formats – output: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/60
  • Streaming: UVC up to 4K60, RTMP up to 1080p60
  • Receiver power: V-Mount battery 11.8–16.8 V, DC 6–16 V
  • Receiver power consumption: 7 W
  • Operating frequency: 2.412–2.484 GHz; 5.150–5.250 GHz; 5.250–5.350 GHz; 5.470–5.725 GHz; 5.725–5.850 GHz (subject to local regulations)
  • Receiver sensitivity: −85 dBm, −80 dBm in Broadcast Mode
  • Bandwidth: 20 MHz, 40 MHz in Broadcast Mode
  • Antenna connector: SMA (male)
  • Unit dimensions: 124.5 × 80 × 34.9 mm
  • Unit weight: 320 g
Parameters

Parameters

Manufacturer: Hollyland
Category: Wireless video transmission

Main parameters

Frequency band2.4 GHz · 5 GHz
Power supplyDC
ColourBlack
FunctionsUSB-C UVC output
Output connectorHDMI type A – female · BNC – female · USB-C – female
Line-of-sight range1500m
Weight per unit320g
Receivers in package1
Maximum power consumption of the receiver7W
Maximum UHD 4K frame rate60fps
Latency20 ms
InputWireless video reception
Output3G-SDI · HDMI · USB-C (UVC)
