SmallRig x Caleb Pike VB212 mini V Mount Battery 4293

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293 adopts a highly integrated design, reducing the battery size and making it lighter and more portable. The battery combines fast-charging protocol chips, MCU, voltage control, and BMS chips. It supports a wide range of fast charging protocols (PD 3.1 / QC 3.0 / AFC, etc.), Two-way PD fast charging and discharging…

More information

Promotion: -26% ends in: 24d: 02h: 28m
529 € 390.15 € with VAT 322.44 € without VAT
-+
Availability
Backordered > 5 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

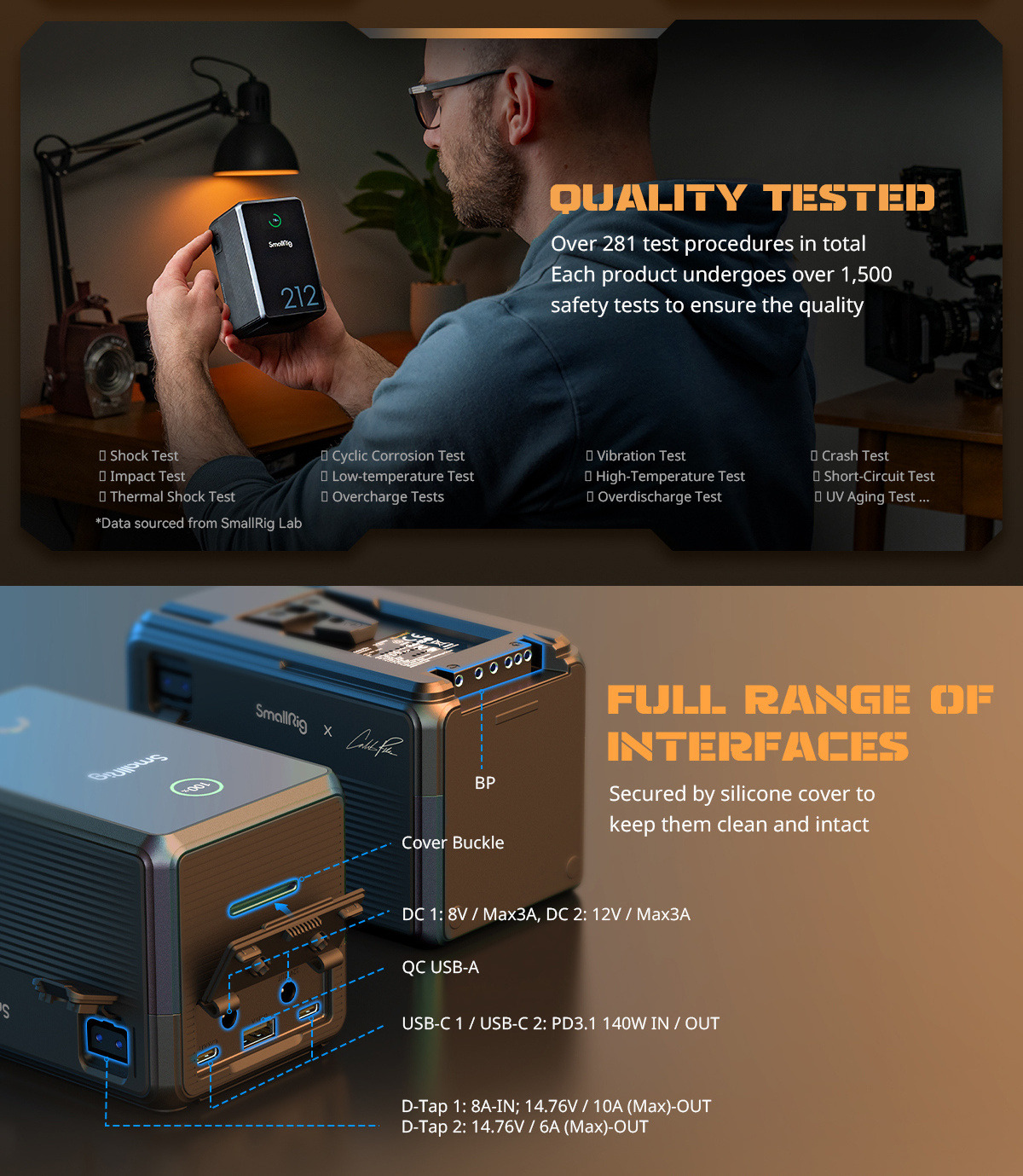

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293 adopts a highly integrated design, reducing the battery size and making it lighter and more portable. The battery combines fast-charging protocol chips, MCU, voltage control, and BMS chips. It supports a wide range of fast charging protocols (PD 3.1 / QC 3.0 / AFC, etc.), Two-way PD fast charging and discharging 140W (Max), and adaptive voltage / current regulation, etc.  In addition, its customized intelligent BMS system ensures faster and safer charging by providing overcurrent / short circuit / overtemperature / overvoltage protection, etc. The battery body is equipped with D-Tap / USB-C / USB-A / DC 8V-OUT / DC12V-OUT /  BP interfaces, which can charge or power camera / video camera / monitor / wireless image transmitter / LED video light / mobile phone / laptop etc., without using any V-mount plates.

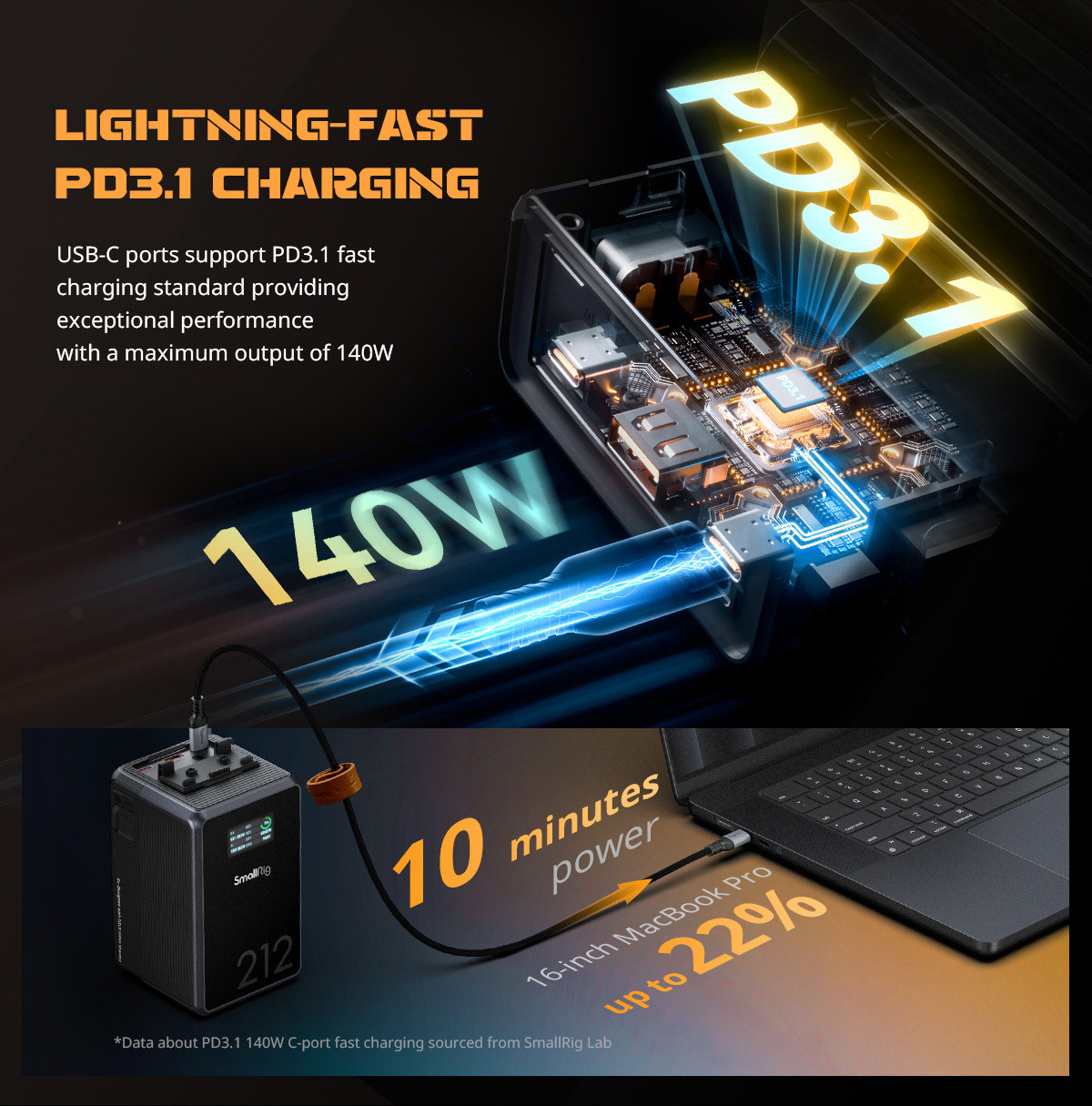

1. Intelligent BMS chip supports 140W (Max.) fast charging, fully charged in 2.5 hours.
2. Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable.
3. Highly integrated design, ultracompact and travel-friendly.

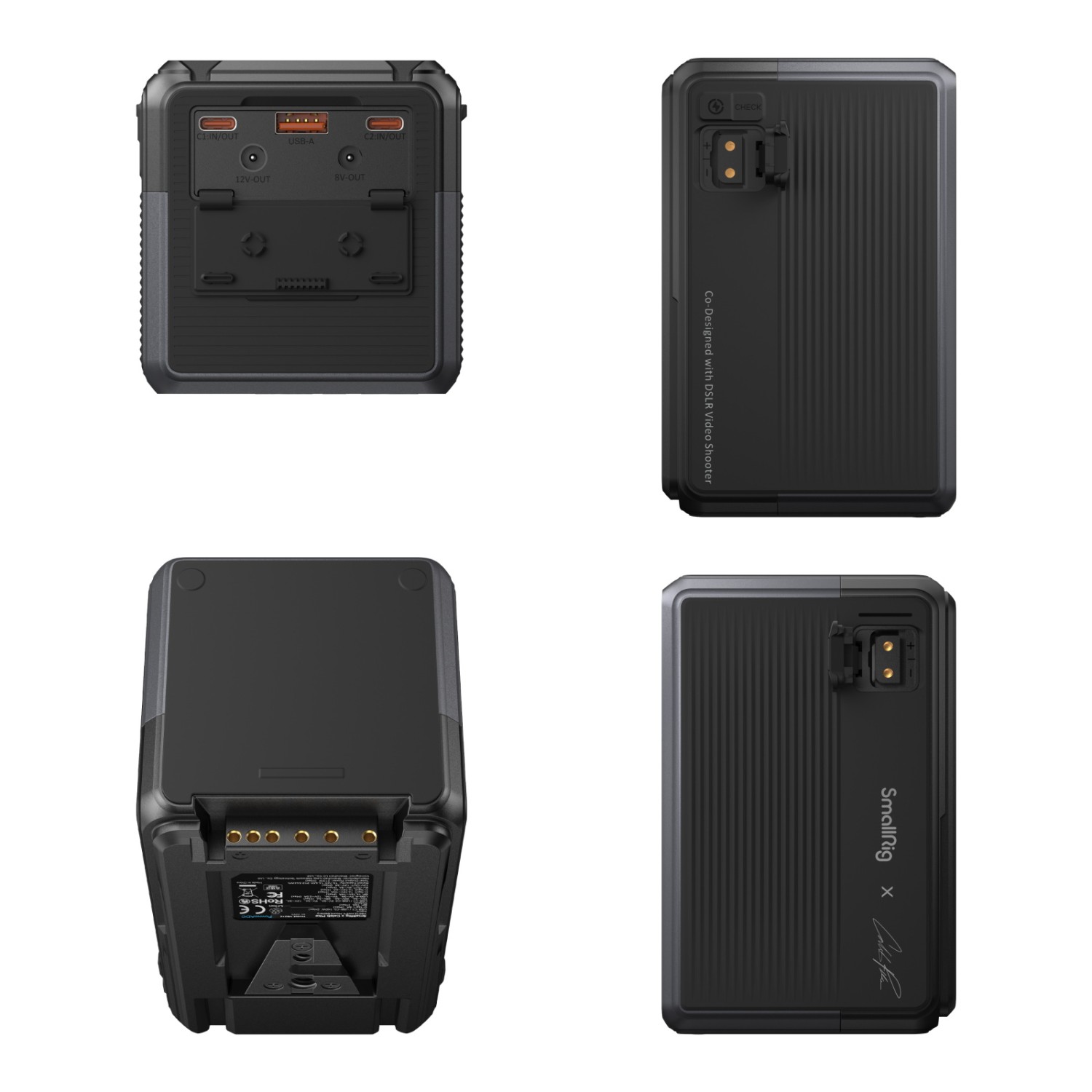

4. Multiple interfaces: two USB-C ports, two D-Tap ports, one USB-A port, DC 8V-OUT, DC12V-OUT. Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging.

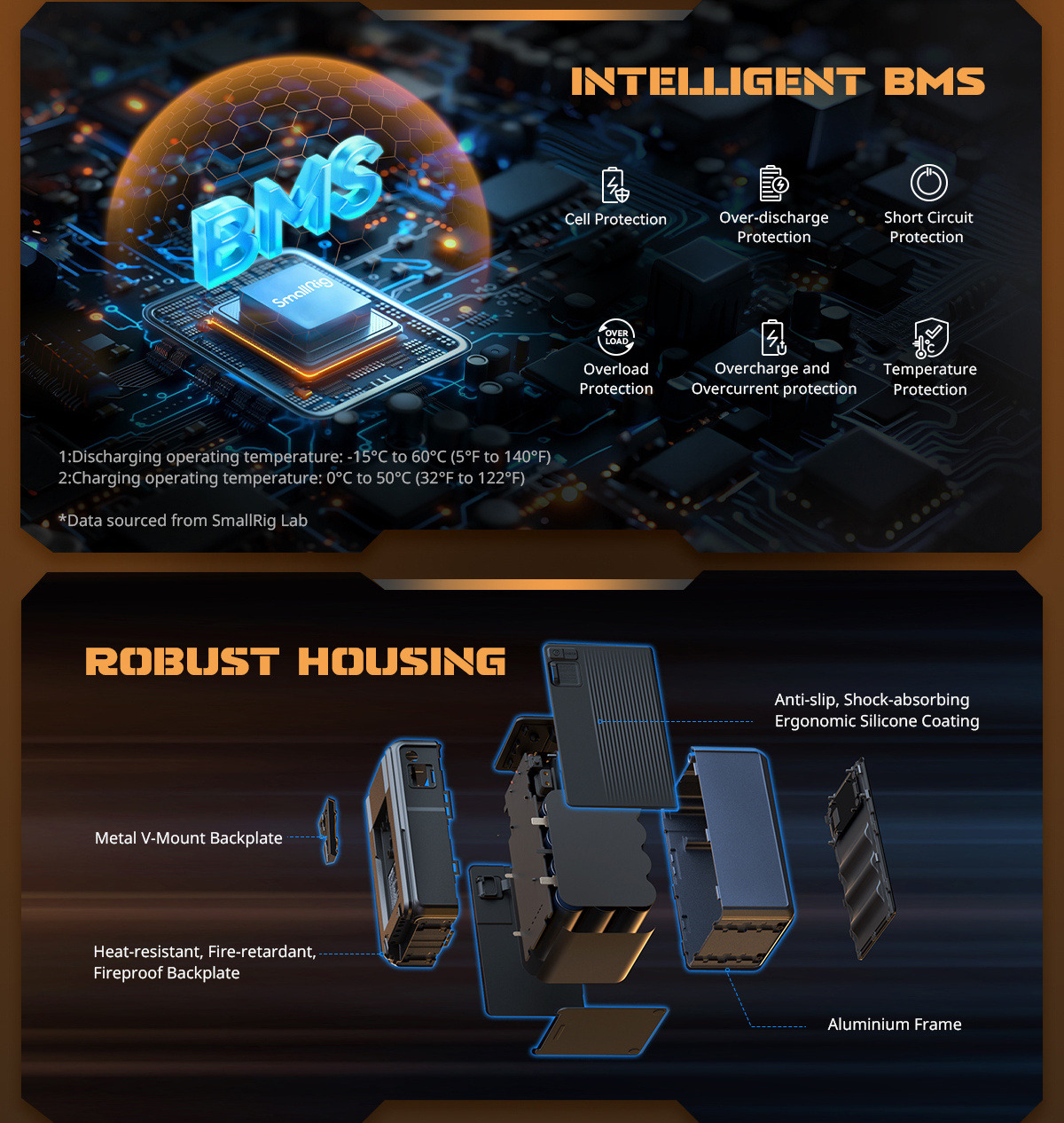

5. Aluminum alloy, silicone, TPU, and PC V0 materials; four layers of aluminum frames on the inside with silicone coating on the outside, make the battery robust, drop-proof, heat-resistant, and flame-retardant.
6. Durable, scratch-resistant PC and acrylic front cover.

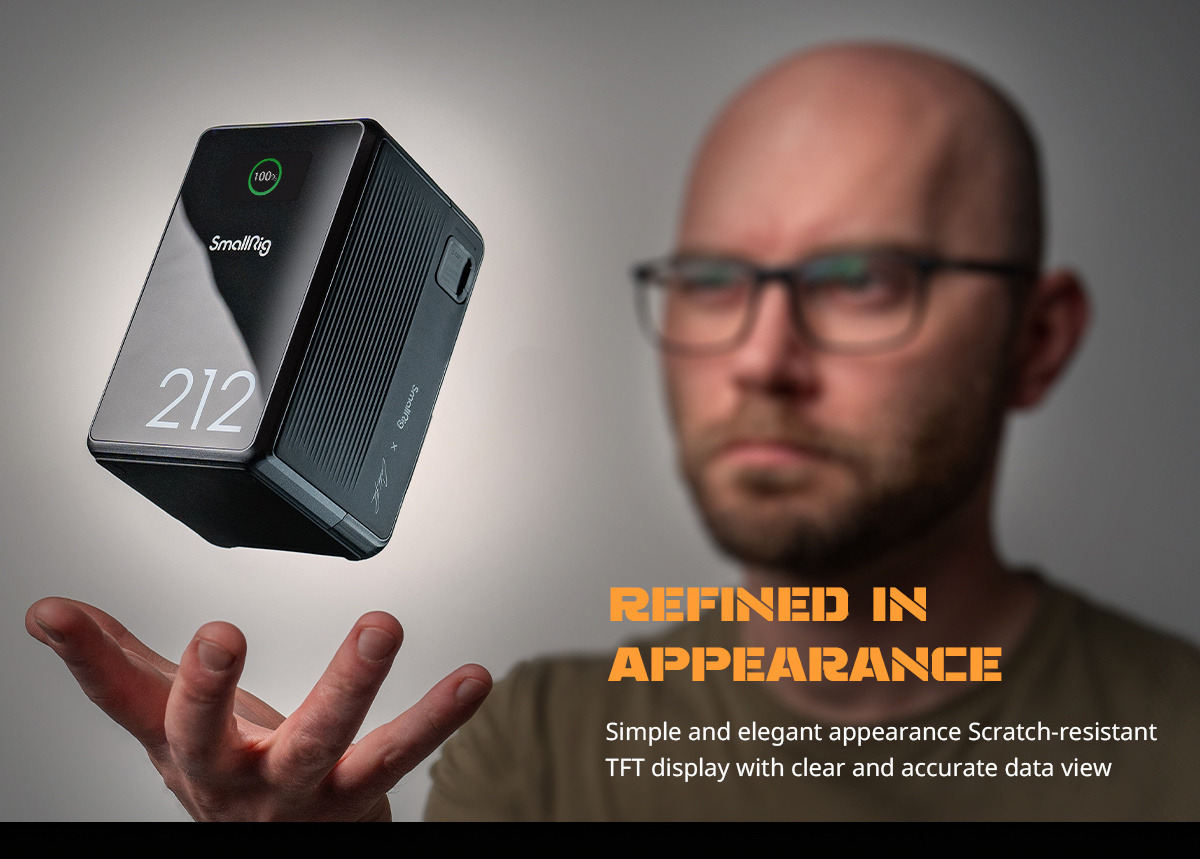

7. TFT display shows battery status clearly and accurately.
8. The accurately designed cover and well-positioned grooves allow for easy and convenient operation.

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293 adopts a highly integrated design, reducing the battery size and making it lighter and more portable. The battery combines fast-charging protocol chips, MCU, voltage control, and BMS chips. It supports a wide range of fast charging protocols (PD 3.1 / QC 3.0 / AFC, etc.), Two-way PD fast charging and discharging 140W (Max), and adaptive voltage / current regulation, etc.  In addition, its customized intelligent BMS system ensures faster and safer charging by providing overcurrent / short circuit / overtemperature / overvoltage protection, etc. The battery body is equipped with D-Tap / USB-C / USB-A / DC 8V-OUT / DC12V-OUT /  BP interfaces, which can charge or power camera / video camera / monitor / wireless image transmitter / LED video light / mobile phone / laptop etc., without using any V-mount plates. The BMS chip has a built-in 16-bit Smart ADC, which, combined with the MCU and a TFT display, allows you to keep track of the battery status anytime, anywhere. Built-in premium battery cells (no inflated capacity) can be charged and discharged cyclically, ensuring excellent performance and stability. The design complies with internationally recognized standards such as MSDS / UN38.3 / IEC62133 / UL2054 / UL62368, making it safer to use. The aluminum alloy body with a silicone coating provides robustness and makes it drop-proof. TPU and PC V0 materials make the battery heat-resistant and fire-retardant. Scratch-resistant PC and acrylic cover add durability and protect the TFT display that shows battery status clearly and accurately. The accurately designed cover and well-positioned grooves allow for fast and easy interaction with the dust cover. Overall, this item is safe and powerful enough for you to capture every wonderful moment without any worries.

Certification: FCC, CE, RoHS, ISED, PSE, RCM

Button function:
1. Click to check the battery level, and click again to turn off the screen.
2. Double-click to switch the display port voltage and power.
3. Click four times to turn on/off low current mode.
4. Press and hold for 10 seconds to force restart.
*Low current mode: In normal mode, low-power devices may not be able to be charged normally. In this case, the low-current mode can be turned on.

Note: Weight and dimensions are measured manually and may not be accurate.

Compatible With

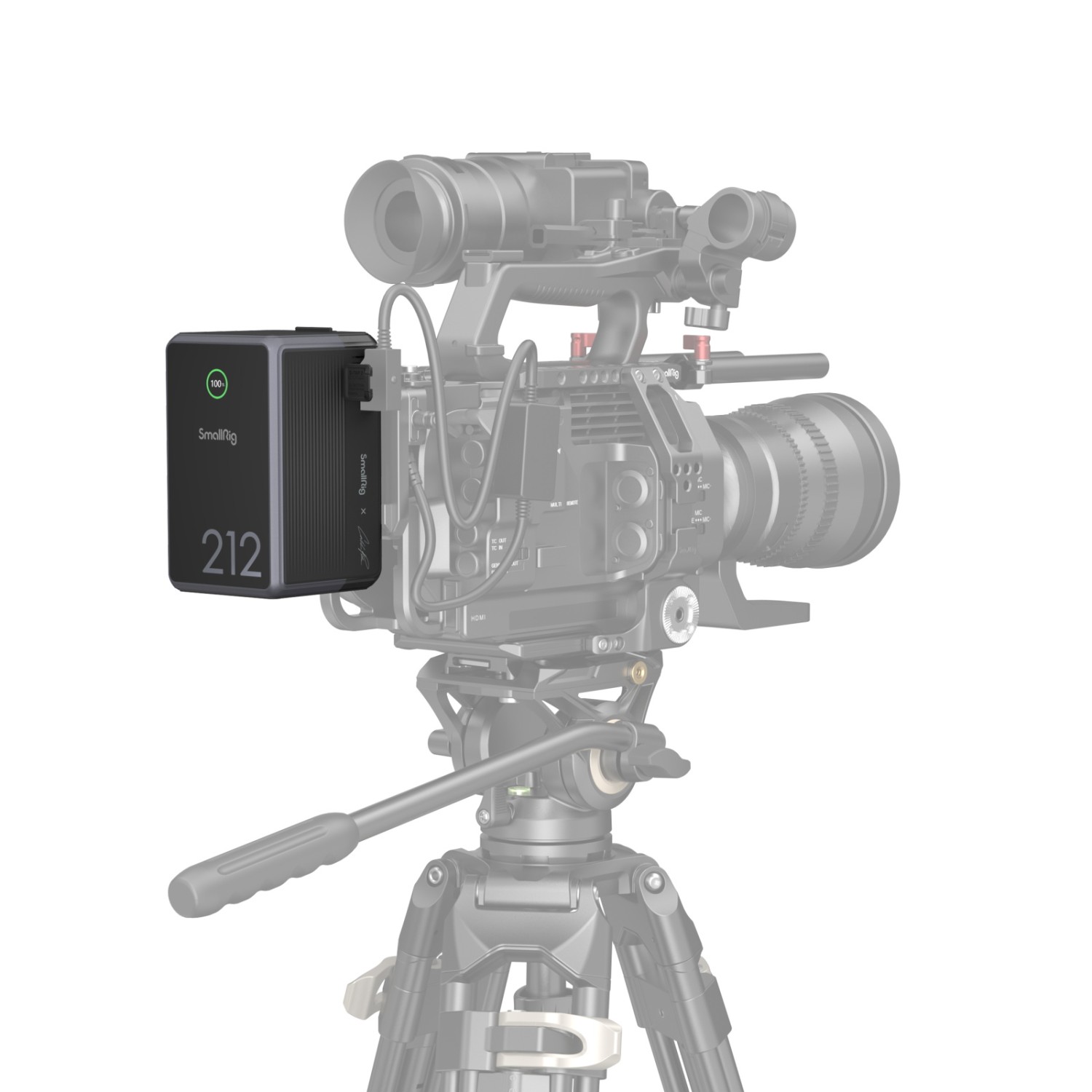

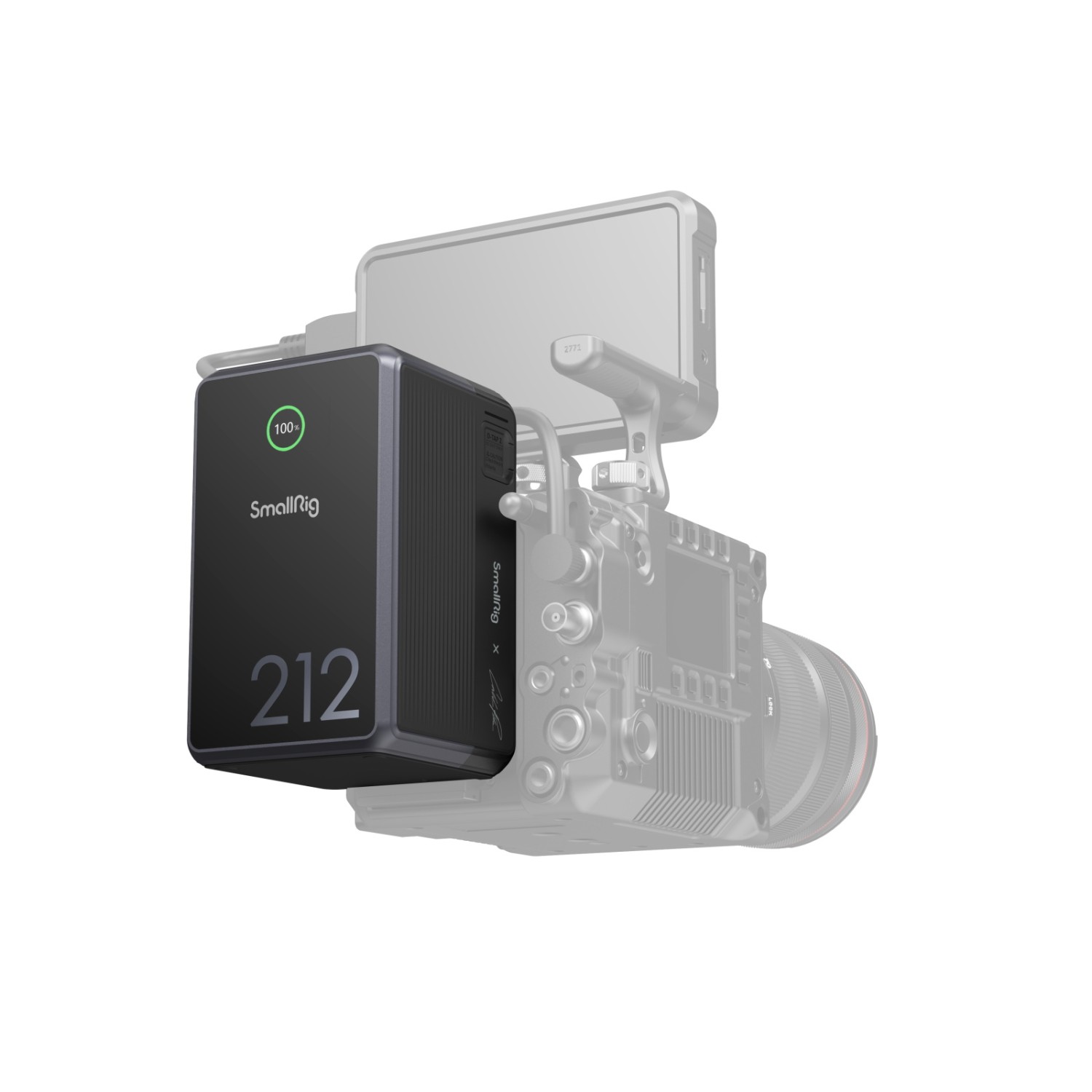

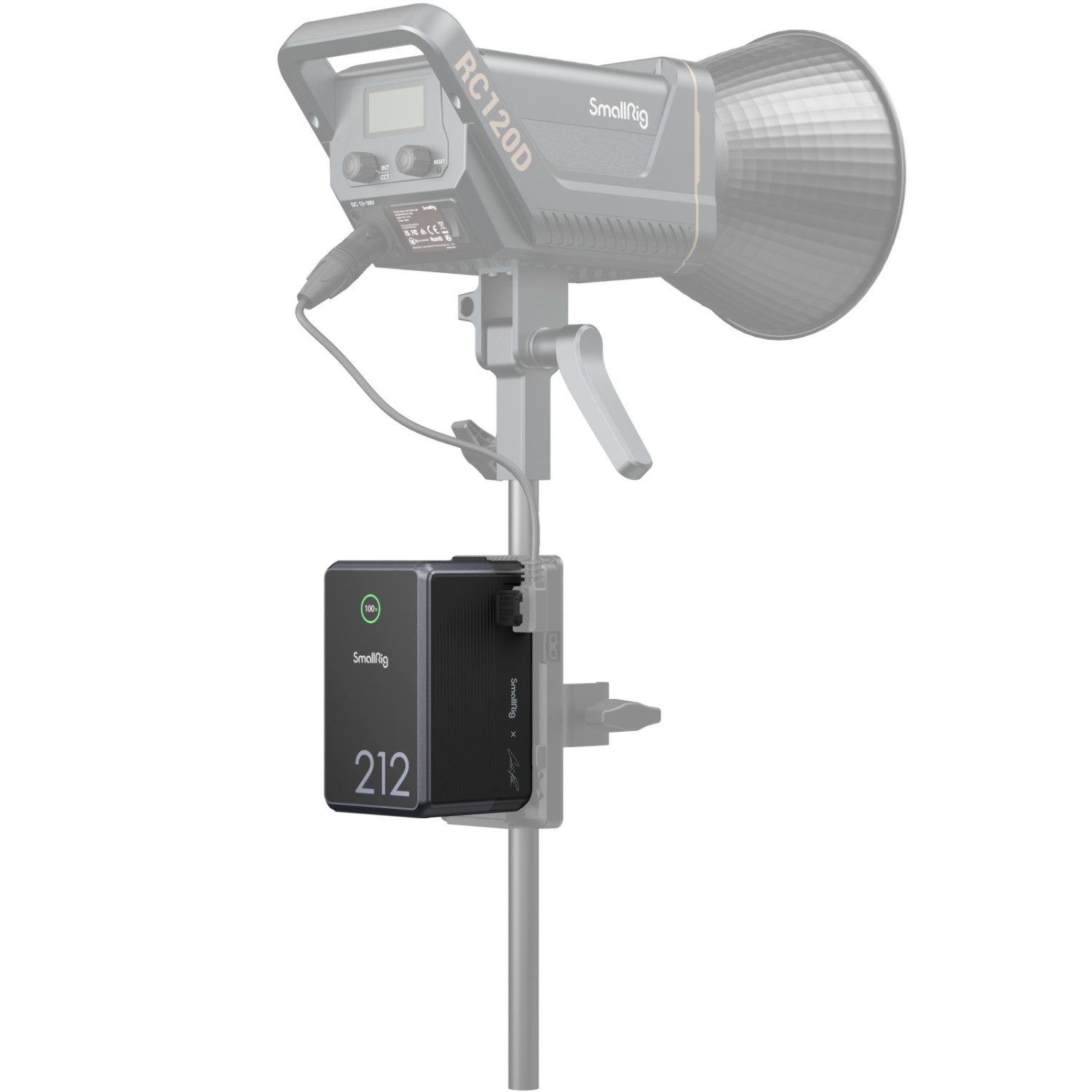

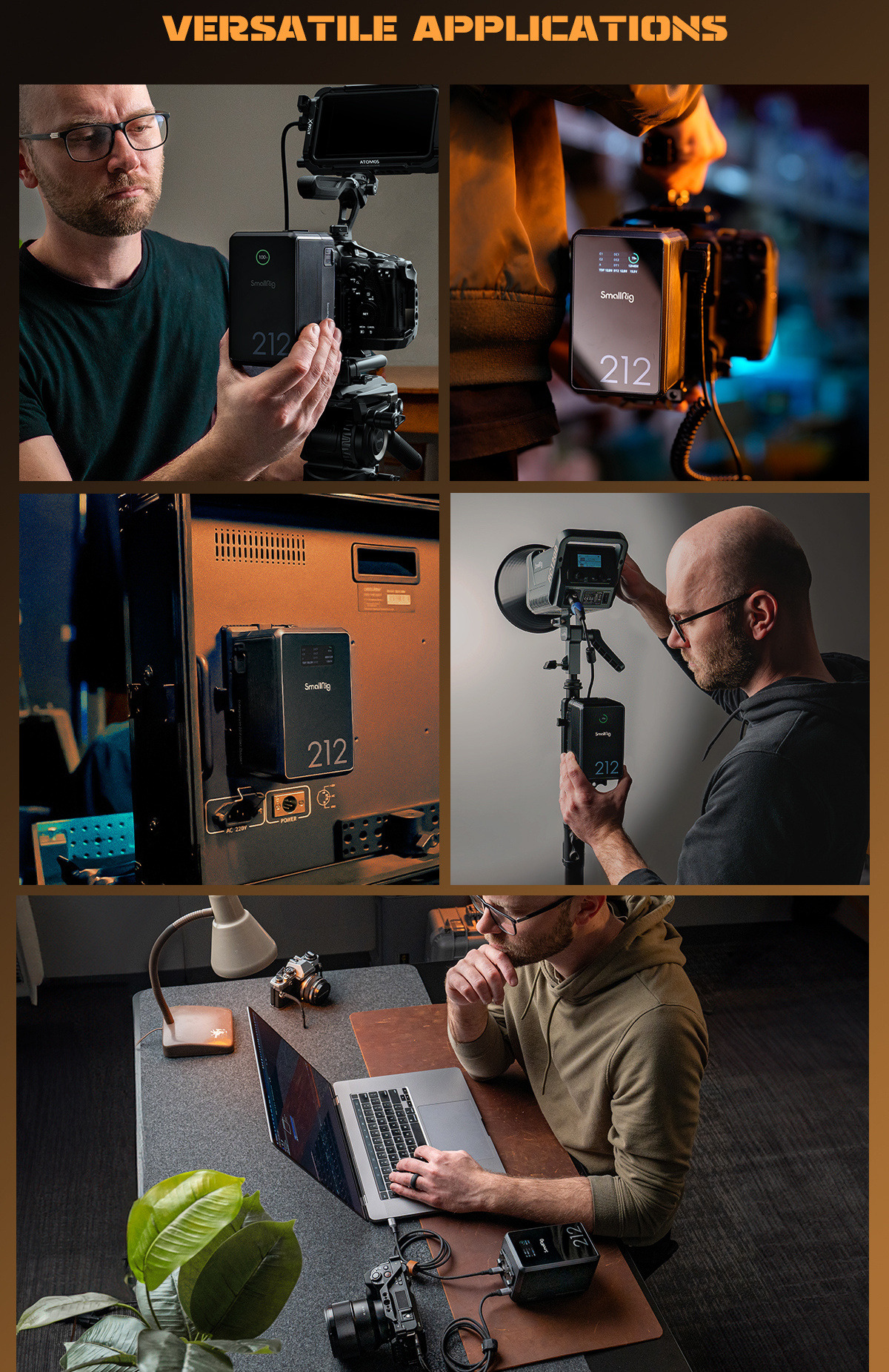

Mirrorless camera, video camera, camera, monitor, follow focus, image transmitter, LED video light, mobile phone, tablet, laptop, etc.

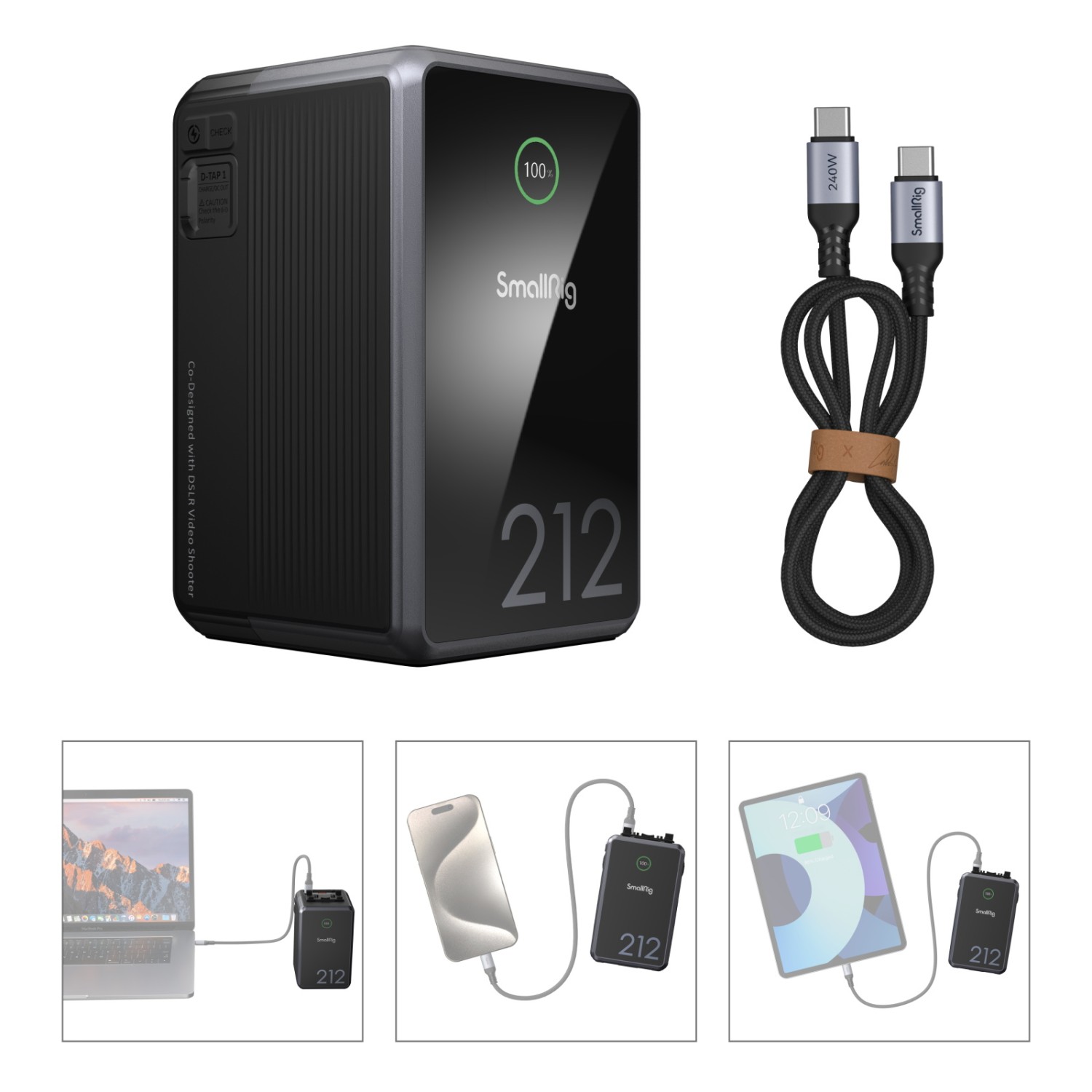

PACKAGE CONTENT

VB212 mini V Mount Battery x 1
240W USB-C Charging Cable x 1

SPECIFICATIONS

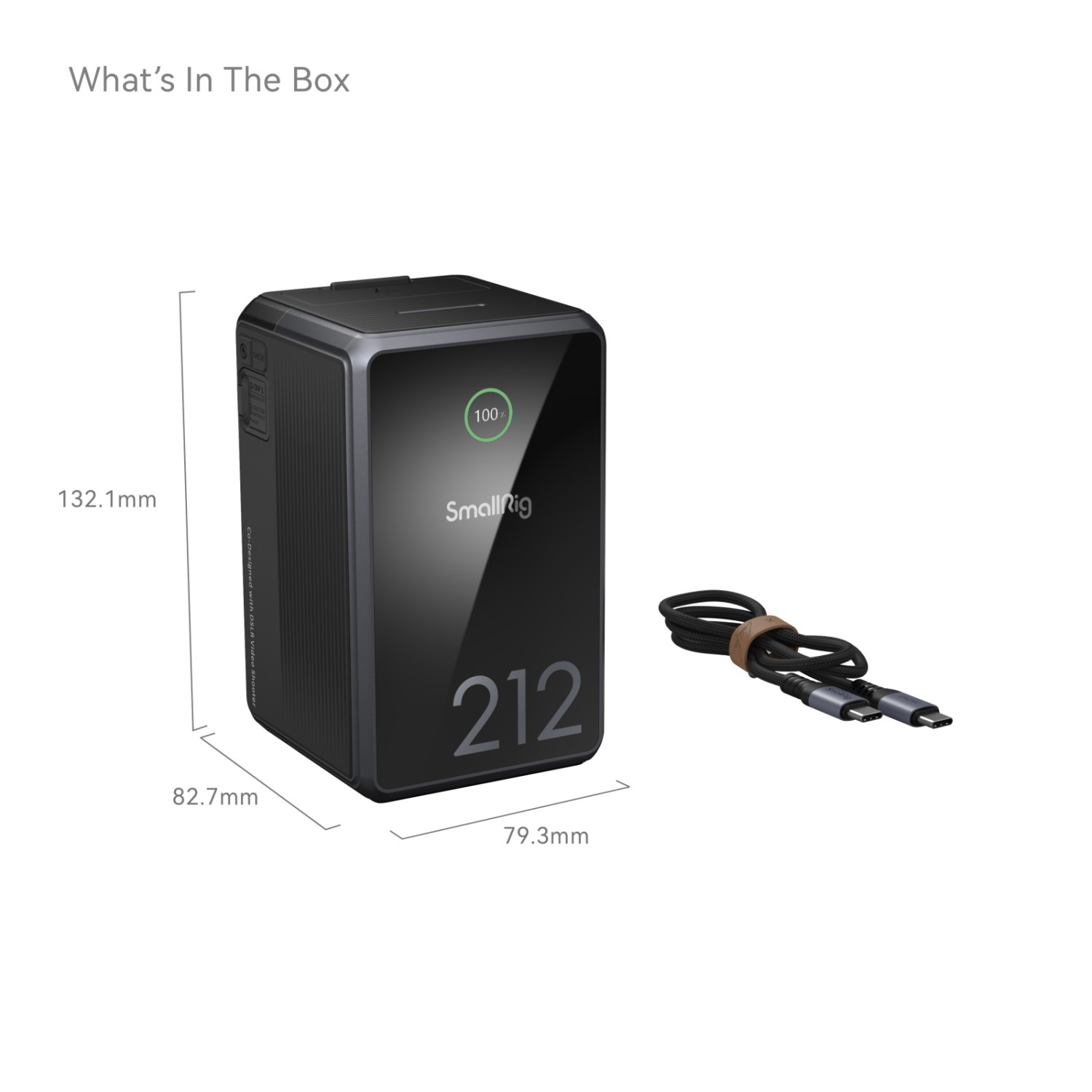

Product Dimensions: 132.1 x 82.7 x 79.3mm / 5.2 x 3.3 x 3.1in
Package Dimensions: 166 x 130.5 x 99mm / 6.5 x 5.1 x 3.9in
Product Weight (Including Charging Cable): 1345 ± 10.0g / 47.4 ± 0.4oz
Package Weight: 1643 ± 10.0g / 58 ± 0.4oz
Material(s): Aluminum Alloy, Silicone, TPU, PC V0
Capacity: 14.76V 14.4Ah 212.544Wh
Rated Power:
Output: 212W
Input: 140W

Input:
USB-C1 / USB-C2: 140W (Max.)
D-Tap1: 8A (Max.)
BP: 10A (Max.)

Output:
USB-C1 / USB-C2: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A, 28V / 5A (Max.)
USB-A: 5V / 3A, 9V / 3A, 12V / 2.5A (Max.)
BP: 14.76V / 19A (Max.)
D-Tap1: 14.76V / 10A (Max.)
D-Tap2: 14.76V / 6A (Max.)
8V-OUT: 8V / 3A (Max.)
12V-OUT: 12V / 3A (Max.)

Charging Protocol:
USB-C1 / USB-C2: PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
USB-A: QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A
Cutoff Voltage: 11.2V
Operating Temperature: -15℃~60℃ / 5°F~140°F
Charging Temperature: 0℃~50℃ / 32°F~122°F
Optional Charging Method: BP port charger, 16.8V D-Tap charger, USB-C
