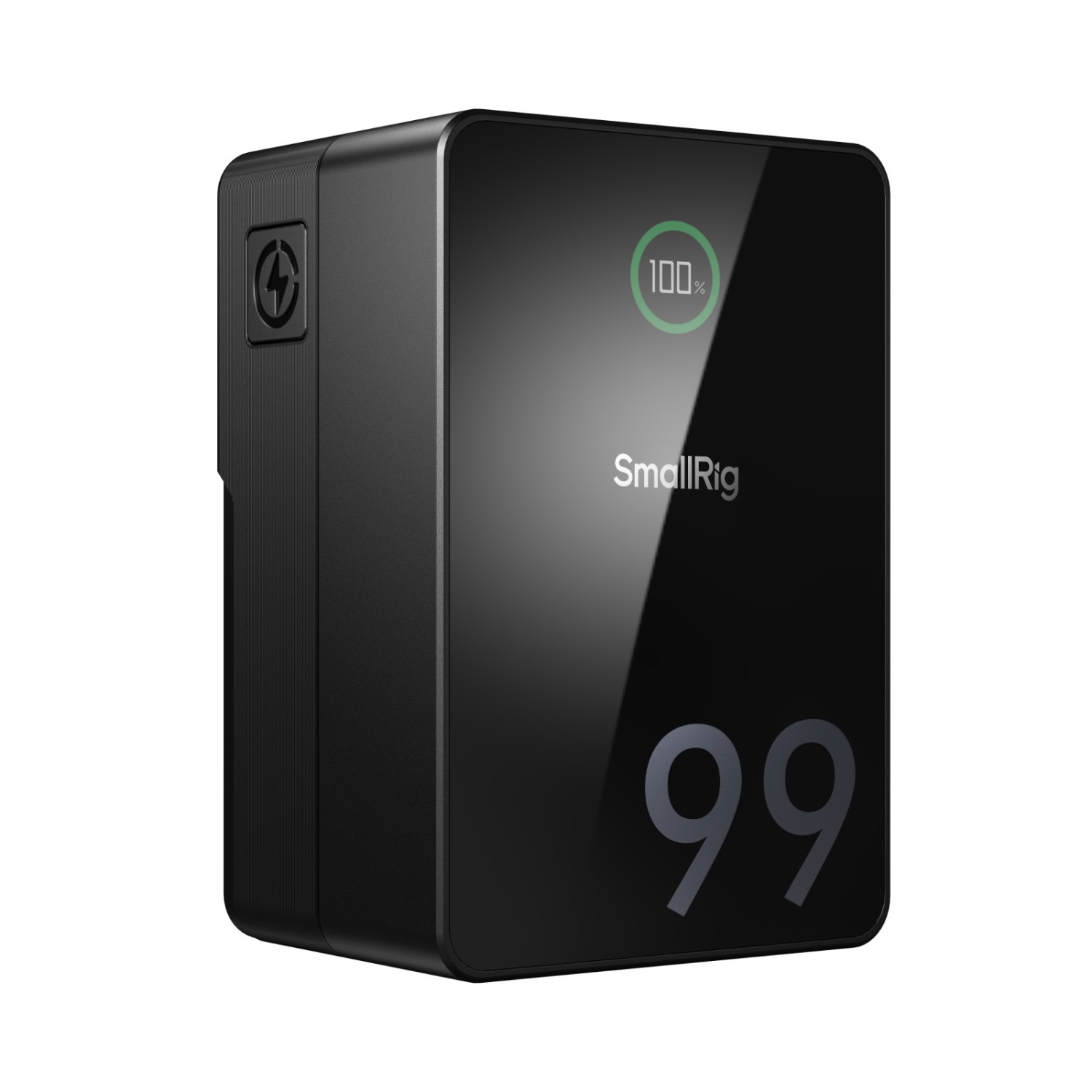

SmallRig V-Mount Battery Mini VB99 Pro 4292

The highly integrated BMS chip, with fast charging protocols, bi-directional 100W USB-C PD charging, and adaptive voltage and current regulation, ensures efficient and safe charging, complete with protection against overcurrent, short-circuit, overheating, and overvoltage.

More information

Promotion: 233.53 € ends in: 66d: 09h: 07m
309.91 € 233.53 € with VAT 193 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs
Product description

Product description

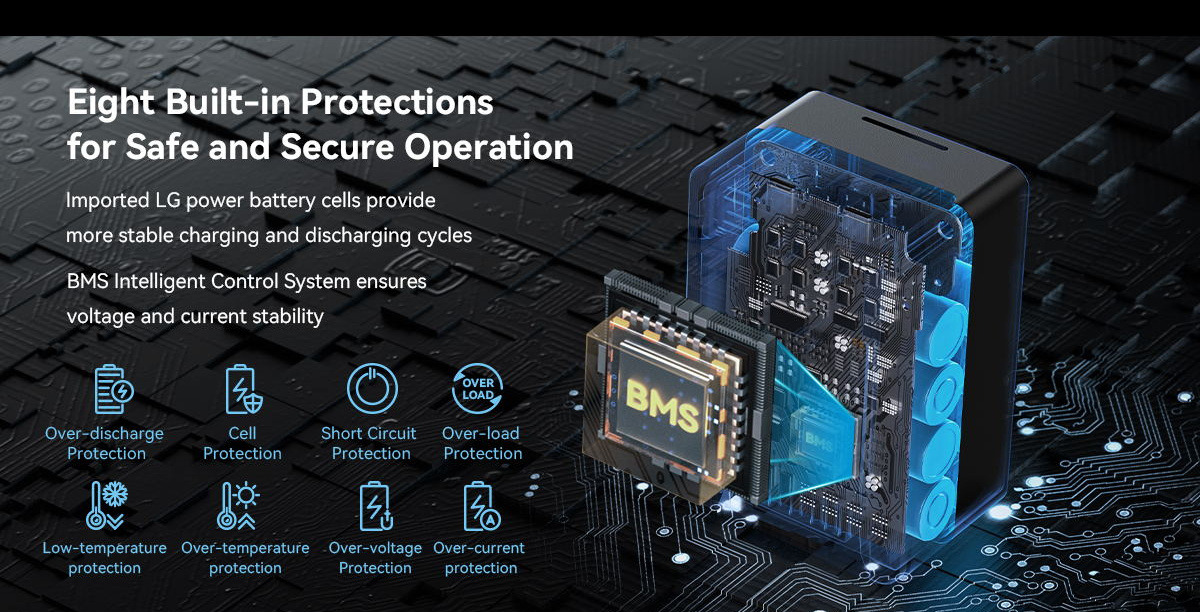

The highly integrated BMS chip, with fast charging protocols, bi-directional 100W USB-C PD charging, and adaptive voltage and current regulation, ensures efficient and safe charging, complete with protection against overcurrent, short-circuit, overheating, and overvoltage.

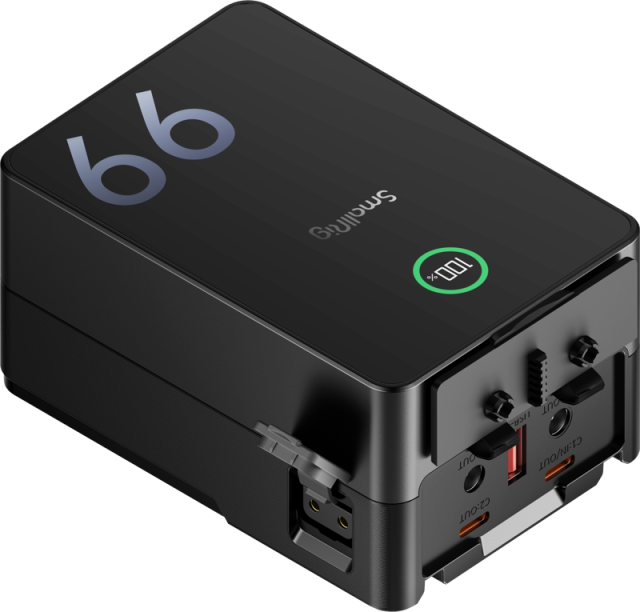

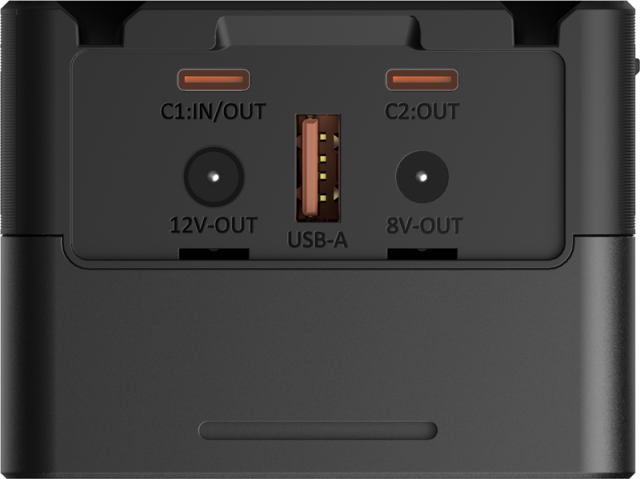

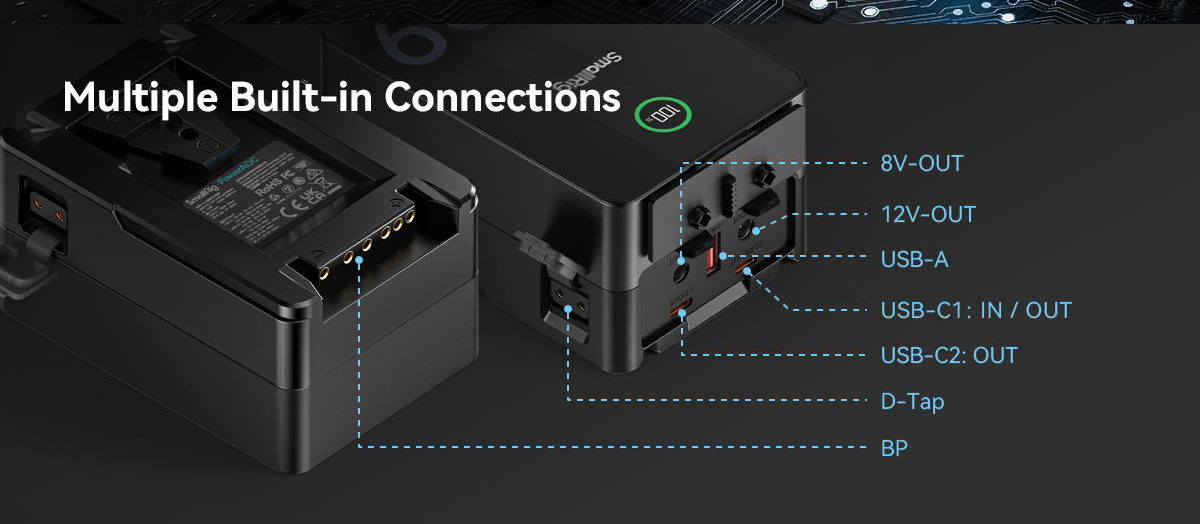

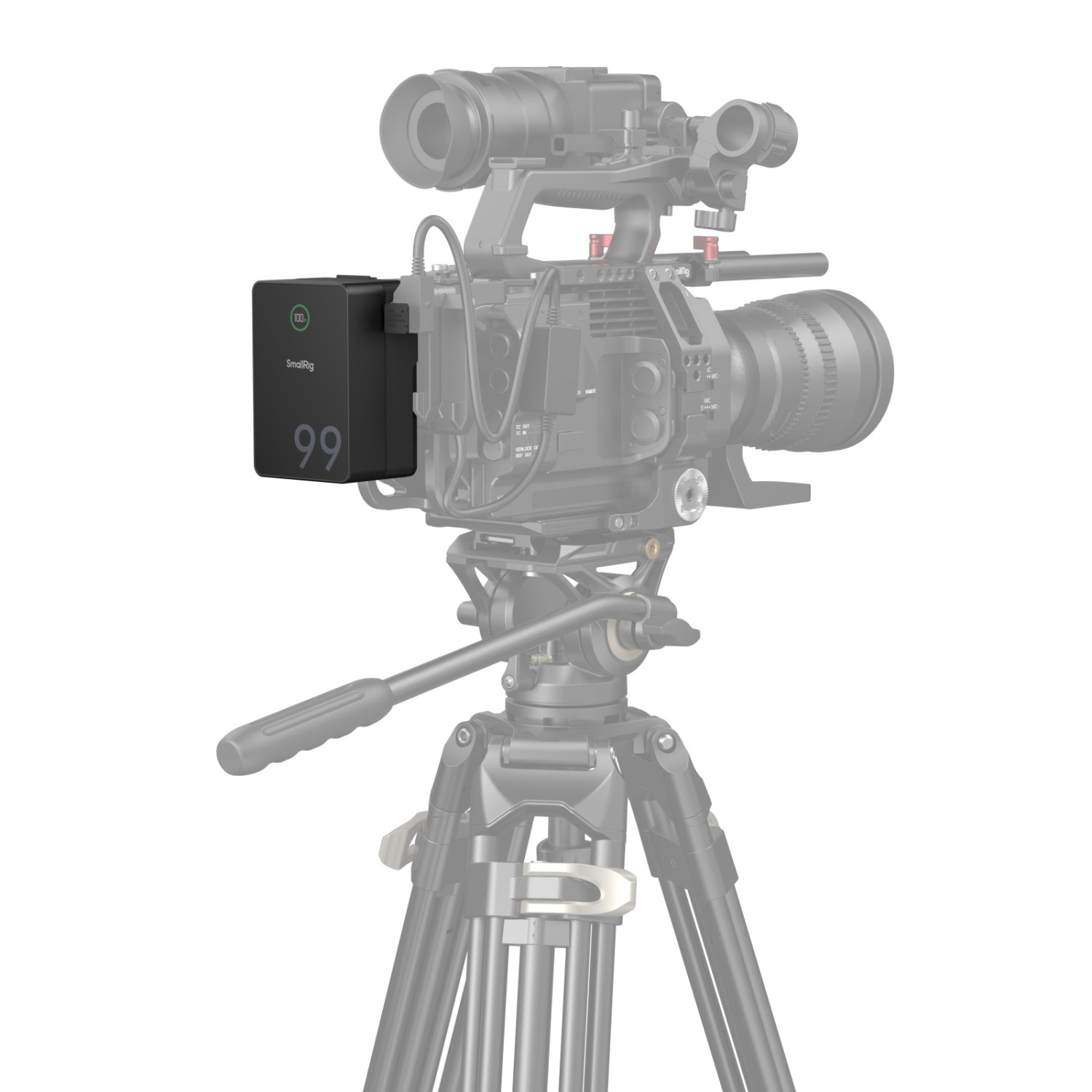

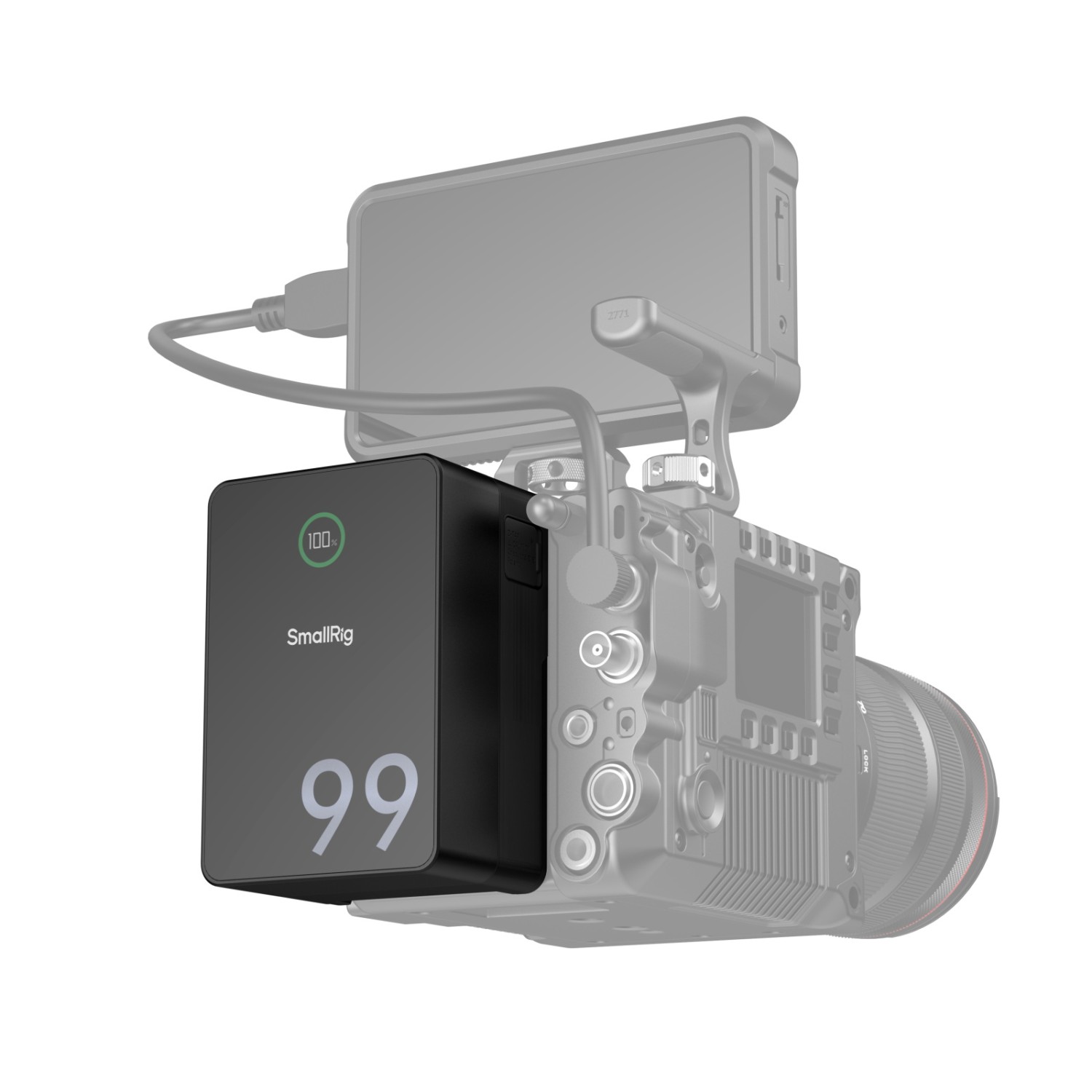

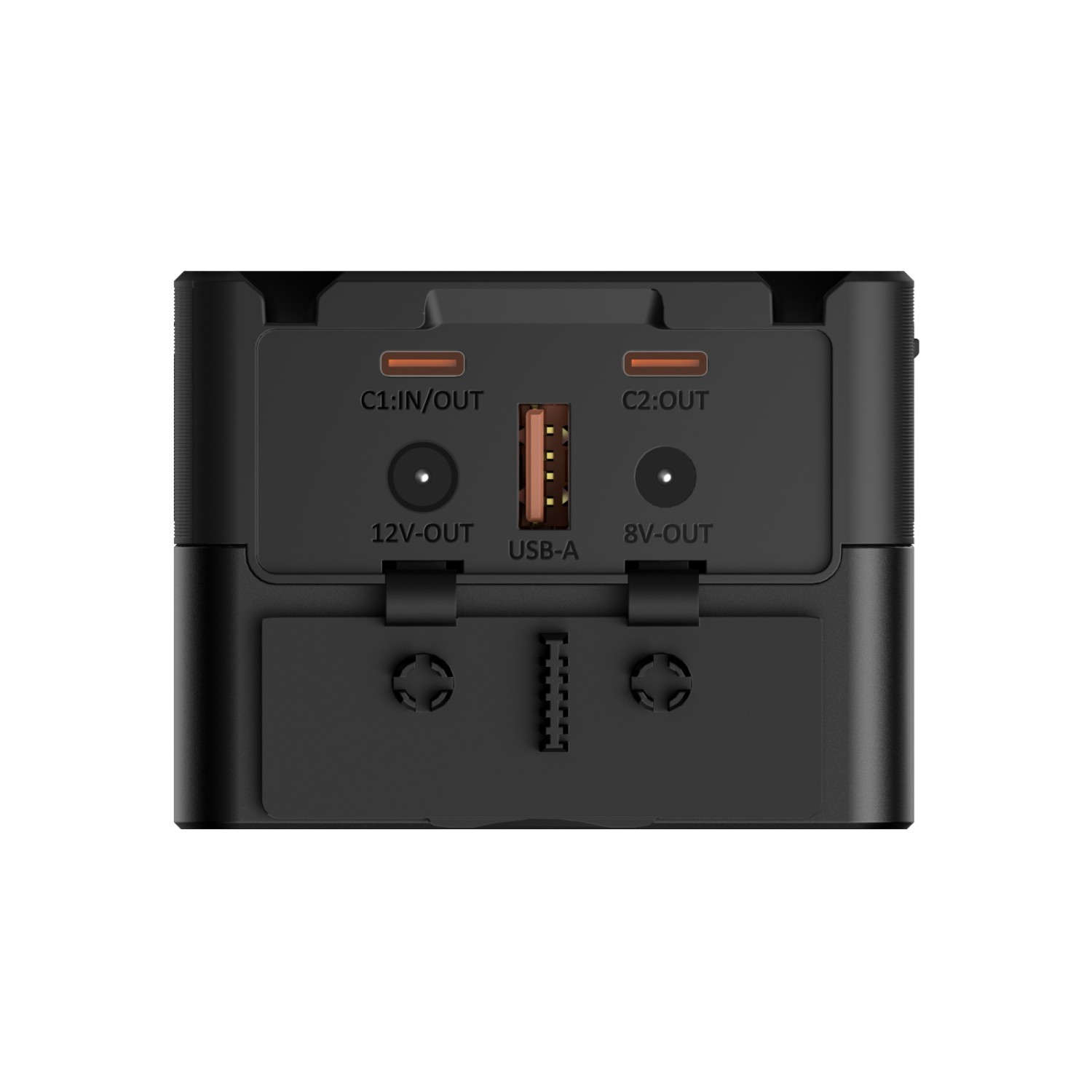

It offers versatile interfaces, including D-tap, USB-C, USB-A, DC 8V, and DC 12V, for efficient charging and powering of cameras, video cameras, monitors, wireless video transmitters, LED lights, mobile phones, laptops, and more, eliminating the need for a V-mount adapter.

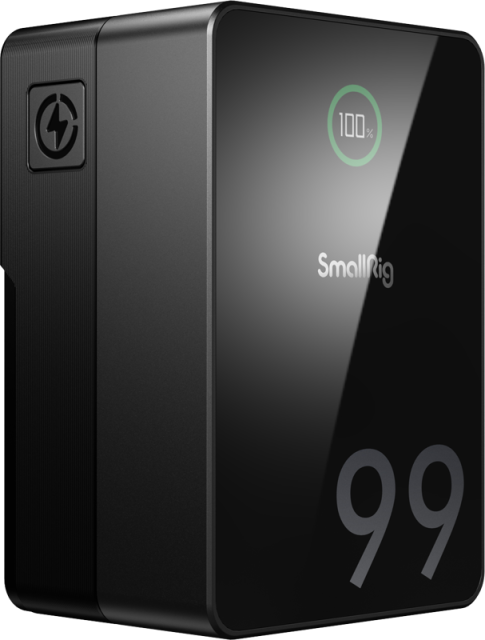

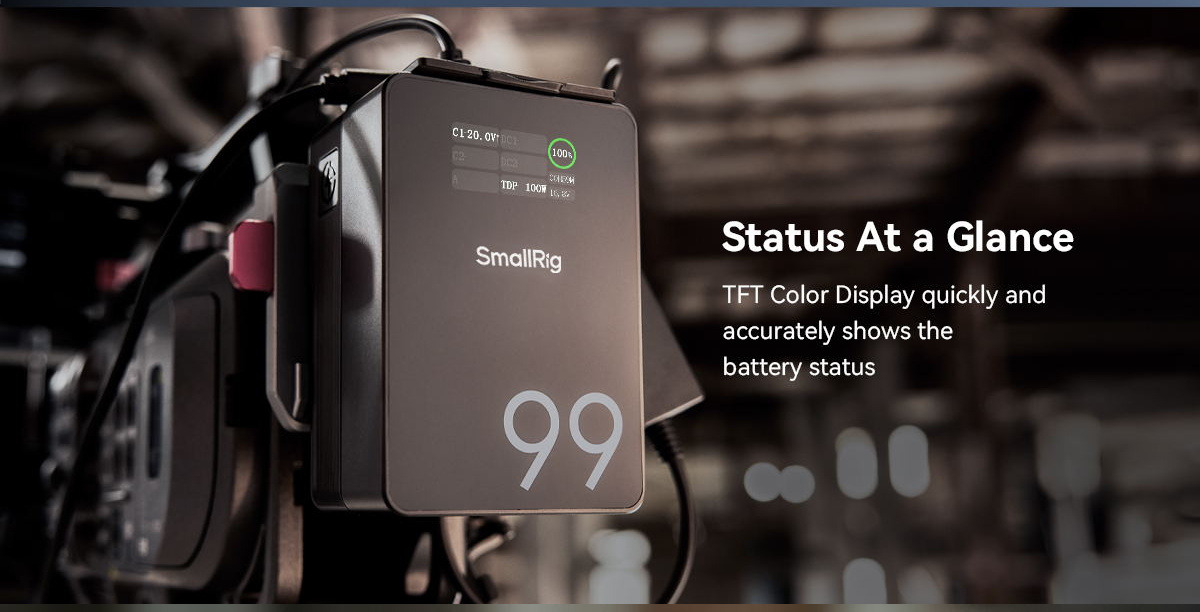

The BMS chip incorporates a 16-bit ADC power meter, MCU, and digital TFT display for real-time battery status monitoring.

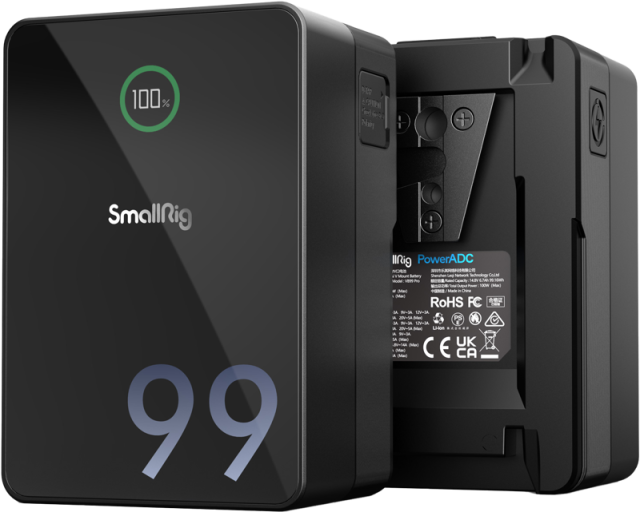

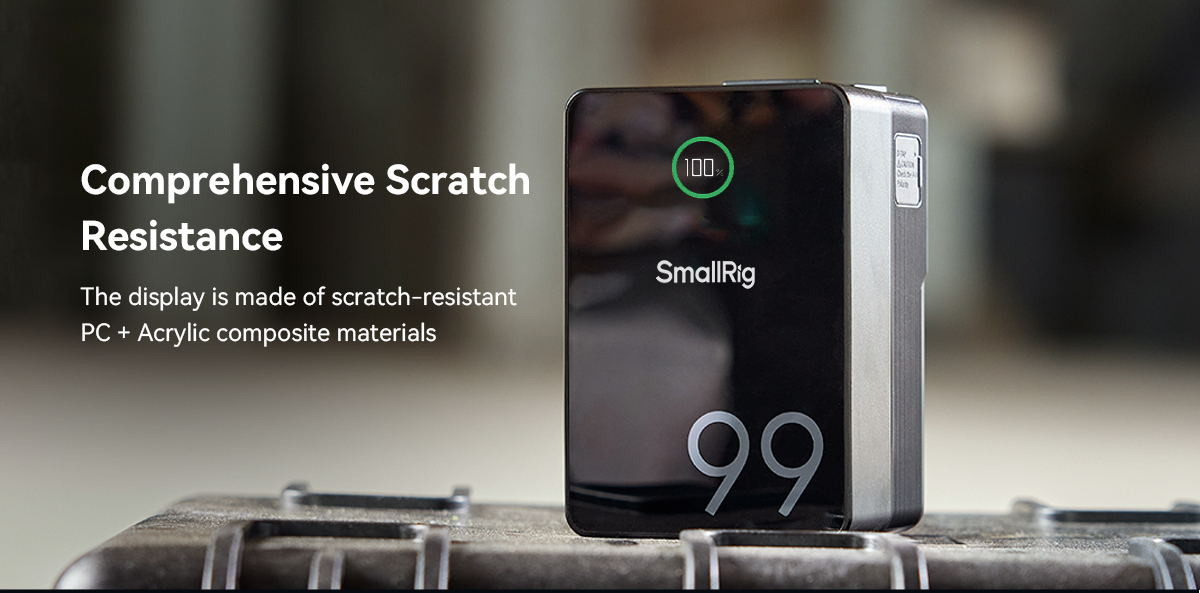

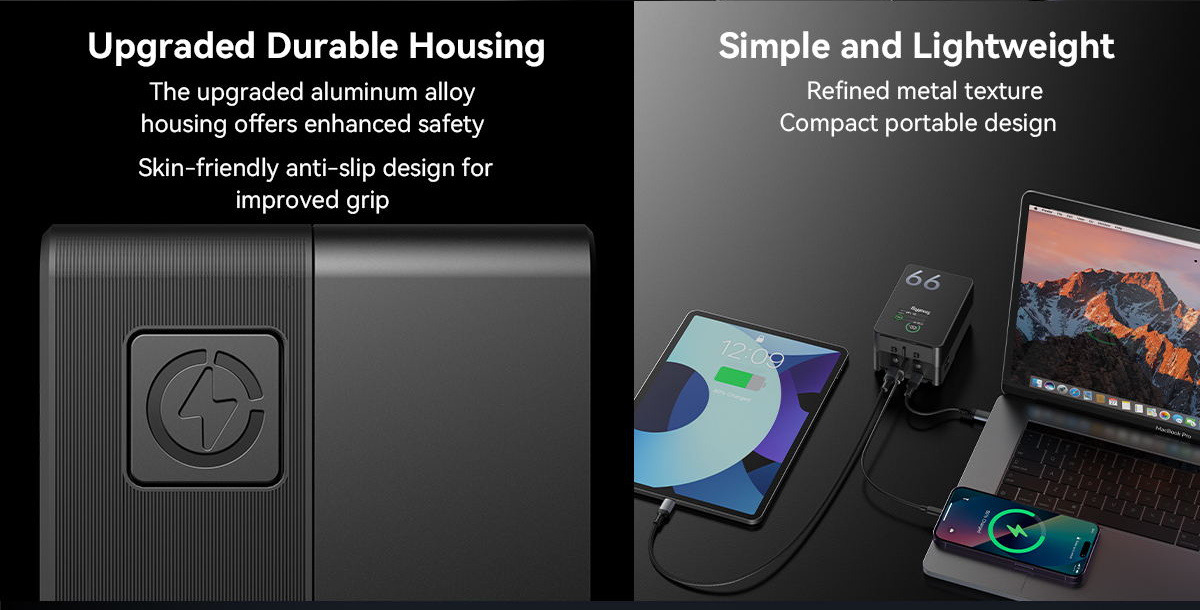

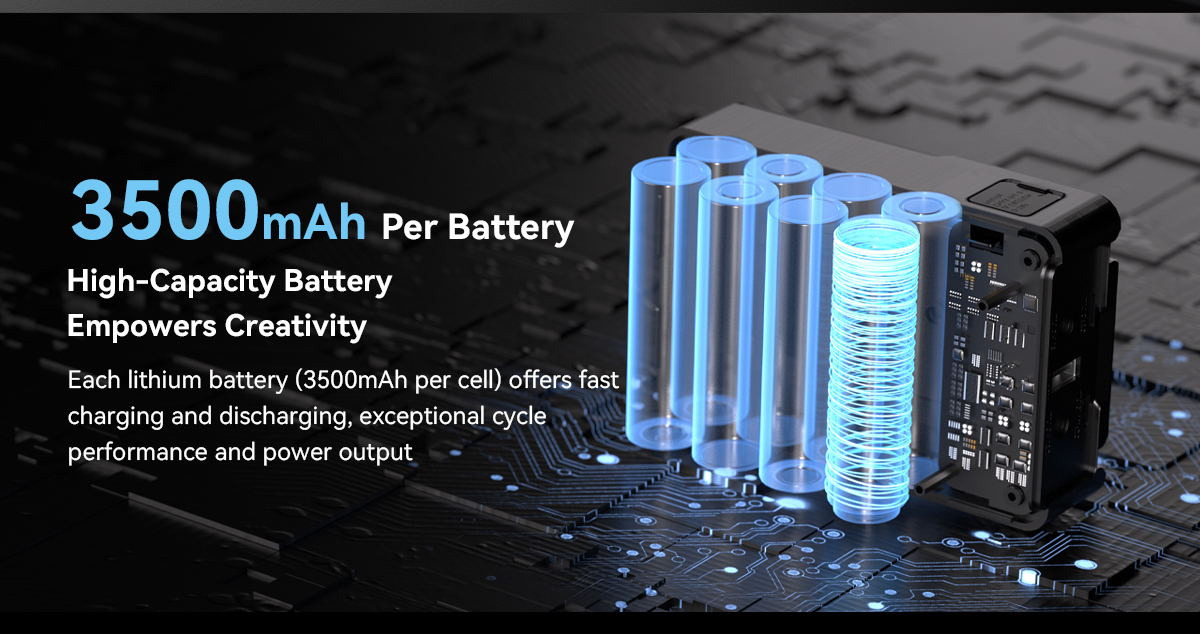

This item features a premium, high-performance rechargeable battery that meets international standards like MSDS, UN38.3, IEC62133, UL2054, and UL62368, encased in a rugged aluminum alloy and fire-resistant PC shell with scratch-resistant PC and acrylic front cover, displaying battery status clearly and accurately through a colorful TFT display.

Overall, it provides both safety and performance for capturing moments without interruption.

Specifications:

  • Capacity: 14.8V 6.7Ah 99.16Wh
  • Rated Power: 100W
  • Input (V Mount / D-TAP): 8A (max)
  • Output (V Mount / D-TAP): 14.8V / 14A (max)
  • USB-A Output: 5V / 3A, 9V / 3A, 12V / 2.5A (max)
  • USB-C1 Input/Output: 100W, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (max)
  • USB-C2 Output: 100W, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (max)
  • DC1 Output: 8V / 3A (max)
  • DC2 Output: 12V / 3A (max)
  • Optional Charging Methods: 16.8V D-TAP charger, USB-C charger (e.g., GaN PD fast charger up to 100W).

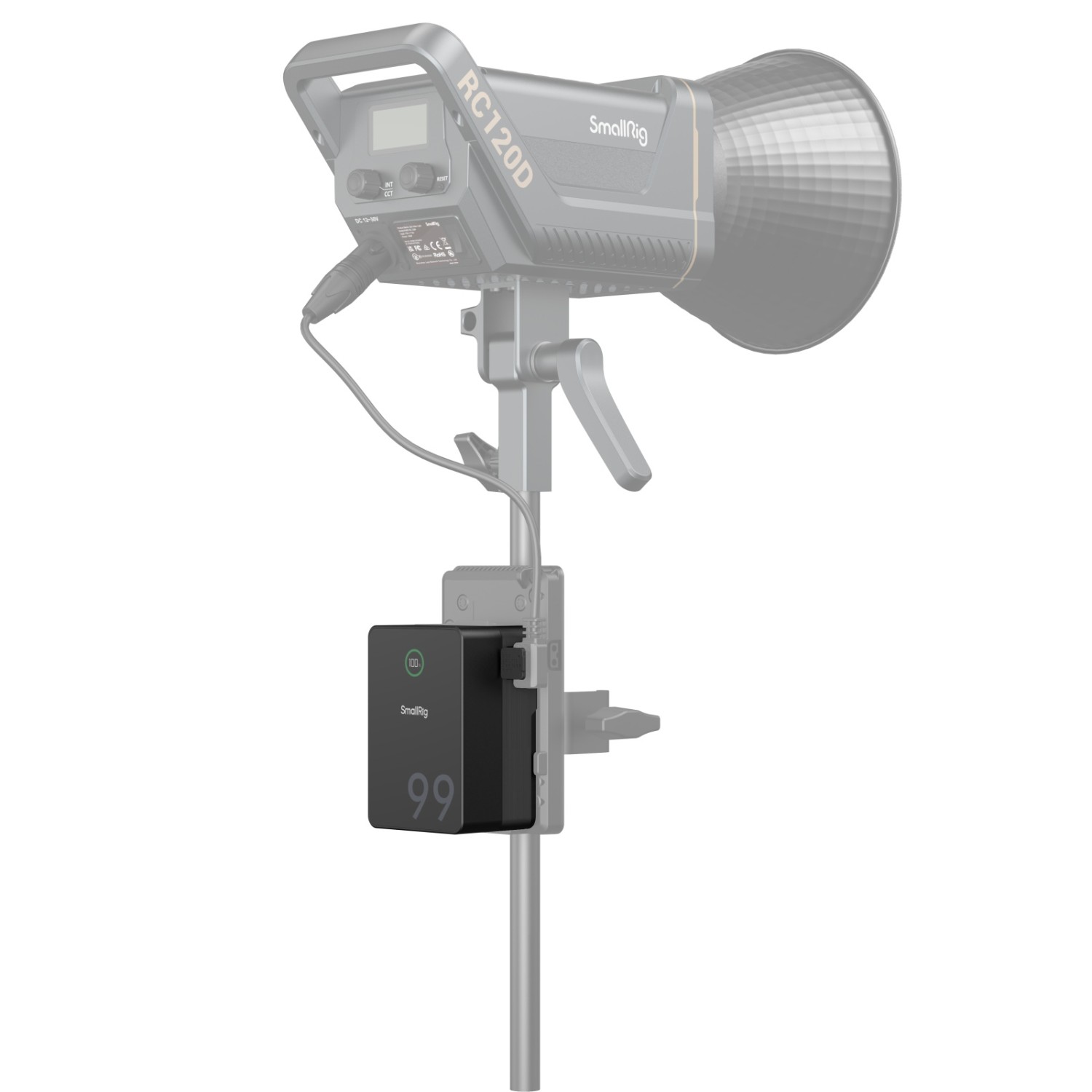

Compatibility: Suitable for a wide range of devices including cameras, camcorders, monitors, tracking devices, image transmitters, LED lights, mobile phones, tablets, laptops, and more.

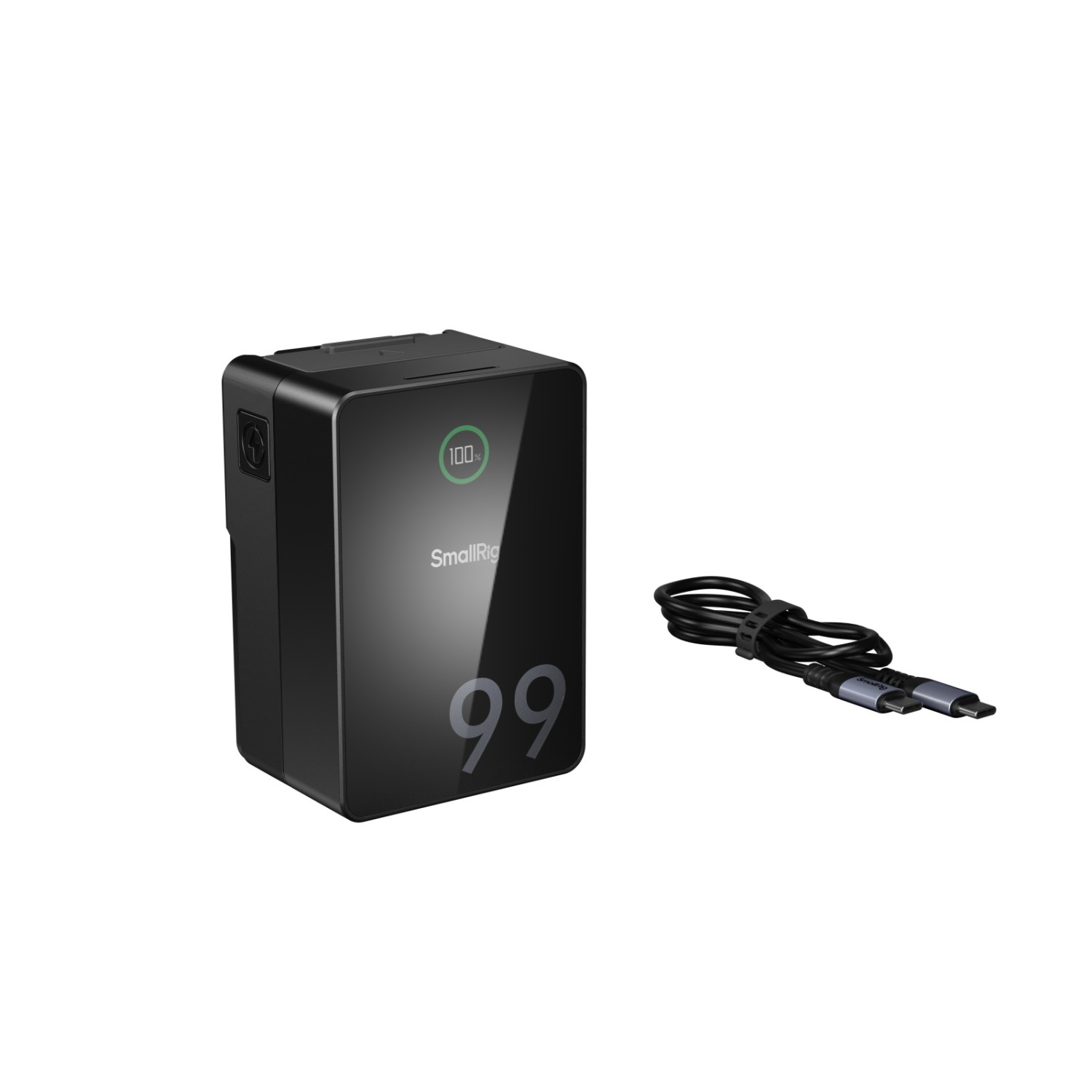

Package Contents: 1x V Mount Battery VB99 Pro mini, 1x 100W USB-C charging cable, 1x user manual, 1x SmallRig sticker.

Parameters

Parameters

Manufacturer: SmallRig
Category: Battery 14,4V

Main parameters

USB-C chargingYes
Battery Capacity99Wh
Mount typeV-Mount
