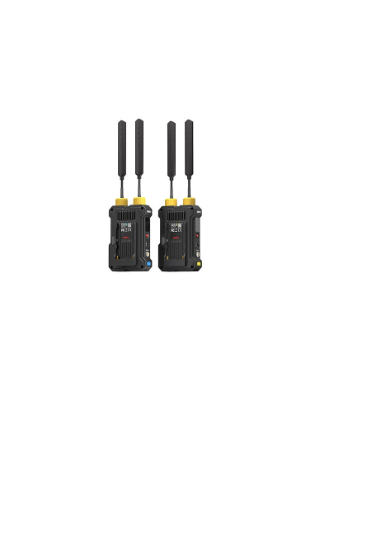

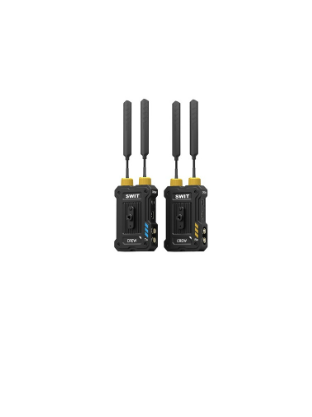

SWIT CREW Tx+2Rx wireless video transmission system

The SWIT CREW 1TX + 2RX is a professional HD wireless video transmission system with KUWI 2.0 Pro technology (non-Wi-Fi), offering up to 1.2 km / 4000 ft line-of-sight range, ultra-low 32ms latency, and 1-to-4 receiver multicast. Designed for cinematic productions, sports broadcasting, and live events, it ensures rock-solid, visually lossless video transmission over SDI and HDMI.

The SWIT CREW 1TX + 2RX Pro Wireless Video Transmission system is engineered for professional video productions that demand stability, range, and precision. Using the proprietary KUWI 2.0 Pro chip, it operates on license-free 5.1–5.9GHz bands with advanced anti-interference RF technology, delivering ultra-reliable wireless transmission up to 1.2 km (4000 ft) line-of-sight. The system transmits 3G-SDI and HDMI HD signals with visually lossless H.265 compression at bitrates up to 26.8 Mbps and maintains a consistent 32ms latency, critical for synchronized multi-camera setups and follow-focus workflows.

Supporting 1 transmitter to 4 receivers multicast, the CREW system allows multiple operators to monitor simultaneously without compromising quality, distance, or latency. It features SDI embedded metadata and timecode/trigger transmission for live grading, recording, and camera synchronization. Both Tx and Rx units are equipped with high-bright OLED screens for clear status monitoring and intuitive configuration, including channel selection, pairing, and fan control.

The system is powered via NP-F battery plates, 2-pin LEMO DC input, or USB-C, making it flexible for on-set and mobile applications. Its compact design (Tx: 130×80×36.7mm, Rx: 130×80×36.7mm) and light weight (Tx: 333g, Rx: 334g) make it ideal for handheld, gimbal, and rig-mounted setups.

Key Features:

• KUWI 2.0 Pro wireless tech (non-Wi-Fi)

• Proprietary anti-interference RF, 5.1–5.9GHz DFS license-free

• Line-of-sight range: up to 1.2 km / 4000 ft

• 3G-SDI & HDMI HD video transmission

• USB-C video capture output for PC/Mac livestreaming

• Visually lossless H.265 compression up to 26.8 Mbps

• Ultra-low consistent latency: 32ms

• 1 transmitter → 4 receiver multicast

• SDI embedded metadata and timecode/trigger transmission

• High-bright OLED status display with intuitive joystick controls

• AES-256 dual encryption for secure transmission

• NP-F battery, 2-pin LEMO, or USB-C power supply
