SWIT CREW-V

The SWIT CREW-V 1.2km Wireless Video Transmission System delivers stable, low-latency, HD video transfer up to 1.2km line-of-sight, supporting 3G-SDI, HDMI, USB-C output, and dual-sided V-mount power. Secure AES-256 encrypted transmission, robust anti-interference RF, and up to four receivers make it ideal for professional broadcast and film applications.

Professional-Grade Wireless Video for Demanding Productions

The SWIT CREW-V is engineered to meet the highest standards of film, broadcast, and live event production. Leveraging proprietary KUWI 2.0 RF technology—distinct from standard Wi-Fi—it ensures rock-solid, visually lossless HD video delivery, maintaining a maximum line-of-sight range of 1.2 kilometers (4000 feet) without dropouts or interference.

Key Features

• Exceptional Range & Stability: Achieve up to 1.2km (4000ft) wireless video transmission with advanced anti-interference for flawless monitoring on set.

• Ultra-Low Latency: Consistent 32ms latency suitable for wireless follow focus and synchronized multi-camera workflows.

• Flexible Powering: Dual-sided V-mount power plate allows a single battery to supply both camera and transmitter/receiver, plus options for DC (2-pin LEMO) and USB-C power.

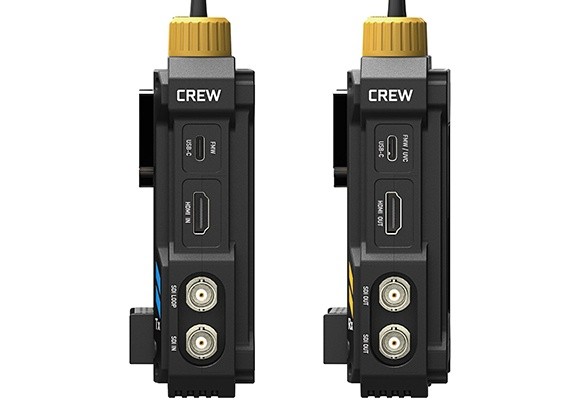

• Comprehensive I/O: Transmitter provides SDI (in and loop-out) and HDMI input; receiver offers dual SDI out, HDMI out, and driverless USB-C video capture for PCs, Macs, smartphones, and tablets.

• Multicast Support: One transmitter can connect to up to four receivers, preserving top quality, range, and latency across all units—ideal for collaborative film sets.

• Broadcast-Level Security: Dual encryption (proprietary KUWI RF + AES-256) safeguards confidential footage from leaks on high-profile projects.

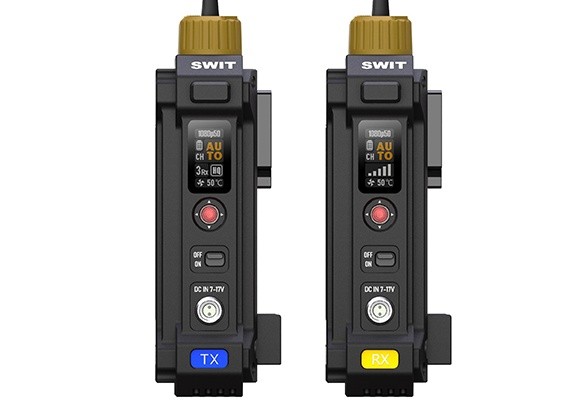

• Intuitive User Interface: High-bright OLED display with joystick for fast pairing, channel selection, fan, and system monitoring—even in bright sunlight.

Additional Advantages

• Metadata and Timecode Transmission: Preserves SDI-embedded camera metadata, timecode, and trigger for seamless DIT livegrading and on-set record management.

• H.265 Encoding: Visually lossless HD video up to 26.8Mbps bitrate, indistinguishable from cabled transmission.

• Versatile Monitoring: USB-C video output supports direct live streaming and smart device connection, replacing bulkier monitors on location.

• Rugged Design: Lightweight (Tx: 399g, Rx: 397g), compact, and reliable from –10°C to 40°C for diverse shooting environments.

This system is the perfect choice for any professional film crew, broadcast team, or live event production demanding uncompromised reliability, range, and security in wireless video workflows.
