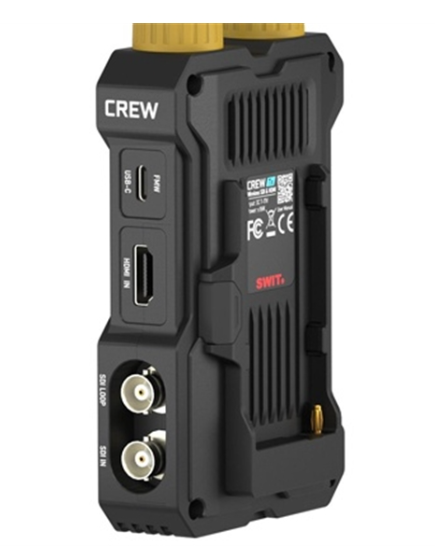

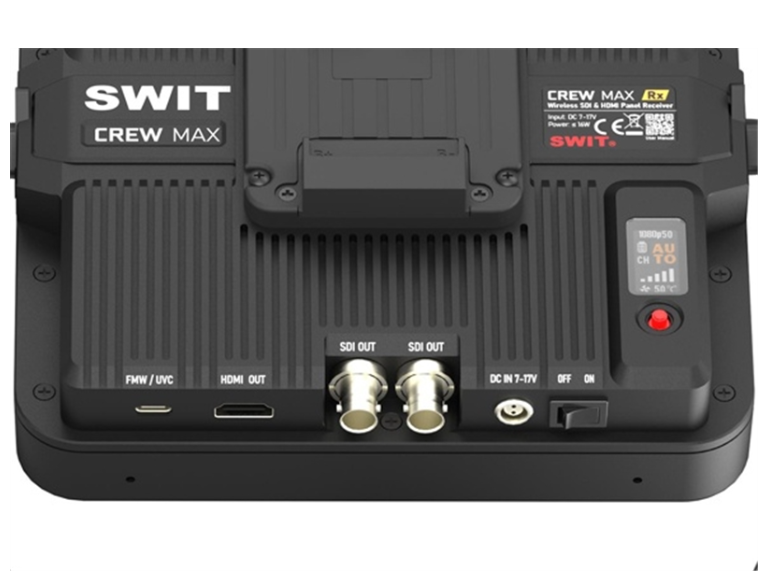

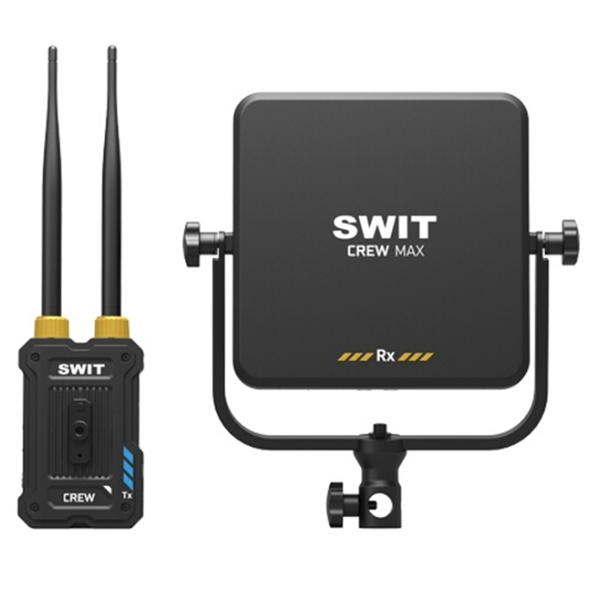

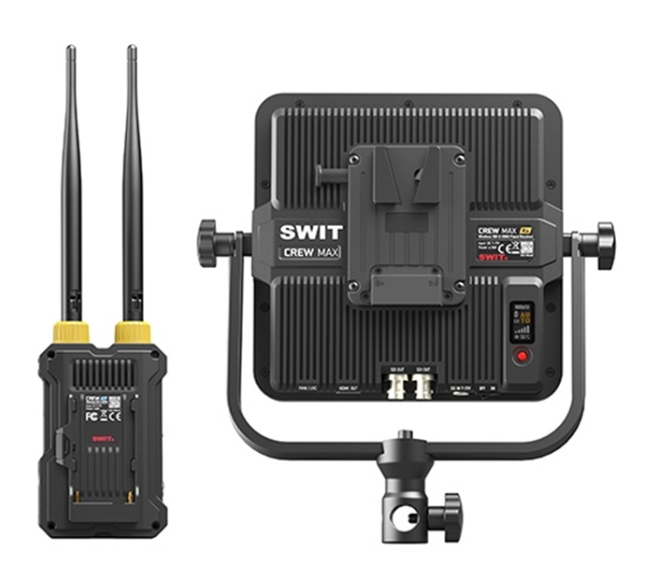

SWIT CREW MAX wireless video transmission

The SWIT CREW MAX is a professional wireless video transmission system offering up to 3 km (10,000 ft) line-of-sight range, ultra-low latency, and robust multicast support, designed for high-end broadcast and film productions.

The SWIT CREW MAX 3km/10,000ft Pro Wireless Video Transmission system is the next-generation solution for filmmakers and broadcasters requiring reliable, long-range HD video transmission. Built on KUWI 2.0 Pro wireless technology—not standard Wi-Fi—the system delivers stable, anti-interference performance across license-free 5.1–5.9 GHz DFS bands.

Supporting both 3G-SDI and HDMI video outputs, CREW MAX provides visual lossless transmission with H.265 encoding at up to 26.8 Mbps, ensuring crisp and detailed images. The system features ultra-low 32 ms latency, metadata and timecode trigger transmission, and seamless 1-transmitter to 4-receiver multicast capability for multi-camera setups. High-gain panel antennas, integrated receivers, and automatic channel scanning maximize signal reliability over long distances.

The CREW MAX is designed for professional workflows, offering AES-256 dual encryption for secure transmission, USB-C video capture for PC/Mac, and versatile power options with NP-F battery plates on the transmitter and V-mount on the receiver. A high-bright OLED display provides intuitive monitoring and configuration, making it a robust solution for demanding video environments.

Key Features

• KUWI 2.0 Pro wireless technology (not Wi-Fi)

• Proprietary anti-interference RF with DFS 5.1–5.9 GHz license-free compliance

• Line-of-sight transmission up to 3 km / 10,000 ft

• 3G-SDI and HDMI HD video support

• H.265 visual lossless encoding up to 26.8 Mbps

• Ultra-low 32 ms latency

• 1-transmitter to 4-receiver multicast capability

• Metadata and timecode trigger transmission

• AES-256 dual encryption for secure video

• High-gain panel antenna and built-in receiver

• USB-C video capture for PC/Mac

• NP-F plate transmitter / V-mount receiver power support

• 2-pin LEMO / USB-C power supply options

• High-bright OLED display for configuration and monitoring
