SWIT S-2241 | 20W 640Lux Bi-color SMD On-camera LED light

The SWIT S-2241 is a compact 20W bi-color on-camera LED light featuring 153 SMD LEDs, adjustable 3200K–5600K color temperature, and high CRI/TLCI for accurate color reproduction. Delivering 640 lux at 1 meter, it supports DV batteries or D-Tap power input and includes a ball joint, diffuser, and carrying bag for versatile professional use.

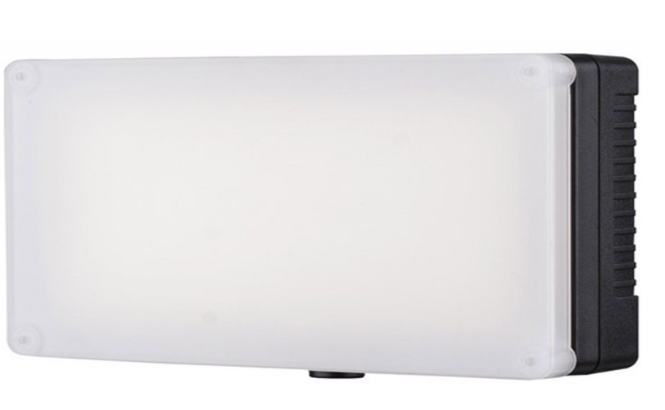

The SWIT S-2241 20W Bi-color SMD On-Camera LED Light is a versatile, professional-grade lighting solution for filmmakers, interview setups, and content creators. Equipped with 153 surface-mounted LEDs, the S-2241 produces smooth, glare-free illumination through its polycarbonate diffuser, which attaches magnetically for easy installation.

The light offers a wide beam angle of 120° (68° at half peak), delivering 640 lux at 1 meter, with continuously adjustable output from 10% to 100%. Color temperature can be precisely controlled between 3200K and 5600K, providing flexibility for different shooting environments. With an IRC Ra ≥92 and TLCI ≥97, the S-2241 ensures accurate and natural color rendering.

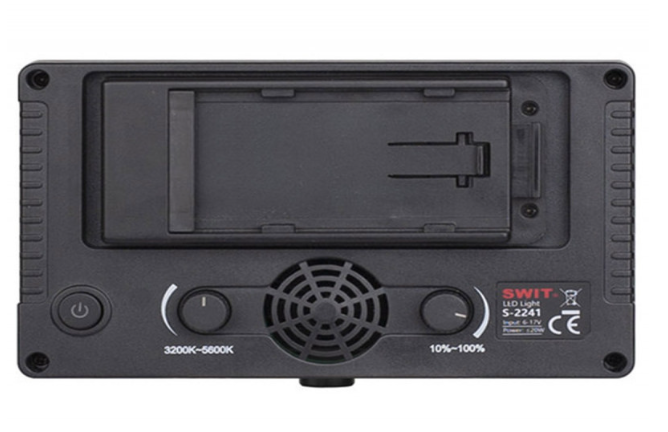

Power options include 6–17V DC via interchangeable DV battery plates, including Sony NP-F series (NP-F970, NP-F770) and SWIT S-8972, S-8970, S-8770 batteries, as well as D-Tap input from V-mount or Gold-mount battery systems. This allows extended runtime and compatibility with various professional camera setups.

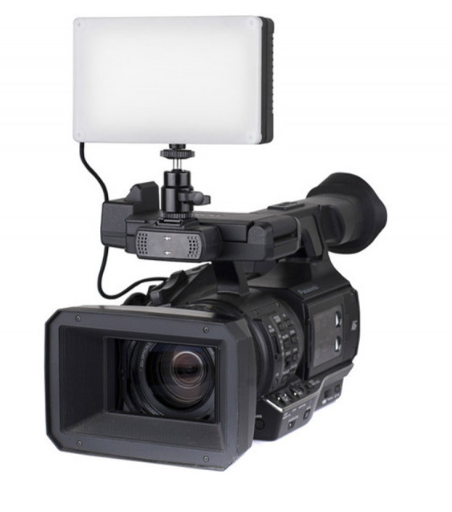

The light can be mounted on cameras via cold shoe with ball head, or on tripods using the 1/4"-20 mount, providing maximum flexibility for field production or studio setups. Compact, lightweight, and portable, the S-2241 comes with a diffuser, ball joint, and carrying bag, making it ideal for on-the-go shooting.

Key Features

• 20W Bi-color on-camera LED light

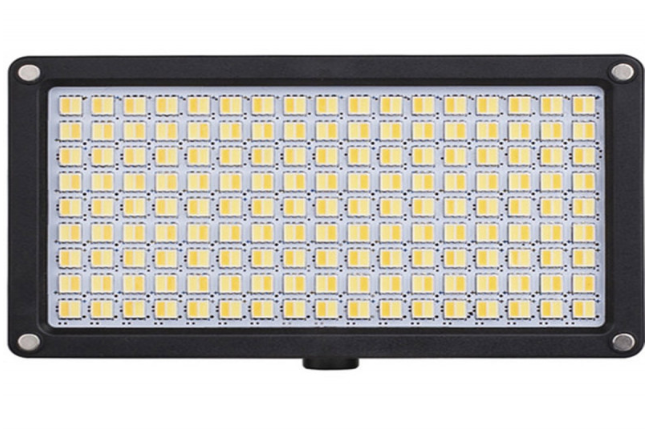

• 153 ultra-bright SMD LEDs with polycarbonate diffuser

• Adjustable 3200K–5600K color temperature

• Smooth dimming from 10% to 100%

• Wide 120° beam angle (half-diagonal 68°)

• Photometry: 640 lux at 1 meter (3.3 ft)

• High color accuracy: CRI Ra ≥92, TLCI ≥97

• Multiple DV battery plates or D-Tap input (6–17 VDC)

• Interchangeable Sony NP-F and SWIT battery compatibility

• Mounting: 1/4"-20 tripod mount, cold shoe ball head

• Includes diffuser, ball joint, and carrying bag
