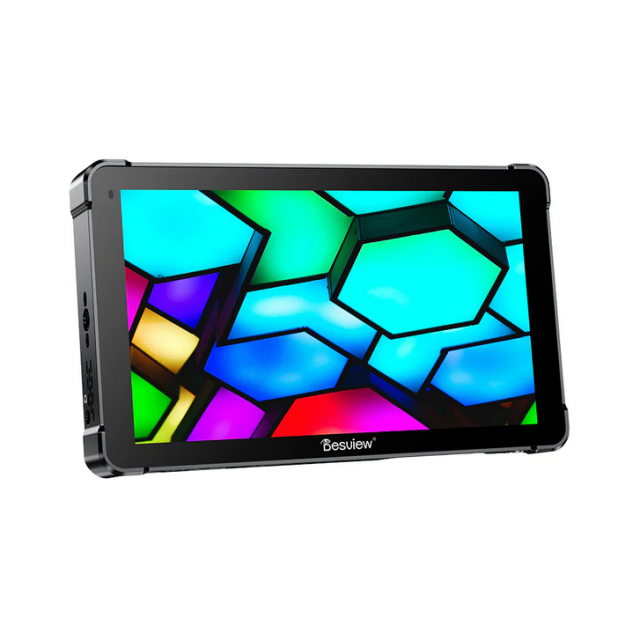

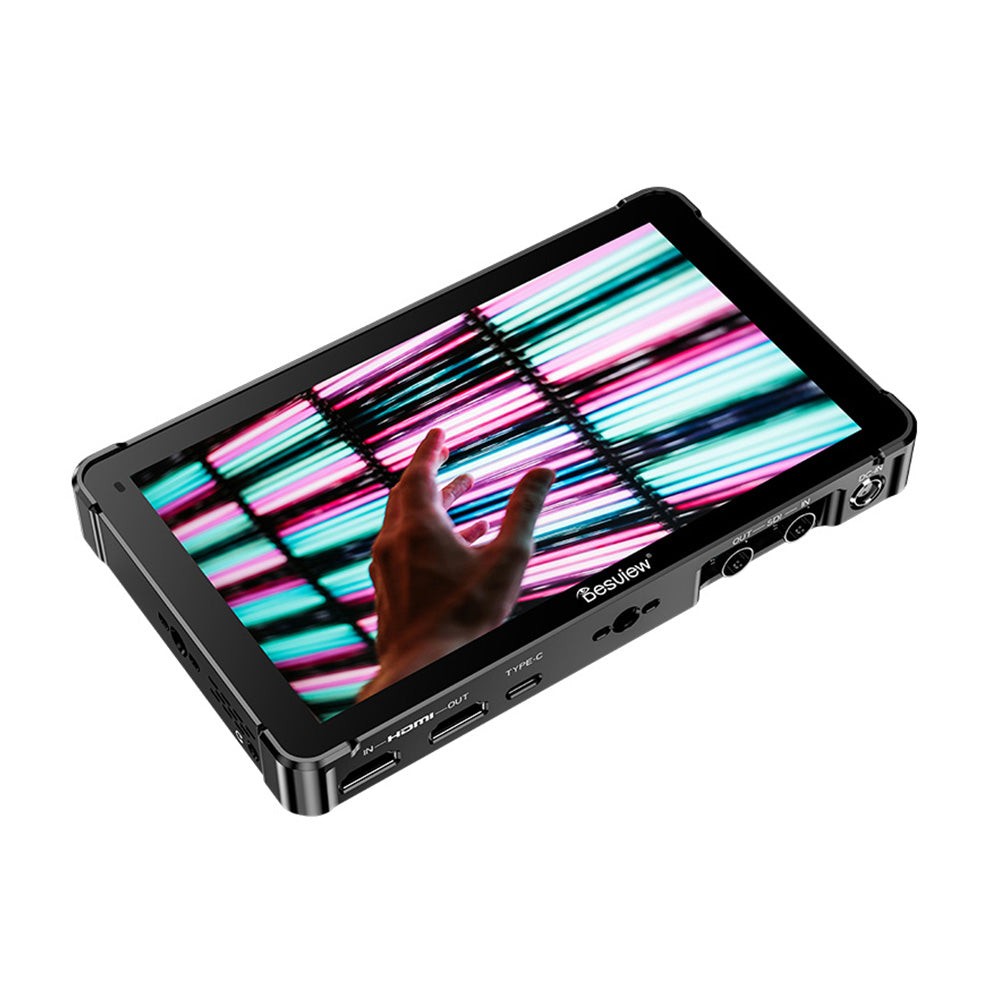

Desview OL7S

The Desview OL7S is a 7-inch OLED on-camera monitor featuring 1200-nit brightness, 100,000:1 contrast ratio, and 10-bit color depth (1.07 billion colors). With 4K60p HDMI and 3G-SDI input/output, it ensures seamless integration into professional broadcast and filmmaking workflows.

The Desview OL7S is a high-performance 7-inch OLED monitor designed for filmmakers, broadcasters, and video professionals. Its 1200-nit ultra-bright display delivers excellent visibility, even in outdoor environments, while the 100,000:1 contrast ratio and 10-bit color depth provide exceptional color accuracy and deep blacks for precise monitoring.

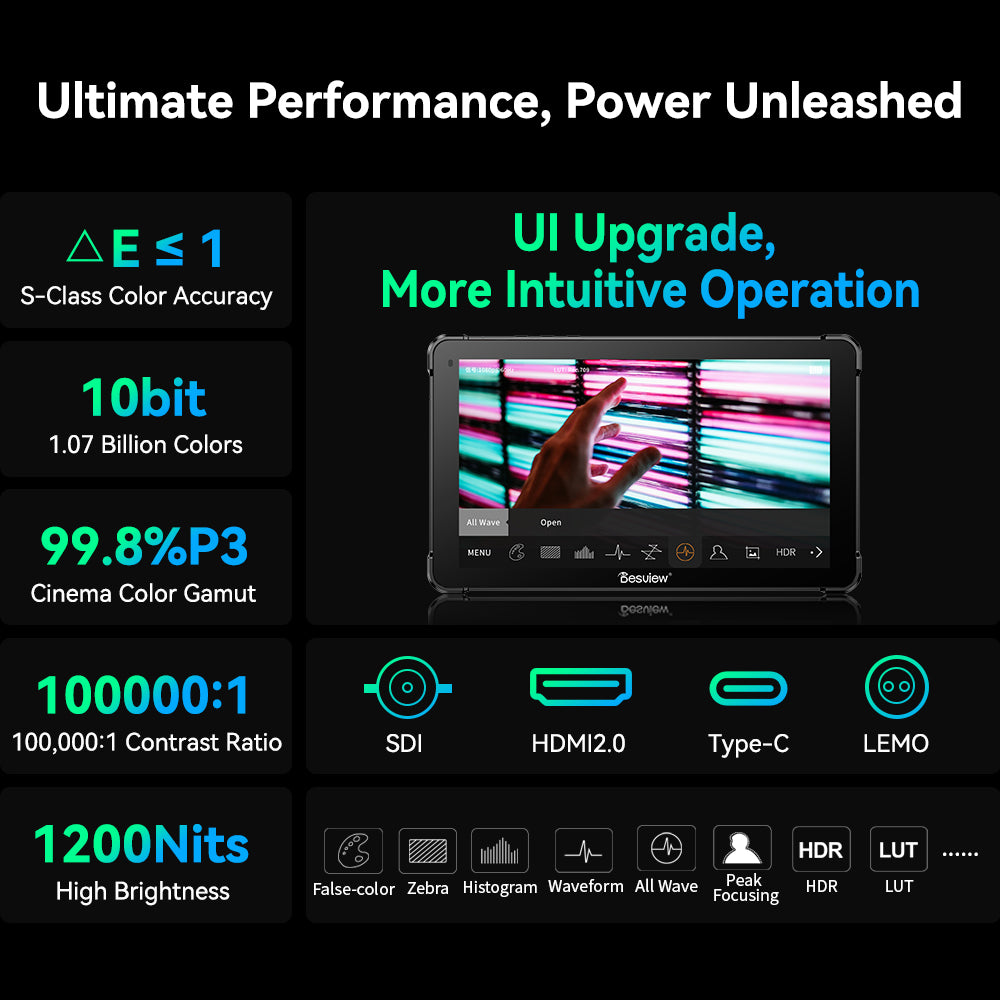

Everything that matters on one screen

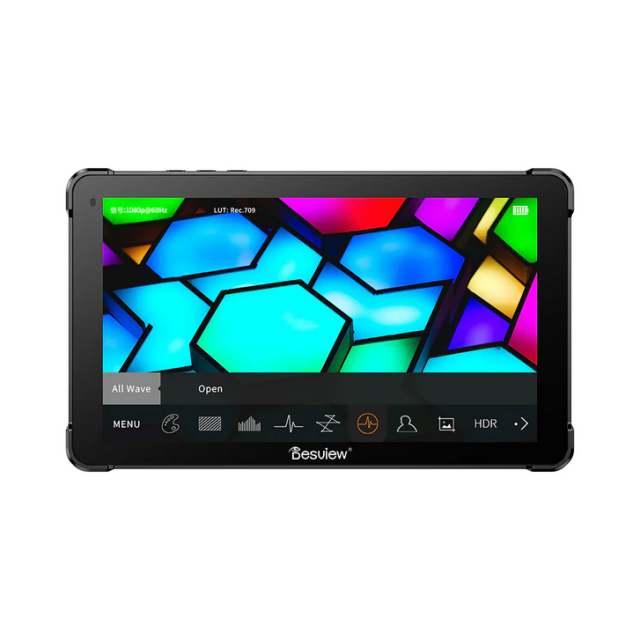

The OL7S combines a 1200-nit OLED display, 10-bit colour depth and 99.8% DCI-P3 coverage with ΔE ≤ 1 colour accuracy. The redesigned user interface keeps the monitoring tools at hand in a bar along the bottom of the image, and the monitor offers SDI, HDMI 2.0, USB-C and LEMO for power.

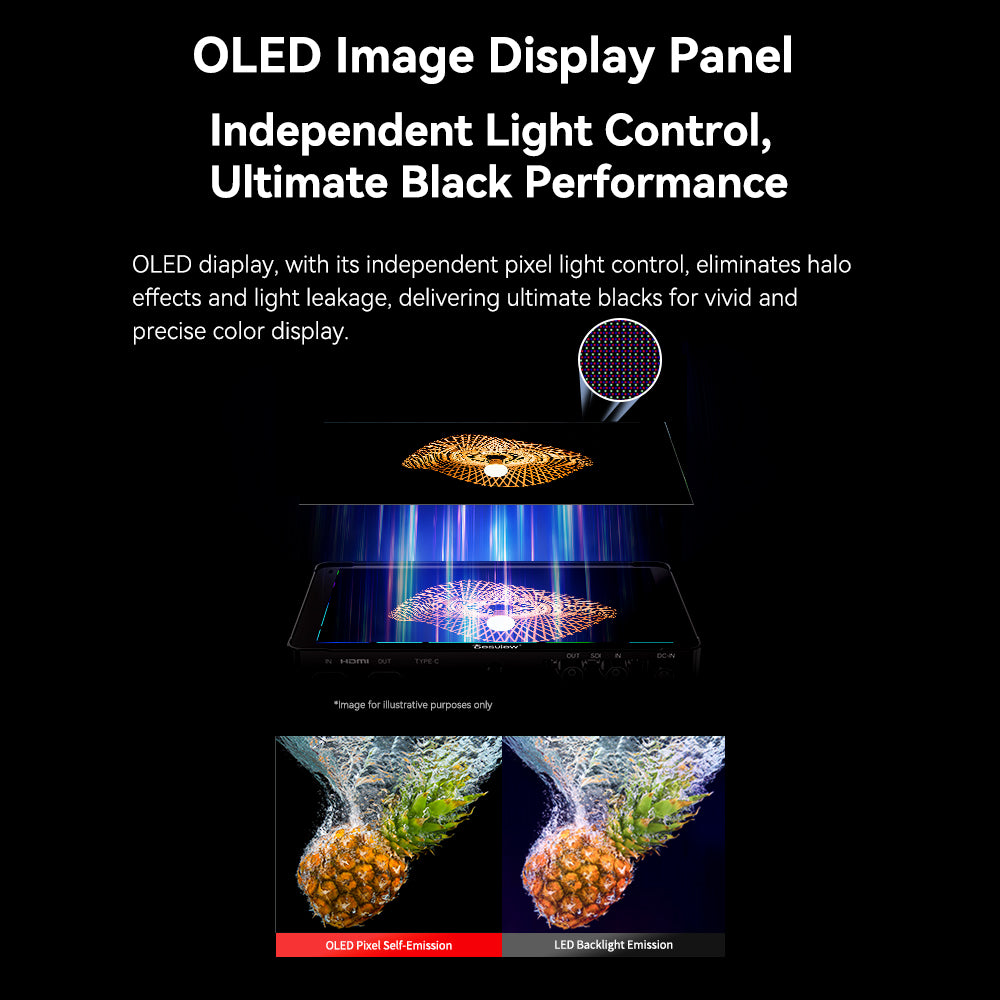

OLED display: true black

Every OLED pixel emits its own light and switches off completely in dark areas of the image. Unlike a backlit LCD, there is no halo around bright objects and black never turns grey – which is what you need when judging exposure in night and high-contrast shots.

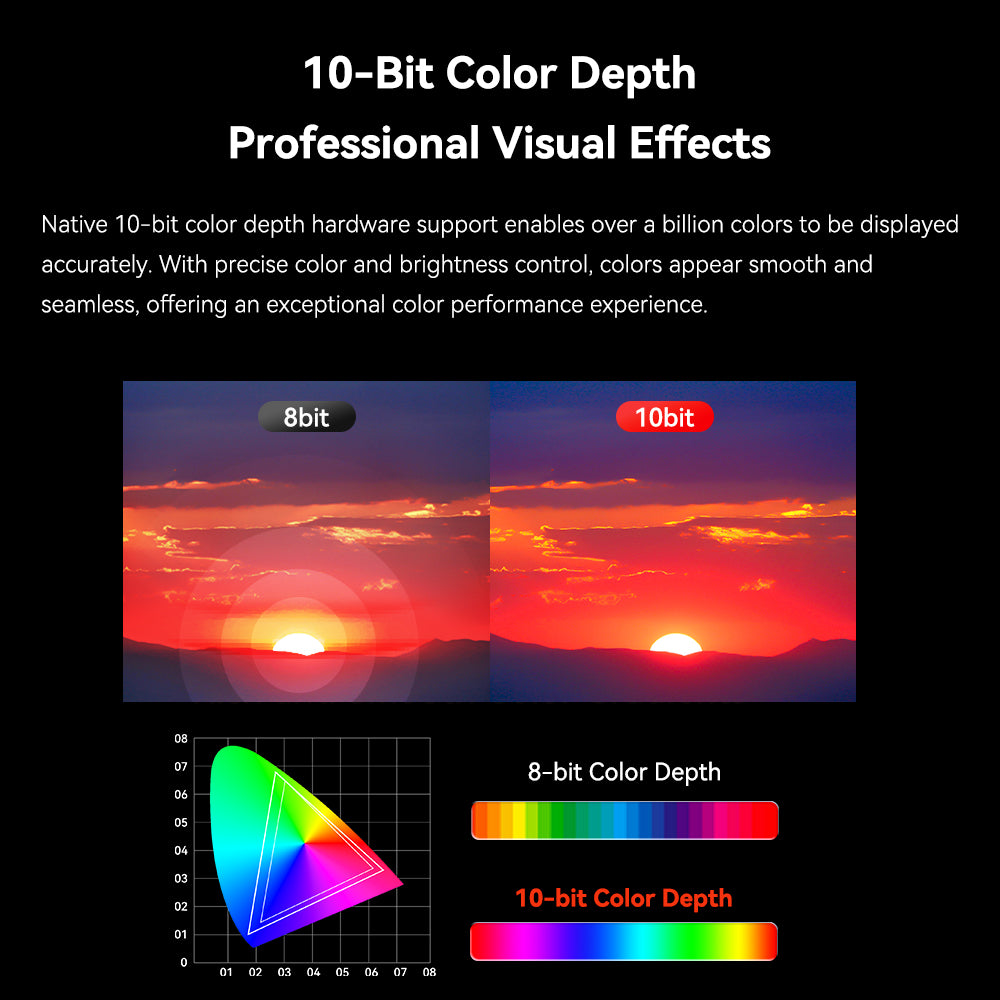

10-bit colour depth

The 10-bit panel shows 1.07 billion shades instead of the 16.7 million of an 8-bit one. Smooth gradients in skies or skin tones do not break up into bands, so the monitor shows the real tonality of your footage – which matters most when shooting in a log profile.

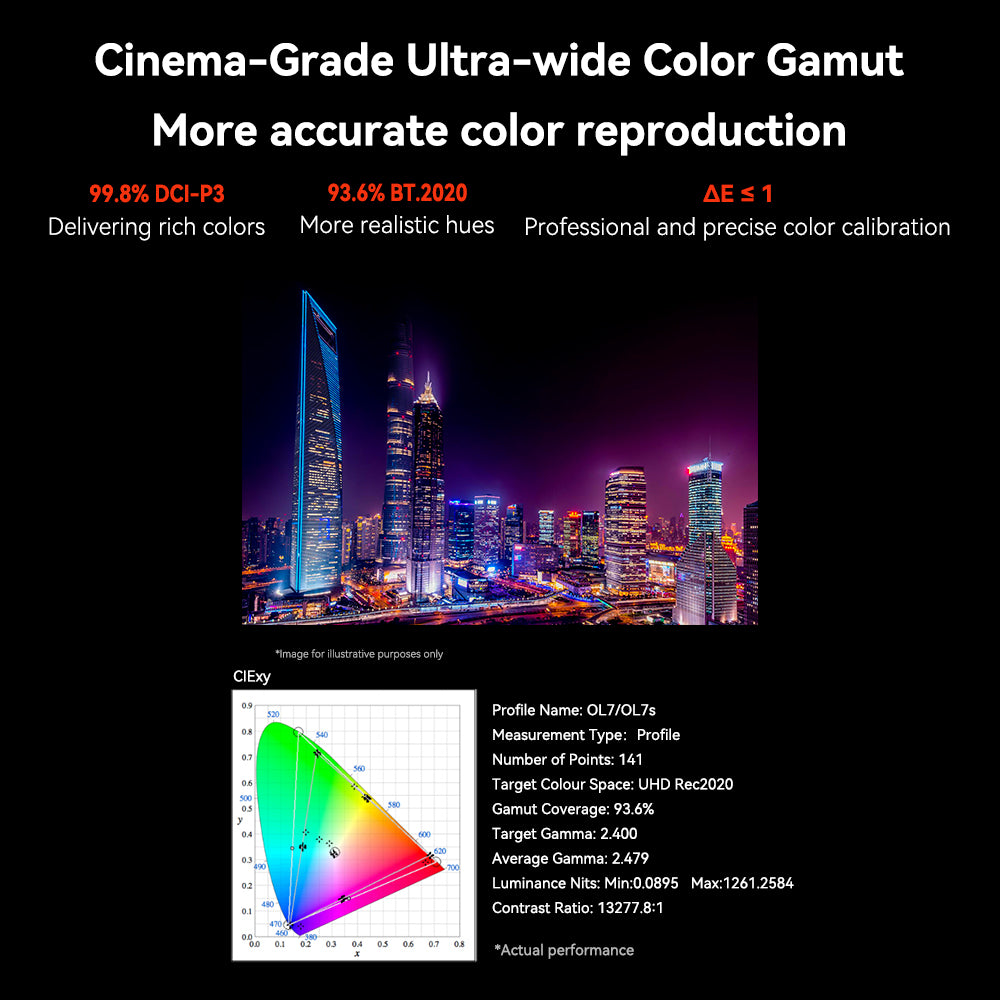

99.8% DCI-P3 gamut and ΔE ≤ 1 accuracy

The monitor covers 99.8% of the DCI-P3 colour space and 93.6% of BT.2020 with a colour deviation of ΔE ≤ 1. The panel also shows the colorimeter report – average gamma 2.479 and a measured peak brightness of over 1260 nits.

100,000:1 contrast ratio

The high OLED contrast holds detail in both the shadows and the highlights of the same shot. Compared with a typical LCD at around 1,000:1, you can see detail in a night sky as clearly as in the bright parts of the scene.

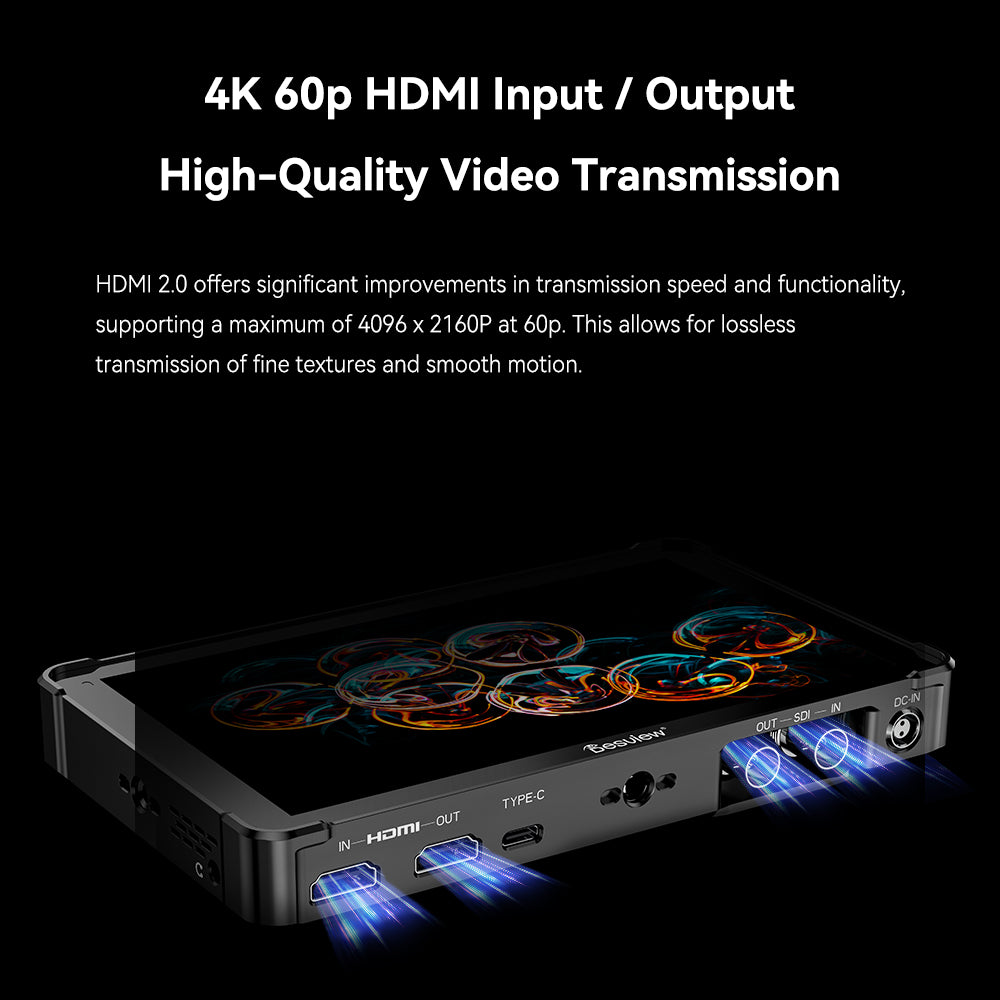

HDMI 2.0 up to 4K 60p

The OL7S accepts signals over HDMI 2.0 up to 4096 × 2160 at 60p and additionally over 3G-SDI. Both inputs have their own output, so you can pass the signal on to a recorder, the control room or a wireless transmitter.

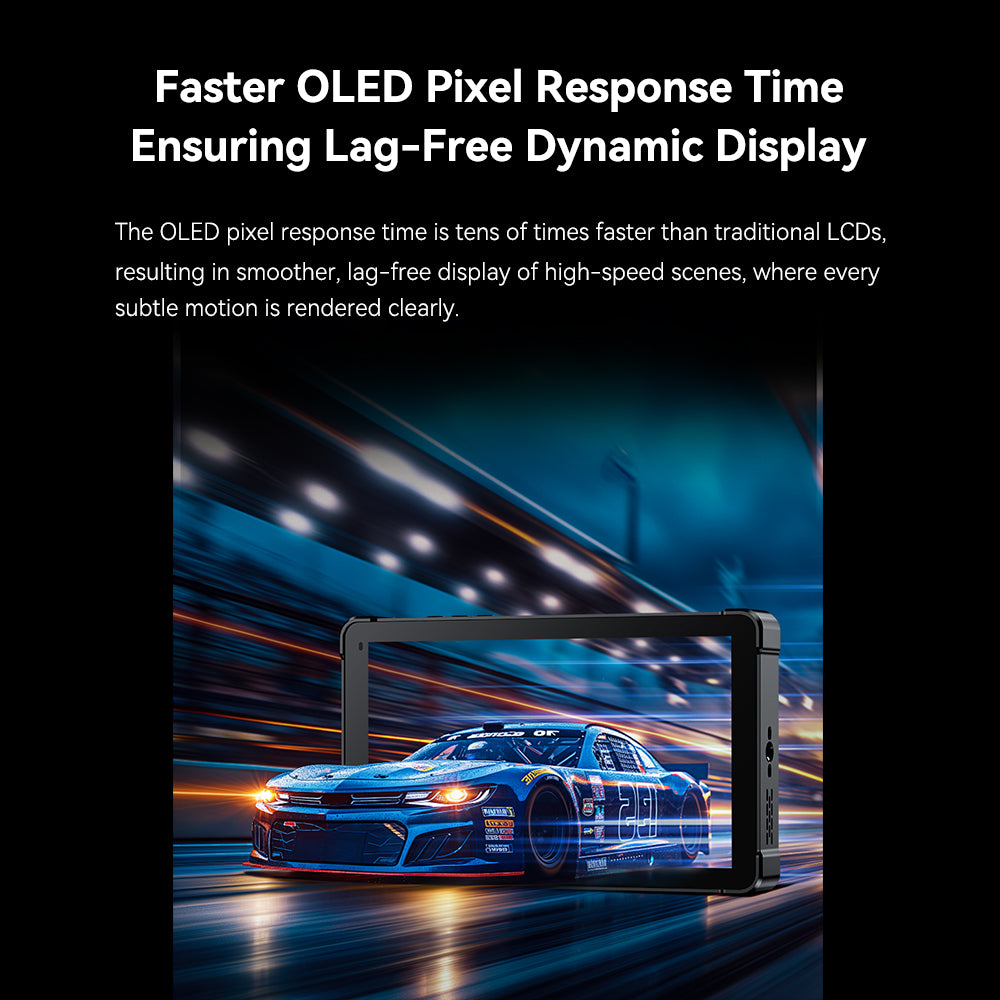

Fast response without blur

OLED pixels switch many times faster than LCD liquid crystals. When panning or following a fast-moving subject, the image does not lag or smear, which makes it easier to judge focus.

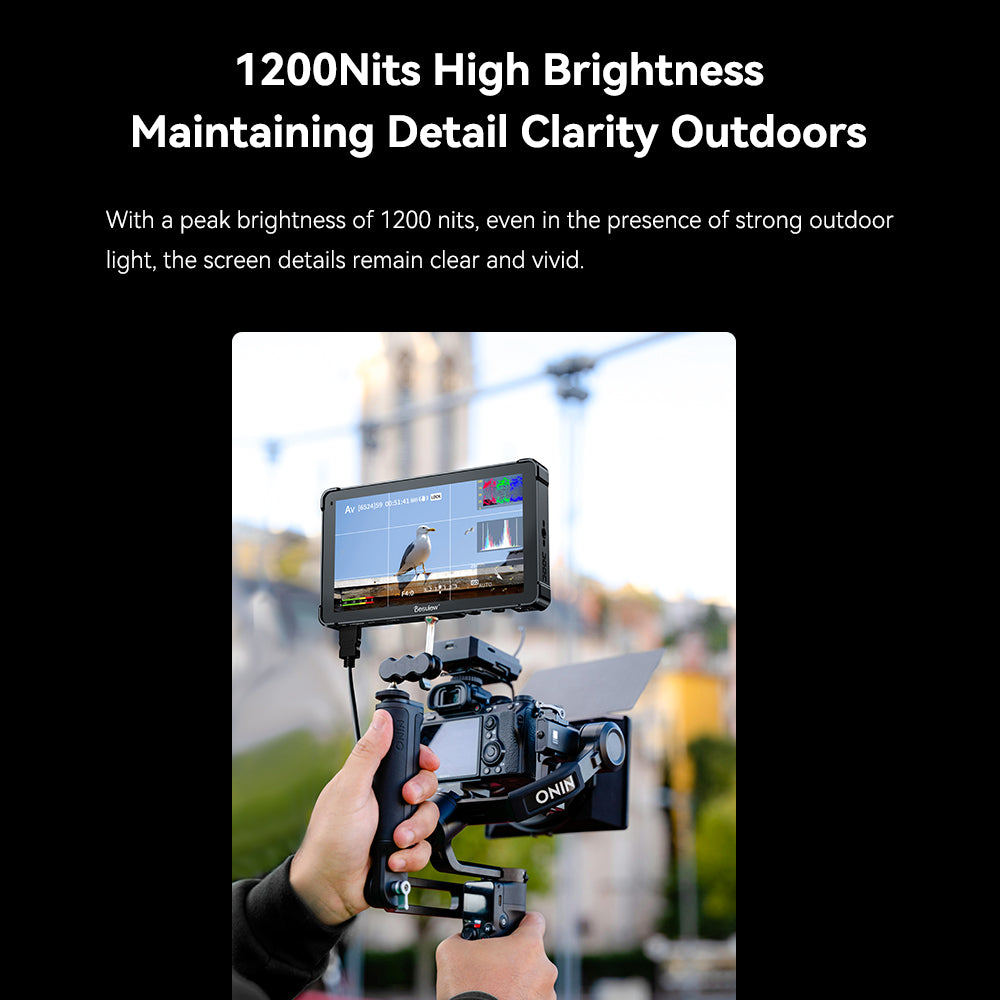

1200 nits for outdoor work

With a brightness of 1200 nits the display stays readable even in harsh sunlight, so you can check exposure and focus when shooting outdoors – on a rig, a gimbal or handheld.

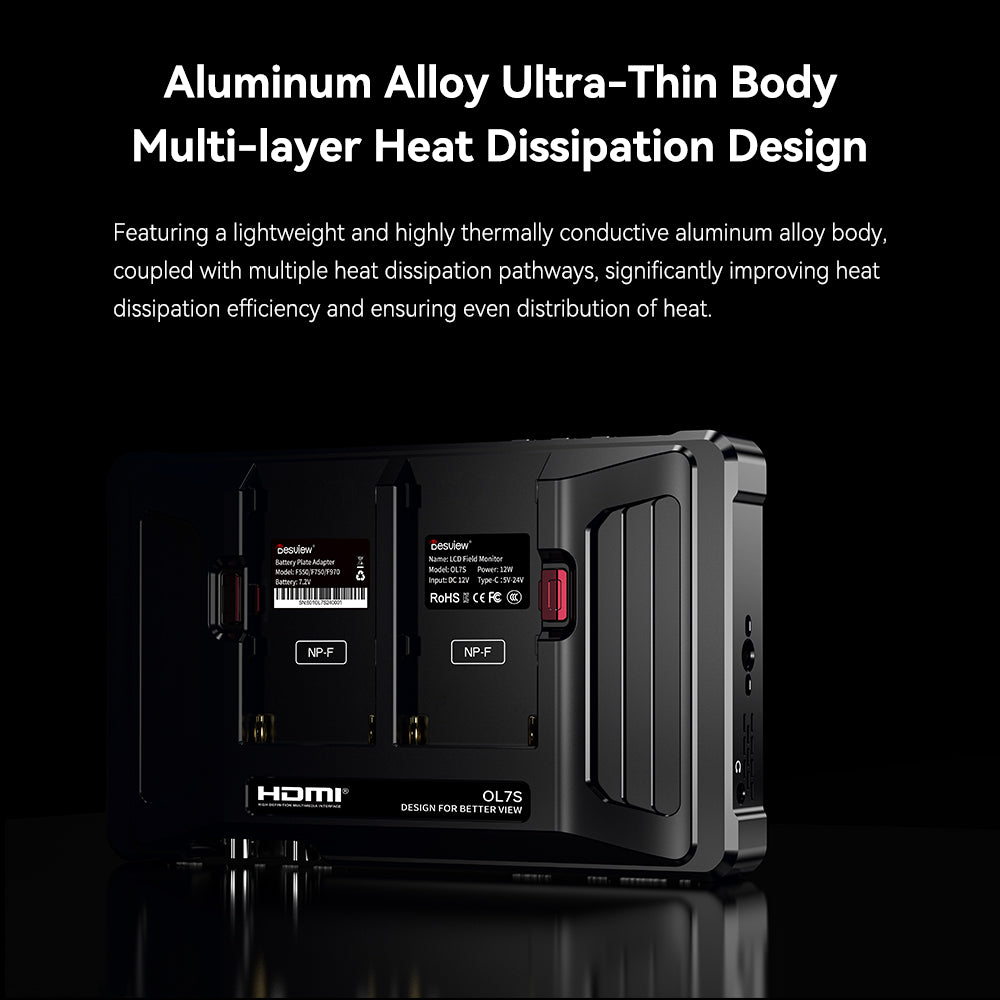

Aluminium alloy housing

The slim aluminium alloy housing doubles as a heat sink: heat from the electronics is spread over the whole housing along several paths. The OL7S measures 181 × 108 × 30 mm and weighs 520 g.

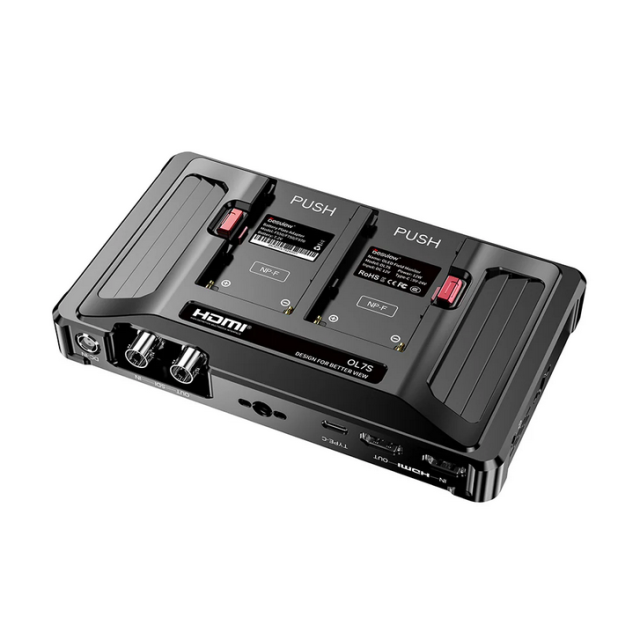

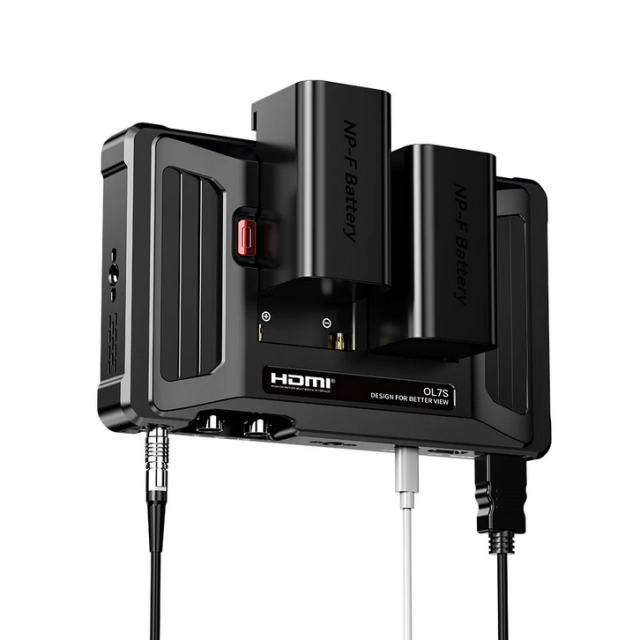

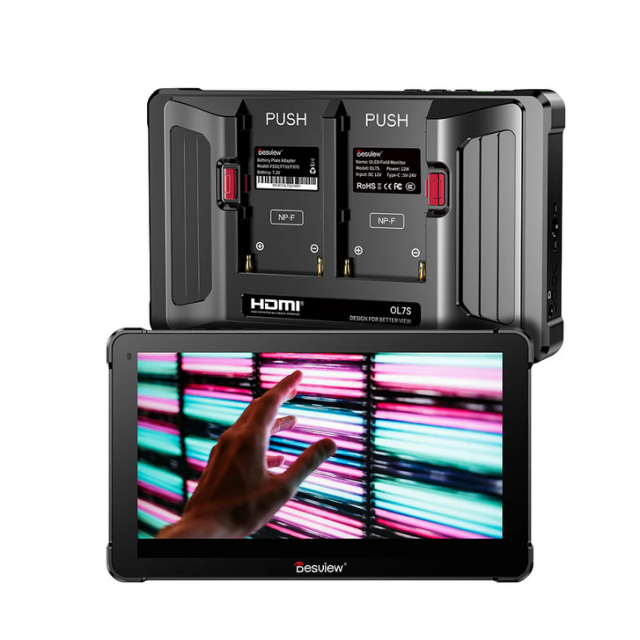

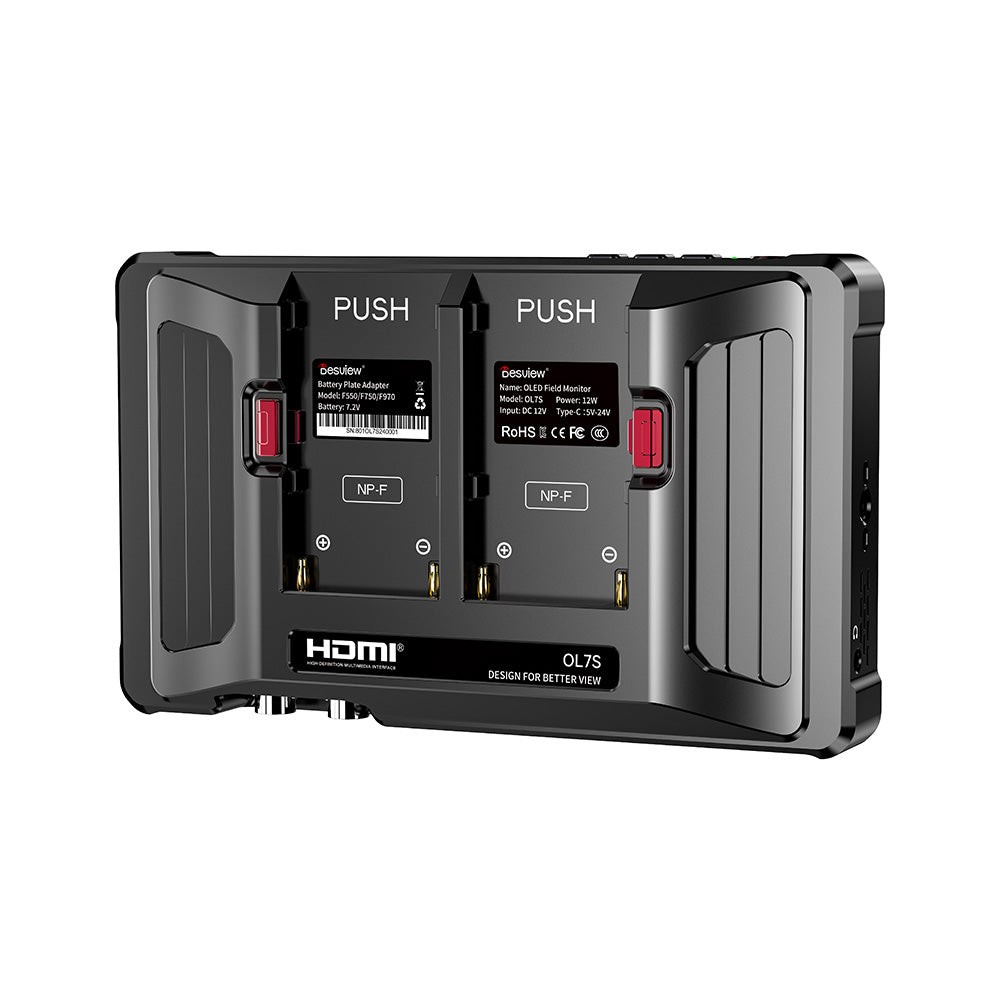

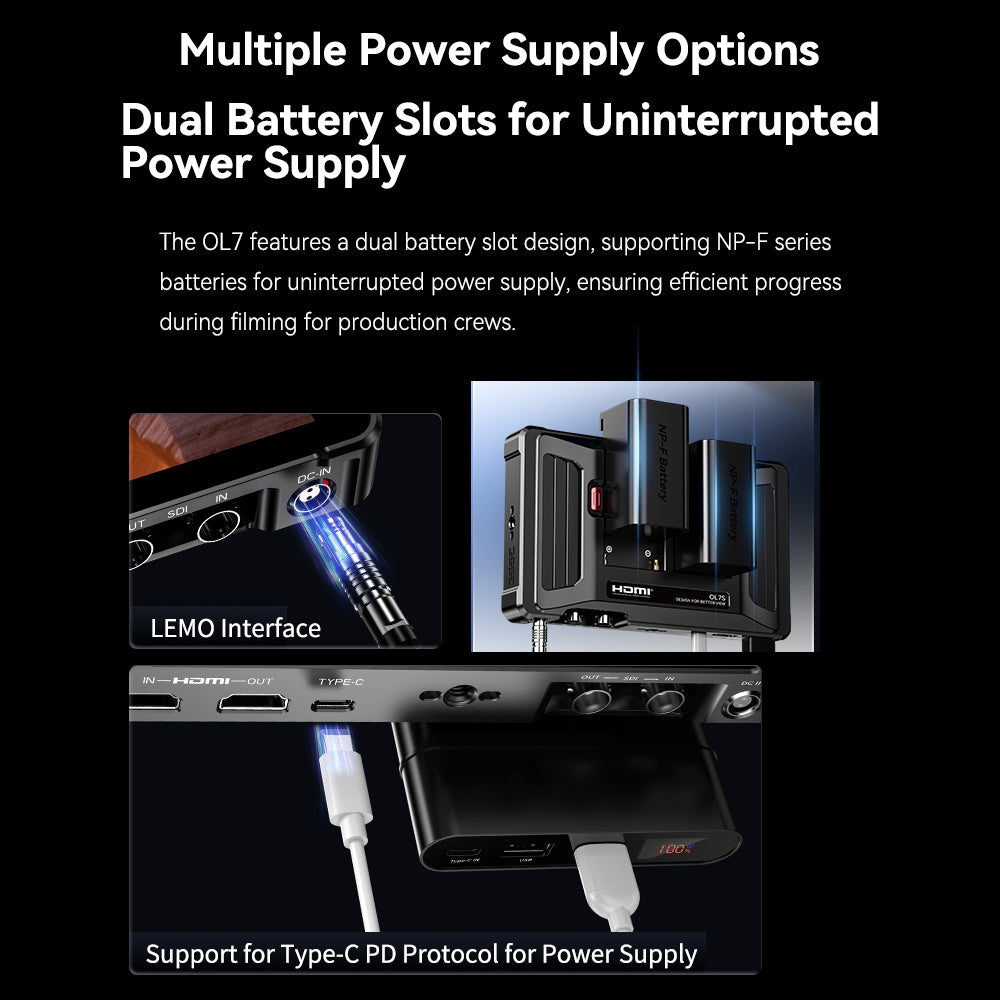

Power from NP-F, LEMO or USB-C

The back carries two battery slots for NP-F series batteries. The monitor can also be powered through the LEMO connector (7–26 V) – a D-TAP to two-pin LEMO cable is included – or via USB-C with PD 2.0/3.0, for example from a power bank.

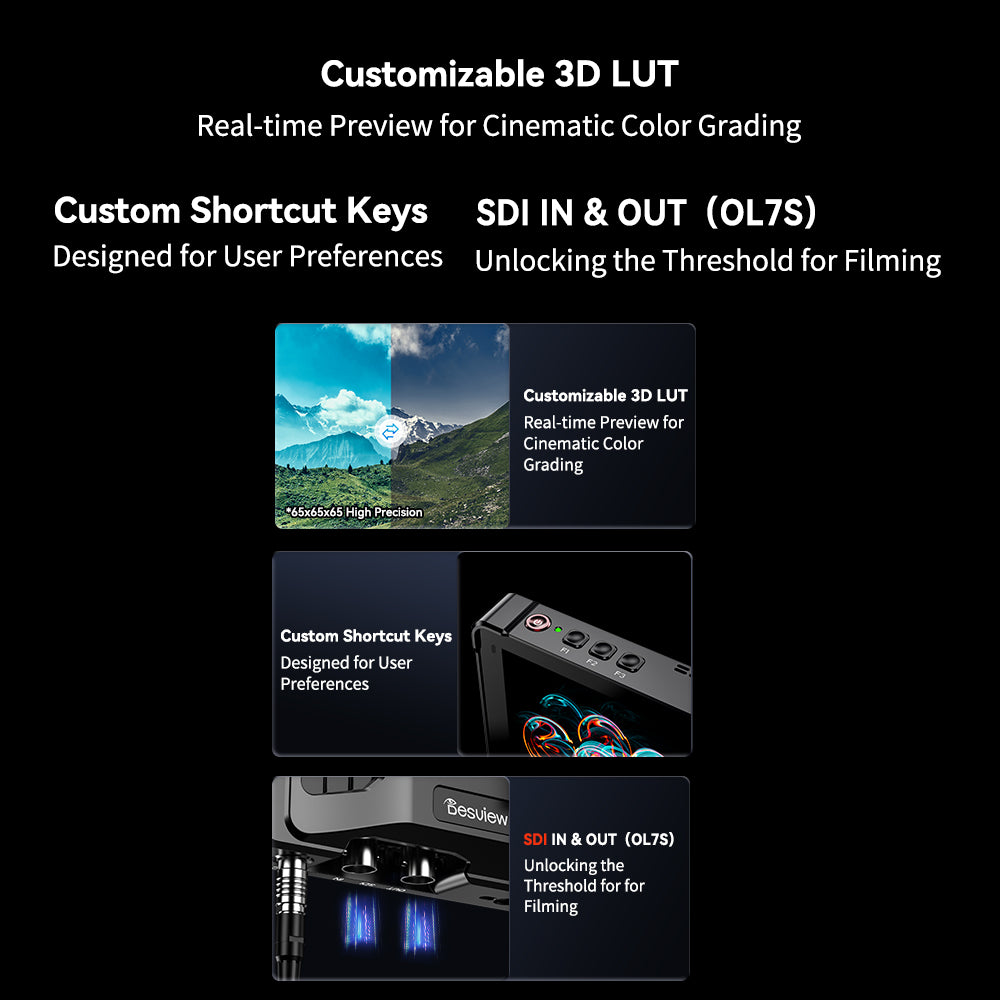

Custom 3D LUTs and programmable buttons

Load your own 3D LUTs with 65 × 65 × 65 precision and see straight away how the shot will look after grading. Assign frequently used functions to the programmable buttons F1–F3 on the top edge, while the 3G-SDI input and output connect the OL7S to professional cameras and the control room.

Monitoring tools

For exposure, focus and framing the monitor offers the following tools:

• exposure: false colour, zebra, histogram, waveform, All Wave, vectorscope
• focus: peaking, two-finger zoom
• colour: HDR, 3D LUT, monochrome display
• framing: aspect ratio markers, masking markers, grid lines, composition guides, anamorphic desqueeze, image rotation, image overlay
• other: audio meters, screenshots

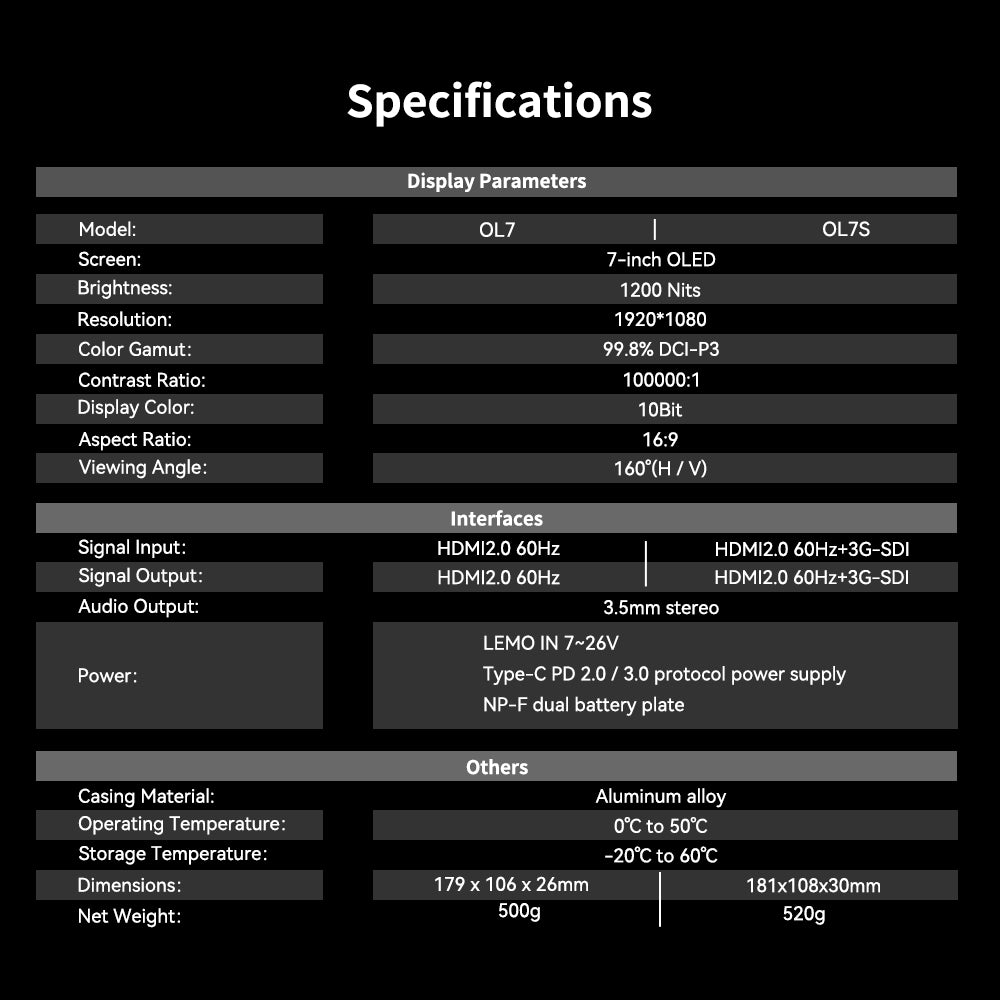

OL7 and OL7S specification table

Both versions share the same display and power options. The OL7 has HDMI 2.0 input and output; the OL7S adds 3G-SDI input and output and is 20 g heavier.

More information

Supporting both 4K60p HDMI and 3G-SDI input/output, the OL7S is ideal for multi-camera productions, live broadcasting, and professional filmmaking workflows. The durable aluminum alloy housing ensures reliability and longevity, making it a trusted tool for production environments. Whether you're shooting in a studio or on location, the OL7S delivers outstanding image quality, robust connectivity, and professional-grade performance.

Key Features

• 7-inch OLED display with 1200-nit brightness for outdoor usability
• 100,000:1 contrast ratio for deep blacks and vibrant colors
• 10-bit color depth with 1.07 billion colors for precise image reproduction
• 4K60p HDMI and 3G-SDI input/output for flexible connectivity
• Durable aluminum alloy housing for long-lasting performance
• Seamless integration into professional filmmaking and broadcast setups
