SWIT SC-302A | 2ch Charger, Gold-mount

The SWIT SC-302A is a 2-channel Gold Mount (Anton Bauer mount) sequential charger designed to charge two batteries one at a time. Featuring LED charging indicators, optimized Li-ion charging curves, and multiple safety protections, it delivers safe and reliable battery charging for professional broadcast and cinema applications.

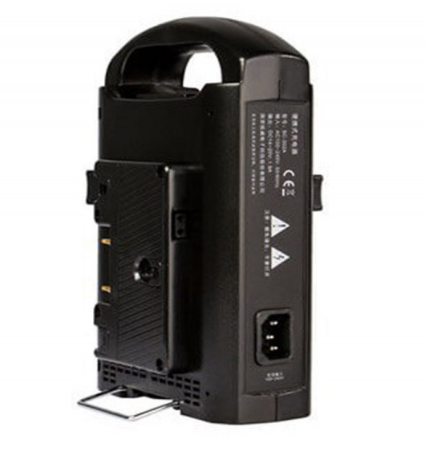

The SWIT SC-302A is a professional 2-way sequential charger equipped with two Anton Bauer (Gold Mount) charging plates. It charges two batteries one by one sequentially, ensuring stable performance and optimized battery health.

With a charging output of DC 14–20V at 1.9A, the SC-302A follows a two-stage Li-ion charging process for maximum efficiency and protection. The first stage applies constant current at the maximum charge rate. Once the battery reaches the target voltage, the charger switches to a constant voltage stage, supplying only the necessary current to maintain voltage and prevent overcharging.

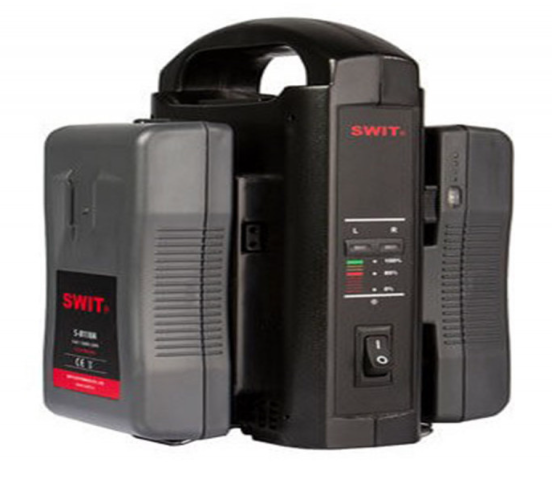

LED Charging Indicators

Each channel features LED indicators on the front panel that display real-time charging status through different colors, allowing users to easily monitor battery progress.

Advanced Safety Protection

The SC-302A is designed with multiple safety protections. It can identify different battery chemistries and automatically apply the appropriate charging program to prevent:

• Overcurrent
• Overcharging
• Overheating
• Voltage irregularities

Compact and lightweight, the SC-302A is ideal for studios, rental houses, and field production teams needing a dependable Gold Mount charging solution.

Key Features

• Dual Gold Mount (Anton Bauer mount) charging plates
• Sequential charging (charges batteries one at a time)
• DC 14–20V / 1.9A charging output
• LED charging status indicators
• Two-stage Li-ion optimal load curve
• Multiple safety protection systems
• Compact and portable design
