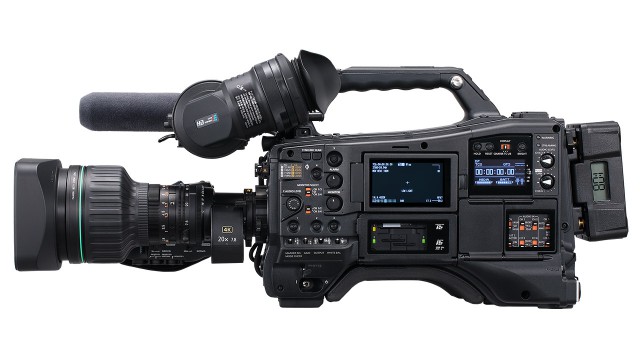

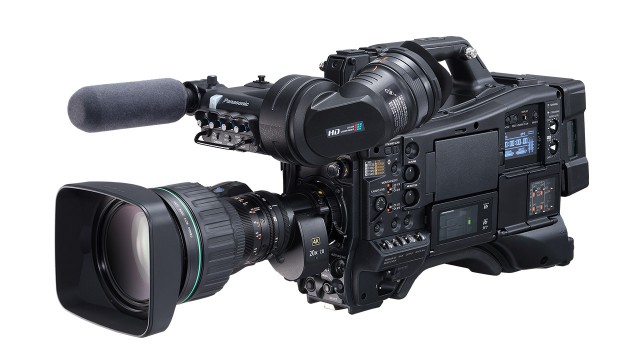

Panasonic AJ-CX4000GJ

Professional 4K news and documentary camera. On sale from 12/2019.

More information

34 303.5 € with VAT 28 350 € without VAT
-+
Availability
on request
Product description

Product description

Professional 4K news and documentary camera. On sale from 12/2019.

The new professional 4K news and documentary camera AJ-CX4000GJ is the second addition to the "CX" series (after the "handheld" model AG-CX350). The main attractions are the B4 bayonet, a large 11MP 4K sensor, compatibility with UHD and HDR standards BT.2100 and BT.2020, and high-quality recording of 10-bit/4K material using the HEVC codec. Recording is done on reliable expressP2 or microP2 cards (with the option of using SDXC media from other manufacturers)

The CX4000 also supports the HD AVC-ULTRA codec adopted from the P2HD series, and of course, UHD 60p/50p 10-bit 4:2:2 signal output via 12G-SDI. There is a wealth of options for deployment within a network infrastructure, including HD streaming (RTSP, RTMP/RTMPS), NDI|HX compatibility, and data transmission/remote control over IP networks

  • Bayonet B4
  • Two rows of switching filters (ND and CC)
  • Newly developed 4.4K sensor (2000 TV line resolution)
  • Sensitivity up to F10 (60 Hz) / F11 (50 Hz)in High Sensitivity mode
  • Support for HDR (High Dynamic Range) recording with simultaneous SDR image output
  • Multiple formats: MOV (4K/HD) and P2 MXF (HD only)
  • New 100Mbps HEVC codec for ENG applications (4K 60p 4:2:0 10 bit)
  • 10-bit recording at 4:2:2 sampling: 4K up to 30p/25p and HD up to 60p/50p (H.264/AVC, AVC-Intra and AVC-LongG)
  • Four-channel 24-bit LPCM audio recording
  • Option to use extremely fast express P2 cards
  • Support for lower cost microP2/SDXC media
  • Low weight (3.4 kg, body only), great balance
  • Direct streaming using RTSP, RTMP/RTMPS protocols (requires P2 Network Setting Software)
  • 4K 60p/50p 4:2:2 10-bit output on 12G-SDI and HDMI interfaces
  • Integrated high-resolution LCD touchscreen
  • OLED display for time code and audio levels
  • Gigabit Ethernet, USB 3.0 and (optional) Wi-Fi
  • NDI|HX protocol compatibility (requires license)
  • Wireless remote control (iOS/Android)

Parameters

Parameters

Manufacturer: Panasonic
Category: Broadcast

Main parameters

Camera Sensor sizeSuper35
Resolution4K (DCI)
ResolutionUHD
Type of bayonetB4 2/3"
OutputSDI
OutputNDI
Output12G SDI

Other parameters

Versionon the shoulder
Record formatMOV
Record formatAVC-Intra
Record formatAVC-LongG
Media typemicroP2
Media typeSD card
Media typeexpressP2
Colour depth10 bit
Other featuresStreaming
Other featuresHDR
