SWIT S-4040+PB-R290S+*4 KIT | 48V+24VDC, 1160Wh total

The SWIT S-4040+PB-R290S+4 KIT Power Station Box is a robust, high-capacity power solution featuring a PP+ fiberglass case, designed to hold 4 V-mount batteries and deliver regulated 24V or 48V DC output for demanding cine cameras and high-draw lighting equipment.

The SWIT S-4040+PB-R290S+4 KIT combines the durable S-4040 Power Station Box with four PB-R290S V-mount batteries, creating a versatile and long-lasting power supply for professional cine gear requiring high power draw. The power station box features a rugged PP+ fiberglass case built for high intensity, toughness, and heat resistance, suitable for challenging environments.

Designed to maximize runtime and output stability, the S-4040 box delivers regulated 24V DC (up to 10A, 240W) via a 4-pin XLR output and regulated 48V DC (up to 10A, 480W) via a 3-pin XLR output. The 48V output requires four identical batteries to operate, while 24V output can work with any number of installed batteries. An LED display shows the average voltage of installed batteries, providing real-time battery status and alerts when charging or replacement is needed.

The system supports charging the batteries directly inside the box using the supplied 5A charger, eliminating the need to remove batteries for charging. This integrated design ensures extended run times and reliable power delivery to cine cameras, lights, and other high-demand devices, making it an essential power solution for professional video productions.

Key Features

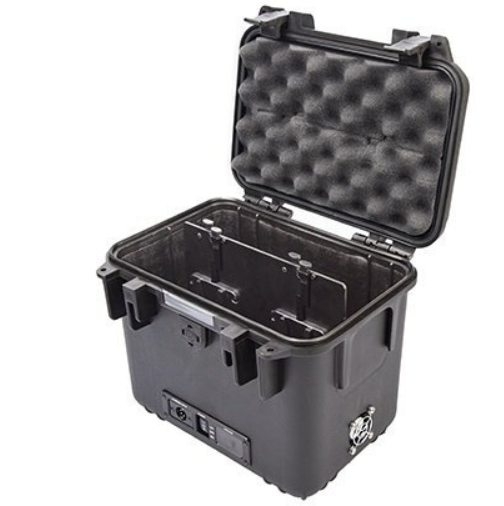

• Durable PP+ fiberglass case — high toughness, heat resistance

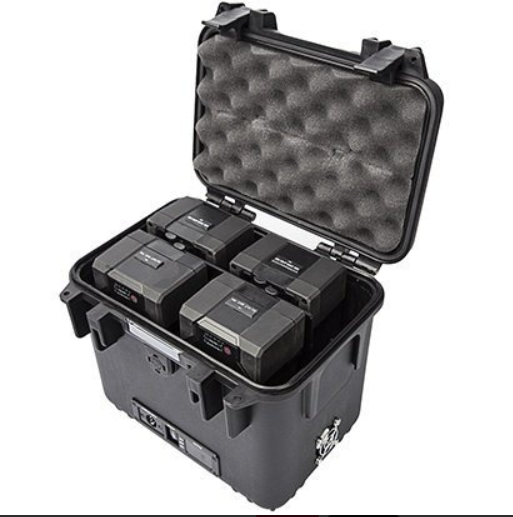

• Holds 4 V-mount batteries (PB-R290S included)

• Regulated 48V DC output: 10A max, 480W (requires 4 batteries)

• Regulated 24V DC output: 10A max, 240W (any battery quantity)

• Real-time battery voltage display with alerts

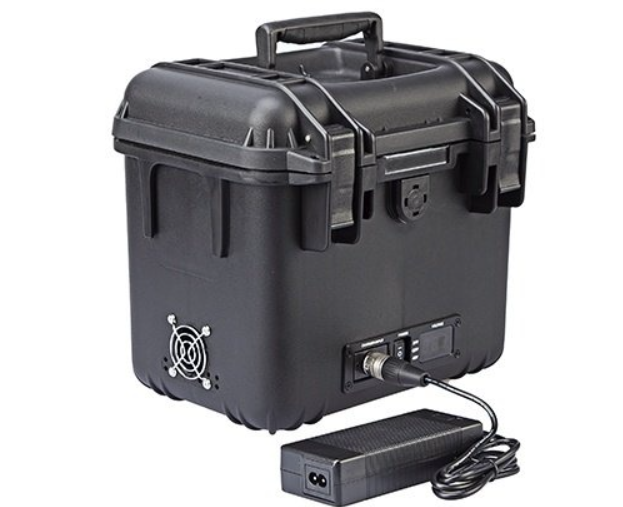

• Charges batteries inside the box with supplied 5A charger

• Supports high power draw for cine cameras and lighting

• Operating temperature: -20°C to +40°C

• Compact size: 290 × 221 × 278 mm, 3.1 kg net weight
