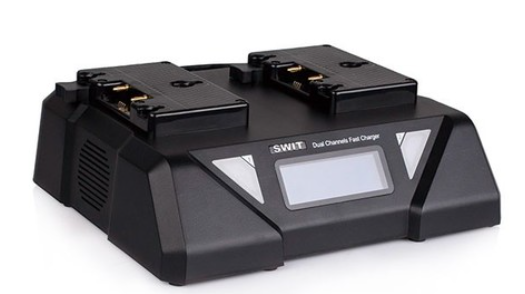

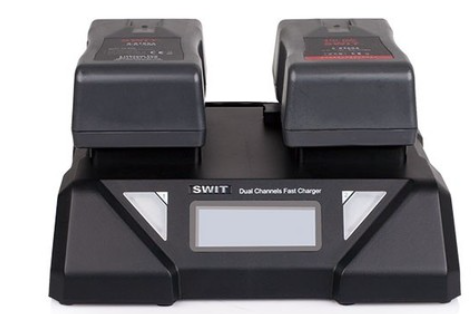

SWIT S-3812A | 2ch x 6A Top Fast Simultaneous Charger & Adaptor

The SWIT S-3812A is a professional dual-channel fast charger and AC/DC adapter for Gold Mount batteries, delivering up to 6A simultaneous fast charging for SWIT batteries and 3A for other brands. Featuring intelligent battery identification, a high-power 200W / 12A XLR output, and a detailed LCD status display, it is ideal for broadcast, cinema, and production workflows.

The SWIT S-3812A is a high-performance 2-channel fast simultaneous charger and adapter, designed for demanding professional video and broadcast environments. Each channel supports up to 6A fast charging for compatible SWIT Gold Mount batteries, significantly reducing charge times compared to standard chargers, while automatically switching to 3A charging for other battery brands to ensure safety and compatibility.

Beyond charging, the S-3812A functions as a powerful AC-DC or Battery-DC adapter, delivering 16.8V DC output via a 4-pin XLR port with a maximum stable load of 200W / 12A (using the optional S-7102 cable). It can supply power to external equipment directly from AC input or mounted batteries, with smart power management allowing battery charging when output load is under 100W.

A built-in LCD screen provides comprehensive real-time information including charging status, voltage, current, capacity, remaining charge time, battery cycles, and adapting output power. Dual-channel 3-color LED indicators offer quick visual status updates, making the S-3812A a versatile, intelligent, and reliable power solution for professional production setups.

Key Features:

• Dual-channel simultaneous fast charger for Gold Mount batteries

• Max 6A fast charging for SWIT batteries, 3A for others

• Charges two batteries at the same time

• Intelligent battery type identification

• AC-DC and Battery-DC adapting output via 4-pin XLR

• Max output power 200W / 12A @ 16.8V DC

• LCD screen with detailed real-time charging and output data

• Dual-channel 3-color LED status indicators

• Supports powering external devices while charging (under 100W load)

• Professional design for broadcast, cinema, and studio use
