The SWIT RadioLux Rx is a professional wireless DMX receiver using the RadioLux protocol for ultra-reliable 863–928MHz transmission. Designed for studio, live event, and broadcast lighting, it enables wireless DMX512 control of unlimited fixtures with low latency and superior interference resistance.
The SWIT RadioLux Rx is a professional wireless DMX receiver using the RadioLux protocol for ultra-reliable 863–928MHz transmission. Designed for studio, live event, and broadcast lighting, it enables wireless DMX512 control of unlimited fixtures with low latency and superior interference resistance.
The SWIT RadioLux Rx is a high-performance wireless DMX receiver that operates on the license-free 863–928MHz frequency using the advanced RadioLux protocol, offering reliable and interference-resistant DMX512 signal transmission for professional lighting setups. Ideal for broadcast studios, live events, conference halls, and auditoriums, the system allows seamless integration of wireless DMX control into existing lighting infrastructure.

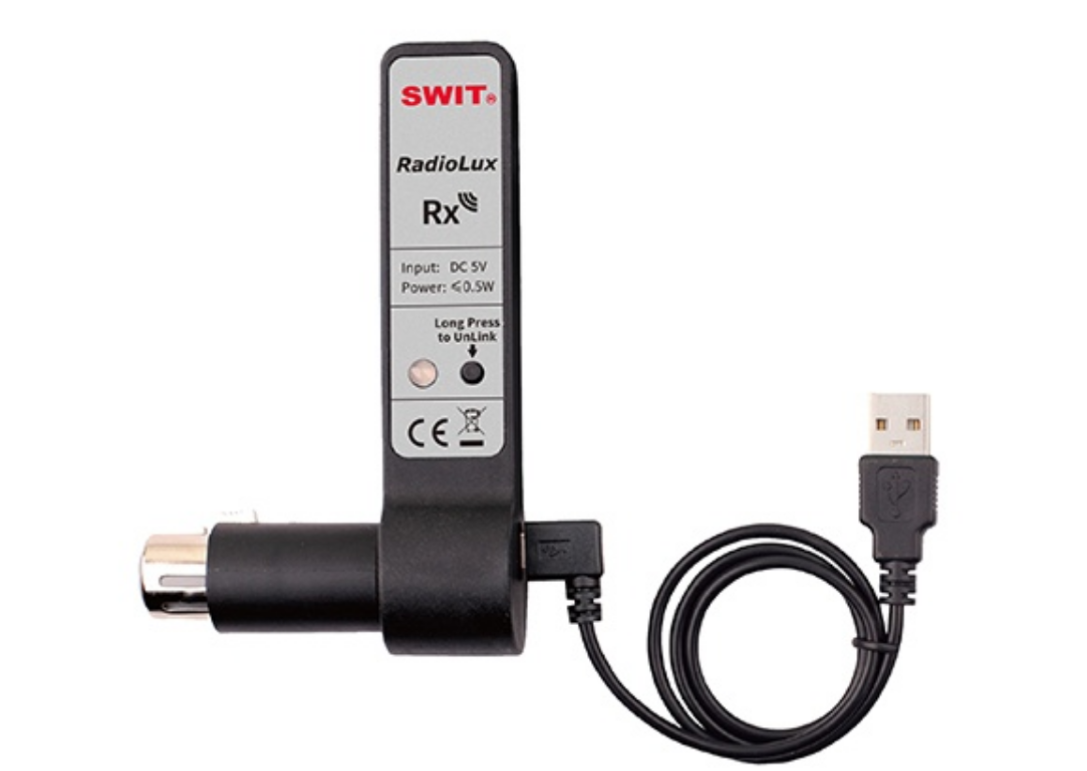

Connecting the RadioLux Transmitter (Tx) to any DMX console via 5-pin XLR enables wireless control of multiple lights. Each RadioLux Rx is compact and plugs directly into the DMX IN port of the studio light, eliminating the need for long DMX cables. A single Tx can wirelessly control an unlimited number of Rx units up to 500 meters / 1600 feet with latency under 0.03 seconds.
The system features automatic frequency scanning to select the best channel, ensuring stable transmission even in interference-prone environments. One-key linking and unlinking of all receivers simplifies setup, and individual Rx units can be unlinked independently. The Tx is powered via 4-pin XLR DC, while the Rx is USB-A powered at 5V, making it flexible for a variety of lighting setups.
Key Features
Professional Wireless DMX512 receiver using RadioLux protocol
Operates on 863–928MHz license-free frequency for stable transmission
Anti-interference technology ensures reliable DMX signal
Single Tx can control unlimited Rx units within 500 meters / 1600 ft
Low latency: less than 0.03 seconds
Automatic channel selection to maintain optimal transmission
One-key link/unlink for all Rx units
Single Rx unlink capability for individual lights
Transmitter Power: 4-pin XLR DC
Receiver Power: 5V USB-A
Compact, lightweight design for easy integration
Model: SWIT RadioLux Rx
Type: Wireless DMX Receiver
Protocol: RadioLux 863–928MHz
DMX Interface: DMX512 in/out
Range: Up to 500m / 1600 ft
Latency: < 0.03 s
Transmitter Power Input: 4-pin XLR DC
Receiver Power Input: 5V USB-A
Link/Unlink: One-key link/unlink; individual Rx unlink
Applications: Broadcast studios, live events, conference halls, auditoriums
