SWIT FLOW500 Rx | 500feet(150m) new generation Wireless FHD Video Receiver, Super Anti-interference,

The SWIT FLOW500 Rx is a 500ft (150m) line-of-sight wireless FHD video receiver featuring KUWI 5.1–5.9 GHz technology, dual 3G-SDI and HDMI outputs, OLED status display, strong cross-wall performance, multicast support (1 Tx to 4 Rx), and AES128 double encryption for secure, high-quality video transmission.

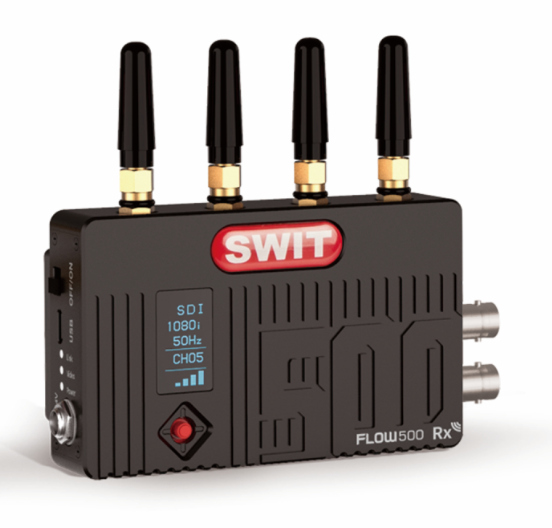

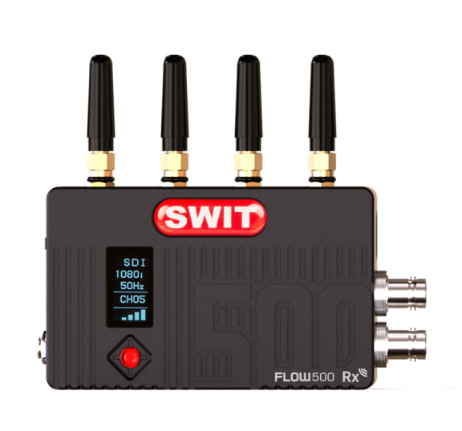

The SWIT FLOW500 Wireless FHD Video Receiver (Rx) is part of the next-generation FLOW500 system, designed for professional monitoring and remote video transmission. Utilizing license-free 5.1–5.9 GHz KUWI technology, the FLOW500 supports 3G/HD-SDI and HDMI (max 1080p60) video transmission up to 500 feet (150 meters) line-of-sight, with superior wall penetration and minimal signal loss.

The system is plug-and-play and ideal for directors’ monitors, drones, cable car cameras, steadicams, and other field production setups. The receiver features 4 omnidirectional antennas, providing reliable signal reception and accurate color reproduction with signal resynchronization. Embedded audio is supported on two channels, allowing HDMI or SDI audio transmission simultaneously.

Key features include OLED displays on both transmitter and receiver showing signal format, channel, and strength, DFS-compliant automatic channel switching, and manual selection of non-DFS channels. The FLOW500 also supports multicast mode, enabling 1 transmitter to connect to up to 4 receivers, with AES128 double encryption ensuring secure transmission. Firmware updates are supported via Micro USB.

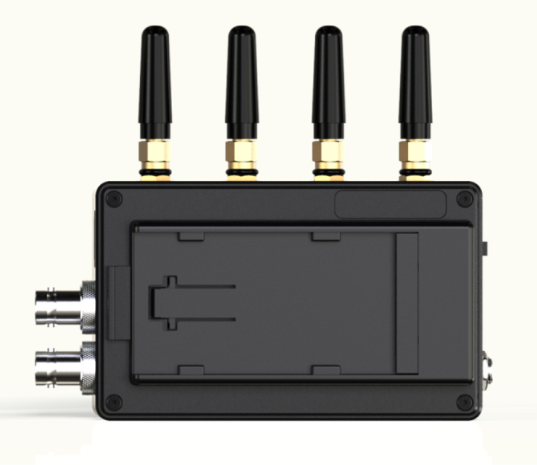

Both transmitter and receiver are powered via NP-F DV battery plate or 7–34V DC input, with power consumption under 8W, making it highly energy-efficient for extended use. Units are factory-paired but can be re-paired for multiple setups or multicast configurations.

Key Features

• 500ft / 150m wireless FHD video transmission (line-of-sight)

• KUWI 5.1–5.9 GHz wireless technology, DFS-compliant

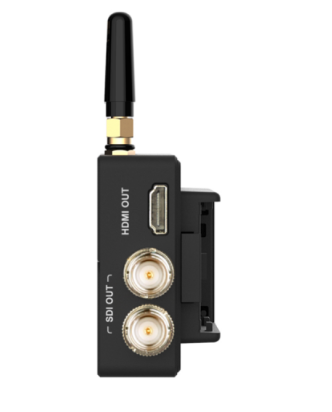

• 3G/HD-SDI input/output, HDMI 1.3 input/output

• 2-channel SDI/HDMI embedded audio

• Strong wall-cross performance for indoor/outdoor use

• OLED display for channel, signal, and format

• Multicast support: 1 Tx → up to 4 Rx

• AES128 double encryption for secure transmission

• Reclocking and accurate color reproduction

• USB firmware update support

• Plug-and-play factory paired units
