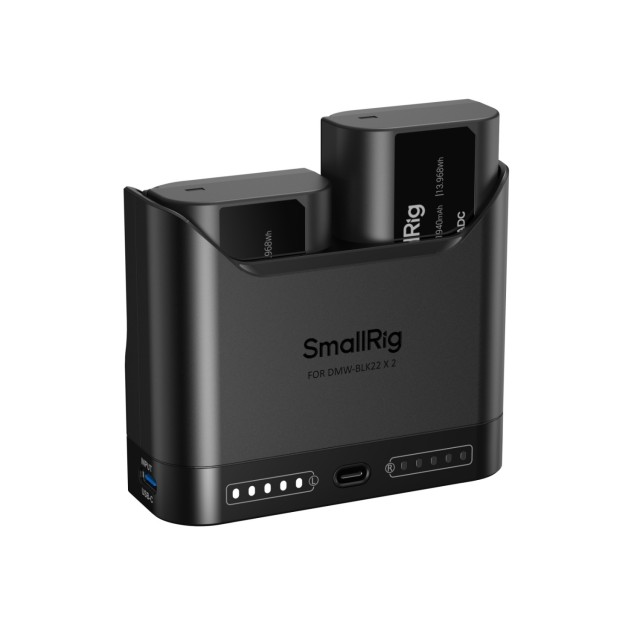

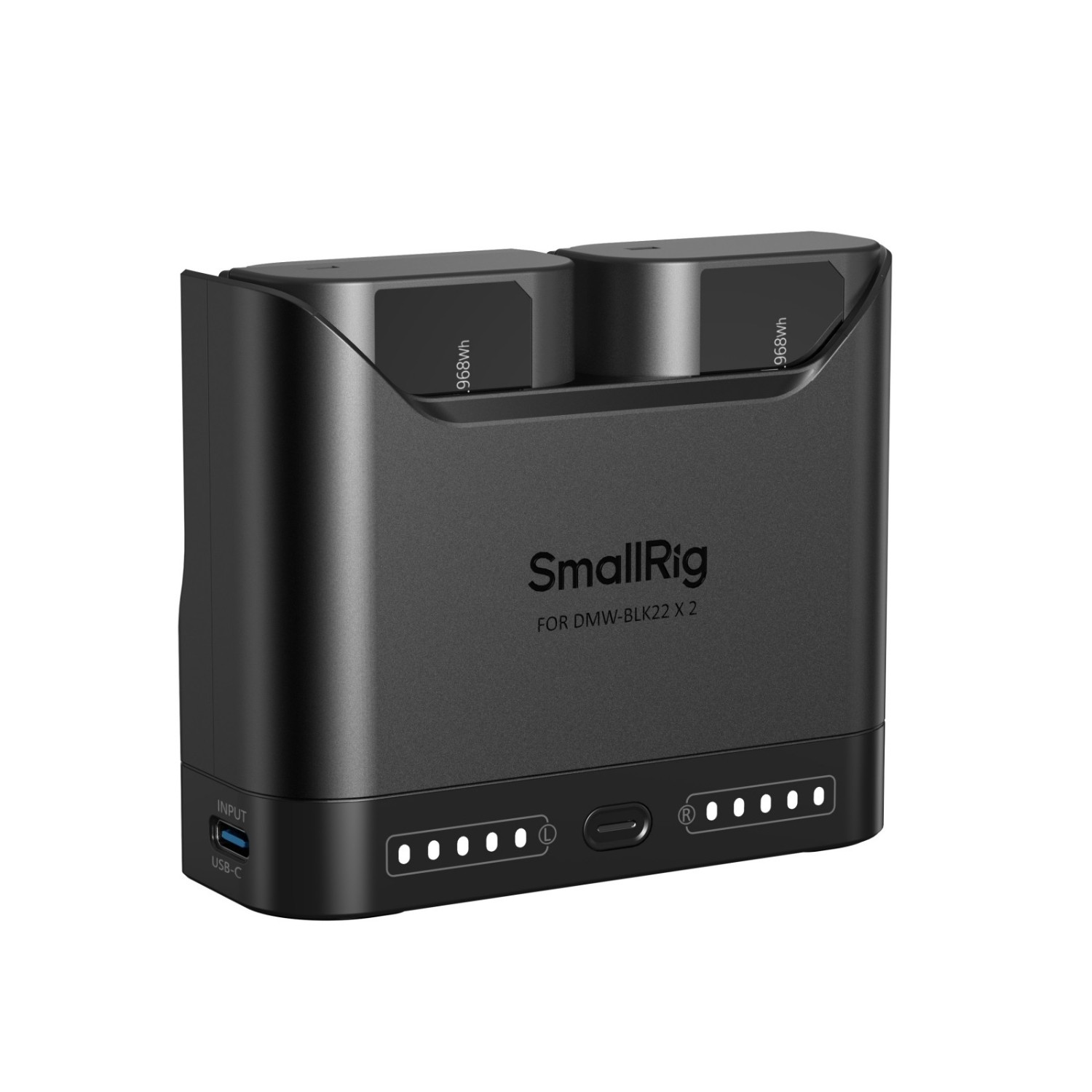

SmallRig Turbo Charging Kit for DMW-BLK22 Camera Batteries 5487

SmallRig Turbo Charging Kit for DMW-BLK22 Camera Batteries 5487 includes two high-performance batteries and a dual-channel fast charger. Featuring a full decoding chip, this kit ensures full compatibility with Panasonic DMW-BLK22 batteries, eliminating pop-up warnings while supporting in-camera power display and original charger use.

More information

65 € with VAT 53.72 € without VAT
-+
Availability
Backordered 4 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

SmallRig Turbo Charging Kit for DMW-BLK22 Camera Batteries 5487 includes two high-performance batteries and a dual-channel fast charger. Featuring a full decoding chip, this kit ensures full compatibility with Panasonic DMW-BLK22 batteries, eliminating pop-up warnings while supporting in-camera power display and original charger use.

Each battery delivers a true-rated output of 1940mAh, providing extended shooting time for demanding workflows. The charger’s dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 2 hours for optimal efficiency.

Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.

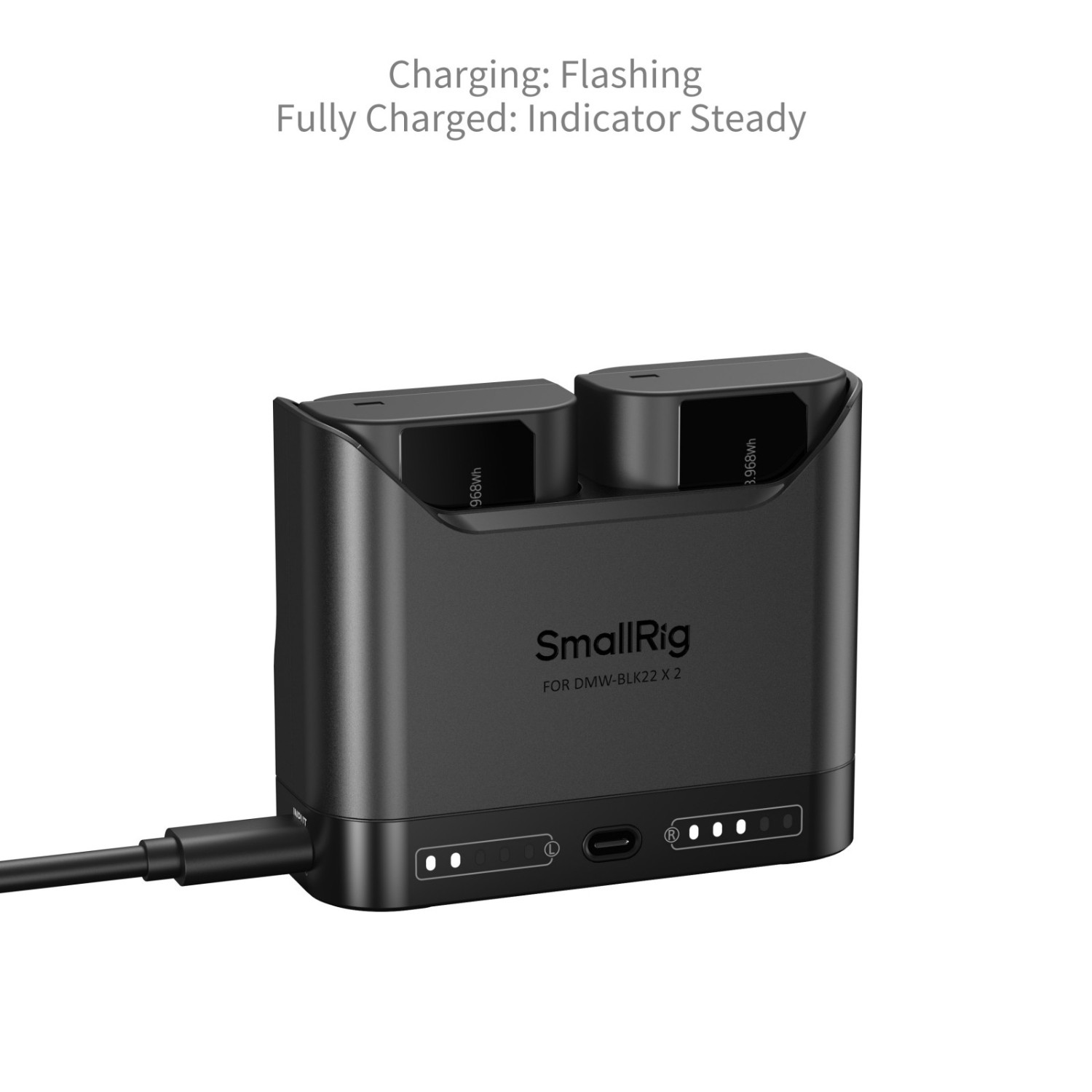

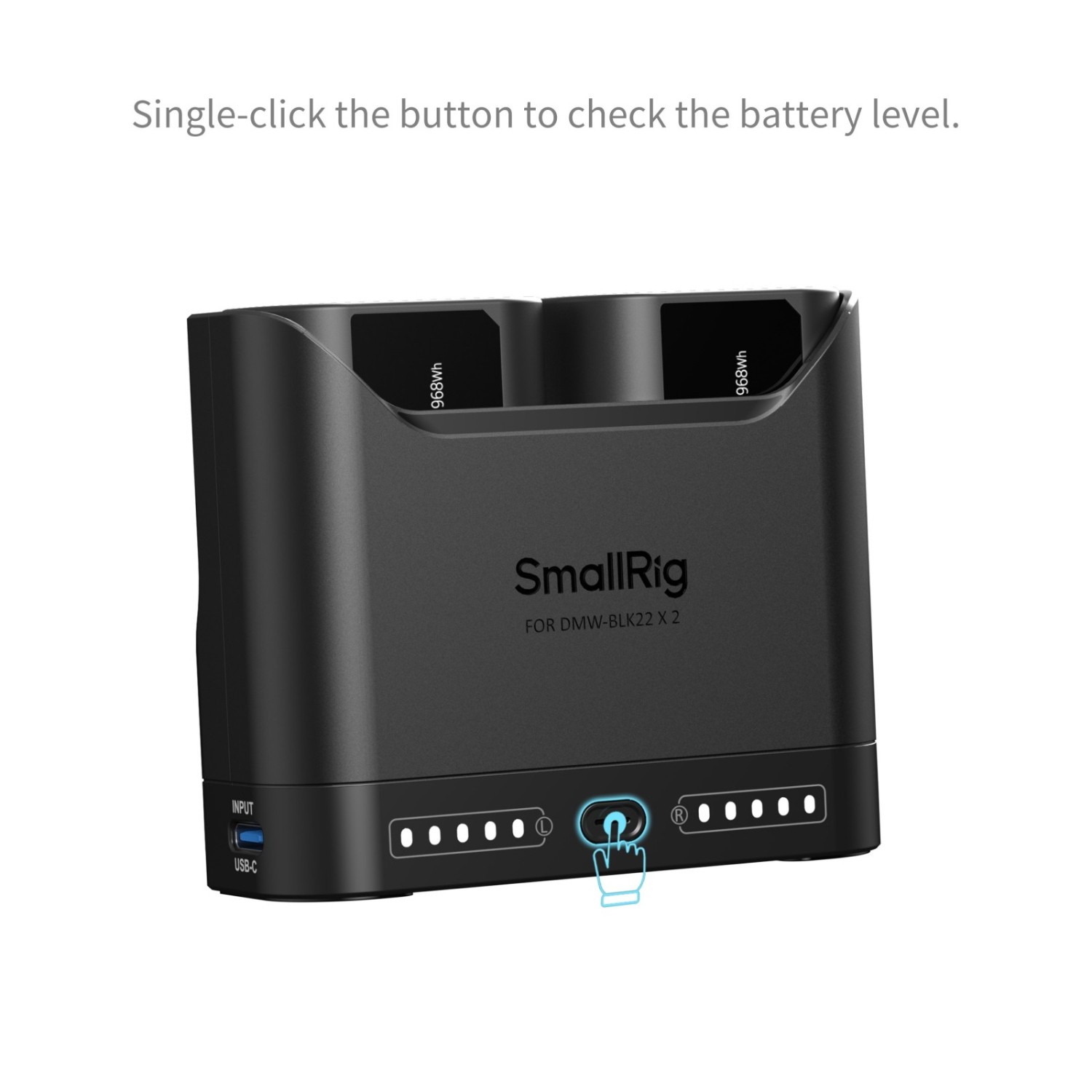

Each charging channel features five LED indicators that display power levels in 20% increments, even without external power. A red warning light activates when battery levels are critically low. Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.

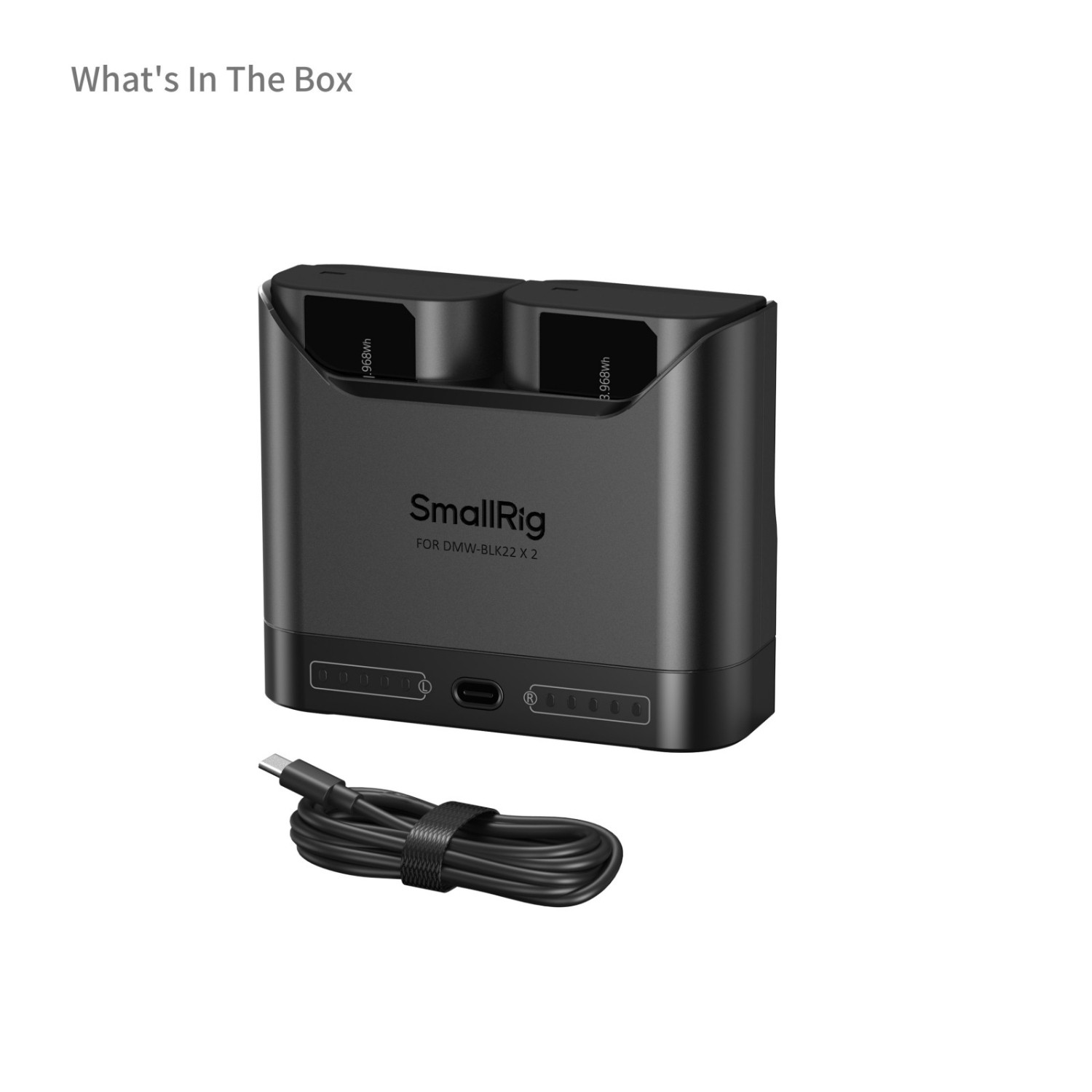

PACKAGE CONTENT

Camera Battery Charger for DMW-BLK22 x 1
Camera Battery for DMW-BLK22 x 2
Battery Cover x 2
60W USB-C to USB-C Cable (1m / 3.3ft) x 1

SPECIFICATIONS

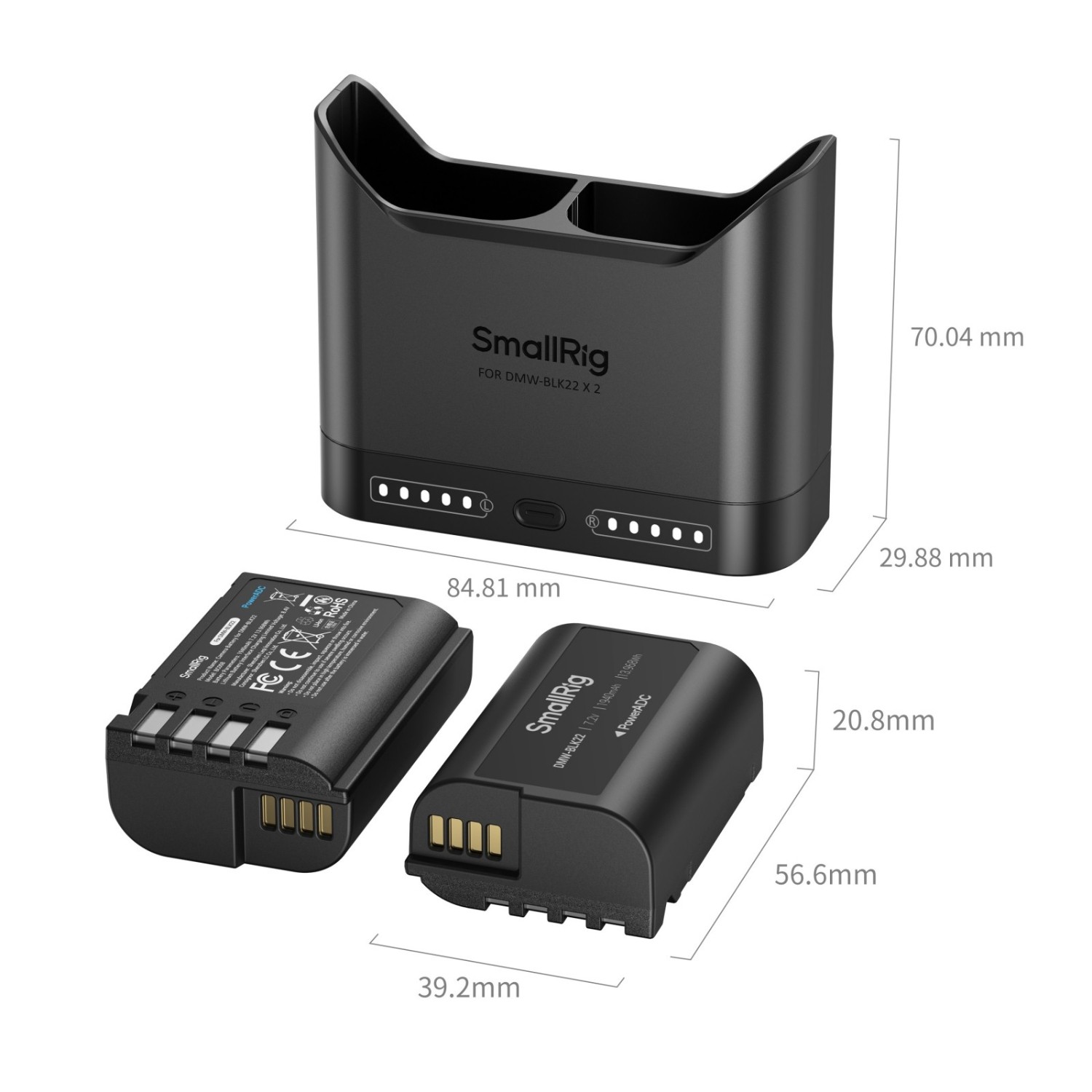

Product Dimensions: 84.8 x 70.0 x 29.9mm / 3.3 x 2.8 x 1.2in
Package Dimensions: 180.0 x 123.0 x 38.0mm / 7.1 x 4.8 x 1.5in
Product Weight: 223 ± 10g / 7.9 ± 0.4oz
Package Weight: 296 ± 10g / 10.4 ± 0.4oz
Charger Specifications:
Material(s): PC + ABS

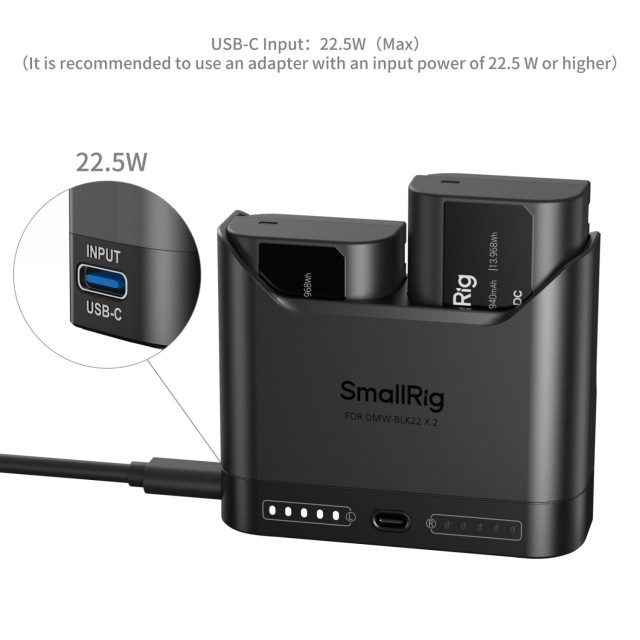

USB-C Input: 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
USB-C Protocol: PD3.0, QC2.0, QC3.0
Rated Output (Per Channel): 8.4V / 1A
Operating Temperature: 0°C to 45°C / 32°F to 113°F

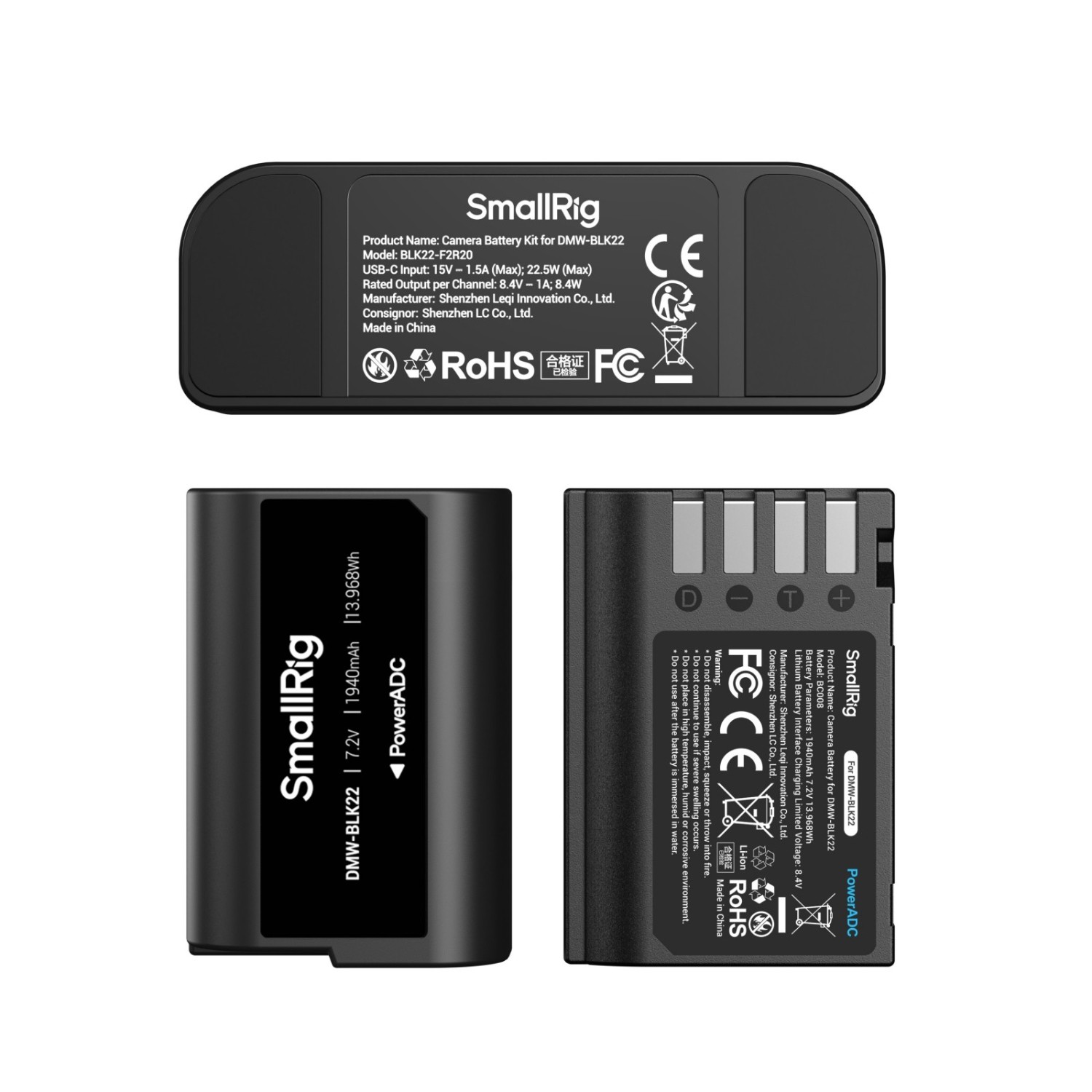

Battery Specifications:
Battery Type: Lithium-ion Battery
Nominal Voltage: 7.2V
Cell Capacity: 1940mAh
Rated Energy: 13.968Wh
Charging Limit Voltage (Li-ion Battery Interface): 8.4V
Charging Current (Li-ion Battery Interface): Standard Charge: 0.2C (408mA)
Fast Charge: 0.7C (1428mA)
Maximum Discharge Current: 4A
Discharge Cut-off Voltage: 5.0V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -10°C to 60°C / 14°F to 140°F
Material(s): PC + ABS
Parameters

Parameters

Manufacturer: SmallRig
Category: 7.2V chargers

Main parameters

Mount typeBLK-22

Other parameters

Charger battery typePanasonic BLK-22
