SmallRig Camera Battery Charger for DMW-BLK22 5492

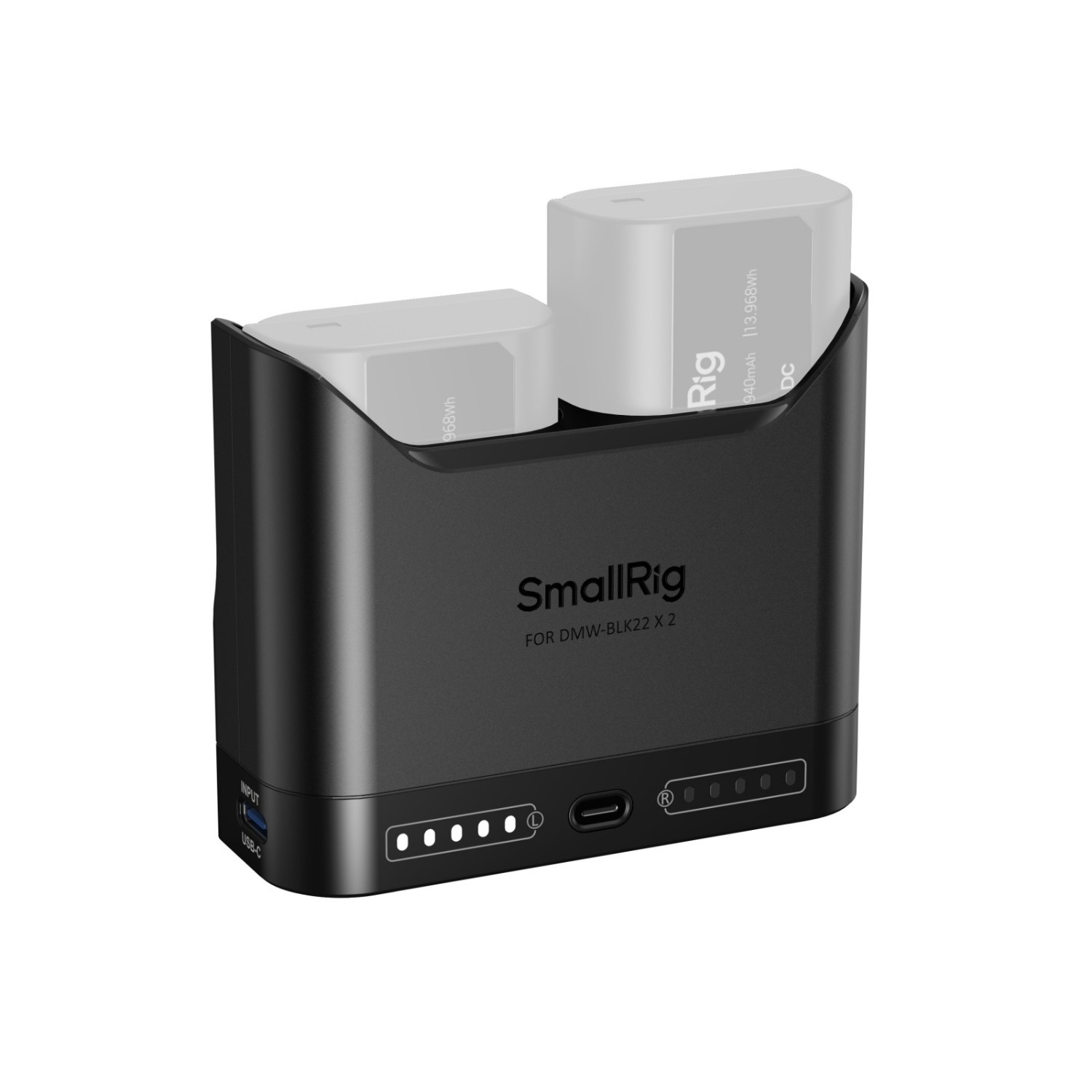

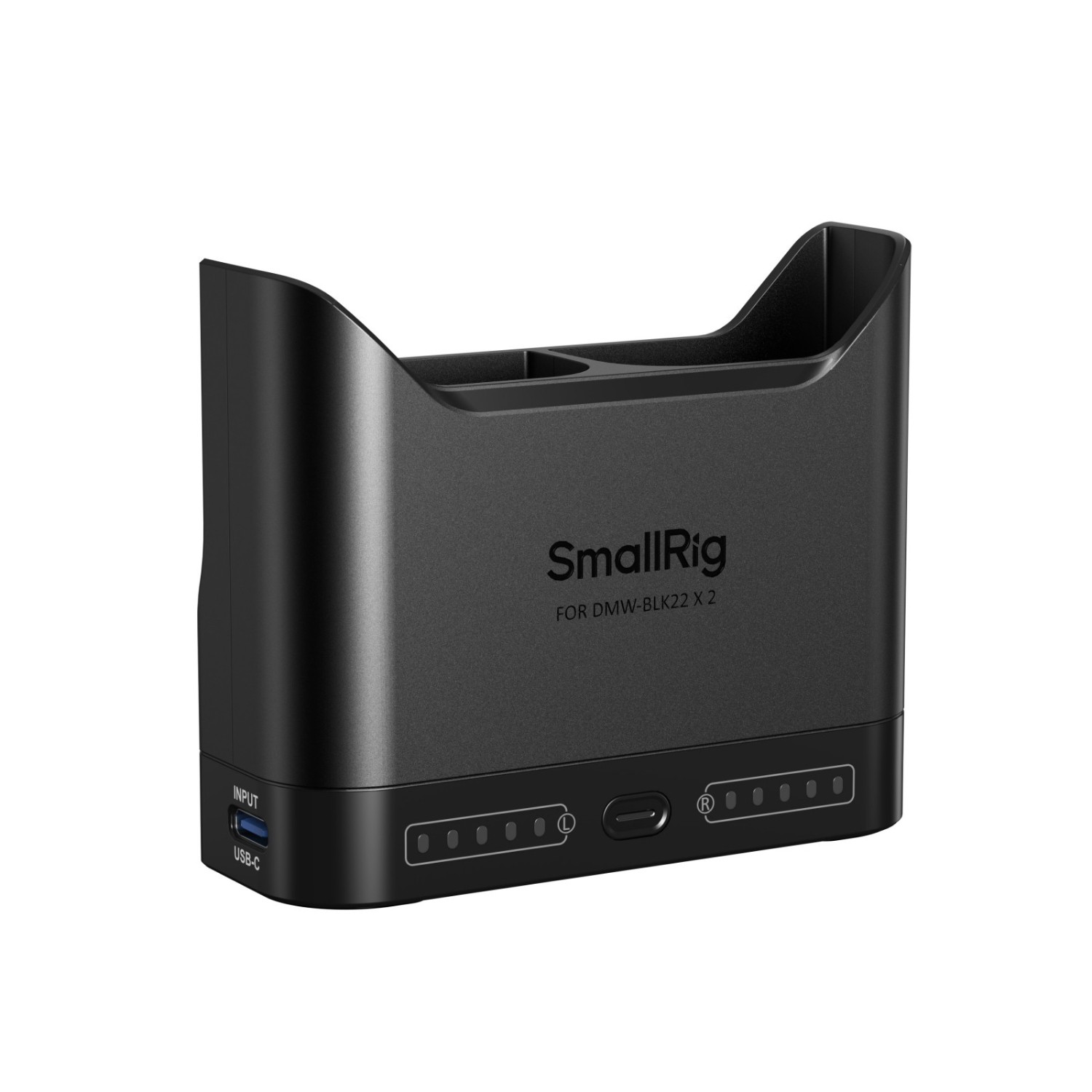

The dual-slot SmallRig 5492 charger for Panasonic DMW-BLK22 batteries handles both original and third-party cells, charging two of them in roughly two hours. It draws power over USB-C from a wall adapter, car charger or power bank and watches temperature and voltage.

More information

31 € with VAT 25.62 € without VAT
-+
Availability
Shipment day: 12. 11.
To be sent 1 pcs
Budapest 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

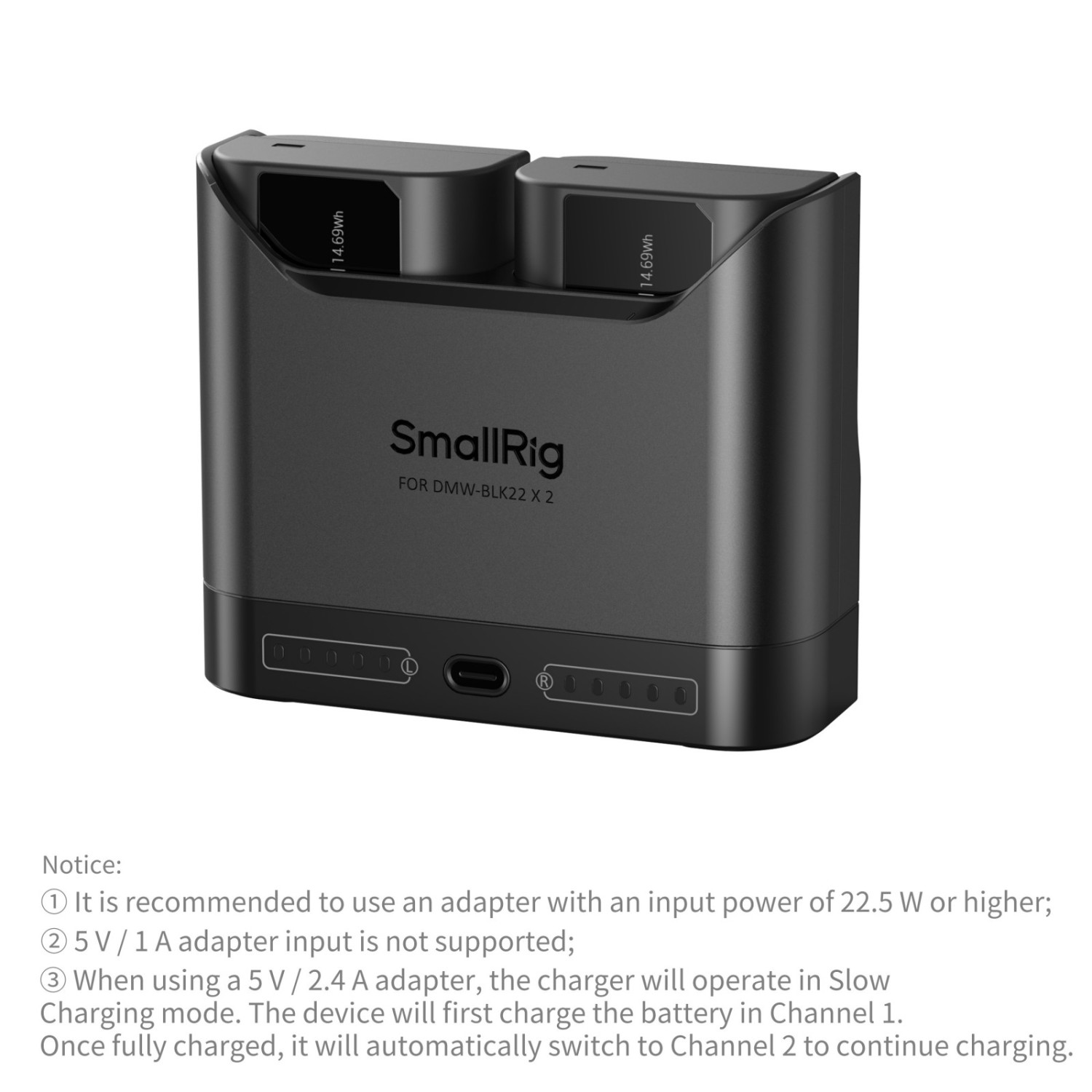

The dual-slot SmallRig 5492 charger for Panasonic DMW-BLK22 batteries handles both original and third-party cells, charging two of them in roughly two hours. It draws power over USB-C from a wall adapter, car charger or power bank and watches temperature and voltage.

Buttons & Indicator Lights
Buttons / Indicator Lights Function

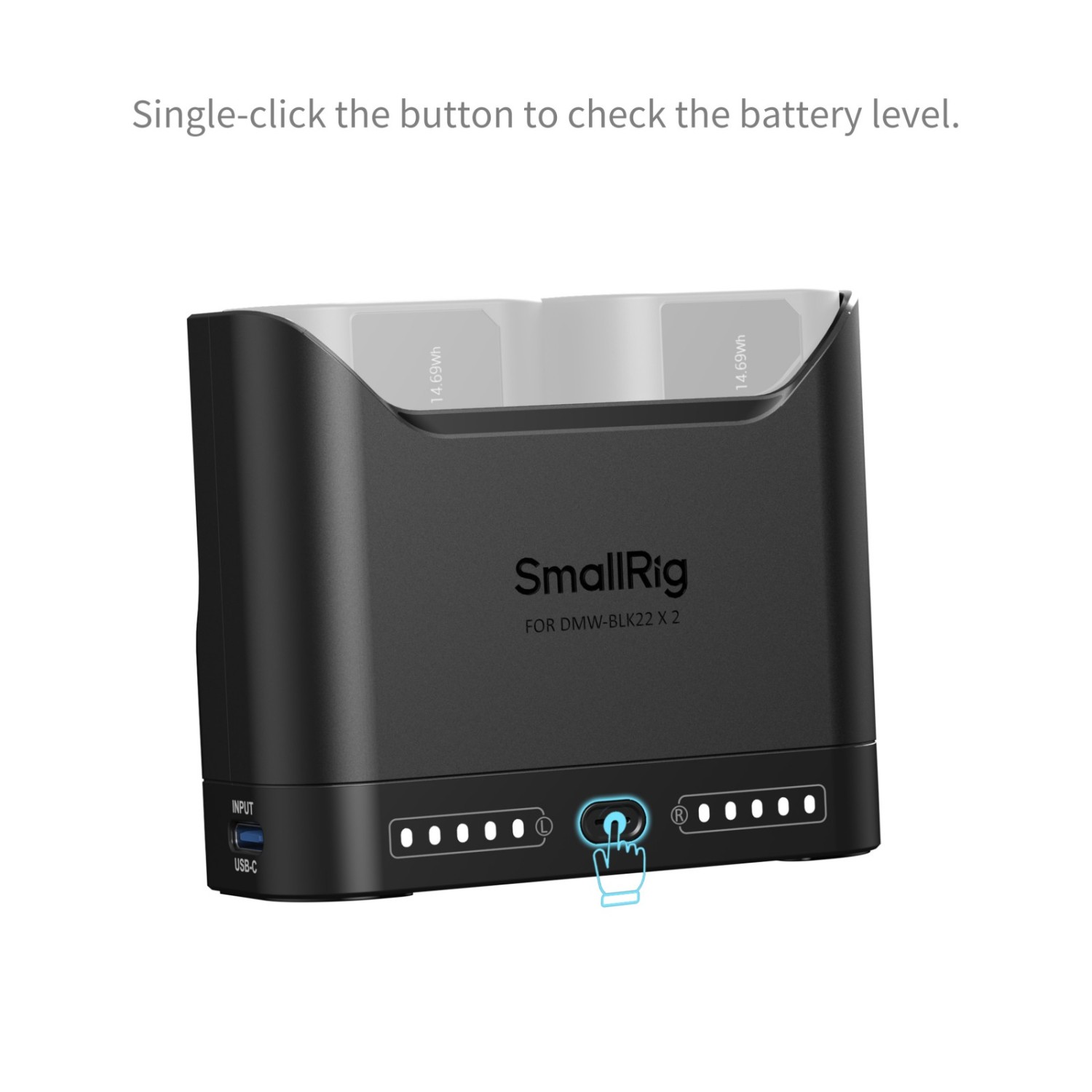

Power Display Button Press to check battery level
Battery Indicator Idle Mode (Battery level display when not charging)
0-10%: 1 red LED (steady)
10-20%: 1 white LED
20-40%: 2 white LEDs
40-60%: 3 white LEDs
60-80%: 4 white LEDs
80-100%: 5 white LEDs

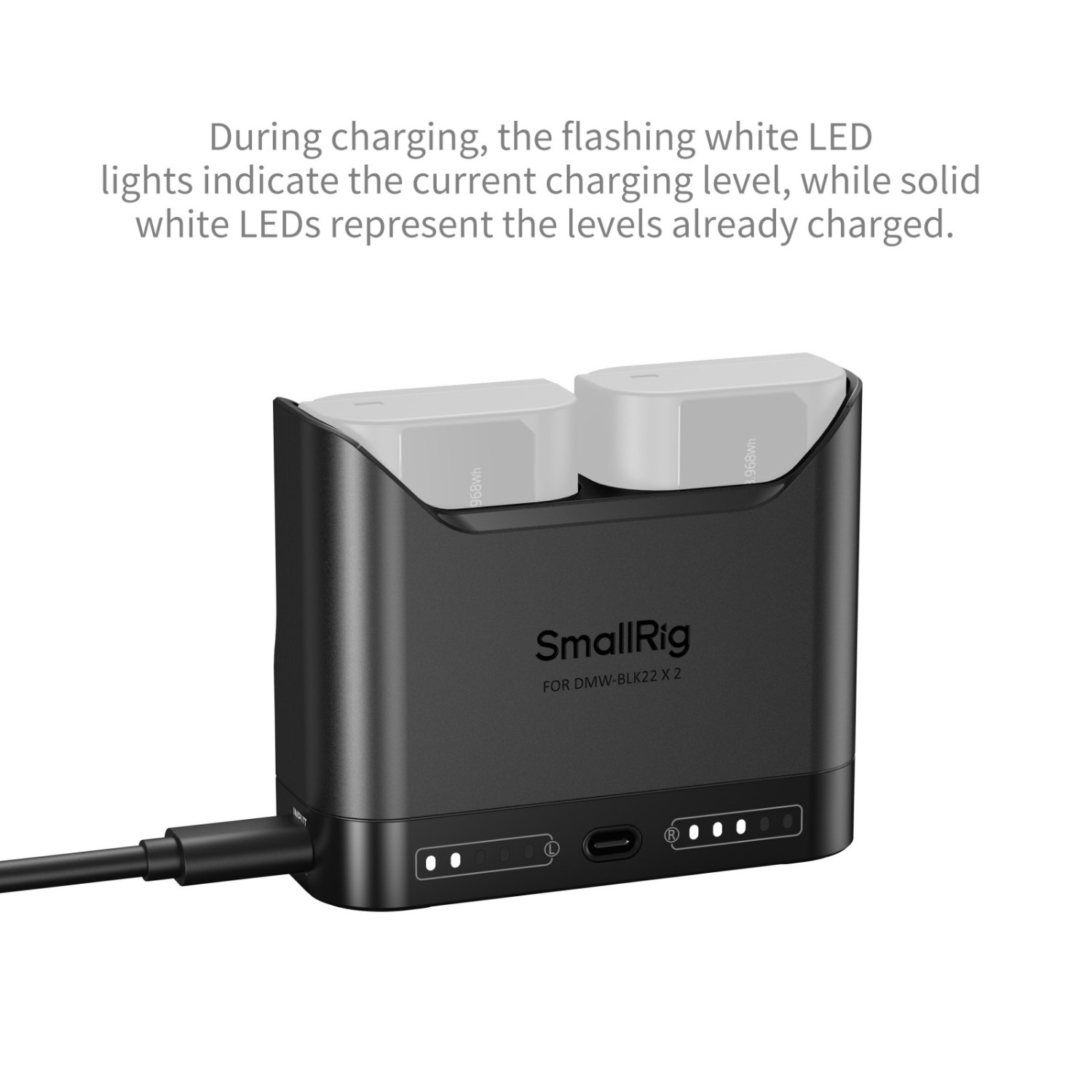

Charging Mode White LEDs flash to show current charge level; steady white LEDs indicate fully charged level
Error Mode First LED of both channels flash red and white alternately if overheated (auto-resumes when temperature returns to safe range)

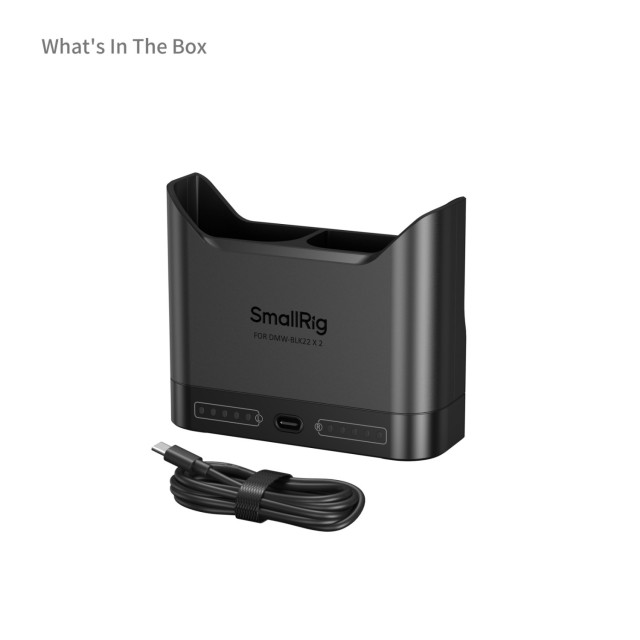

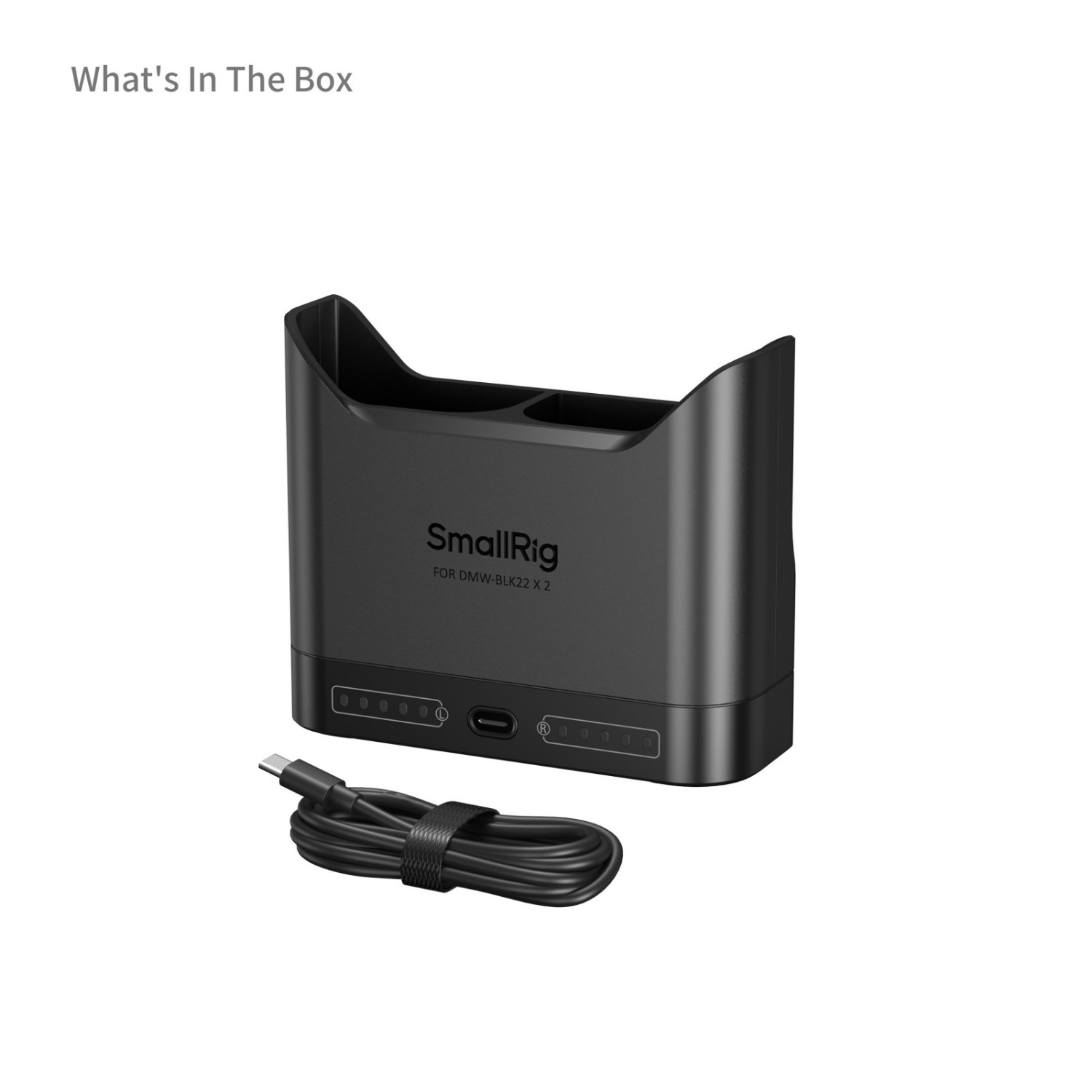

PACKAGE CONTENT

Camera Battery Charger x 1
60W USB-C to USB-C Cable (1m / 3.3ft) x 1

SPECIFICATIONS

Material(s) PC + ABS

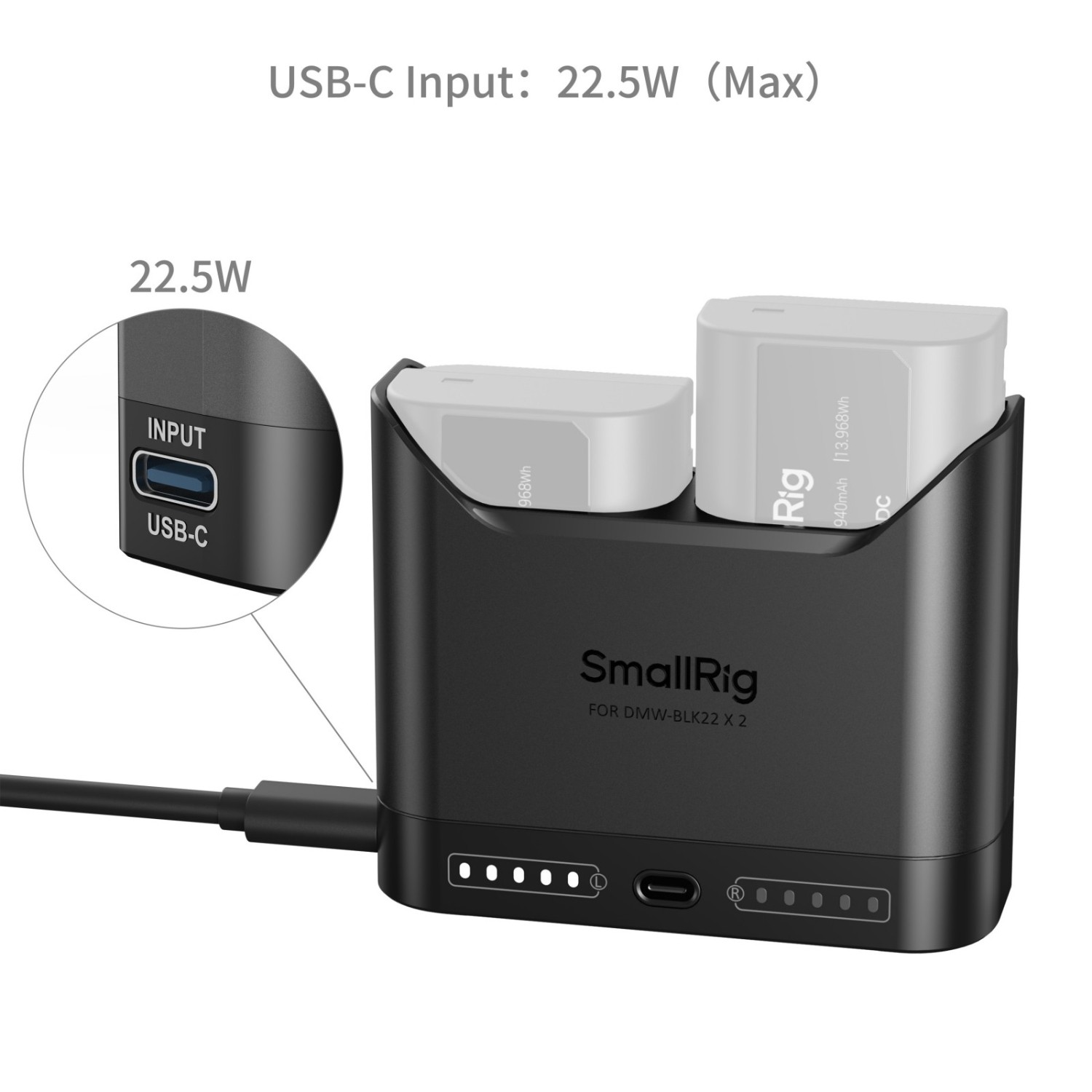

USB-C Input 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
USB-C Protocol PD3.0, QC2.0, QC3.0
Rated Output (Per Channel) 8.4V / 1A
Operating Temperature 0°C to 45°C / 32°F to 113°F

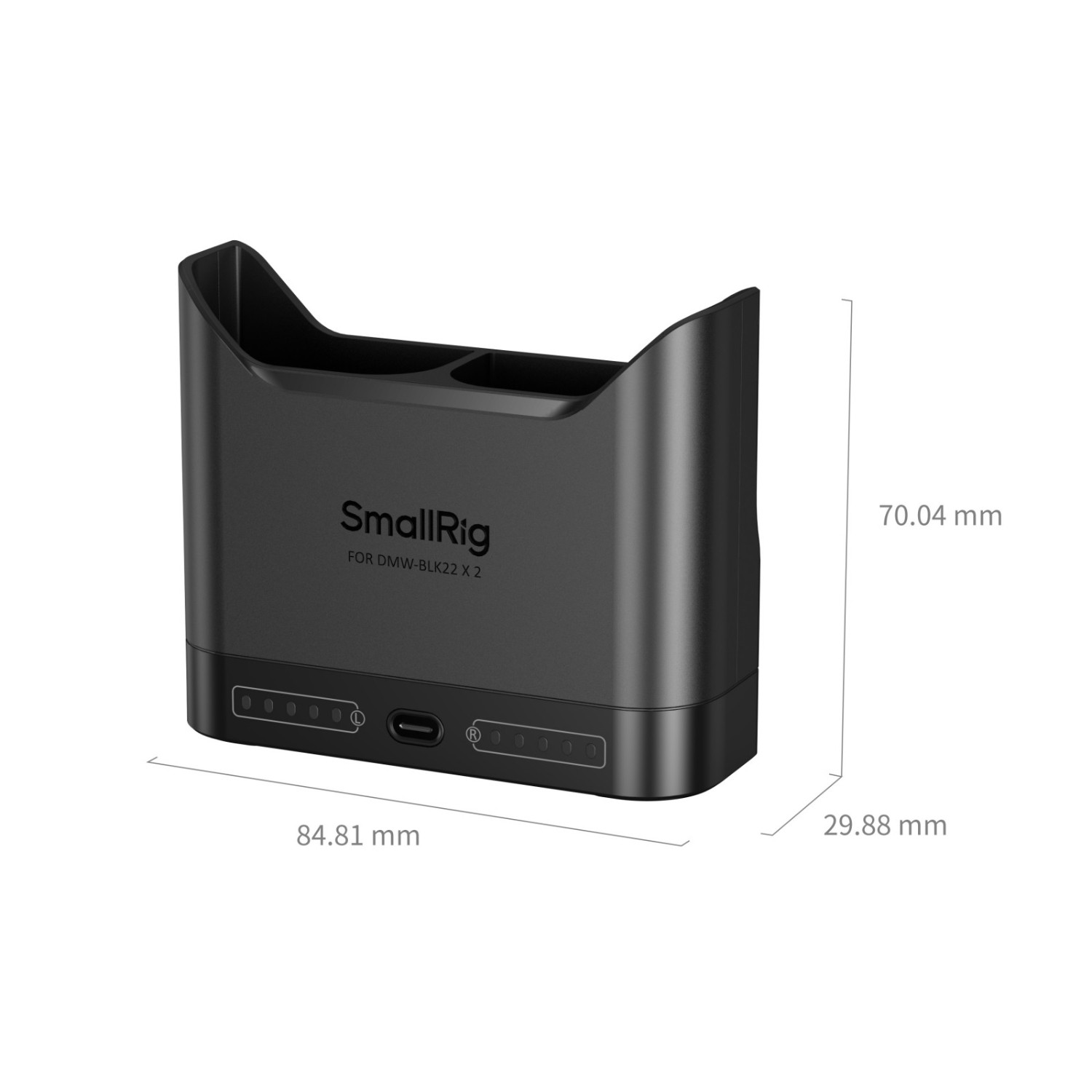

Product Dimensions: 84.8 x 70.0 x 29.9mm / 3.3 x 2.8 x 1.2in
Package Dimensions: 120.0 x 102.5 x 43.0mm / 4.7 x 4.0 x 1.7in
Product Weight:57g±5g / 2oz±0.2oz
Package Weight:133g±10g/ 4.7oz±0.4oz



Parameters

Parameters

Manufacturer: SmallRig
Category: 7.2V chargers

Other parameters

Charger battery typePanasonic BLK-22

GPSR

GAVIMOSA CONSULTORIA,
SOCIEDAD LIMITADA,
CASTELLANA 9144,
28046 Madrid, Jorge Wilson
