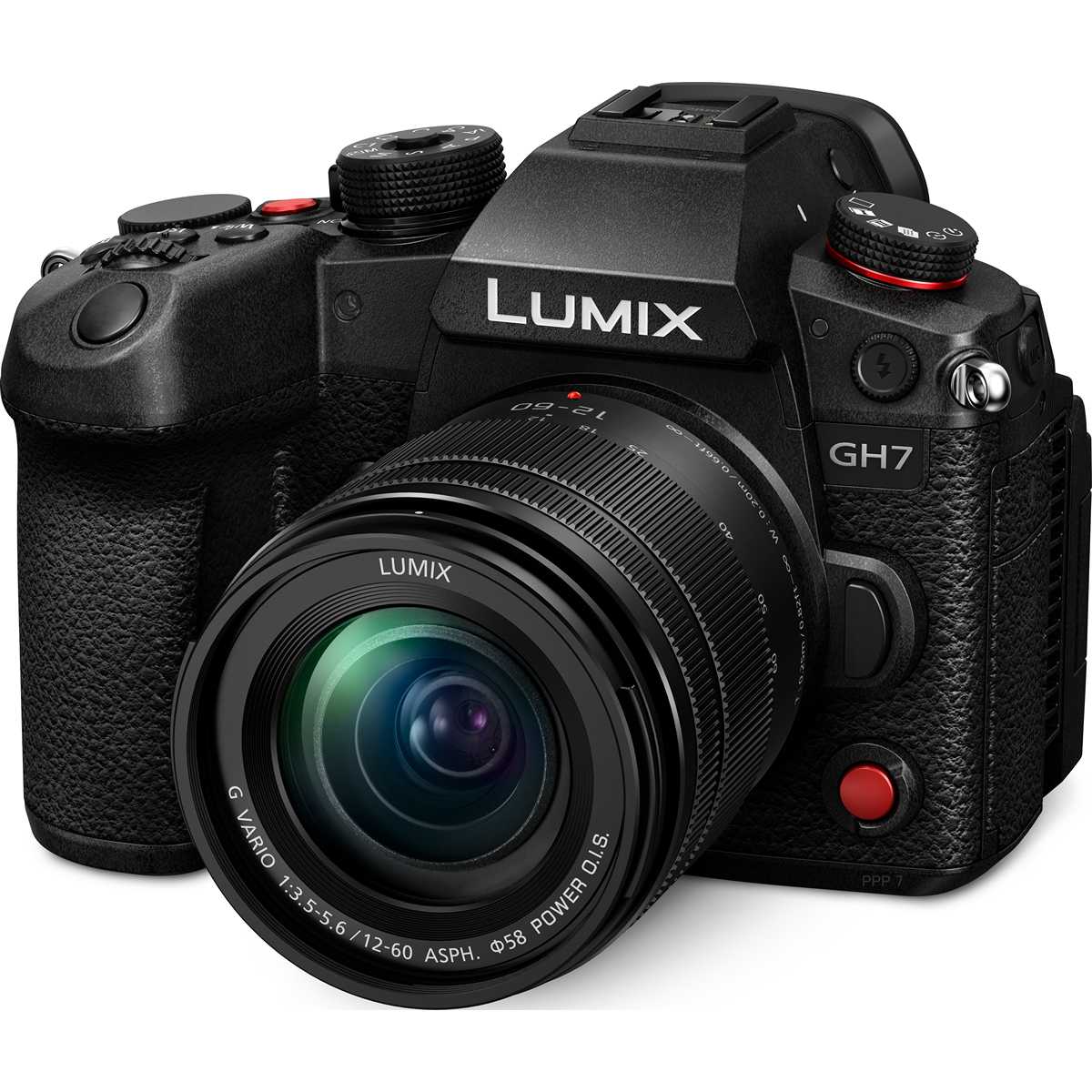

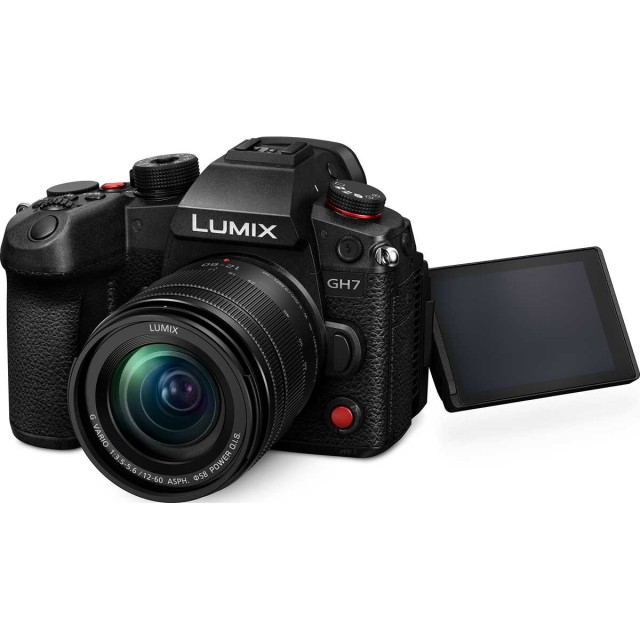

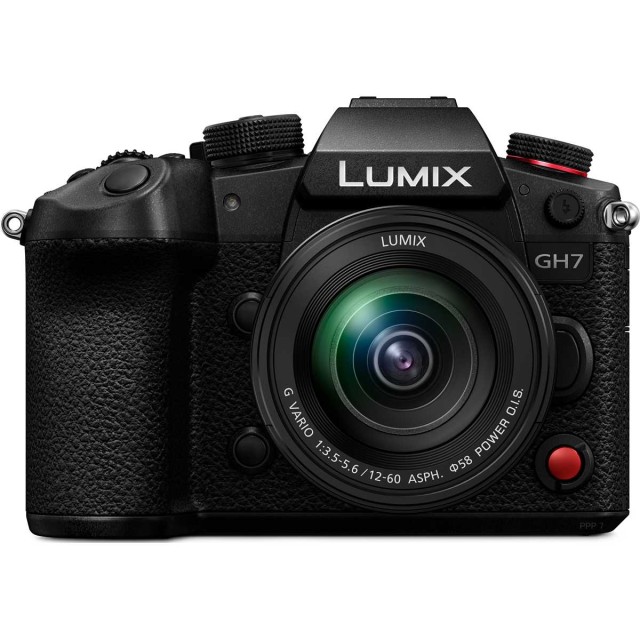

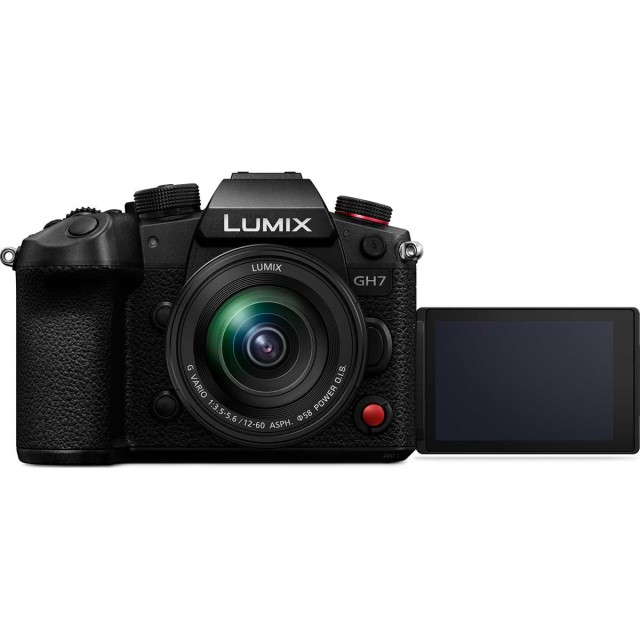

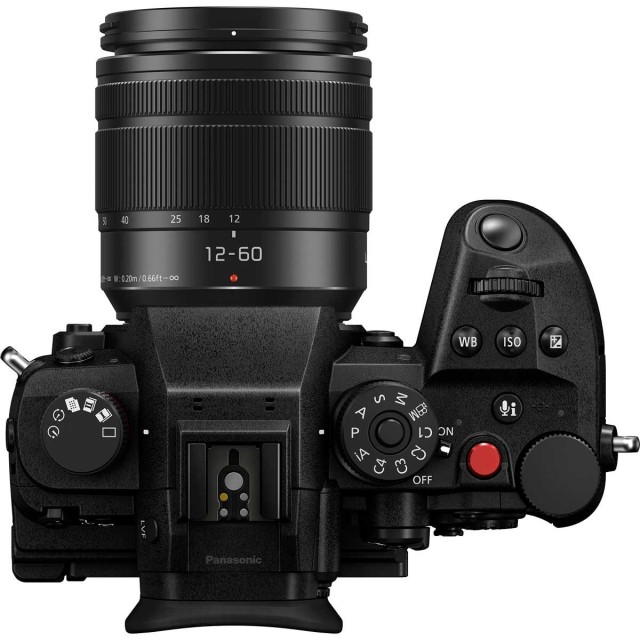

Panasonic LUMIX GH7M (GH7 + FS12060)

The LUMIX GH7, the flagship of the LUMIX G MFT range, impresses with a new 25.2MP BSI CMOS sensor with high-speed readout and 13+ EV dynamic range (V-Log/V-Gamut), advanced AF algorithms incl. PDAF with target detection mode (human/animal/car/motorcycle/train/airplane), internal recording up to 5.7K Apple ProRes RAW HQ, 10-bit Open Gate 5.8K mode, 32-bit FP audio support (with new optional DMW-XLR2 accessory), high-speed video modes HFR 240 fps and VFR 300 fps, active cooling for continuous recording, anamorphic modes (5.8K/30p or 4.4K/60pm 10-bit), 5-axis dual stabilization (up to 7.5 EV), proxy video recording, and Frame support.io. Also new is the optional DMW-SFU3A license key, which activates ARRI LogC3 colour mode on the GH7 or GH6. Power O.I.S. On sale from the second half of 7/2024.

• 25.2MP BSI CMOS sensor with 13+ EV dynamic range (V-Log/V-Gamut)
• PDAF with subject detection (human/animal/car/motorcycle/train/airplane)
• Internal 5.7K RAW video recording to Apple ProRes RAW HQ
• 32-bit dynamic range audio with floating point (optional DMW-XLR2 module)
• Proxy video recording and Adobe Frame.io connectivity
• Wireless/wireless IP streaming
• Recording modes 5.8K 10-bit Open Gate, C4K/4K 10-bit 120p,
• Frame rates up to HFR 240 fps, VFR 300 fps
• Anamorphic 10-bit 5.8K/30p or 4.4K/60p
• Active cooling for continuous recording time (can be deactivated)
• Extra high resolution 100 MP shooting mode (handheld)
• Batch shooting 75 fps (RAW, JPEG)
• Pre-burst mode continuously shoots 1.5s/110 frames before shutter release
• Optional DMW-SFU3A license key (ARRI LogC3, officially licensed by ARRI)

Specifications

• Sensor: BSI CMOS 17.3 x 13.0 mm approx. 25.2 MP
• Dynamic range: 13+ EV (V-Log, <60 fps), 12+ EV (V-Log, ≥61 fps)
• MOV video recording: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW
• MP4 video recording: H.264/MPEG-4 AVC, H.265/HEVC
• Video Resolution/Data Rate: up to 5.8K 5760x4320 29.97p 4:3 200 Mbps 4:2:0 10 bit LongGOP, 5.7K 5728x3024 59.94p 17:9 300 Mbps 4:2:0 10 bit LongGOP, 4.4K 4352x3264 4:3 59.94p 300 Mbps 4:2:0 10 bits LongGOP, C4K 4096x2160 119.88p, 300 Mbps 4:2:0 10 bits LongGOP, C4K 4096x2160 59.94p 800 Mbps 4:2:2 10 bits ALL-Intra, [...]
• CFexpress Type B, SD/SDHC/SDXC - UHS-I/UHS-II UHS Speed Class 3 SDHC/SDXC, UHS-II Video Speed Class 90 SDXC, optional external USB drive
• Audio: up to 4 channels, LPCM up to 32 bit FP/96 kHz (24 bit/48 kHz without DMW-XLR2 or ext. microphone)
• HDMI RAW data output: Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR, Atomos Ninja V / Ninja V+ / Ninja / Ninja Ultra / Shogun / Shogun Ultra / Shogun Connect
• Streaming: RTMP/RTMS, Wi-Fi 2.4/5G, LAN, USB tethering
• Viewfinder: Live OLED 3.68 MP
• Rear monitor: 3" TFT LCD 1.84 MP
• Focus: MF, AF: PDAF, Contrast AF, DFD
• ISO (photo): Auto / 50 (Extended ISO) / 100-25600, V-Log Auto / 125 (Extended ISO) / 500-12800
• ISO (video <60 fps): (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800, V-Log (Base ISO 500): Auto / 125-400 (Extended ISO) / 500-12800, HLG (Base ISO 250): Auto / 250-12800
• ISO (video ≥61 fps): (Base ISO 100): Auto / 50 (Extended ISO) / 100-3200 / 4000-12800 (Extended ISO), V-Log (Base ISO 250): Auto / 125-200 (Extended ISO) / 250-3200 / 4000-12800 (Extended ISO), HLG (Base ISO 250): Auto / 250-3200 / 4000-12800 (Extended ISO)
• Image Stabilization: B.I.S. (5-axis / up to 7.5 EV), Dual I.S. 2 (up to 7.5 EV)
• LUT: LUT View Assist Monitor / HDMI, HLG View Assist Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
• Anamorphic expansion for preview: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x
• Interfaces: USB-C (10 Gbps), HDMI Type A, 2.5mm for remote control, 3.5mm for external mic/audio interface, XLR microphone (requires DMW-XLR2), 3.5mm headphone output
• Time code support: HDMI, BNC (via included reducer)
• Power: BLK22 battery (7.2V, 2200 mAh, 16 Wh, included) up to 100 minutes of recording depending on codec and accessories used, USB charging, USB PD
