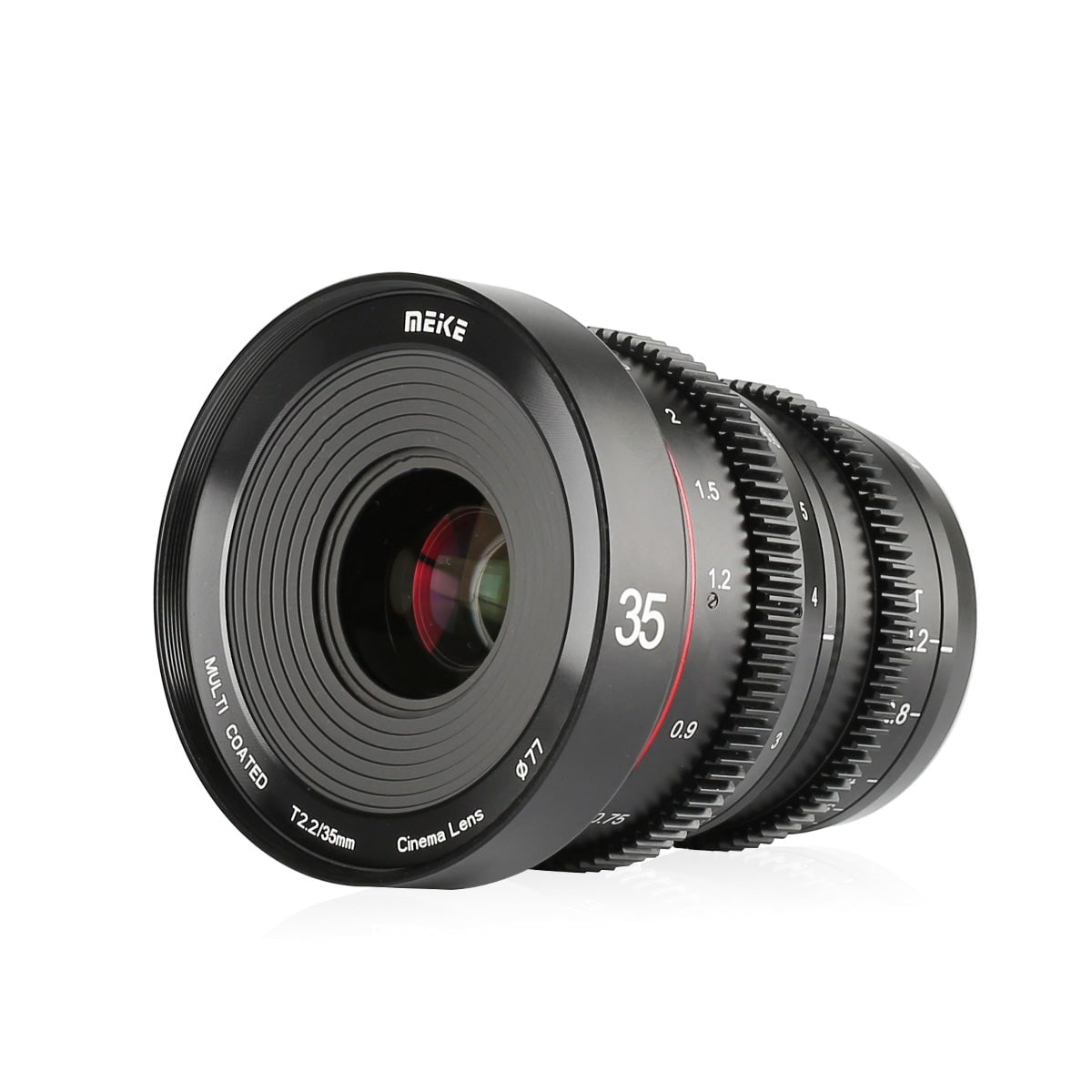

MK-35MM T2.2 M43

A fully manual, wide-angle film lens with a high aperture of T2.2 and a 35mm focal length. The lens delivers sharp images with minimal colour defects and smooth image rendition beyond depth of field, suppressed "breathing" effect and long focus ring travel (270°) with M0.8 gearing and precision marks (accuracy approx. 10"; gearing also on aperture ring). For MFT bayonet.

• Design: fully manual, metal body, fixed focus
• Focal length: 35 mm
• F-stop: T2,2
• Construction: 10 elements in 8 groups
• Angle of view: 37° diag., 30° horiz., 22° vert.
• Min. focusing distance: 42 cm
• Filter diameter: 77 mm
• Focusing ring range: 270° (M0.8 toothing)
• Outer diameter: 80 mm
• Weight: 660 g
• Compatibility: MFT models Blackmagic Pocket Cinema Camera, Olympus E-P1, E-PL1, E-P2, E-PL2, E-P3, E-PL3, E-PL5, E-PM1, E-PM2, OM-D, E-M5, E-M1, OMD-EM10, Panasonic LUMIX G9, G1, G2, G3, G5, GF1, GF2, GF3, GF5, GF6, GF7, GH1, GH2, GH3, GH5, G6, GX1, GX7, GX8, GH4, GM1, GM5, -D, E-M5, E-P5, OM-D, E-M1, OMD-EM10, and other MFT models..

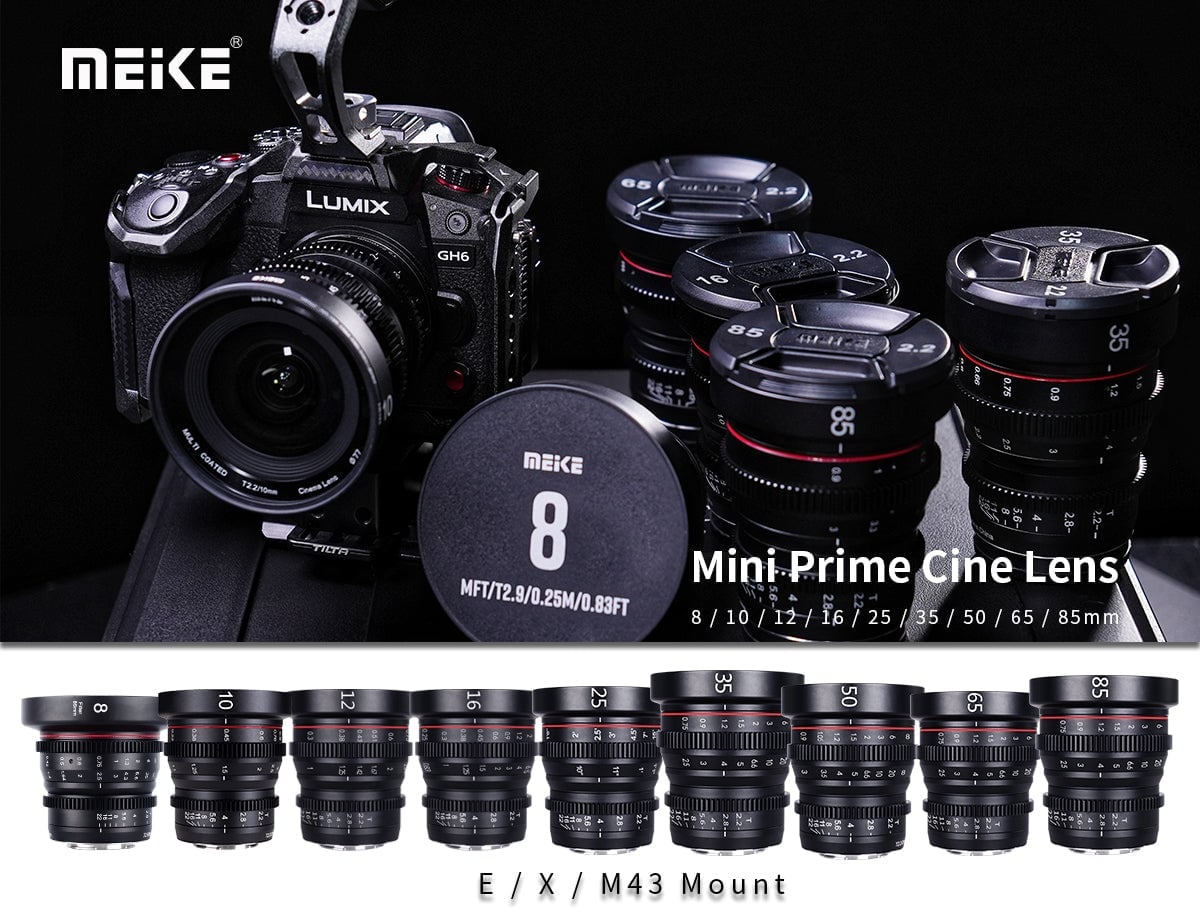

Meike 35 mm T2.2 Mini Prime Cine at a glance

The Meike 35 mm T2.2 Mini Prime Cine is a manual-focus 35 mm prime for APS-C mirrorless cameras. Its T2.2 aperture leaves room to work in poor light and to separate the subject from the background.

Optics and rendering

The optical design uses 12 elements in 9 groups, with a 11-blade diaphragm that keeps out-of-focus highlights round. The aperture runs from T2.2 to T22.

Handling and build

Focus and aperture are set by hand; the lens has no electronic contacts, so the camera must be set to release without a lens. The filter thread is 77 mm.
