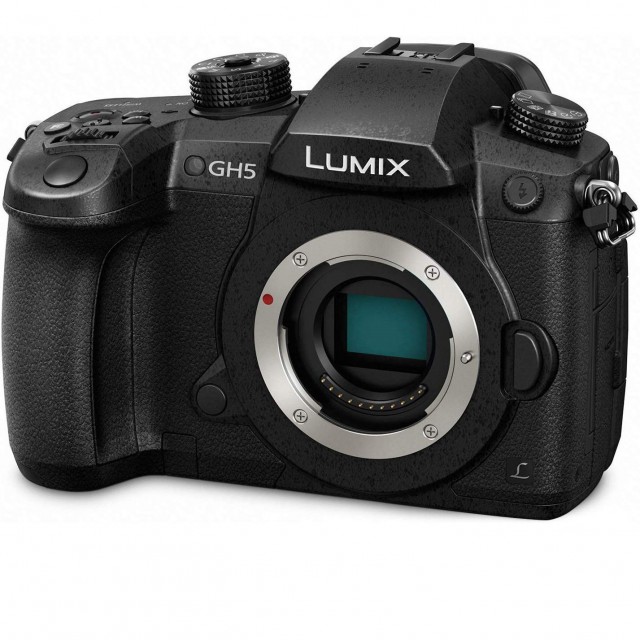

LUMIX GH5 is the flagship model of LUMIX G DSLM range of cameras based on the Micro Four Thirds system standard. The new camera delivers a high-end, hybrid performance to photo enthusiasts…
LUMIX GH5 is the flagship model of LUMIX G DSLM range of cameras based on the Micro Four Thirds system standard. The new camera delivers a high-end, hybrid performance to photo enthusiasts and professional videographers looking to capture moments in 4K 60p/50p video and 6K PHOTO. Packing a host of innovative advancements in picture quality, response and performance into an unimaginably small-sized body, the new LUMIX GH5 opens the door to a new stage of photographic and cinematographic culture. Available late March 2017.
Unprecedented Picture Quality
The LUMIX GH5 is able to achieve high-quality images with real-life details through excellent resolution, image rendering and color reproduction. Its new Digital LIVE MOS Sensor increases the pixel count by 25% compared to the GH4, from 16.05 to 20.3 megapixels, while also removing the low-pass filter. The camera also comes with a new image processor Venus Engine, which achieves improvement especially in natural texture expression. The engine's Multi-pixel Luminance Generation renders clear, sharp images by referring to a 9x larger area of pixel information during the de-mosaic process for precise detail reproduction. With Intelligent Detail Processing, the characteristic of every single pixel is analyzed to detect whether the pixel is located at a flat, detail or edge part of the picture. Optimum processing according to the characteristic of each pixel is then applied. This results in high-precision yet natural images with stunning detail suppressing false colors at its edges.
Rich Colors, Low Noise
Three Dimensional Color Control detects not only hue and saturation, but also brightness, and applies optimum control according to the value of each factor. This achieves rich color reproduction from shadows to highlights of the image. The conventional Multi Process NR (Noise Reduction) is upgraded to High Precision Multi Process NR. It boasts 4x the noise identification accuracy compared to the previous engine and preserves details even after the noise reduction process. As a result, photos can be clearly shot even at high sensitivity ISO values of up to 25,600.
5-axis Dual I.S.
The LUMIX GH5 also incorporates the 5-axis Dual I.S. (Image Stabilizer) 2, which suppresses blurring in more powerful and advanced ways for both photo and video recording, including 4K video. Combining an O.I.S. (Optical Image Stabilizer, 2-axis) and B.I.S. (Body Image Stabilizer, 5-axis), it compensates for larger movements which were conventionally uncontrollable. The LUMIX GH5’s high-precision gyro sensor controls both the O.I.S. and B.I.S. compensation by studying the focal length and shooting conditions, making it possible to use a max. 5-stop slower shutter speed. This is highly beneficial not only for wide-angle and telephoto shots, but also in adverse situations, such as at night-time or when shooting with one hand.
The LUMIX GH Series created an epoch-making industry sensation by achieving outstanding video recording performance with advanced features that meet the needs of professional quality levels and standards. With the LUMIX GH5, the signal readout speed has been accelerated by max 1.7x in the new Digital Live MOS Sensor, and the new Venus Engine processes signals at max 1.3x higher speed. This synergy realizes 4K 60p/50p ultra high-definition, smooth, video recording for the first time in a DSLM camera. It is also capable of internal 4:2:2 / 10-bit video recording, which is the color sub-sampling commonly used for film production, for even more faithful color reproduction (when recording 4K60p/50p video on SD card, the video data are 4:2:0, 8-bit, HDMI video output is still 10-bit 4:2:2). The LUMIX GH5 is capable of real-time 10-bit 4:2:2 image output via HDMI to an external monitor or recorder.
The high-sensitivity MOS Sensor and Venus Engine effectively suppress rolling shutter distortion and realize high-speed readout of full digital signals. This ensures an outstandingly high image quality for every single frame. In addition, the focal length in video recording is kept the same as that in photo shooting (no cropping). Users can freely choose between MOV, MP4, AVCHD Progressive and AVCHD formats at a variety of frame rates, and there is no recording time limit for both FHD and 4K video. Professional users working globally can set the system frequency to 59.94Hz, 50.00Hz or 24.00Hz. The VFR (Variable Frame Rate) functionality enables to shoot at 180 fps in Full HD for up to 7.5 slow motion videos in 24p playback.
While 'Cinelike D' and 'Cinelike V', which have similar gamma setting characteristics for film production, are available in Photo Style for video recording, the LUMIX GH5 also provides 'Like 709' for compatibility with HDTV. A paid software upgrade to support V-LogL video recording is also available.
Time Code Support
In response to requests from professional users, the LUMIX GH5 comes with a Waveform Monitor and Vector Scope. It also embeds SMPTE-compliant Time Code either in Rec Run or Free Run count-up methods, which makes it easy to synchronize multiple video footage or sound sources in the post production workflow. Luminance levels can be selected between 64-1023 / 64-940 / 0-1023 (10-bit). Synchro Scan mode suppresses flicker and Color Bars (SMPTE / EBU / ARIB Standard) are also available.
New AF System with Advanced DFD Technology
The LUMIX GH5 comes with a newly improved Depth from Defocus and Contrast AF technology (requires a Panasonic Micro Four Thirds lens), which not only calculates the distance to the subject by evaluating two images with different sharpness levels, but also analyzes the form, size and even motion of the subject comprehensively. Thanks to the new Venus Engine, the time for measuring the distance to the subject is 6x faster, while factoring the distance into in-plane or in-depth is 2x faster.
The speed of sensor drive during auto focusing in photo shooting mode has been increased to 480 fps, which is 2x faster than that of the GH4. Consequently, the LUMIX GH5 realizes ultra-high-speed AF of approximately 0.05 sec and 12 (AFS) / 9 (AFC) fps high-speed burst shooting using a mechanical shutter in full resolution. By analyzing every single frame precisely, it achieves a maximum 200% higher precision frame detection with minimum motion detection error for higher tracking tolerance against moving subjects. For even more precise focusing, the number of focus areas has been increased from 49 to 225. Users can create a group of focus areas depending on the composition and can control it easily with a new joystick located on the thumb position, without taking their eyes off the subject. This is possible even when using the LVF or releasing the finger off the shutter button. The advanced Focus Transition functionality automatically shifts focus point at a constant speed for precise in-focus to out-focus point (foreground to background, for example), giving an impressive 'rack focus' motion picture effects.
If focus is not exactly as the user intended when the shutter is pressed, the LUMIX GH5's Post Focus function (activated manually in the camera menu) enables users to select the specific focus point even after shooting – particularly helpful in situations like macro shooting where severe focusing is required. In addition, the camera also features a Focus Stacking function. Taking a single macro photo with specific areas in focus can sometimes be difficult, Focus Stacking enables users to take multiple images of the same frame with different focus points. Users can then combine them into one image with the defocus as they like.
The LUMIX GH5's new 6K PHOTO function makes it possible to capture unmissable moments at 30 fps by extracting the frame with the best timing out of the 6K burst file (in 3:2 or 4:3 aspect) to save as an approximately 18-megapixel equivalent high resolution photo (approx. 6000 x 3000 effective pixel count). 4K PHOTO has also been upgraded enabling 60 fps high speed capture in approximately 8-megapixel equivalent resolution. In 6K/4K PHOTO, three exclusive modes are available to choose from depending on the situation; 6K/4K Burst, 6K/4K Burst (Start/Stop) and 6K/4K Pre-burst.
By compensating the signal information between the frames, the Venus Engine makes it possible to apply Post Recording Refinement over the pictures to correct distortion and reduce noise when playing back or cutting images out of the 6K/4K burst file. As a result, the picture quality of 6K/4K PHOTO shot at high shutter speed in high sensitivity or those shot in panning are dramatically improved.
To be tough enough to withstand even heavy field use, the LUMIX GH5's main structure is composed of a magnesium alloy, full die-cast front/rear frame. Secure construction and the sealing of every joint, dial, and button makes the camera not only splash/dust-proof, but also freeze-proof down to -10 degrees Celsius. The LUMIX GH5 is equipped with a double SD Memory Card slot compatible with high-speed, high capacity UHS-II for the first time in the LUMIX digital cameras. Users can flexibly choose the recording method either in Relay Rec, Backup Rec or Allocation Rec.
The LUMIX GH5 has a large LVF (Live View Finder) with a stunningly high magnification ratio of approximately 1.52x / 0.76x (35mm camera equivalent). The high-precision, high-speed OLED display features 3,680K-dot high resolution and 100% field of view. Adopting a static-type touch control system, the 3.2-inch free-angle rear screen in 3:2 aspect with 1,620K-dot high resolution achieves approximately 100% field of view. Finally, the shutter unit is durable for approximately 200,000 releases.
Large OLED LVF
The high-resolution 3,680k-dot OLED Live View Finder matches up to exactly how you intend to see the image even under direct sunlight. A high 0.76x magnification (35mm equiv.) makes it easy to see image detail, your settings and icons, and, the long eye point distance of 21 mm is excellent for people who wear glasses.
Expandability & Optional Accessories
The LUMIX GH5 integrates Bluetooth 4.2 and Wi-Fi 5GHz (IEEE 802.11ac) connectivity to offer a more flexible shooting experience and instant image sharing with easy operation. The camera is also compatible with the new Battery Grip DMW-BGGH5. By using two batteries, one in the camera and the other in the grip, the DMW-BGGH5 extends the battery life for longer time shooting. The optionally available microphone adaptor DMW-XLR1 is a plug-in type adaptor for XLR microphone to record high quality stereo sound.
Future firmware updates will add Full HD 4:2:2 10-bit video recording capability (scheduled for April 2017); 400Mbps 4:2:2 10-bit All-Intra video recording in 4K 30p/25p/24p; Full HD, high resolution video recording in Anamorphic mode; and Hybrid Log Gamma in Photo Style mode which enables popular 4K HDR video recording and USB tethering (all scheduled for second half of 2017).
