SWIT VOLTA-DC1600 Battery

The SWIT VOLTA-DC1600 Modular Floor Battery is a high-capacity 1600Wh professional power solution designed for demanding video production environments. Featuring regulated multi-voltage DC outputs, expandable modular design, and continuous high-load performance, it delivers reliable, uninterrupted power for cameras, lighting, and on-set equipment.

The SWIT VOLTA-DC1600 Modular Floor Battery is a next-generation power system engineered to meet the rigorous demands of professional cinematography and broadcast production. Built with 1600Wh ternary lithium-ion battery cells, the VOLTA-DC1600 combines compact form factor with massive output capability, making it an ideal on-set power source for cameras, LED lighting, monitors, and accessories.

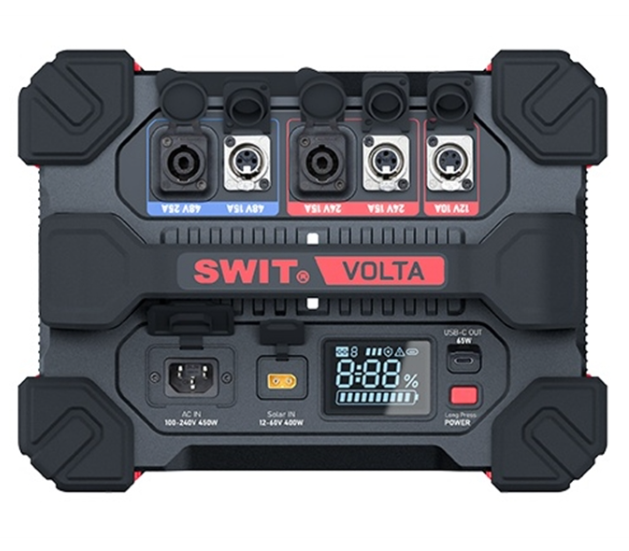

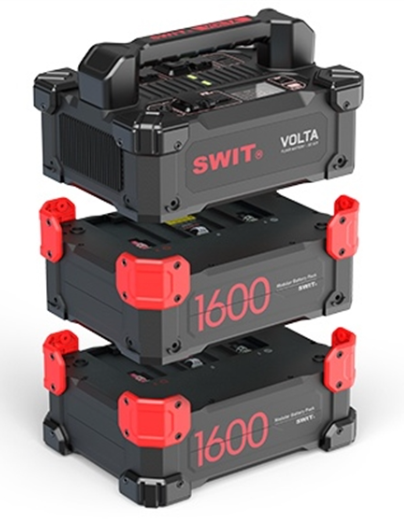

Designed with a modular architecture, the VOLTA-DC1600 supports add-on battery units to expand total capacity up to 12.8kWh with a maximum of eight units, offering scalable power for extended shooting days. It delivers multiple regulated DC outputs, including 48V, 24V, and 12V, along with a 65W USB-C port, all of which can be used simultaneously for maximum flexibility.

The system supports a 1700W constant total load, ensuring stable power delivery even under heavy demand. Built-in AC fast charging (450W) and solar charging via XT60 (up to 400W) allow versatile recharging options, while discharging during charging enables uninterrupted operation. An integrated LCD display provides real-time monitoring of remaining runtime and battery health.

With low-temperature power-up down to -20°C, ultra-low standby power consumption, and a heavy-duty housing with rubber protection, the VOLTA-DC1600 is built for reliability in harsh production environments.

Key Features

• 1600Wh ternary Li-ion battery capacity

• Modular add-on design, expandable up to 12.8kWh (8 units)

• 2× DC 48V regulated outputs (1200W)

• 2× DC 24V regulated outputs (360W)

• 1× DC 12V regulated output (120W)

• 1× USB-C 65W power output

• All outputs usable simultaneously

• 1700W constant high-load output

• Built-in AC 100–240V, 450W fast charging

• Solar charging via XT60, 12–60V up to 400W

• Supports discharging while charging

• LCD display for remaining time and battery life

• -20°C power-up capability and low-temperature resistance

• Ultra-low standby power consumption

• Heavy-duty housing with rubber covers for protection
