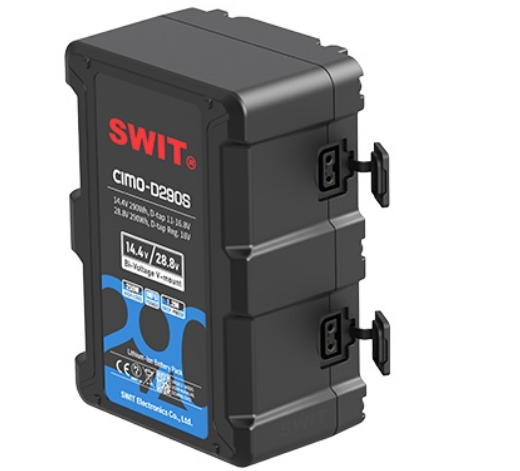

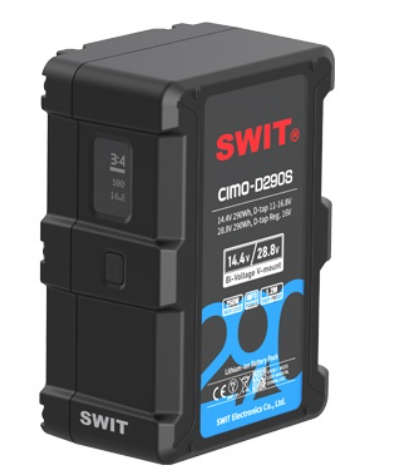

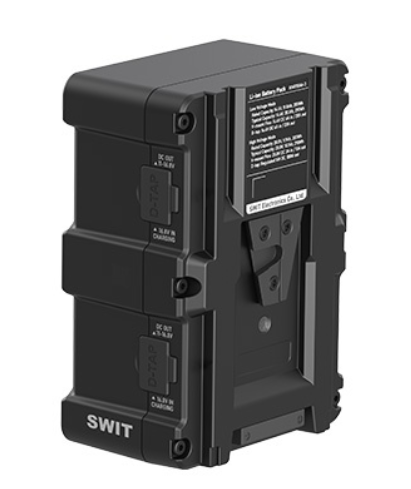

SWIT CIMO-D290S Bi-voltage V-mount battery

The SWIT CIMO-D290S is a professional 290Wh Bi-voltage V-mount battery with OLED display, supporting both 14.4V and 28.8V outputs for high-power cinema cameras and lighting, with fast charging, dual D-tap outputs, and multiple circuit protections.

The SWIT CIMO-D290S is a high-performance Cine V-mount battery engineered for professional film productions. Featuring a bi-voltage system, it automatically switches between 14.4V and 28.8V via a magnetic sticker, allowing safe use with devices ranging from standard V-mount cameras to high-power cinema cameras like RED V-Raptor XL, ARRI ALEXA LF/65, and BMD URSA CINE. With a 290Wh ternary lithium cell pack, the CIMO-D290S delivers 250W constant load and 335W peak, even in extreme cold down to -20°C, while the OLED display provides real-time information on battery status, output voltage, remaining runtime, and warnings.

It includes 2× D-tap outputs for additional power supply to accessories, supports 100W fast charging for rapid turnaround, and is compatible with any standard V-mount charger. The battery’s robust construction can withstand drops from 1.2m, ensuring reliability on set. Multiple circuit protections safeguard devices from overcurrent, overvoltage, and short circuits, making the CIMO-D290S a versatile, safe, and high-capacity solution for professional cinema production.

Key Features:

• Cine-style V-mount battery with bi-voltage 14.4V / 28.8V auto-switch

• Magnetic sticker system for safe voltage switching

• 290Wh large capacity (24 ternary lithium cells)

• 250W constant / 335W peak high load output

• OLED display: voltage, remaining runtime, warning alerts

• 2× D-tap outputs, 11–16.8V @150W (14.4V mode), 16V @100W (28.8V mode)

• Rear LED torch for low-light environments

• Fast charging: 100W, 0–80% in 2.5h, full charge in 3.8h

• Robust housing, drop-resistant to 1.2m

• Safe operation in -20°C cold

• Multiple circuit protections (BMS)
