SWIT PC-U130B | D-Tap Ultra Portable charger

The SWIT PC-U130B is an ultra-portable single-channel D-Tap charger delivering 14–16.8V at 3A fast charging output. Designed for batteries with D-Tap connectors, it features a compact design, LED charging indicator, and universal AC input for travel and field production use.

The SWIT PC-U130B is a compact and lightweight single-channel charger designed to charge professional batteries via their D-Tap connector. Ideal for filmmakers, broadcasters, and mobile production crews, this ultra-portable charger provides reliable fast charging with a 3A output current.

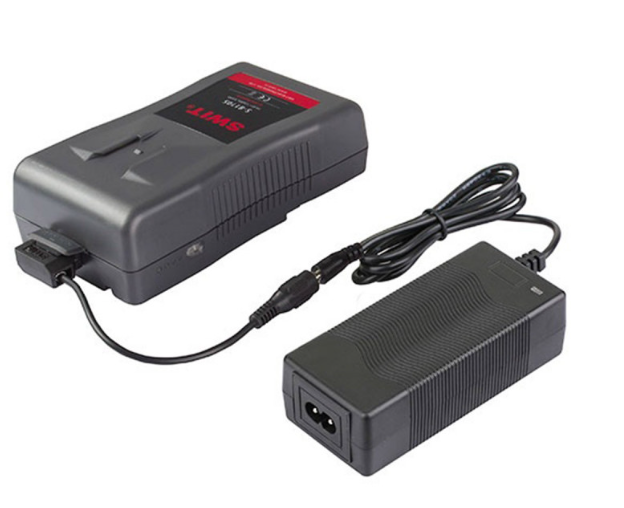

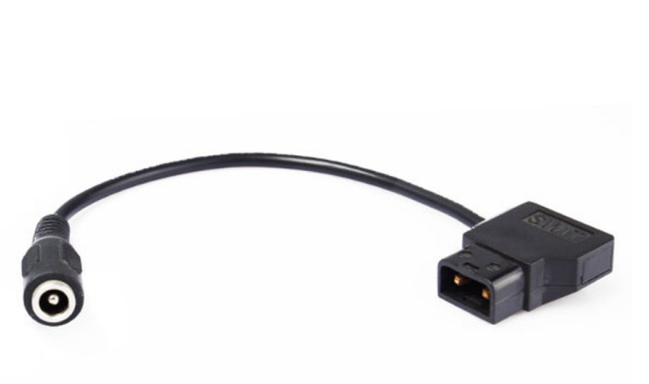

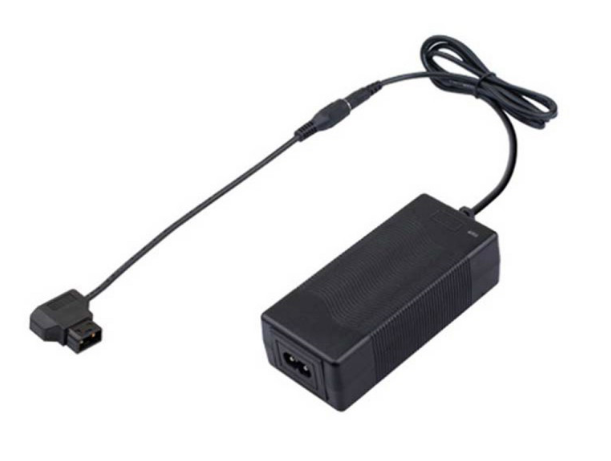

The unit consists of an AC-DC power supply module and a DC D-Tap charging cable, delivering a DC output of 14–16.8V at 3A (50.4W). It supports worldwide AC input (100V–240V, 50/60Hz), making it perfect for international travel and on-location shoots.

An integrated LED indicator clearly displays charging status, while the compact form factor (110 × 50 × 32 mm) and lightweight design (0.26 kg) make it easy to carry in any production bag. The PC-U130B is compatible with any battery equipped with a D-Tap charging input, offering a convenient and efficient charging solution without the need for bulky multi-bay chargers.

Key Features

• Single-channel D-Tap battery charger

• 3A fast charging current

• DC output: 14–16.8V

• 50.4W power output

• Universal AC input (100–240V, 50/60Hz)

• LED charging status indicator

• Ultra-compact and travel-friendly design
