SWIT PB-M98S*2+Free KA-M20S KIT | PB-M98S*2+Free KA-M20S KIT

The SWIT PB-M98S ×2 + FREE KA-M20S KIT combines two compact 98Wh V-mount batteries with the KA-M20S dual battery extension plate, delivering flexible hot-swap or high-load power for professional cameras and accessories. With dual D-Tap outputs, USB charging, smart LED indicators, and up to 300W high-load support, this kit is ideal for cinema, broadcast, and mobile production setups.

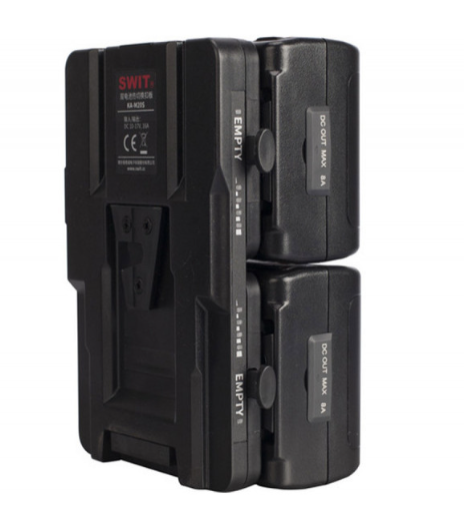

The SWIT PB-M98S ×2 + KA-M20S KIT is a versatile and portable power solution designed for professional video production. The kit includes two PB-M98S 98Wh pocket V-mount batteries and the KA-M20S extension plate, allowing you to combine both batteries into a single high-capacity power system equivalent in size to a standard large V-mount battery.

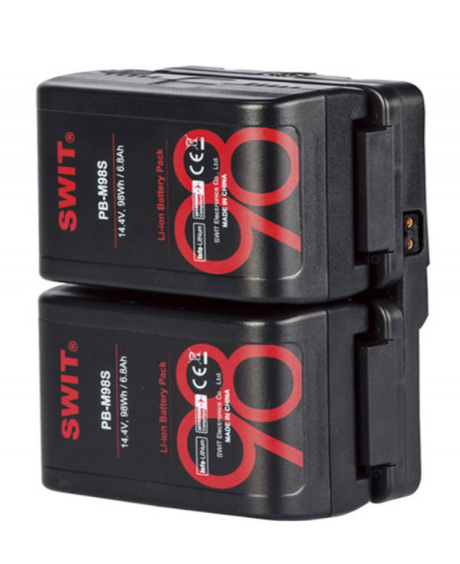

SWIT PB-M98S Pocket V-Mount Battery

The PB-M98S is a compact 14.4V lithium-ion battery with 98Wh (6.8Ah) capacity. Its short, pocket-sized design makes it perfect for handheld gimbals, small cinema cameras, field monitors, and ENG camcorders.

It provides up to 100W/8A continuous output via D-Tap and supports accessory charging through a 5V/2A USB Type-A port. The smart 5-LED indicator displays real-time battery status and flashes when capacity drops below 10%. The battery also transmits power data to compatible Sony and RED cameras for accurate on-screen monitoring.

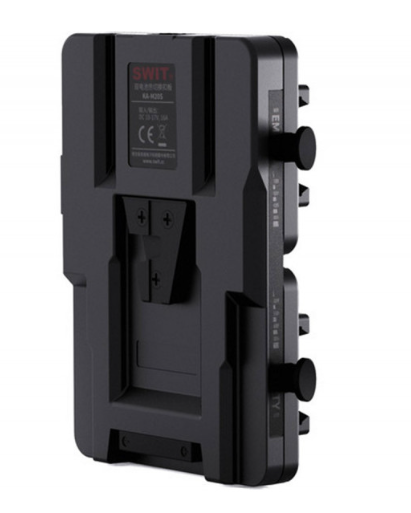

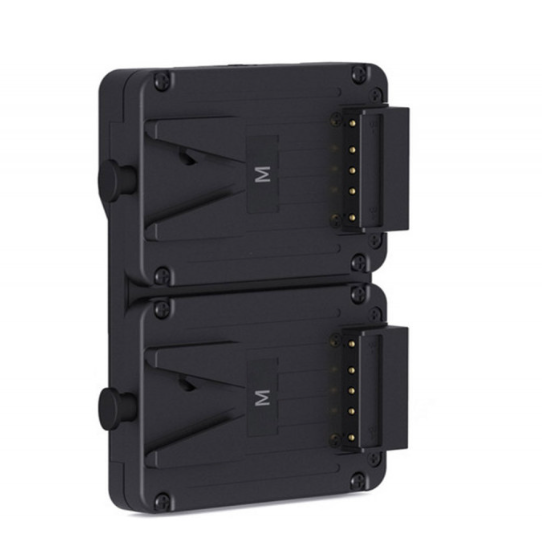

KA-M20S Dual Pocket V-Mount Extension Plate

The KA-M20S extension plate enables two PB-M series batteries to function as a unified power source. When paired with two PB-M98S batteries, it delivers flexible power modes:

• Hot-Swap Mode (≤100W load): One battery powers the device while the second can be replaced without interrupting operation.

• High-Load Mode (>100W load): Both batteries operate simultaneously to provide up to 300W total output.

The plate includes two D-Tap outputs (top and side) for flexible rig connections and provides power/hot-swap status indicators for each battery. Designed slim and lightweight, it ensures balanced camera installation and includes multiple circuit protections for safe operation.

Key Features

PB-M98S Batteries

• Compact pocket V-mount design

• 98Wh / 6.8Ah capacity

• 14.4V output

• 100W / 8A D-Tap output

• 5V / 2A USB Type-A output

• Smart 5-LED power indicator

• RED & Sony power info communication

• Circuit protection system

KA-M20S Plate

• Holds 2× PB-M series pocket V-mount batteries

• Automatic Hot-Swap & High-Load modes

• Up to 300W total output (High-Load mode)

• 2× D-Tap outputs (11–16.8V)

• Independent battery power & swap indicators

• Slim, lightweight, balanced mounting design

• Multiple circuit protections
