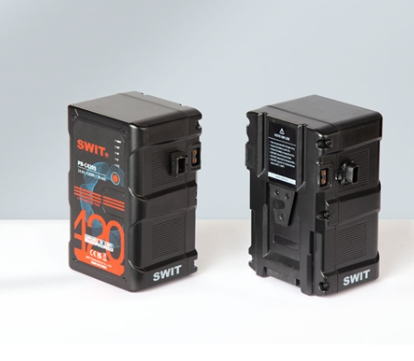

The SWIT PB-C420S is a 420Wh large-capacity V-mount battery, offering the world’s highest capacity in a handheld V-mount form factor. Designed for broadcast and film production, it delivers long-lasting, high-load power for cameras, monitors, lighting, and other power-hungry devices.
The SWIT PB-C420S is a 420Wh large-capacity V-mount battery, offering the world’s highest capacity in a handheld V-mount form factor. Designed for broadcast and film production, it delivers long-lasting, high-load power for cameras, monitors, lighting, and other power-hungry devices.
The SWIT PB-C420S 420Wh Large Capacity V-mount Battery sets a new benchmark in professional on-camera power solutions, delivering an exceptional 420Wh / 29.4Ah capacity at 14.4V. As the world’s largest-capacity handheld V-mount battery, it is engineered to provide extended runtime for demanding broadcast and cinema equipment, minimizing battery swaps during long shooting days.
Built for high-performance applications, the PB-C420S supports a 250W constant load with a 305W peak output, making it suitable for powering high-end digital cinema cameras, monitors, and LED lighting. It also supports 100W / 6A fast charging, significantly reducing downtime between shoots.
The battery features dual D-tap power outputs, each capable of handling high loads, enabling simultaneous powering of multiple accessories. A 5-LED digital power indicator provides clear remaining capacity status, while SONY and RED camera compatibility allows power information to be displayed directly in the camera viewfinder. Multiple built-in circuit protections ensure safe, stable, and reliable operation in professional environments.
Key Features
420Wh ultra-large capacity handheld V-mount battery
14.4V / 29.4Ah high-energy design
250W constant load, 305W peak load
100W / 6A fast charging support
2× D-tap power outputs (up to 150W load)
5-LED digital power indicator
Power info display on SONY and RED viewfinders
Multiple circuit protection systems
Designed for broadcast and cinema production

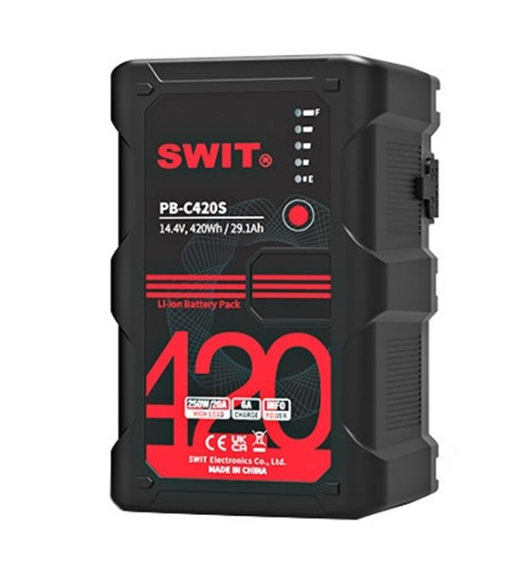

Model: PB-C420S
Battery Type: V-mount Li-ion
Nominal Voltage: 14.4V
Capacity: 420Wh / 29.4Ah
Constant Load: 250W / 20A
Peak Load: 305W
Charging Support: 100W / 6A fast charging
D-tap Outputs: 2× (max 150W load)
Power Indicator: 5-LED digital display
Camera Data Display: SONY / RED compatible
Protection: Multiple circuit protections
