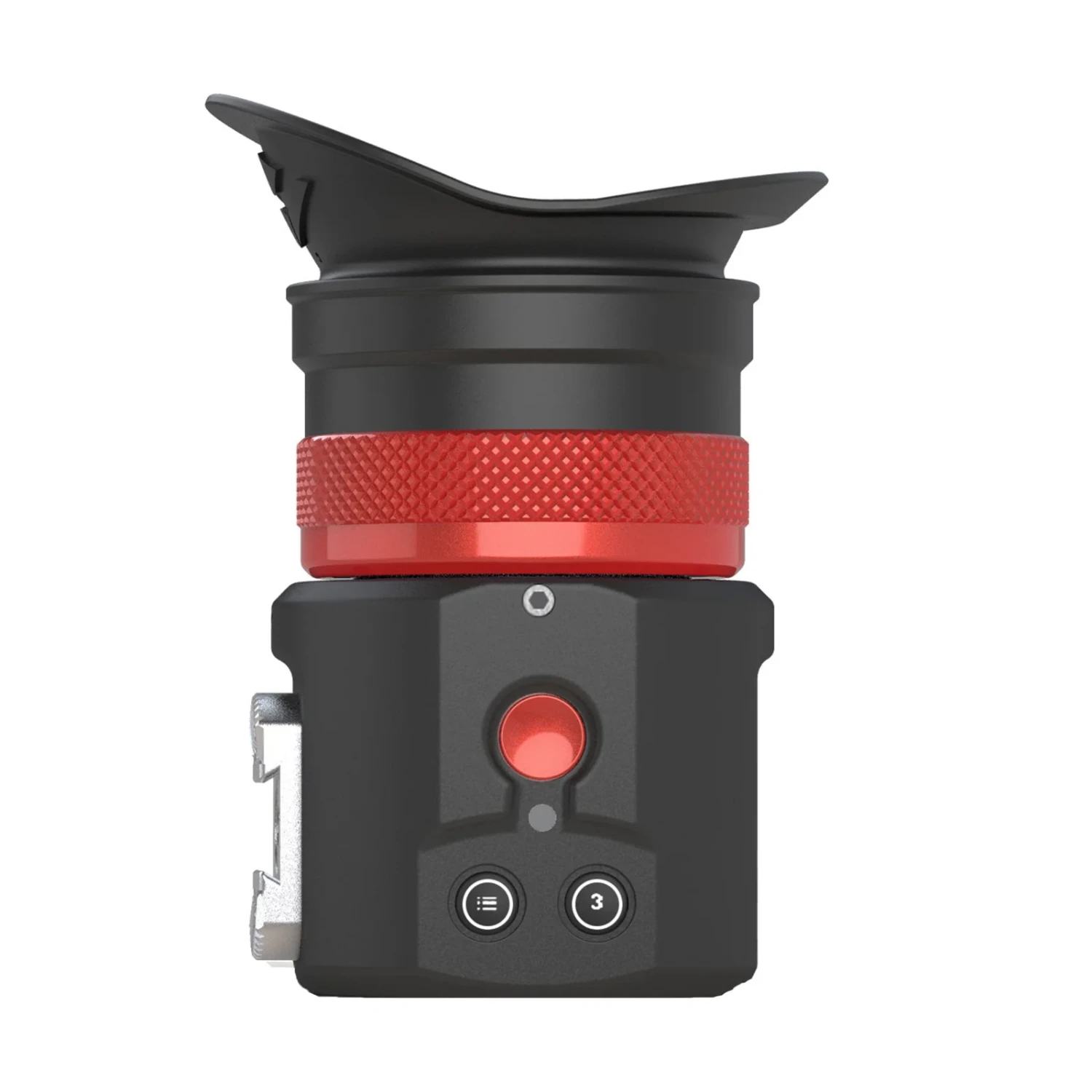

Kinefinity Eagle EYE SDI Universal E-VF Kit (Black)

The Kinefinity EAGLE SDI e-Viewfinder is compatible with all cine cameras, featuring SDI functionality, a Micro-OLED 1080P display, premium optics, noise-free and zero-delay performance, all within an ultra-lightweight and streamlined design.

More information

1 699 € with VAT 1 404.13 € without VAT
-+
Availability
on request
Product description

Product description

The Kinefinity EAGLE SDI e-Viewfinder is compatible with all cine cameras, featuring SDI functionality, a Micro-OLED 1080P display, premium optics, noise-free and zero-delay performance, all within an ultra-lightweight and streamlined design.

MICRO-OLED 1080p & PREMIUM OPTICS

The EAGLE boasts a Full-HD 0.7″ Micro-OLED display with a stunning 1080P resolution, providing enhanced visual fidelity with increased pixel count. Supported by 10-bit processing, it delivers exceptional color depth and precision, presenting a broad spectrum of 16 million colors. This results in high contrasts and true black and grey levels, guaranteeing precise details and sharp imagery, facilitating effortless focusing and exposure adjustments.

Equipped with a built-in diopter adjustable from -6D to +2D based on military specifications, it caters to a wide range of vision needs, accommodating from 600 degrees of myopia to 200 degrees of hyperopia. This alleviates concerns related to myopia, ensuring a comfortable viewing experience for all users.

1920 x 1080

Resolution

1080P, more pixels, higher resolution. 16M colors present super high contrasts and true black and grey level. Accurate details and sharp images, make it easy to focus and exposure.

10 bit

Color Depth

The advanced video processing platform utilizes a hybrid processing architecture based on FPGA. This architecture employs a refined 10-bit color processing channel, ensuring accurate details and sharp images.

-6D ~ +2D

Diopter

Build-in the diopter of -6D to +2D based on military standard: 600 degrees of myopia to 200 degrees of hyperopia. Relieve from the worry of myopia.

Noise-Free & Zero Delay

The Kinefinity EAGLE SDI e-Viewfinder ensures a noise-free, zero-delay experience, providing filmmakers with unparalleled clarity and responsiveness. With 2.5W low power consumption and no internal fan, coupled with efficient heat dissipation, the e-Viewfinder operates silently, allowing for an undisturbed filming environment. The zero-delay feature enables real-time image capture and seamless focusing, ensuring the capture of all exciting moments and enhancing workflow efficiency.

Super Light

Blending exceptional portability with robust features, the Kinefinity SDI EAGLE e-Viewfinder stands out as the most compact and lightweight on the market, making it the lightest among comparable products.

348 gram


EASY TO USE

Its quick boot-up time, low power consumption, and support for RS triggering further enhance its appeal.

2s Quick Boot-up

2.5W Low Power Consumption

1 Press RS Trigger

Streamlined Design

The streamlined design incorporates five function buttons, a power switch, a function knob, and essential assembly features including Rosette Mount and Movcam Quick-lock Mount, ensuring ease of use and adaptability to various shooting environments.

Display



Panel Type Micro-OLED
Display Size 0.71″/1.8cm
Resolution 1920×1080 (RGBx3)
Aspect Ratio 16:9
Contrast Ratio >10,000:1
Color Depth 10-bit Processing (8-bit Panel)
Pixel Per Inch(ppi) 3103ppi



Optics



Field of View 33°
Distortion <1.5%
Diopter -6D ~ +2D



Power



Power Voltage Input 7~24V
Power Consumption 2.5W



Connections



SDI Input
RS
USB
3G/1.5G SDI x1, Regular BNC
Rec Start/Stop with Power input (in Power port)
USB type-c for firmware upgrade

Interactive Interface



Indicator
Mount
Power Switch x1
Function Button x5
Function Knob x1
LOGO Tally x1
Status Tally x1
Rosette Mount with 1/4-20″ x1
Quick-lock Mount x1

Input Signal



3G-SDI
HD-SDI
1080P @ 47.95p / 50p / 59.94p / 60p
1080P @ 23.98p / 24p / 25p / 29.97p / 30p / 23.98psf/ 24psf / 25psf / 29.97psf / 50i / 59.94i / 60i

Features



Exposure
Focus
OSD

More

Luma Waveform
Luma / RGB Histogram
False Color
Zebra
1:2 / 1:4 Magnification for focus
Peaking
Frame line
Center marker
Overlay Clear
Desqueeze (Anamorphic)
Image Rotation
Image Flip
SDI Metadata*
Custom Button
Noise-Free (no built-in fan)
Zero-Delay

General

Dimensions 105 x 62 x 58mm / 4.1″ x 2.4″ x 2.3″
Weight 348g / 12.2oz
Material Aluminium Alloy, Steel, and Glass

Parameters

Parameters

Manufacturer: Kinefinity
Category: EVF (Electronic View Finder)

Main parameters

Monitor inputsSDI
Panel resolution1920x1080
