Kinefinity Movcam KineKIT-Edge

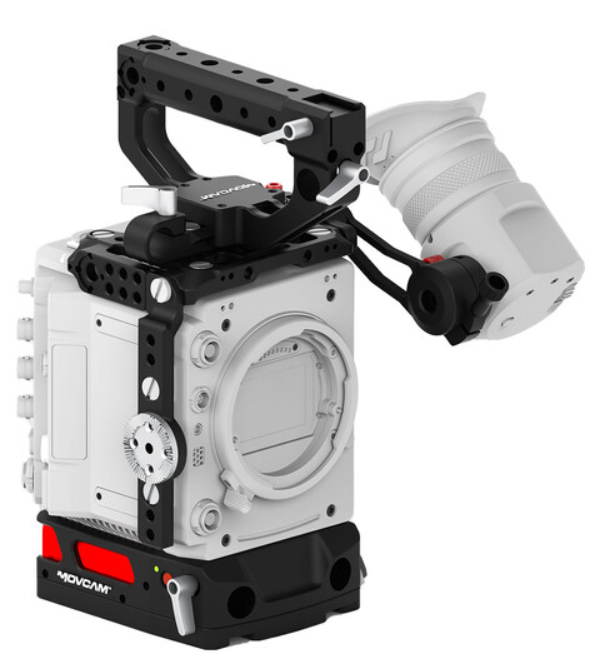

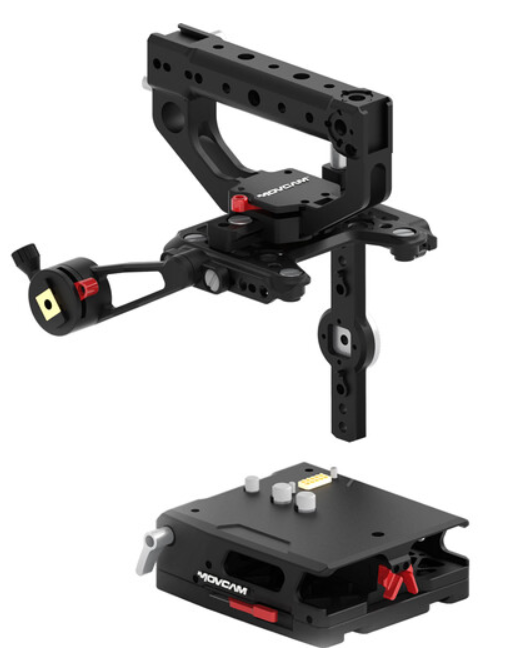

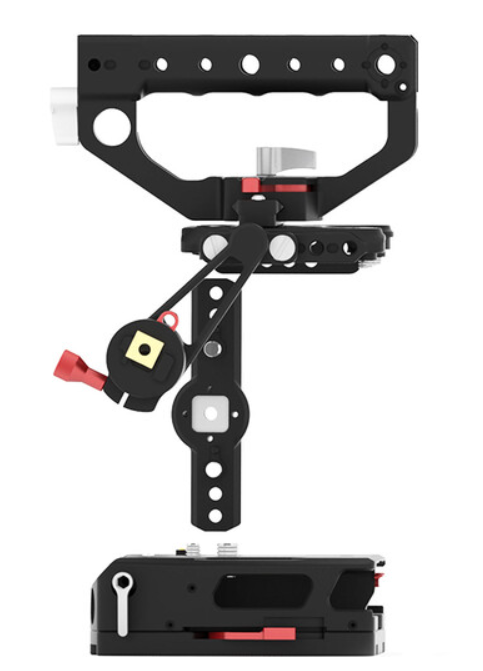

The Kinefinity A601-901-01 Movcam KineKIT-Edge is a modular, full-featured aluminum cage system for MAVO Edge 8K/6K, bundling a foldable D-top handle, NATO top plate, ARRI rosette side plate, hot-swap L-series dual-battery baseplate, 15 mm rod clamp, mini EVF bracket, and sliding dovetail bottom adapter—delivering tripod, gimbal, Steadicam, and handheld flexibility with zero-tool reconfiguration.

Designed in partnership with Movcam, the Kinefinity A601-901-01 KineKIT-Edge transforms the MAVO Edge into a fully rigged cinema platform without adding bulk. The CNC-machined aluminum cage features a NATO top rail with quick-release D-handle (90° fold-flat), dense 1/4"-20 + 3/8"-16 threads with ARRI pins, and a left-side rosette plate for SideGrip or wooden handles. The 15 mm LWS baseplate includes dual L-series battery slots (hot-swap via contact plate) and forward/back sliding for lens balance, while the bottom dovetail adapter accepts Movcam sliding plates. A mini EVF bracket mounts directly to the top plate for KineEVF2.

Key features

• Foldable enclosed D-top handle (NATO quick-release)
• 70 mm NATO top rail + mini EVF bracket
• Left ARRI rosette side plate + 1/4"-20 threads
• Dual L-series hot-swap baseplate (contact plate UPS)
• 15 mm LWS rod clamp (60 mm spacing)
• Sliding dovetail bottom adapter (Movcam compatible)
• Tool-free assembly / reconfiguration
• Aluminum
