Kinefinity Movcam KineKIT-Edge(w/ Sliding Dovetail Plate)

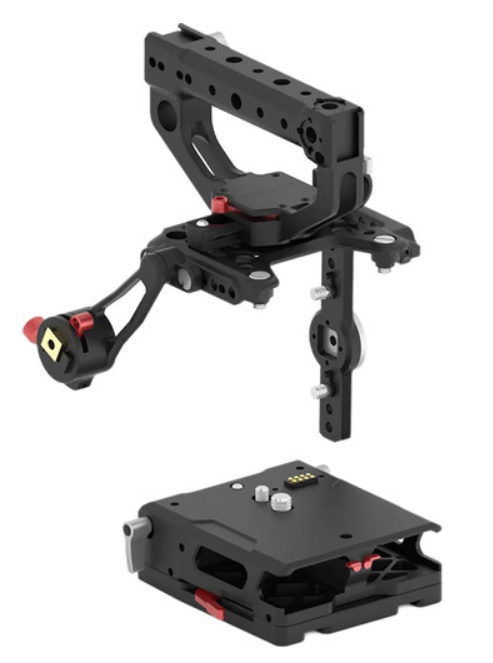

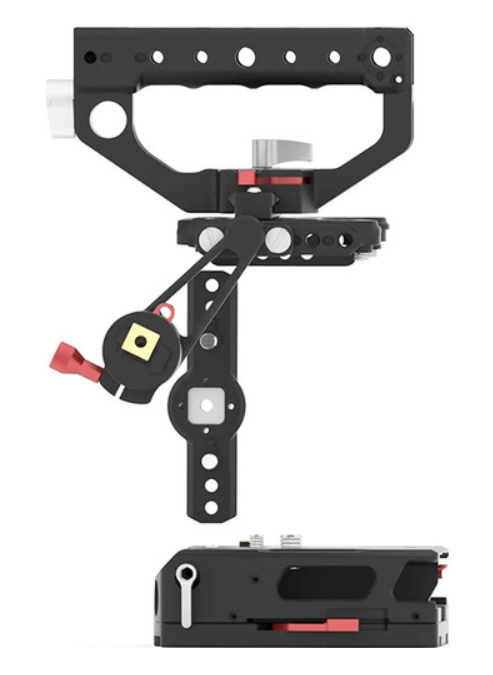

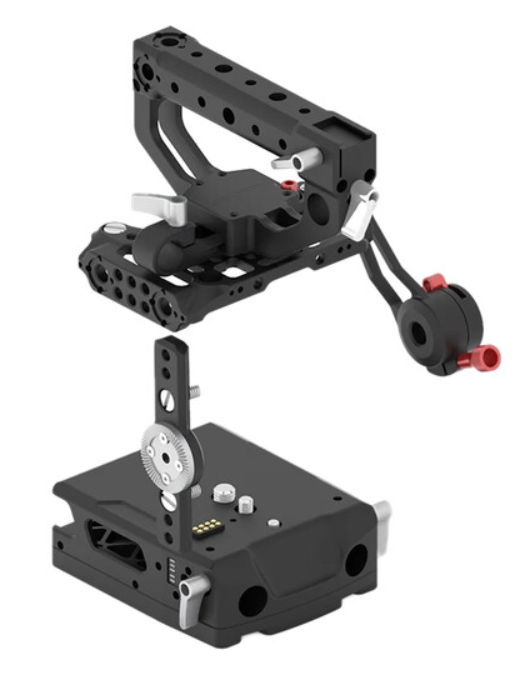

The Kinefinity A601-901-02 Movcam KineKIT-Edge and Sliding Dovetail Plate Kit is a professional 15mm LWS cage system for the MAVO Edge 8K/6K, combining the full-featured KineKIT-Edge with a Movcam 10" sliding dovetail for instant shoulder-rig, tripod, or gimbal balancing. It includes a NATO top rail, ARRI rosette side plate, removable D-top handle, mini EVF bracket, and a unique power baseplate that hot-swaps two L-series batteries for uninterrupted shooting.

Engineered for ultimate versatility, the Kinefinity A601-901-02 Movcam KineKIT-Edge and Sliding Dovetail Plate Kit transforms the MAVO Edge into a fully rigged cinema camera ready for any scenario—handheld, tripod, gimbal, or Steadicam. The KineKIT-Edge cage features a quick-release closed D-top handle, top NATO rail for follow-focus motors, ARRI rosette side plate, and multiple 1/4"-20 and 3/8"-16 threads. Its 15mm LWS power baseplate accepts two GripBAT 2S L-series batteries for seamless hot-swap backup power, while the mini EVF bracket enables direct KineEVF mounting. Paired with the lightweight Movcam 10" sliding dovetail (with safety pin and release button), the kit allows precise center-of-gravity adjustment in seconds. The bottom adapter plate supports direct upgrade to 19mm studio rods via optional adapters. CNC-machined from aircraft-grade aluminum, this kit delivers rock-solid stability with minimal added weight, making it the go-to rig solution for documentary, commercial, and feature-film productions.

Key features

• Full 15mm LWS studio cage with NATO top rail & ARRI rosette
• Quick-release ergonomic D-shaped top handle (slide-on/off)
• Dual L-series hot-swap power baseplate (uninterrupted shooting)

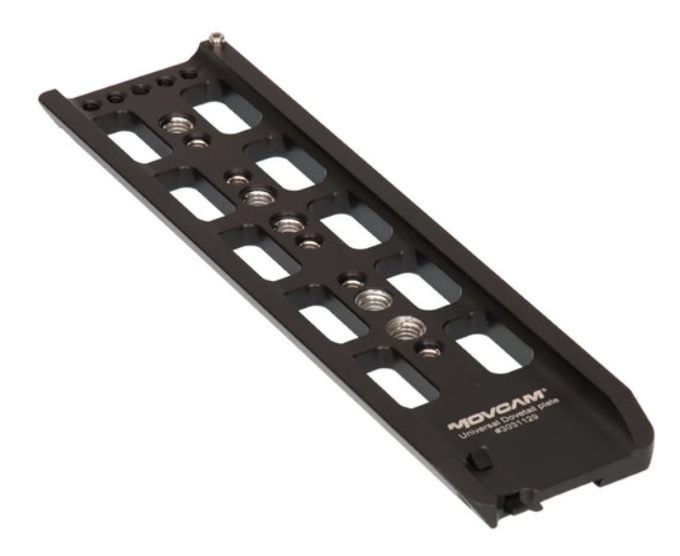

• Movcam 10" sliding dovetail with safety pin + rear release
• Mini EVF bracket for direct KineEVF attachment
• Compatible with 19mm studio rods via optional adapter
• Lightweight cut-out dovetail design for gimbal optimization
• Tool-less assembly and balancing
