Kinefinity EAGLE SDI e-Viewfinder KIT (Cyber)

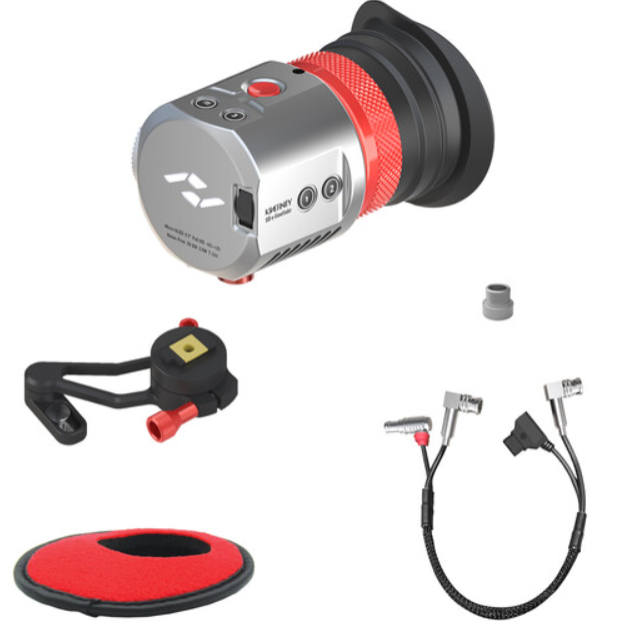

The Kinefinity EAGLE SDI e-Viewfinder (Cyber) (K911-001-02) is an ultralight silver 0.7" 1080p Micro-OLED EVF with 10-bit color, 10,000:1 contrast, zero-latency 3G-SDI input, and pro tools. Includes Mini Mount (360°), 15.7" D-Tap + BNC combo cable, and -6 to +2 diopter—perfect for MAVO Edge/ARRI/RED.

The Kinefinity EAGLE SDI e-Viewfinder (Cyber) (K911-001-02) is a premium, ultra-compact electronic viewfinder finished in striking silver (Cyber Edition). Its 0.7" 1920×1080 Micro-OLED panel delivers 1.07 billion colors (10-bit), 10,000:1 contrast, 33° FOV, and zero-delay monitoring via 3G/HD-SDI (up to 1080p60). Advanced tools include waveform, histogram, RGB parade, false color, zebra, focus peaking, anamorphic de-squeeze, frame markers, and image flip/rotate. The adjustable diopter (-6 to +2) accommodates glasses wearers perfectly. Included Mini Mount attaches via 1/4"-20 or ARRI rosette, offering 360° rotation and quick-lock system. The bundled 15.7" sheathed combo cable delivers both power (right-angle D-Tap) and video (right-angle BNC) through a single tidy run from V-mount batteries. At only 348 g with full metal/glass construction, it’s the lightest, most feature-packed SDI EVF for Kinefinity MAVO Edge, ARRI Alexa Mini/LF, RED Komodo/V-Raptor, and any 3G-SDI camera.

Key Features:

• 0.7" Full HD Micro-OLED, 10-bit, 10,000:1 contrast, 1.07B colors
• Zero-latency 3G/HD-SDI input (1080p60/59.94/50, PsF, 1080i)
• Full toolset: waveform, histogram, false color, peaking, anamorphic de-squeeze
• Diopter -6 to +2, 33° FOV, eyecup with proximity sensor
• Included Mini Mount with 360° rotation + ARRI rosette
• 15.7" right-angle D-Tap + BNC sheathed combo cable
• Cyber silver finish, aluminum/steel/glass, 5 W power
