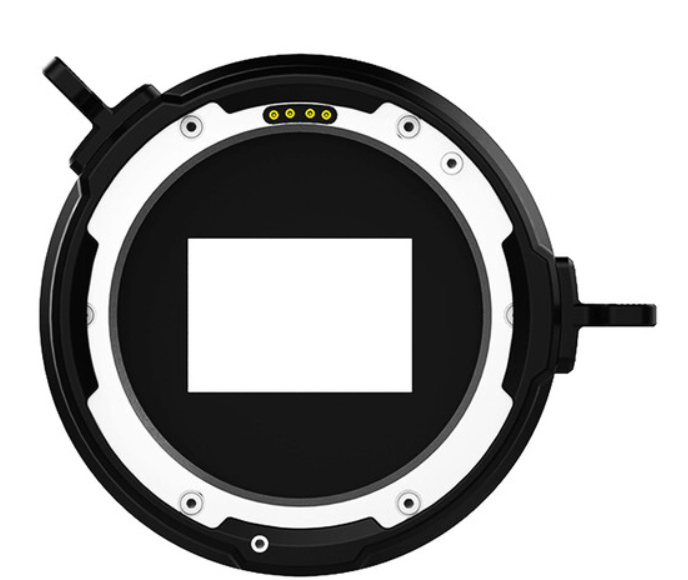

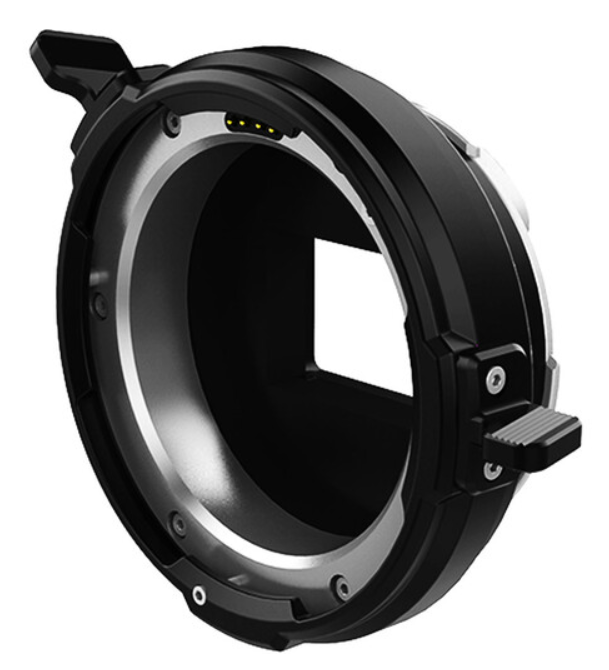

Kinefinity LPL Mounting Adapter

The Kinefinity A230-006-01 LPL Mounting Adapter is a precision-engineered, tool-free passive LPL mount for MAVO LF, MAVO Edge, and TERRA cameras, featuring a 62 mm diameter throat and optimized flange geometry to support ultra-wide large-format cine primes and zooms (ARRI Signature, Zeiss Supreme, etc.) with zero vignetting and rock-solid lock-up in a featherlight 200 g aluminum body

The Kinefinity A230-006-01 LPL Mounting Adapter seamlessly integrates ARRI LPL lenses with any Kinefinity full-frame or S35 camera (MAVO LF, MAVO Edge 8K/6K, MAVO mark2, TERRA 4K). Its passive stainless-steel bayonet locks with a smooth 60° twist using the integrated lever—no tools, no shims, no back-focus drift. The 62 mm inner diameter and recessed flange design accommodate lenses as fast as T1.4 and wider without vignetting, while the 44 mm flange-to-sensor distance (when paired with KineMOUNT) ensures perfect optical alignment with ARRI 65, Signature Primes, and DNA glass. CNC-machined from aluminum and hard-anodized in stealth black, the adapter adds only 200 g and maintains full compatibility with follow-focus gears and matte boxes.

Key features

• Passive ARRI LPL mount (no electronic contacts)
• Tool-free 60° locking lever with positive click
• 62 mm clear aperture for full large-format coverage
• Zero-shim factory calibration (44 mm flange)
• Supports lenses to T1.4 and wider
• Recessed rear element protection
• Aluminum, 200 g total
