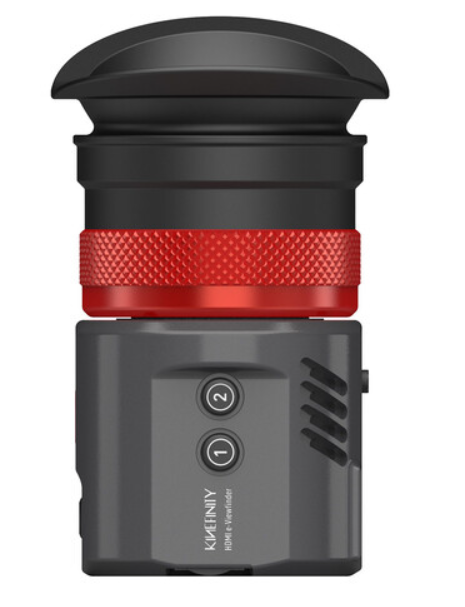

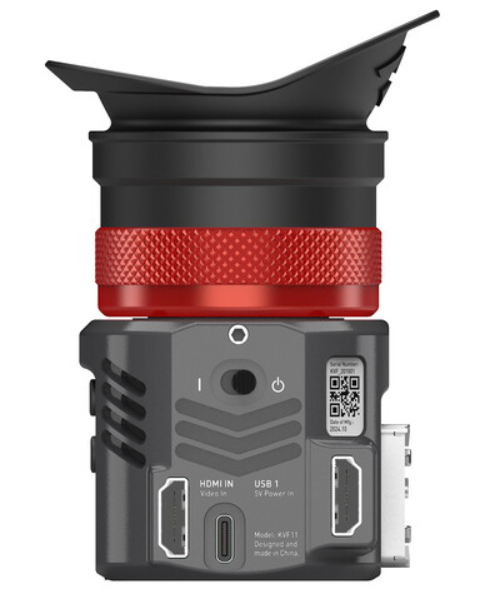

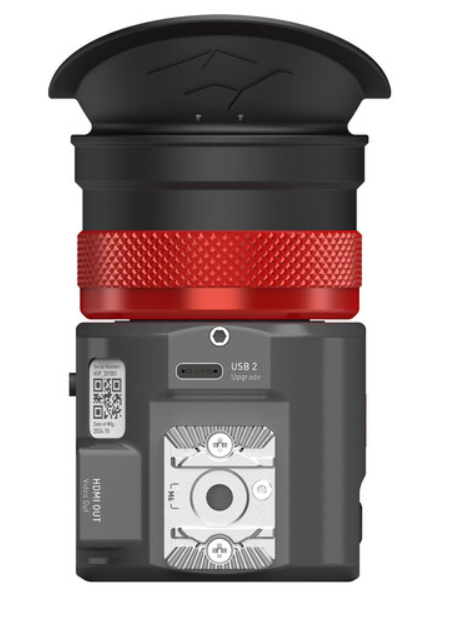

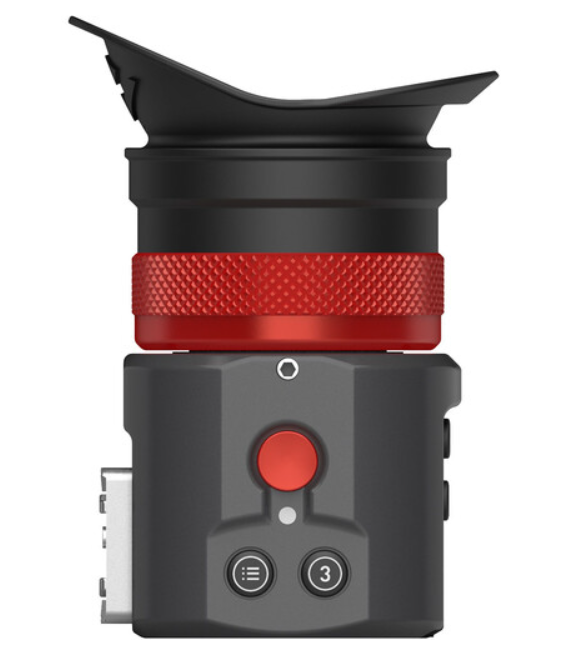

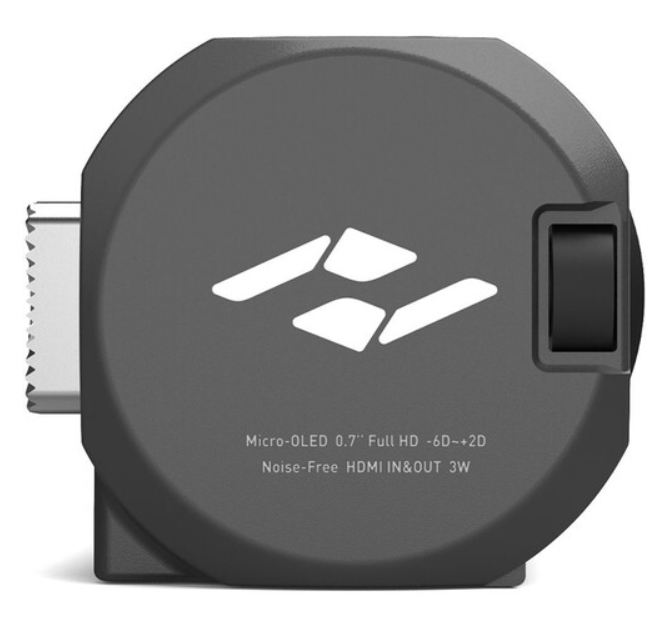

Kinefinity EAGLE HDMI e-Viewfinder

The Kinefinity EAGLE HDMI e-Viewfinder Black (K110-002-01) is a 290 g zero-latency 1080p Micro-OLED EVF with HDMI in/loop-out, 10,000:1 contrast, peaking, false color, waveform, -2 to +6 diopter, run/stop, rosette + 1/4"-20 mount, and 9.8" USB-C power cable—perfect mirrorless-to-cinema upgrade.

The Kinefinity EAGLE HDMI e-Viewfinder Black (K110-002-01) is the world’s lightest professional-grade HDMI EVF, turning any mirrorless or HDMI-equipped camera into a true shoulder-rig cinema tool. Its 0.71" 1920×1080 Micro-OLED panel delivers 10,000:1 contrast, 10-bit color, and zero-delay FPGA processing for tack-sharp 1080p60 monitoring. HDMI in + loop-out supports 1080p/i 23.97–60 fps. Full toolset: red/blue/green peaking, false color, zebra, waveform, vectorscope, histogram, anamorphic de-squeeze (1.3×–2.0×), frame markers, flip/rotate, and custom 3D LUT upload via USB-C. -2 to +6 diopter with heated anti-fog eyepiece works for glasses wearers. Run/stop trigger over HDMI plus five customizable buttons. Mounts via ARRI rosette + 1/4"-20 (rosette plate included) or optional M6/Cyber plates. Powered by included 9.8" USB-C cable from MAVO/TERRA USB-C PD port or any 5–20 V source.

Key Features:

• 0.71" 1080p Micro-OLED, 10,000:1 contrast, 10-bit
• Zero-latency FPGA, HDMI in + loop-out (1080p60)
• Full tools: peaking, false color, waveform, vectorscope, LUTs
• -2 to +6 diopter, heated anti-fog, glasses-safe
• Run/stop trigger (Sony, Canon, BMD)
• ARRI rosette + 1/4"-20 mount, 9.8" USB-C PD cable
• Firmware update via USB-C
