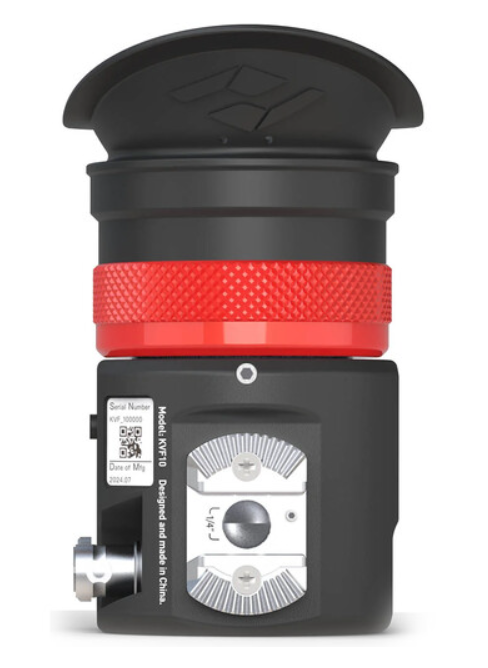

Kinefinity EAGLE HDMI e-Viewfinder Core KIT

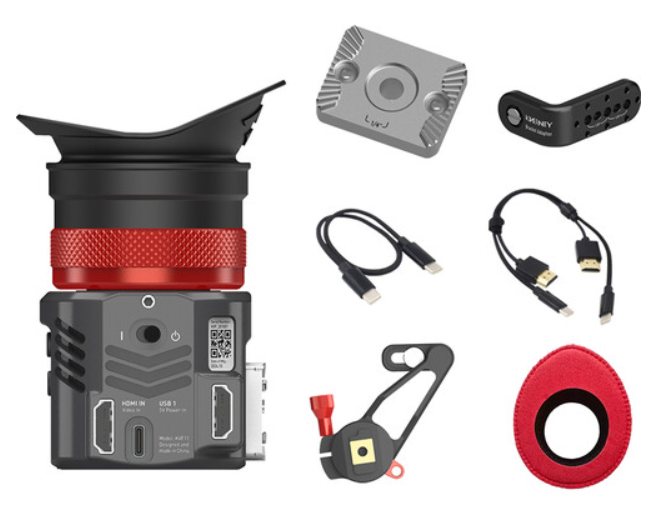

The Kinefinity K911-002-01 EAGLE HDMI e-Viewfinder Core KIT is a professional, zero-latency 1080p micro-OLED EVF package for mirrorless and cinema cameras, bundling the ultralight EAGLE HDMI viewfinder, 9.8" USB-C/HDMI combo + USB-C cables, Mini Mount, 1/4"-20 rosette plate, anti-twist bracket adapter, eyecushion, and 1/4"-20 to 3/8"-16 adapter—delivering focus peaking, waveform, false color, and diopter correction in a complete, rig-ready solution.

Elevate any mirrorless or cinema camera with the Kinefinity K911-002-01 EAGLE HDMI e-Viewfinder Core KIT—a full-featured, 1080p micro-OLED EVF system with zero input lag and 10-bit color. The 0.7" display delivers 10,000:1 contrast, 100% DCI-P3, and pro tools including focus peaking, waveform, histogram, false color, anamorphic de-squeeze, frame guides, and image flip. HDMI input supports 1080p60 from any source, with loop-out for monitoring. The kit includes a 9.8" sheathed USB-C/HDMI combo cable (power + video) and a spare USB-C cable, plus a quick-lock Mini Mount, ARRI rosette plate with 1/4"-20, anti-twist triple-thread bracket, soft eyecushion, and 1/4"-20 to 3/8"-16 adapter. At just 145 g (EVF) and powered via USB-C (5V/2A), it’s the perfect shoulder-rig or gimbal EVF for users demanding precision in a compact, travel-ready package.

Key features

• 0.7" 1080p micro-OLED (10,000:1 contrast, 10-bit, 100% DCI-P3)
• Zero-latency HDMI input (1080p60) + loop-out
• Pro tools: peaking, waveform, histogram, false color, de-squeeze, flip

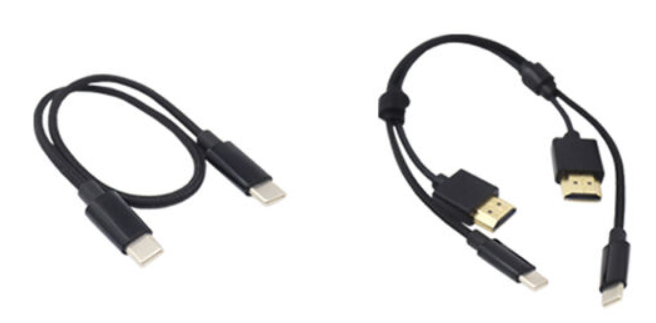

• 9.8" USB-C/HDMI combo cable + spare USB-C

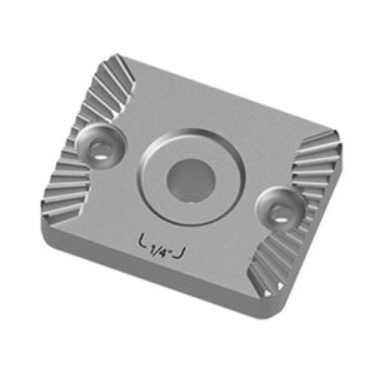

• Quick-lock Mini Mount + ARRI rosette plate

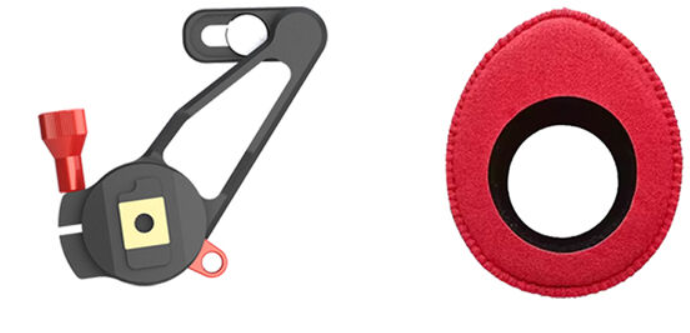

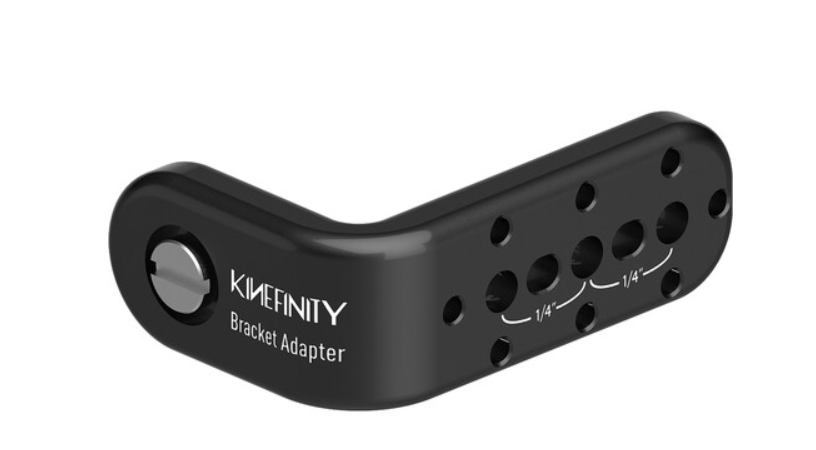

• Anti-twist 1/4"-20 bracket + 1/4"-20 to 3/8"-16 adapter
• Soft oval eyecushion (black/red)
• USB-C powered (5V/2A, no battery)
