Kinefinity KineEVF2 Pack

  • Free transport
SKU: A912-003-01

The Kinefinity KineEVF2 Viewfinder (A912-003-01) is a 290 g zero-latency 1080p Micro-OLED EVF with 16M colors, ±4 diopter, one-cable video+power, peaking, false color, and Movcam bracket. Perfect for MAVO Edge/mark2/TERRA handheld and gimbal precision.

More information

2 729 € with VAT 2 255.37 € without VAT
Add to Compare Price history
Availability
on request
SKU:
A912-003-01
Add to Compare Price history

Kinefinity KineEVF2 Full-HD OLED Viewfinder

2 419 €without VAT 1 999.17 €

Top accessories for Kinefinity KineEVF2 Pack

Kinefinity EAGLE HDMI e-Viewfinder Pro KIT

  • Free transport
The EAGLE HDMI e-Viewfinder Pro KIT is a comprehensive, universal solution that includes
1 999 €
In stock 1 pcs

Kinefinity EAGLE HDMI e-Viewfinder Core KIT

  • Free transport
The Kinefinity K911-002-01 EAGLE HDMI e-Viewfinder Core KIT is a professional, zero-latency
1 639 €
on request

Kinefinity HDMI e-Viewfinder Cord (Type-C, 25cm)

The Kinefinity USB-C and HDMI Combo Viewfinder Cable (K611-003-01) is a 25 cm (9.8")
12 €
on request

Kinefinity HDMI e-Viewfinder Cord (Type-C, 50cm)

The Kinefinity K611-003-02 is a 19.7" (50 cm) black sheathed combo cable for the
16 €
on request

Kinefinity EAGLE HDMI e-Viewfinder

  • Free transport
The Kinefinity EAGLE HDMI e-Viewfinder Black (K110-002-01) is a 290 g zero-latency
1 459 €
on request

Kinefinity HDMI e-Viewfinder Cord (D-Tap, 50cm)

The Kinefinity K611-004-01 is a 19.7" (50 cm) black D-Tap to USB-C + HDMI combo cable
60 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Kinefinity KineEVF2 Viewfinder (A912-003-01) is a 290 g zero-latency 1080p Micro-OLED EVF with 16M colors, ±4 diopter, one-cable video+power, peaking, false color, and Movcam bracket. Perfect for MAVO Edge/mark2/TERRA handheld and gimbal precision.

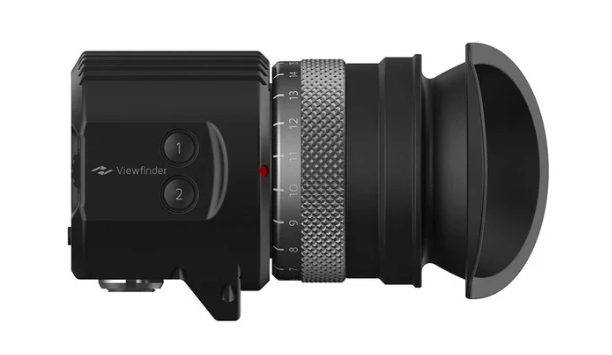

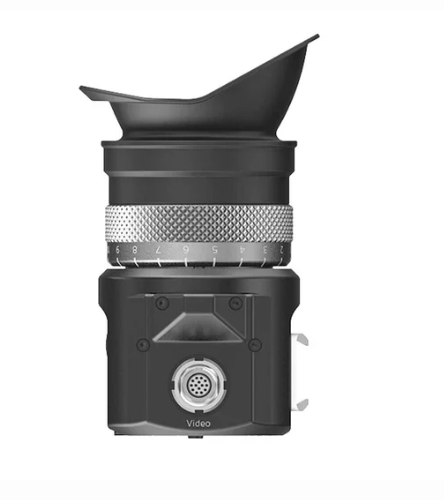

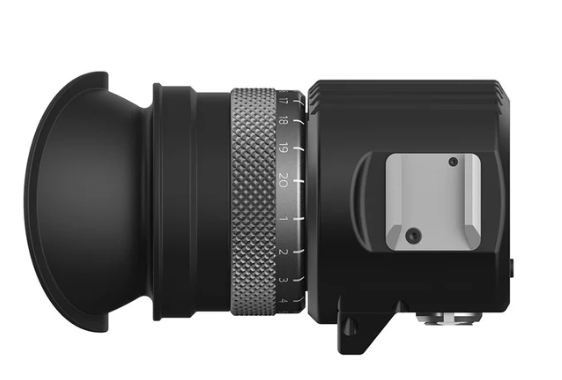

The Kinefinity KineEVF2 (A912-003-01) is a ultra-compact Full-HD OLED viewfinder engineered for MAVO Edge 8K/6K, MAVO mark2, and TERRA cameras. Its 0.7" 1920×1080 Micro-OLED panel delivers 16.7 million colors, true black, 10,000:1 contrast, and zero-latency monitoring via FPGA hardware processing—powered and fed video through one proprietary Kine video cord (included). Optical design features a multi-coated glass eyepiece with -4 to +4 diopter, heated anti-fog coating, and 38° field of view. Pro tools include focus peaking (red/green/blue), false color, zebra, waveform, histogram, anamorphic de-squeeze, frame markers, and flip/rotate. Mounts instantly via the included Movcam EVF bracket with 15 mm rod clamp and rosette. At only 290 g, it’s lighter than ARRI and RED EVFs yet built from magnesium alloy for daily abuse.

Key Features:

  • Zero-latency FPGA processing
  • Single Kine video cord (video + 5 W power)
  • Heated anti-fog eyepiece
  • Full toolset: peaking, false color, waveform, anamorphic
  • Movcam 15 mm rod bracket + rosette included
  • Ultra-light 290 g magnesium body

PACKAGE CONTENT

  • Kinefinity KineEVF OLED Viewfinder
  • Kinefinity Kine Video Cable for KineEVF (12", Right Angle)
  • EVF Bracket
  • Eye Cushion

SPECIFICATIONS

  • Model: A912-003-01
  • Panel: 0.7" Micro-OLED
  • Input: 1× proprietary Kine video (video + power)
  • Mount: Movcam 15 mm rod clamp + ARRI rosette
  • Weight: 290 g (with bracket)

WE RECOMMEND

The Kinefinity KineEVF2 is a state-of-the-art Micro-OLED viewfinder with 1080p resolution and zero latency, designed specifically for the MAVO Edge, MAVO Mark II, and TERRA camera ecosystem. To fully utilize it in professional production, it is essential to complement the setup with compatible Movcam rigs, reliable GripBAT power supplies, and mounting hardware for a stable attachment.

Rigs and cages - High-quality mounting components for securely attaching the viewfinder and other accessories to the camera body.

Power and Batteries - Power sources and cables ensuring continuous operation of the viewfinder and the entire camera rig.

Mounting Accessories - Adapters and arms for flexible positioning of viewfinders and monitors according to the cinematographer's needs.

Other Accessories - Accessories for controlling, protecting, and maintaining the Kinefinity camera system.

Parameters

Parameters

Manufacturer: Kinefinity
Category: EVF (Electronic View Finder)

Main parameters

Size0.7"
Monitor inputs4K HDMI
Monitor inputs1× proprietary Kine video
