Kinefinity E-Viewfinder Rod Mount

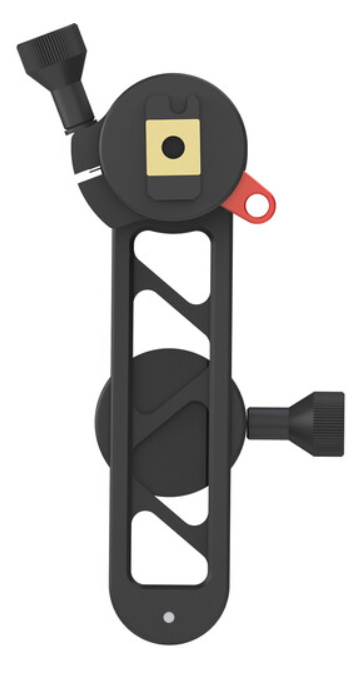

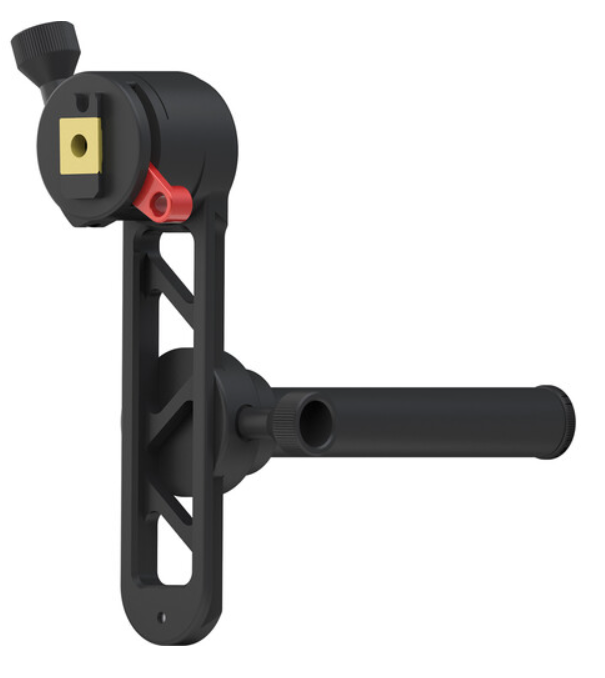

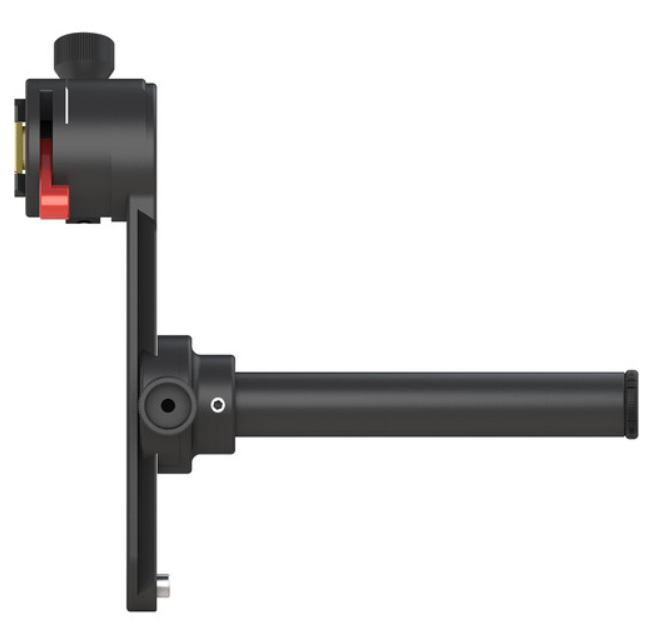

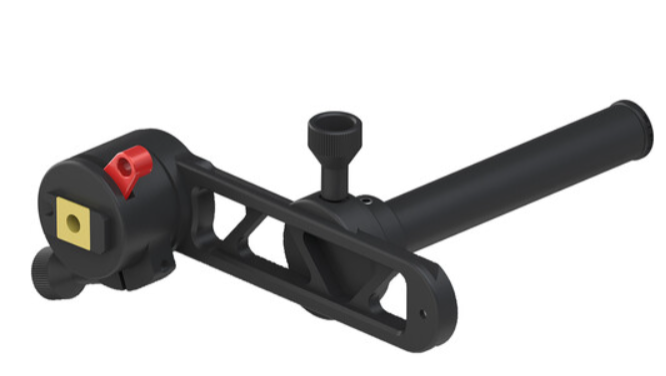

The Kinefinity A612-508-01 e-Viewfinder Rod-Mount Bracket is a precision-machined 15mm rod clamp adapter that securely attaches the EAGLE HDMI e-Viewfinder to any camera rig, offering quick-lock mounting, 360° rotation, and smooth forward/back sliding for perfect eye-position adjustment in handheld, shoulder, or gimbal setups.

Designed exclusively for the Kinefinity EAGLE HDMI e-Viewfinder, the A612-508-01 Rod-Mount Bracket delivers fast, rock-solid attachment via a single 15mm LWS rod while adding full ergonomic adjustability. The aerospace-grade aluminum bracket features a tool-free quick-lock EVF receiver that snaps the viewfinder in place instantly, yet allows 360° rotation and ±30 mm linear sliding along the arm for precise alignment with any operator’s eye. A single oversized lever locks both the rod clamp and sliding mechanism simultaneously, while anti-twist locating pins prevent unwanted movement under heavy use.

Key features

• Dedicated quick-lock mount for Kinefinity EAGLE HDMI e-Viewfinder
• Single 15mm rod clamp (LWS standard, 60 mm spacing)
• 360° EVF rotation + ±30 mm forward/back sliding
• Single-lever simultaneous lock (clamp + slide + rotate)
• Anti-twist locating pins + NATO accessory compatibility
• Tool-free installation and adjustment
• Aerospace aluminum with hard-anodized black/red finish
