SmallRig V Mount to Gold Mount Plate 4680

+3
  • New
SKU: 4680

SmallRig adapter plate with a Gold Mount at the front and a V-Mount at the back, so a Gold Mount battery runs a V-Mount rig. The side D-Tap works as input and output, the main port handles 20 A and the circuitry guards against overcurrent.

More information

94 € with VAT 77.69 € without VAT
Add to Compare Price history
Availability
on request
SKU:
4680
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

SmallRig adapter plate with a Gold Mount at the front and a V-Mount at the back, so a Gold Mount battery runs a V-Mount rig. The side D-Tap works as input and output, the main port handles 20 A and the circuitry guards against overcurrent.

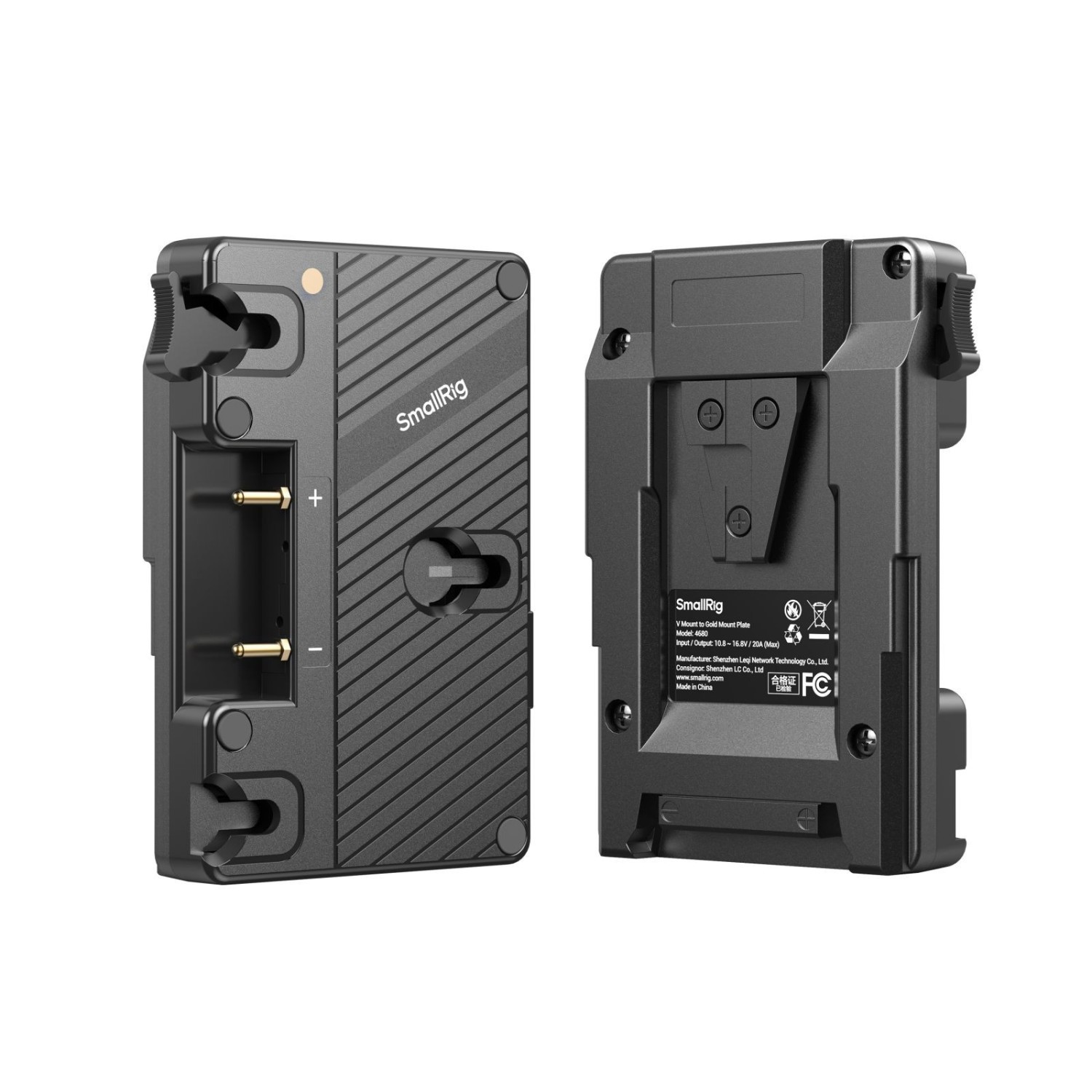

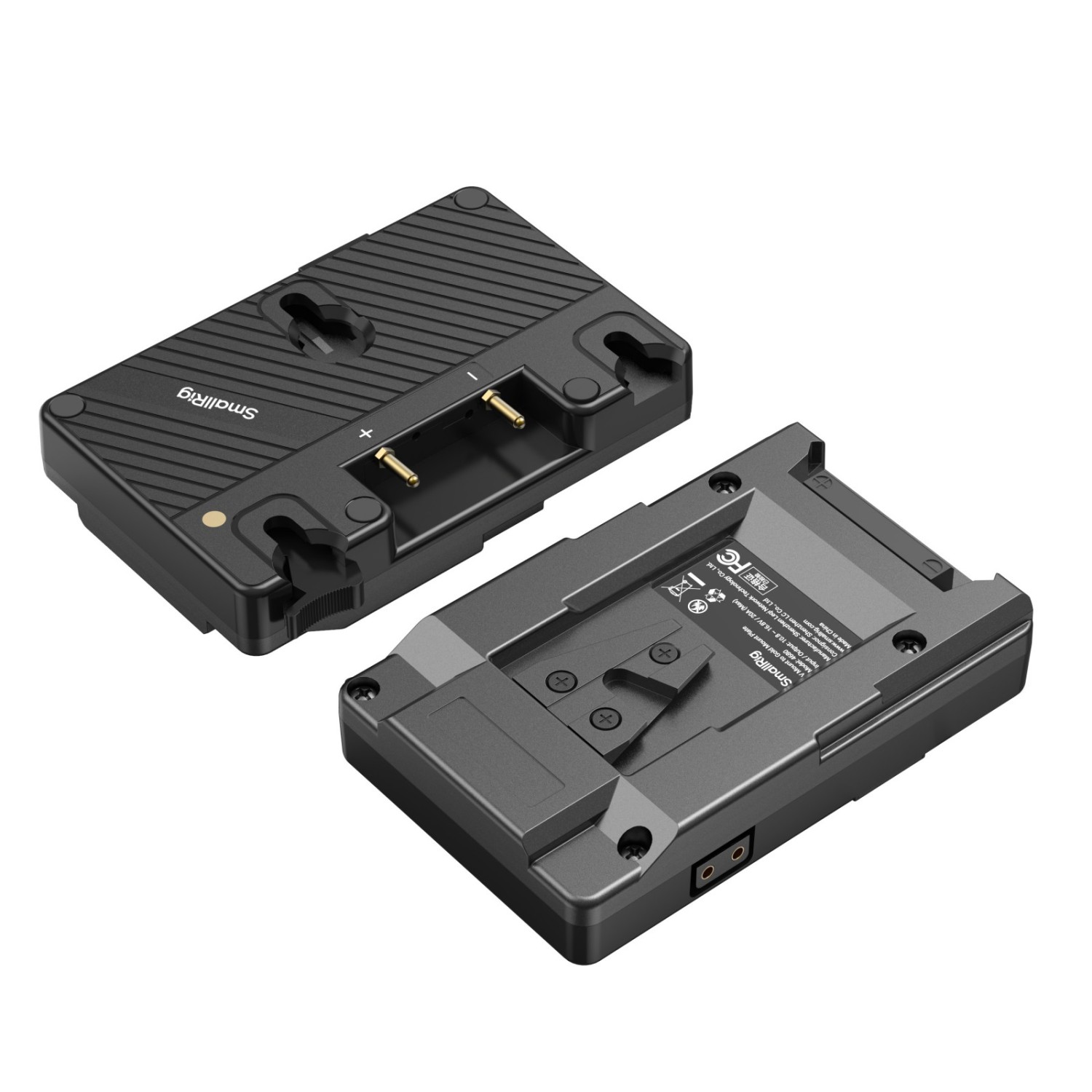

Gold Mount at the front, V-Mount at the back

An adapter between two standards

Gold Mount at the front, V-Mount at the back

The plate carries a standard Gold Mount at the front and a standard V-Mount at the back, so it works with the majority of batteries of both systems on the market. That lets you run a Gold Mount battery on a V-Mount rig.

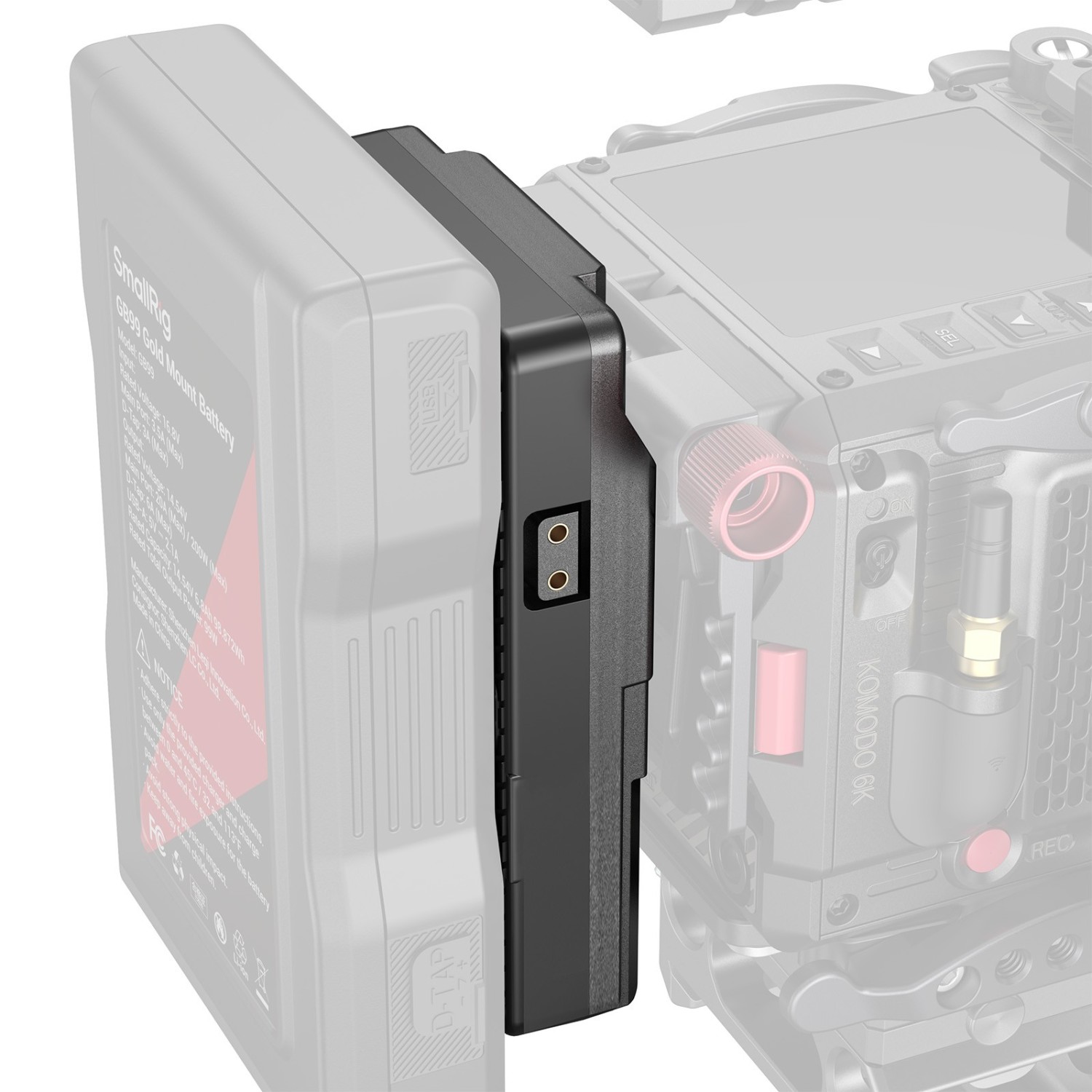

D-Tap for both input and output

The side D-Tap works as an input as well as an output. The main port handles 10.8–16.8 V and 20 A, the D-Tap 10.8–16.8 V and 10 A. Internal circuitry guards against overcurrent and overvoltage.

D-Tap for both input and output
Metal contacts, PC+ABS body

Metal contacts, PC+ABS body

The contacts are metal, the panel is PC+ABS. The plate measures 119.4 × 83.8 × 25.4 mm, weighs 120 g and operates from −20 °C to 50 °C.

PACKAGE CONTENT

  • V-Mount to Gold Mount Plate ×1
  • User Manual ×1

SPECIFICATIONS

  • Mount: Gold Mount front / V-Mount back
  • Main port: 10.8–16.8 V, 20 A (max.)
  • D-Tap: 10.8–16.8 V, 10 A (max.), input and output
  • Material: PC+ABS, metal contacts
  • Operating temperature: −20 °C to 50 °C
  • Dimensions: 119.4 × 83.8 × 25.4 mm
  • Weight: 120 g ± 10 g
  • Certification: FCC
Parameters

Parameters

Manufacturer: SmallRig
Category: Power battery plates

Main parameters

Battery Type / MountingV-Mount · Gold Mount
FeaturesPřevod V-Mount na Gold Mount · Ochrana proti přepětí a nadproudu
Outputs and InterfacesD-Tap vstup/výstup
