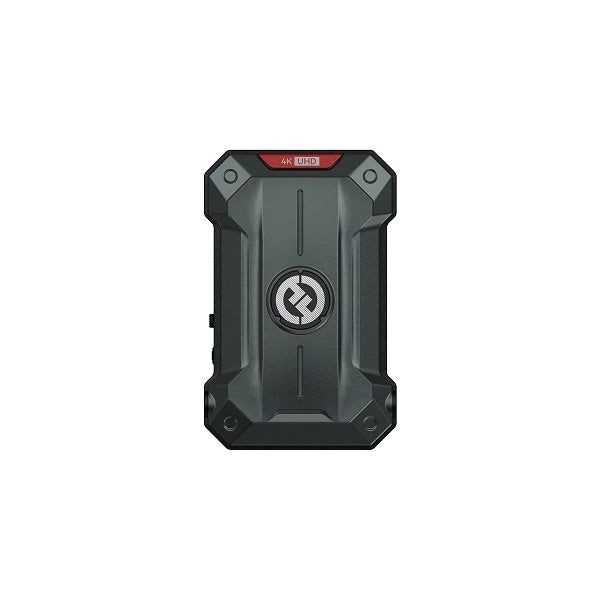

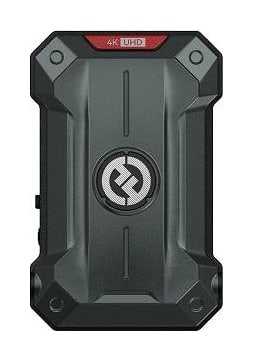

Hollyland Pyro Ultra TX Transmitter

  • New
SKU: 9851-TX

Standalone Hollyland Pyro Ultra TX transmitter to expand or complete a Pyro Ultra system. On the camera it takes the signal via HDMI 2.0 (up to 4K60) or 3G-SDI (up to 1080p60), transmits it at 12 Mbps up to 1.5 km and passes the picture on through a 4K60 HDMI loop-out at the same time. It runs on an NP-F battery or a 6–16 V DC supply.

More information

799 € with VAT 660.33 € without VAT
Add to Compare Price history
Availability
on request
SKU:
9851-TX
Add to Compare Price history

Top accessories for Hollyland Pyro Ultra TX Transmitter

SmallRig NP-F970 USB-C Rechargeable Camera Battery (Black) (4469)

  • SHOWROOM PRAHA
NP-F970-type battery with a 10500mAh/76.65wh capacity for extended usage, USB-C and
94 €
In stock > 5 pcs

SmallRig Ultra Slim 4K HDMI Cable (D to A) 35cm 3042B

  • 4K / UHD
The SmallRig 3042B cable links a camera's micro HDMI (D) port to the full-size HDMI
12 €
Backordered > 5 pcs

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs

Hollyland Pyro Ultra RX Receiver

  • New
Standalone Hollyland Pyro Ultra RX receiver for an additional monitor in a Pyro Ultra
669 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Standalone Hollyland Pyro Ultra TX transmitter to expand or complete a Pyro Ultra system. On the camera it takes the signal via HDMI 2.0 (up to 4K60) or 3G-SDI (up to 1080p60), transmits it at 12 Mbps up to 1.5 km and passes the picture on through a 4K60 HDMI loop-out at the same time. It runs on an NP-F battery or a 6–16 V DC supply.

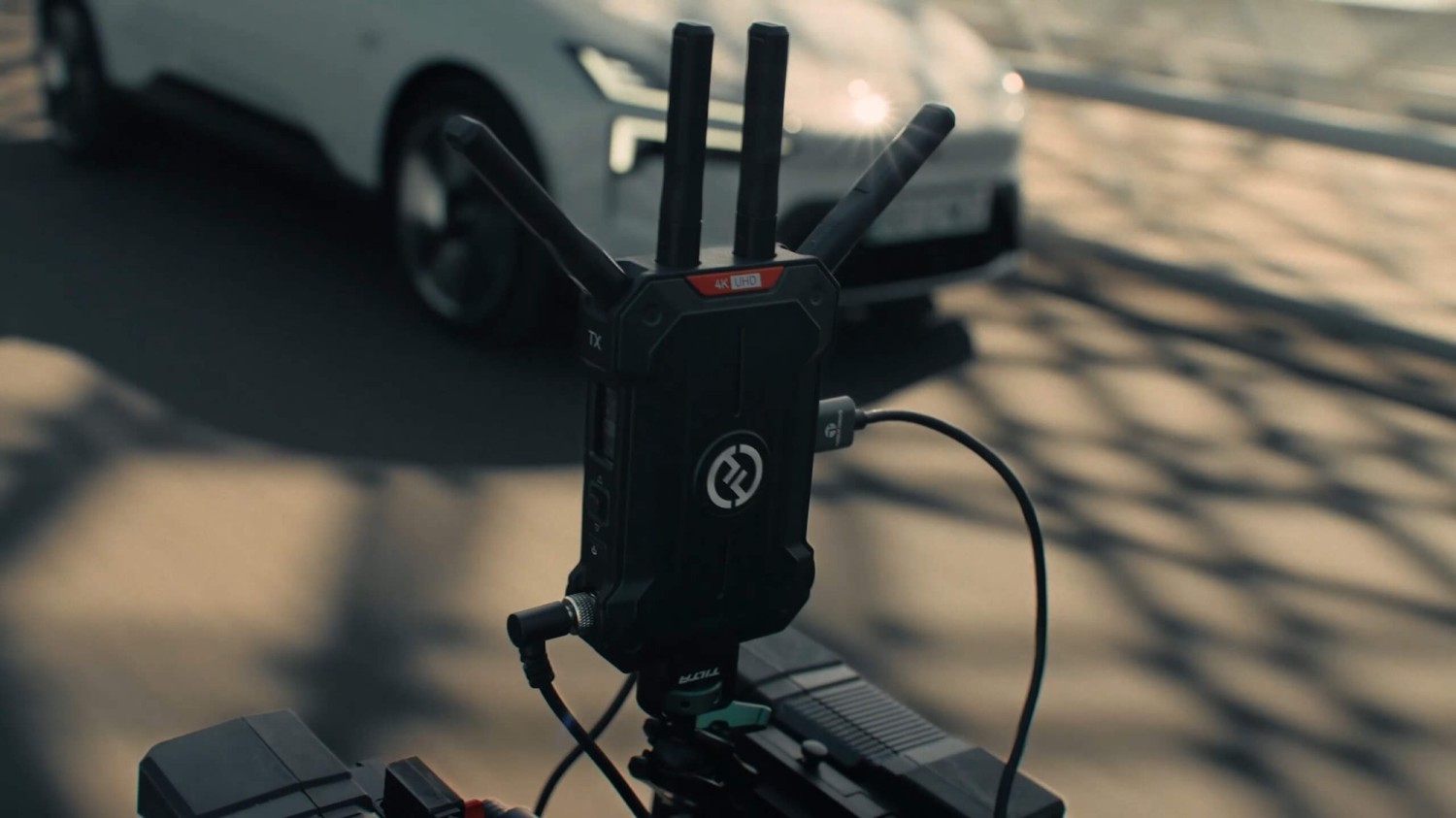

Pyro Ultra transmitter for your camera

Compact transmitter with TWiFi technology, HDMI and 3G-SDI inputs and an NP-F battery slot, serving one receiver or dozens.

4K60 / 12 MbpsHDMI 2.0 + 3G-SDINP-F320 g

Uncompromised HDMI loop-out

The HDMI LOOP-OUT carries 4K60, so the on-camera monitor gets the picture without any loss of quality.

Up to 1.5 km

Line-of-sight range outside Broadcast Mode, up to 700 m in Broadcast Mode.

Fractional frame rates

HDMI and SDI support fractional frame rates for professional and broadcast standards.

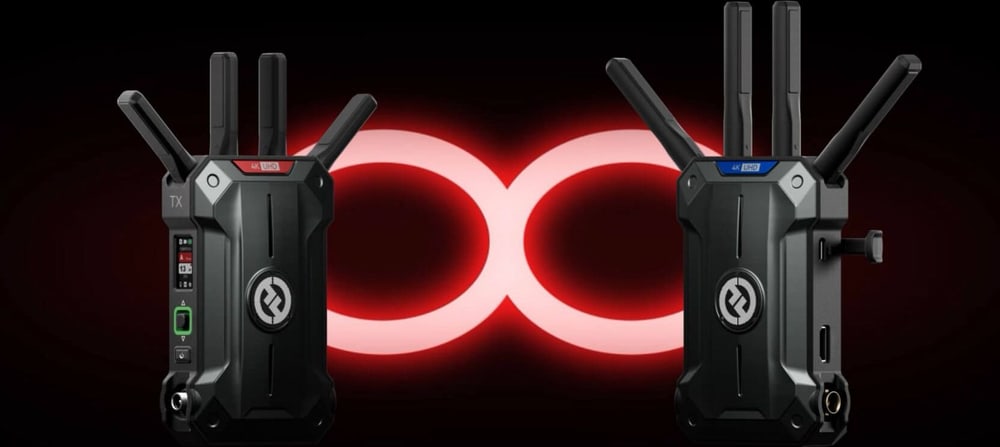

One transmitter for the whole crew

In Broadcast Mode the transmitter serves an unlimited number of receivers, with stable operation ensured for up to 20. The standard setup offers 6 monitoring screens: 4 receivers and 2 mobile apps.

Hollyland Pyro Ultra TX – One transmitter for the whole crew

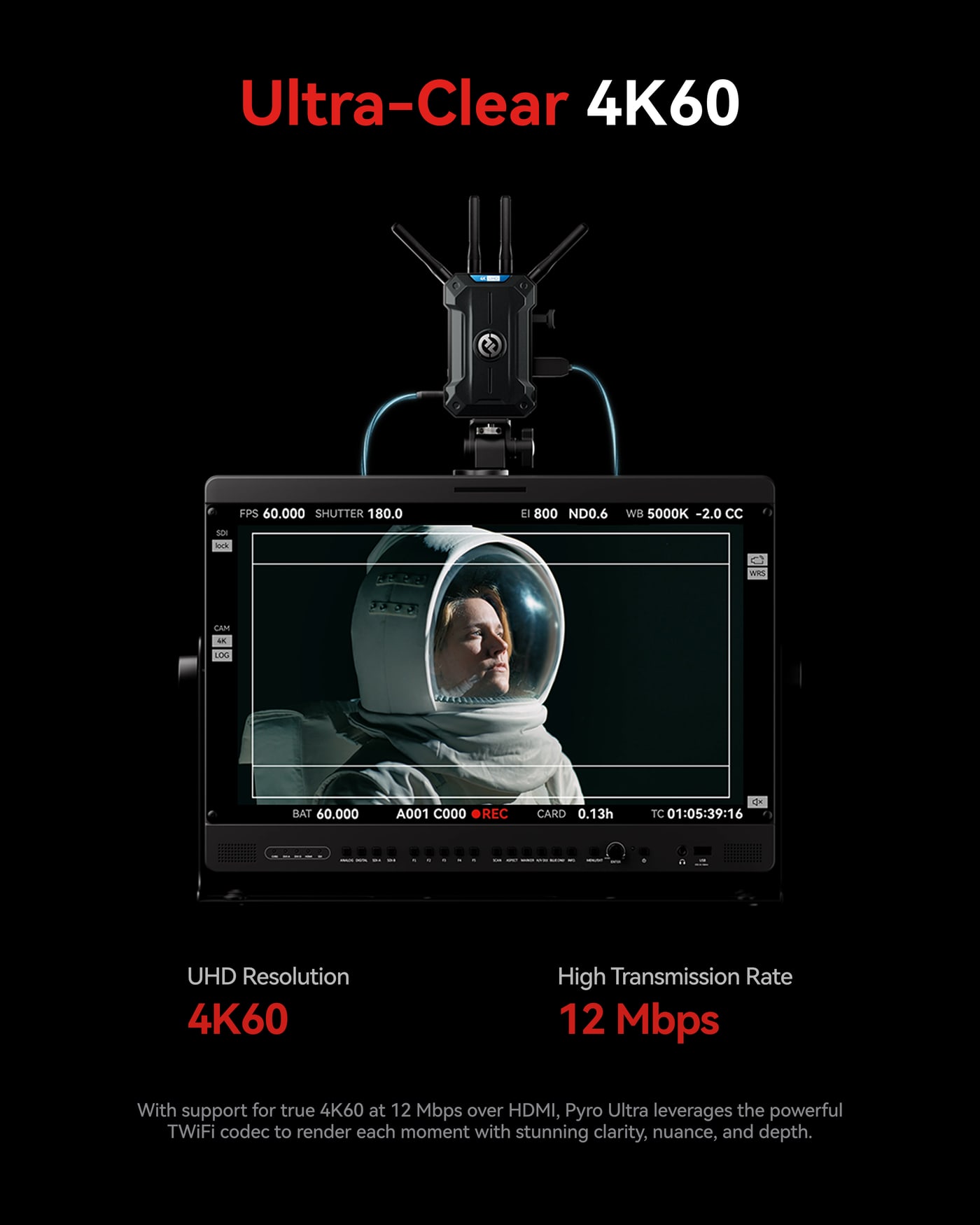

True 4K60 at 12 Mbps

Pyro Ultra transmits true 4K at 60 frames per second over HDMI at a bitrate of 12 Mbps. The TWiFi codec preserves detail, subtle gradations and depth.

Hollyland Pyro Ultra TX – True 4K60 at 12 Mbps

HDMI and 3G-SDI inputs

The transmitter has an HDMI 2.0 input, an HDMI 2.0 loop-out and a 3G-SDI input, plus USB-C and a DC power input. It is powered by an NP-F battery (6.8–8.4 V) or a 6–16 V supply.

Hollyland Pyro Ultra TX – HDMI and 3G-SDI inputs

Proprietary TWiFi technology

TWiFi combines the 2.4 GHz and 5 GHz bands into a single composite link that is more resilient than conventional dual-band transmission. Automatic frequency hopping avoids congested channels without manual intervention.

Hollyland Pyro Ultra TX – Proprietary TWiFi technology

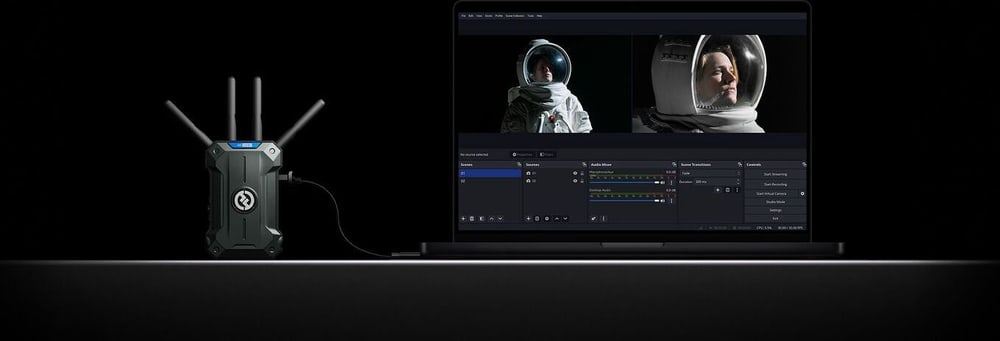

Focus Mode and streaming

With Pyro Ultra receivers, Focus Mode delivers latency from 20 ms. The receiver can then pass the picture to a computer via UVC up to 4K60 or stream it over RTMP up to 1080p60.

Hollyland Pyro Ultra TX – Focus Mode and streaming

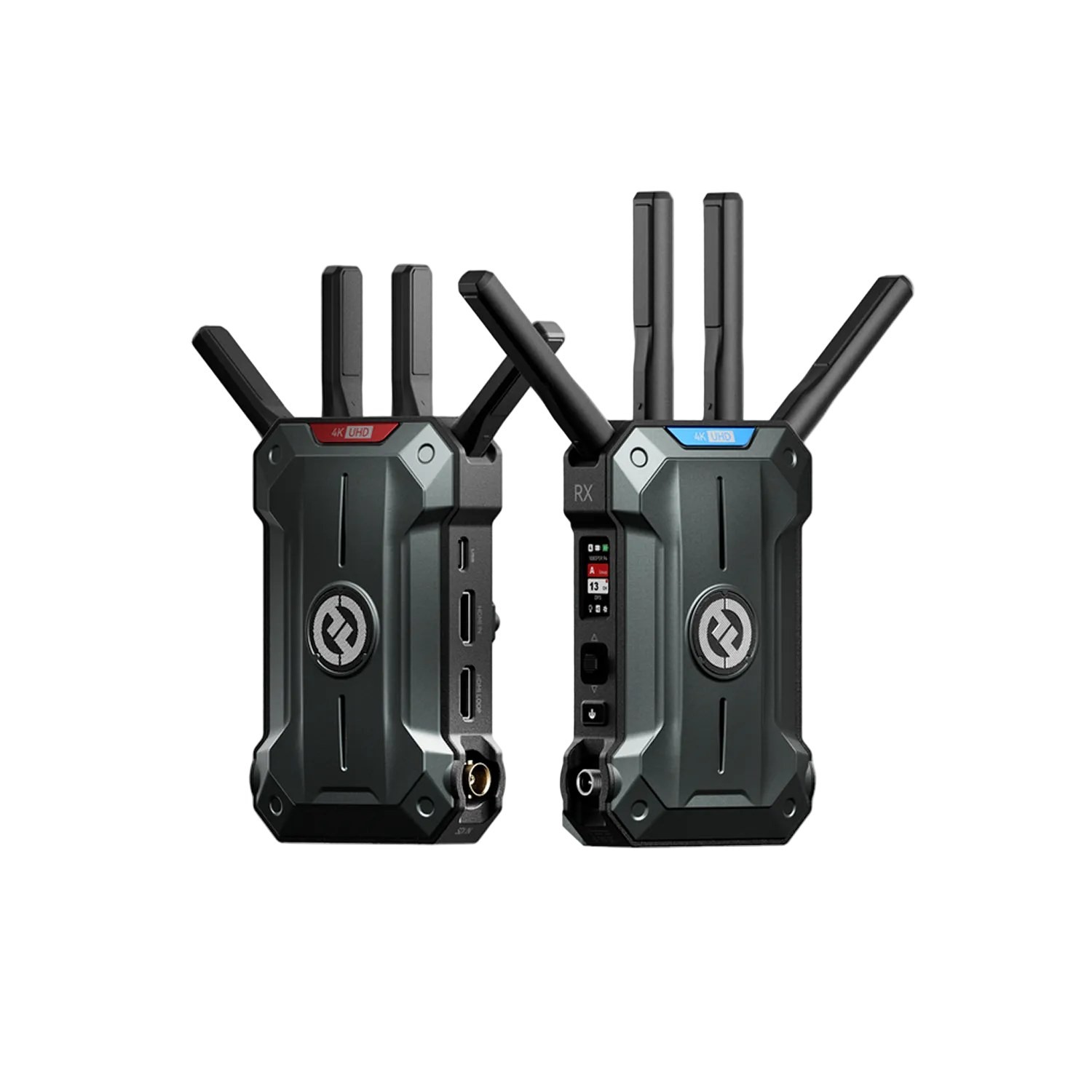

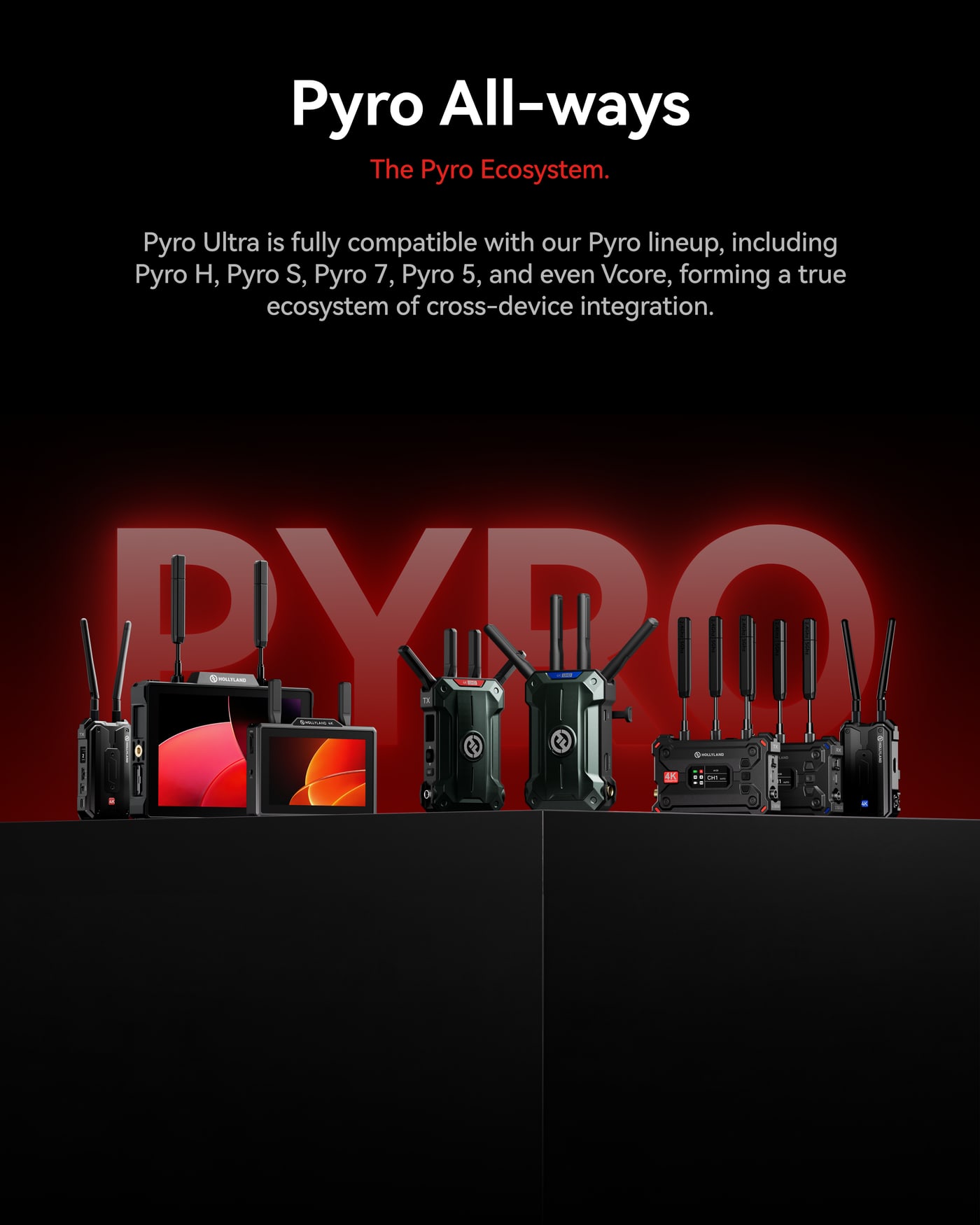

The whole Pyro ecosystem

Pyro Ultra works with Pyro 5 and Pyro 7 in both Broadcast and non-Broadcast Mode, and with Pyro H and Vcore in non-Broadcast Mode. Pyro S currently supports non-Broadcast Mode only; Broadcast support will come with a firmware update.

Hollyland Pyro Ultra TX – The whole Pyro ecosystem

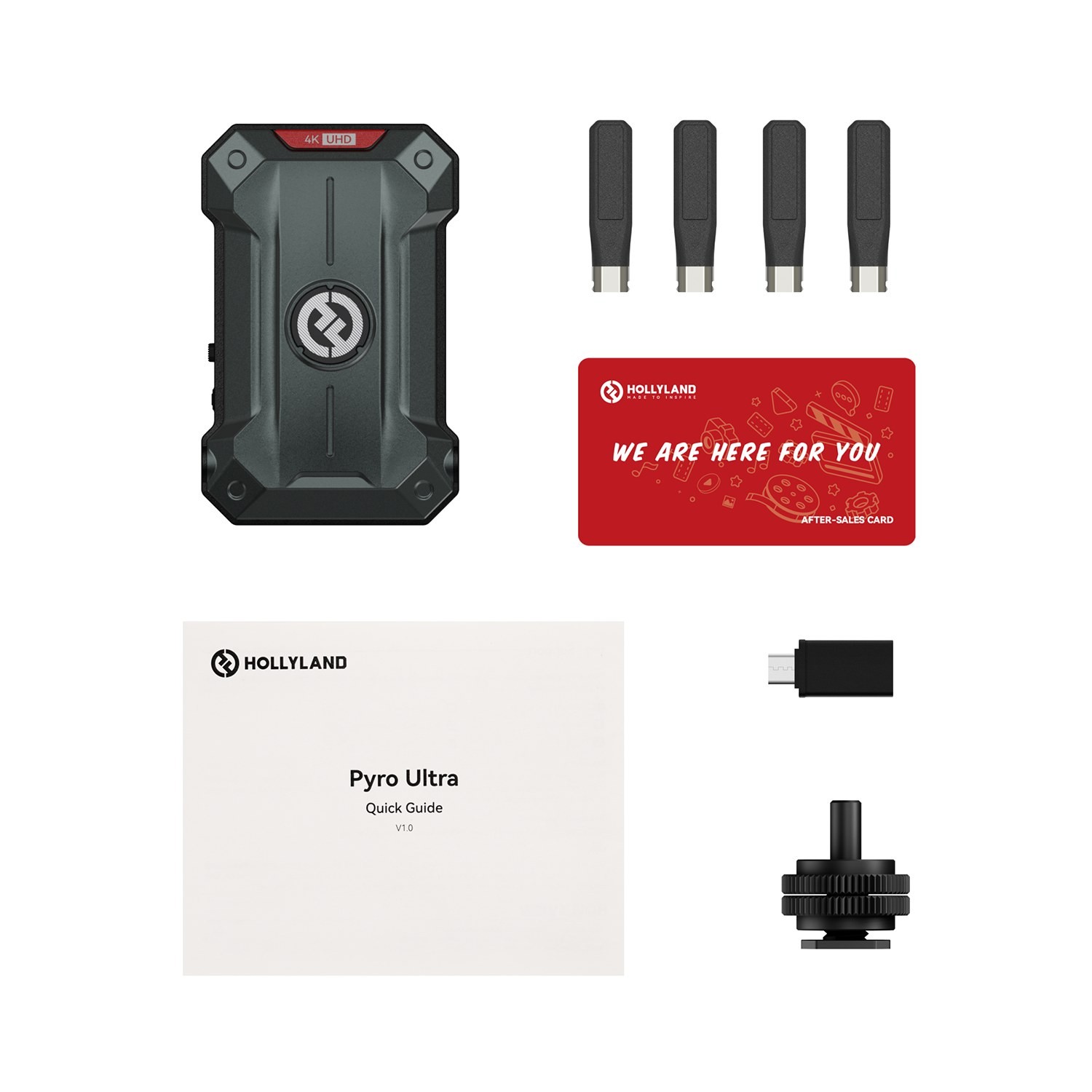

PACKAGE CONTENT

  • 1× Pyro Ultra TX transmitter
  • 4× Easy-Install short antenna
  • 1× USB-C OTG adapter
  • 1× 1/4″ cold shoe
  • 1× quick guide
  • 1× warranty card

SPECIFICATIONS

  • Transmission technology: TWiFi, 2.4 GHz and 5 GHz bands
  • Range (line of sight): up to 1.5 km (4,900 ft), up to 700 m (2,300 ft) in Broadcast Mode
  • Number of receivers: unlimited in Broadcast Mode, stable operation with up to 20 receivers
  • Resolution and bitrate: up to 4K60, 12 Mbps
  • Latency (Focus Mode): ≥ 20 ms 1080p25/30, ≥ 40 ms 1080p60, ≥ 45 ms 4K60
  • Transmitter interfaces: HDMI IN (HDMI 2.0), HDMI LOOP-OUT (HDMI 2.0), 3G-SDI IN, USB-C (USB 2.0), DC IN (2.0 mm)
  • HDMI formats: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 4K (3840 × 2160) 23.98/24/25/29.97/30/50/59.94/60
  • SDI formats – input: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60
  • Transmitter power: NP-F battery 6.8–8.4 V, DC 6–16 V
  • Transmitter power consumption: 11 W, 14 W in Broadcast Mode
  • Operating frequency: 2.412–2.484 GHz; 5.150–5.250 GHz; 5.250–5.350 GHz; 5.470–5.725 GHz; 5.725–5.850 GHz (subject to local regulations)
  • Transmit power: < 23 dBm
  • Bandwidth: 20 MHz, 40 MHz in Broadcast Mode
  • Antenna connector: SMA (male)
  • Unit dimensions: 124.5 × 80 × 34.9 mm
  • Unit weight: 320 g
Parameters

Parameters

Manufacturer: Hollyland
Category: Wireless video transmission

Main parameters

Frequency band2.4 GHz · 5 GHz
Power supplyDC
ColourBlack
FunctionsHDMI loop-out
Input connectorHDMI type A – female · BNC – female
Output connectorHDMI type A – female
Line-of-sight range1500m
Weight per unit320g
Transmitters in package1
Maximum transmitter power consumption14W
Maximum UHD 4K frame rate60fps
NP-F battery slots1
Latency20 ms
InputSDI · HDMI
OutputHDMI
