Accsoon CineView M7

Accsoon CineView M7 is a 7-inch touchscreen monitor for camera rigs, combining color-accurate viewing, 4K signal processing and on-set exposure tools. HDMI 2.0 and 3G-SDI inputs and outputs let it serve as a viewing monitor and part of a production signal chain. It processes DCI 4K up to 60 fps and converts between HDMI and SDI as needed; SDI supports up to…

More information

859 € with VAT 709.92 € without VAT
-+
Availability
Shipment day: 23. 11.
> 5 pcs in stock at the supplier

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Accsoon CineView M7 is a 7-inch touchscreen monitor for camera rigs, combining color-accurate viewing, 4K signal processing and on-set exposure tools. HDMI 2.0 and 3G-SDI inputs and outputs let it serve as a viewing monitor and part of a production signal chain. It processes DCI 4K up to 60 fps and converts between HDMI and SDI as needed; SDI supports up to 1080p60. On set, the calibrated Full HD display offers 1000-nit brightness, with 1D/3D LUT, waveform, false color, focus peaking and other monitoring tools. The Android system extends workflows with Accsoon SEE apps, recording, streaming and control of compatible cameras. Power it from NP-F batteries, the DC input or USB-C PD.

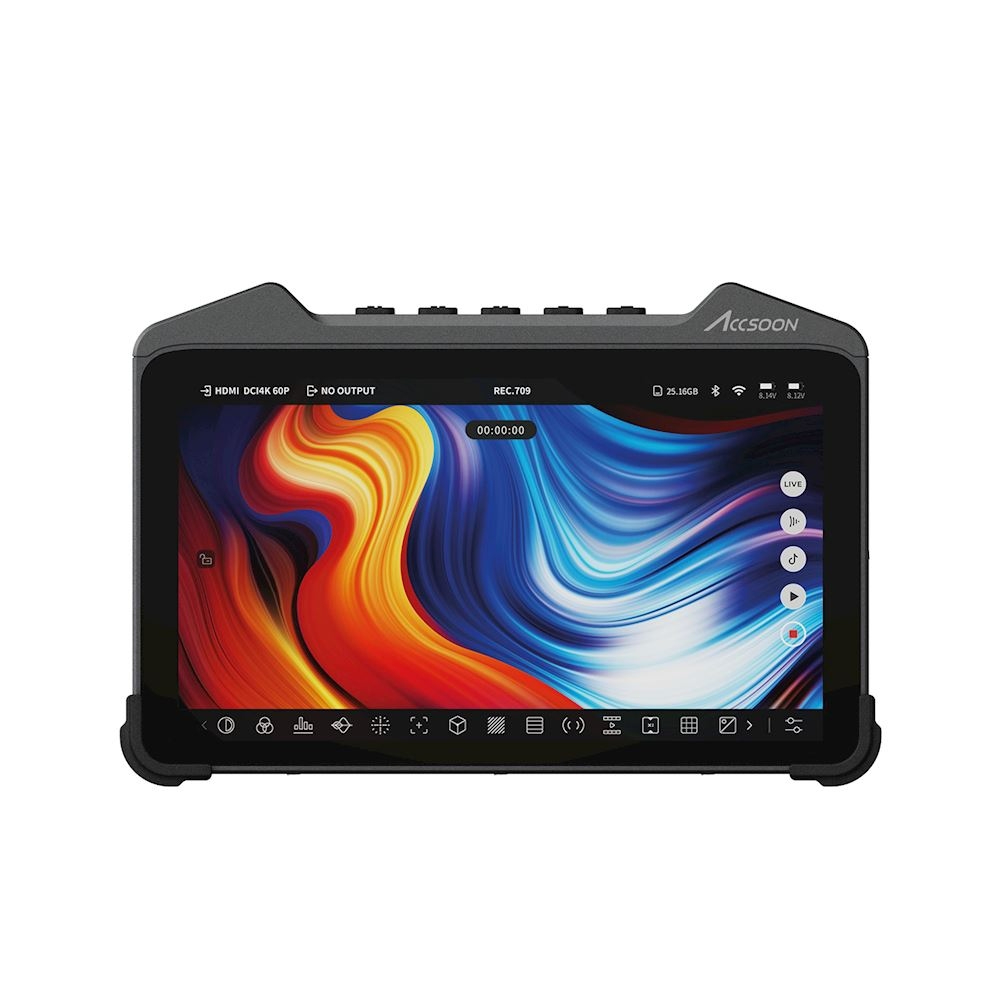

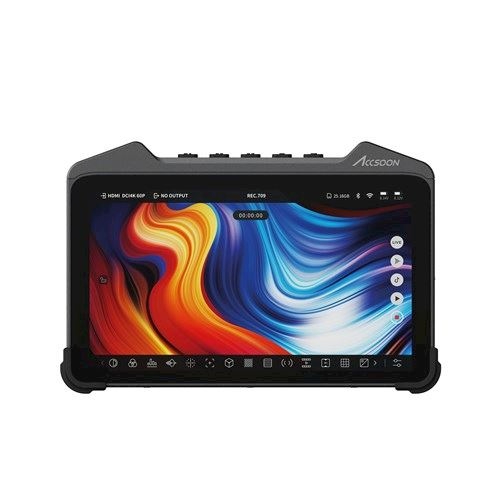

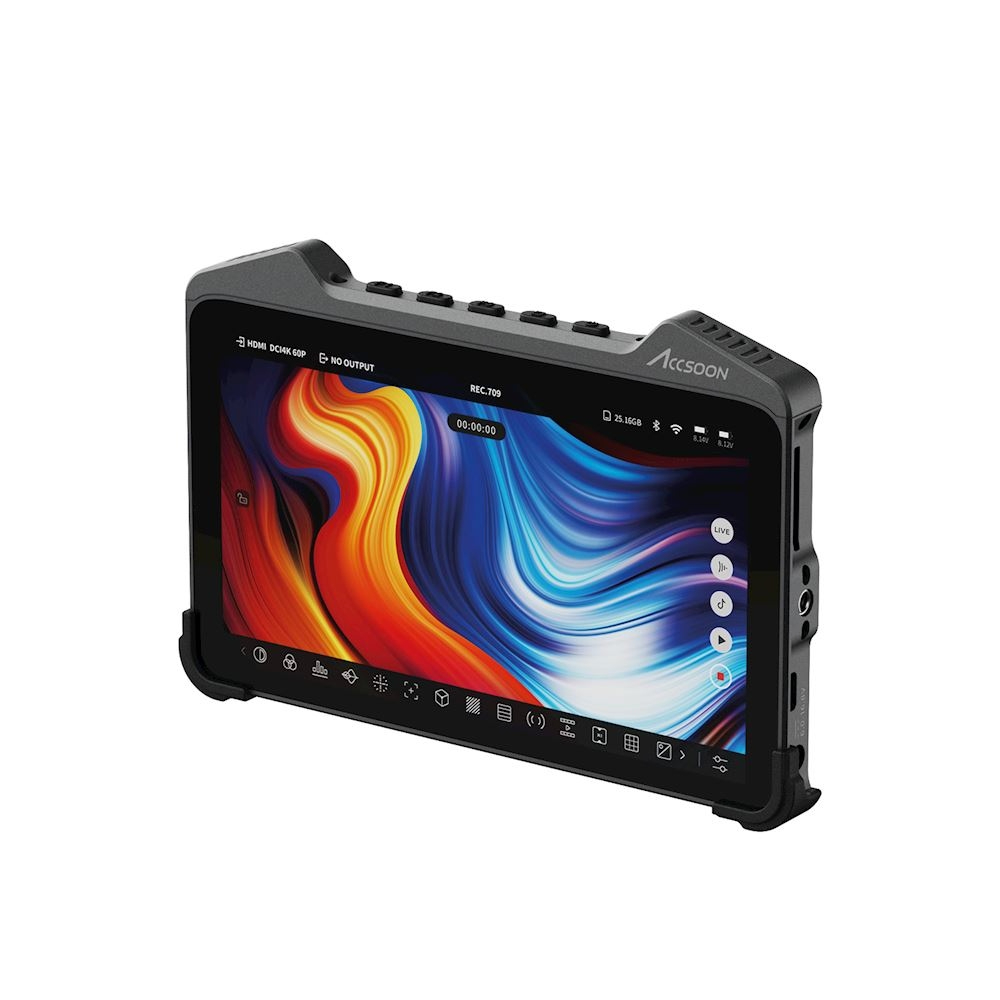

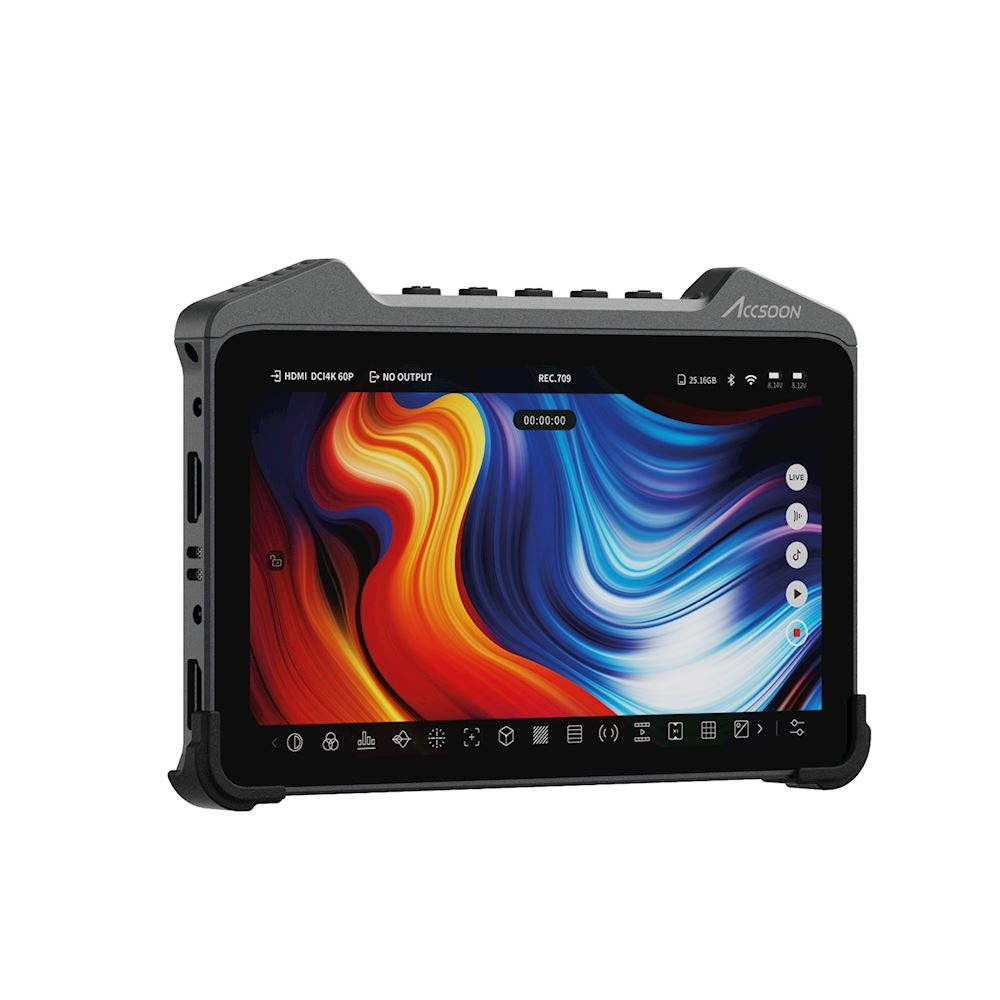

Accsoon CineView M7 7-inch monitor

Professional Camera Monitor

Confidence in every shot

A 7-inch touchscreen monitor with HDMI 2.0 and 3G-SDI, DCI 4K60 processing, and precise tools for exposure, color, and focus. It is designed for on-set monitoring, recording, and streaming.

7″ Full HD1000 nitsHDMI + 3G-SDIHDMI DCI 4K60NP-F / USB-C PD
Accsoon CineView M7 used for professional camera monitoring

Image monitoring with precise tools

A calibrated 7-inch Full HD display with 1,000 nits of brightness and a 1,000:1 contrast ratio keeps the image readable even in challenging lighting conditions. Waveform, false color, focus peaking, zebra, and 1D/3D LUT support help you assess exposure, color, and sharpness right on set.

4K Input, HDMI and SDI Conversion

HDMI 2.0 handles input and output up to DCI 4K60. 3G-SDI supports input and output up to 1080p60. The M7 can convert between HDMI and SDI, allowing you to connect sources and monitors with different interfaces within a single production workflow.

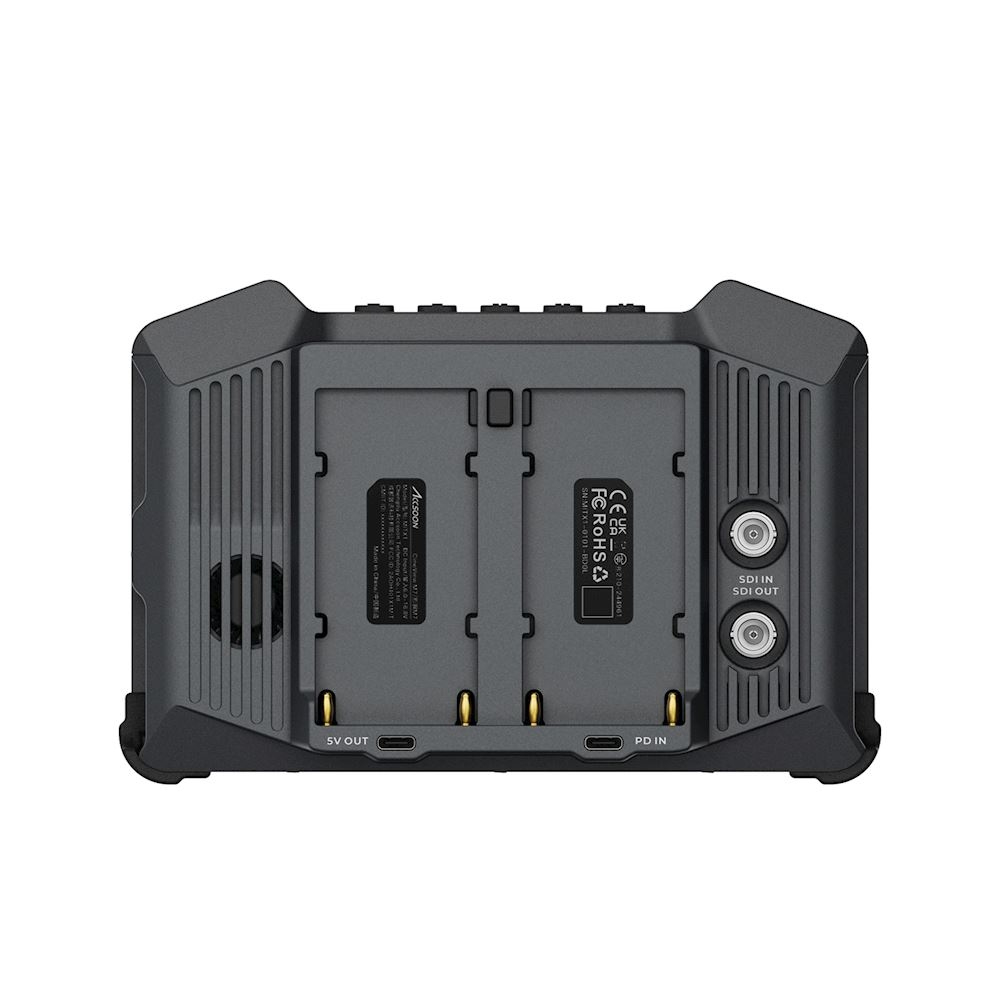

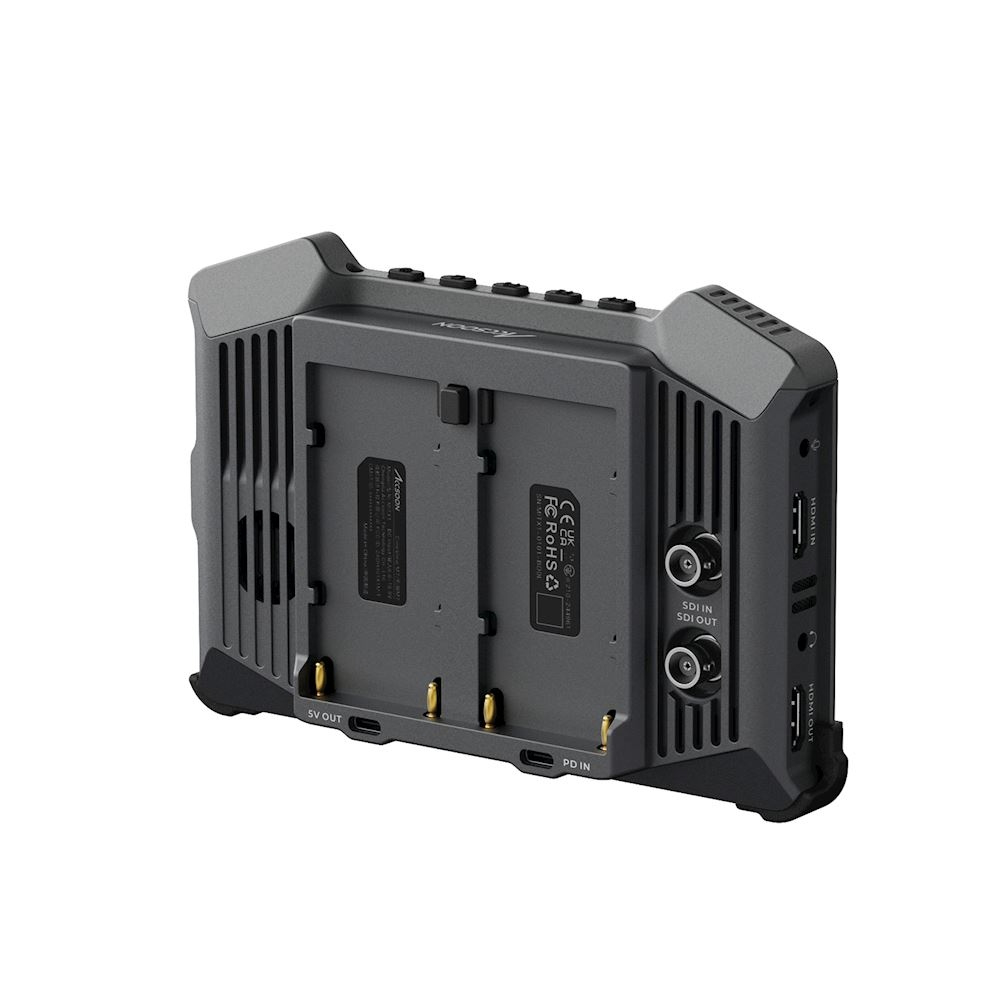

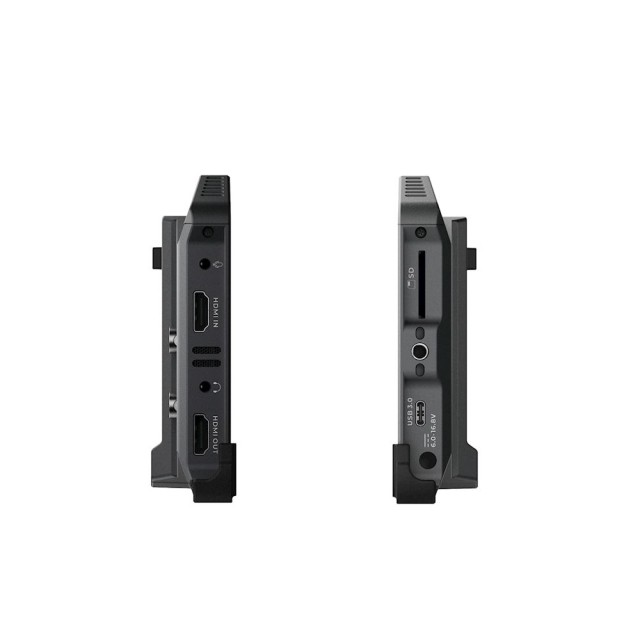

Accsoon CineView M7 HDMI and 3G-SDI connections

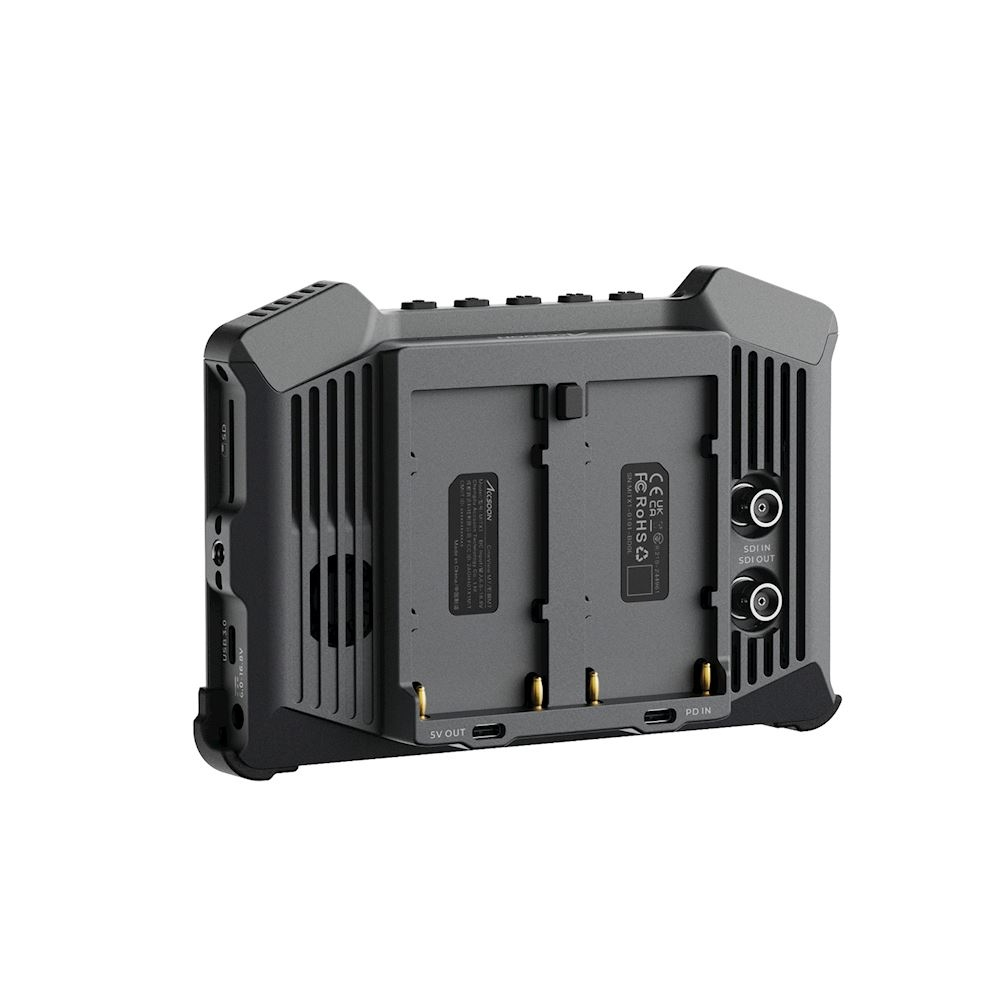

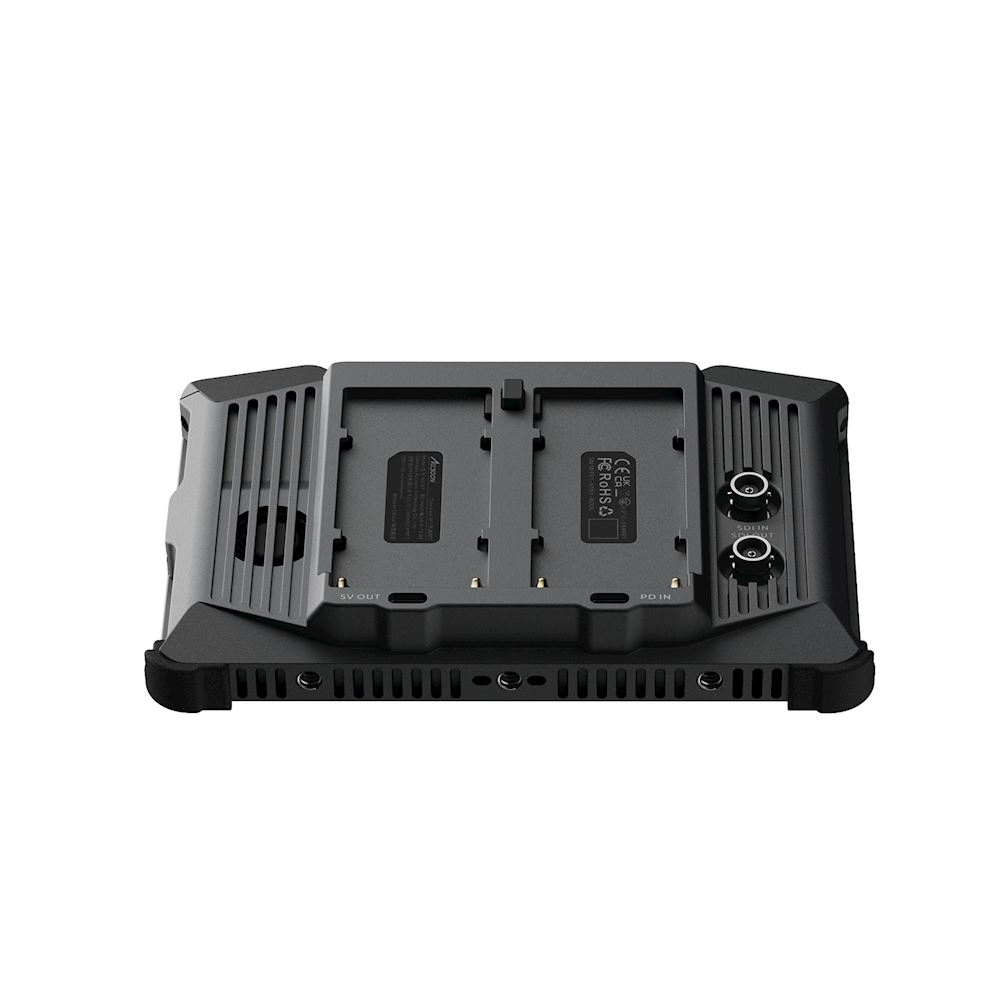

Accsoon CineView M7 power options

Setup Options for Different Shooting Scenarios

The monitor can be powered via the DC input, USB-C PD 3.0, or compatible NP-F550, NP-F750, and NP-F970 batteries. The Android system with access to apps expands functionality to include recording, playback, and live streaming; USB 3.0 and an SD card slot support mobile media workflows.

Technical Specifications

  • Display: 7″ LCD, 1920 × 1080, 323 PPI, 16:9 aspect ratio
  • Brightness and contrast: 1000 nits, 1000:1, 176° viewing angle
  • Color: factory calibration, 1D LUT up to 4096 points, 3D LUT up to 127 points
  • Inputs and outputs: HDMI 2.0 and 3G-SDI; HDMI DCI/UHD 4K up to 60p; SDI up to 1080p60
  • Power: DC 6–16.8 V, USB-C PD 3.0, NP-F550/750/970 battery
  • Audio: 3.5 mm microphone input and headphone output; power consumption 12–28 W
  • Construction and Dimensions: aluminum alloy; 182.2 × 120.7 × 31.5 mm; 476 g

CineView M7 is a wired monitor without an integrated CineView wireless transmitter or receiver. Wi-Fi serves network functions and streaming. Available control depends on the camera and firmware. IP control supports Sony FX6 and, with current firmware, Canon EOS C50, C70, C80 and C400; C70 requires an external network adapter. Batteries, power supplies, signal cables and the cage with sunhood are sold separately.

PACKAGE CONTENT

  • Accsoon CineView M7 × 1
  • User manual × 1

SPECIFICATIONS

  • Display: 7″ LCD, 1920 × 1080, 323 PPI, 16:9
  • Brightness / contrast: 1000 nit / 1000:1
  • Viewing angle: 176° / 176°
  • Backlight: LED, edge-lit
  • Calibration: factory calibrated, user-adjustable
  • LUT: 1D Cube ≤4096; 3D Cube ≤127
  • HDMI input / output: HDMI 2.0, DCI 4K (4096 × 2160) / UHD (3840 × 2160) ≤60p; 1080p ≤60p; 1080i / 720p
  • SDI input / output: 3G-SDI, 1080p ≤60p / 1080i; BNC
  • CineView wireless video: no integrated TX/RX
  • DC input: 6–16,8 V, ≥3 A, 5,5 × 2,1 mm, centre positive
  • USB-C power input: PD 3.0: 9 / 12 / 15 V, 3 A
  • USB-C power output: 5 V / 2 A maximum
  • Batteries: 2 × NP-F550 / NP-F750 / NP-F970
  • Battery exchange: hot swap with DC power connected
  • Power consumption: 12–28 W
  • Microphone input: 3,5 mm TRS; 16 bit / 48 kHz
  • Headphone output: 3,5 mm CTIA / Bluetooth headphones
  • Storage: SD / USB 3.0
  • Operating system: Android
  • Housing: aluminium alloy
  • Cooling: active + passive
  • Mounting: 2 × 1/4″-20
  • Operating temperature: −10 to +40 °C
  • Dimensions: 182,2 × 120,7 × 31,5 mm
  • Weight: 476 g

WE RECOMMEND

The Accsoon CineView M7 is a wired 7-inch touchscreen monitor with HDMI 2.0 and 3G-SDI inputs. It is not a camera video TX/RX system, though it supports network streaming over Wi-Fi. The ACC-ACC33 cage with sunhood is designed for the M7 and M7 Pro. The monitor can run on NP-F batteries, which the TopRig 100W charger can charge.

Parameters

Parameters

Manufacturer: Accsoon
Category: Wireless video transmission

Main parameters

Unit dimensions without antennas182.2x120.7x31.5mm
Weight per unit476g
Maximum frame rate60fps
DC input voltage range6x16.8V
Minimum USB-C source current3A
Operating temperature-10x40°C
Power supplyDC · NP-F550 · NP-F750 · NP-F970 · USB-C
MaterialAluminium alloy
ColourGrey
Mounting interface1/4″-20
Functions3D LUT in Accsoon SEE · Anamorphic de-squeeze in Accsoon SEE · Audio level meters in Accsoon SEE · Battery hot swap with DC connected · Bluetooth headphones · Color range in Accsoon SEE · False colour in Accsoon SEE · Focus peaking in Accsoon SEE · Frame.io C2C in Accsoon SEE · Framing grids in Accsoon SEE · Framing markers in Accsoon SEE · Grayscale in Accsoon SEE · Histogram in Accsoon SEE · Image magnification in Accsoon SEE · Image overlay in Accsoon SEE · Mirror in Accsoon SEE · Mobile recording in Accsoon SEE · RTMP streaming in Accsoon SEE · Screenshot in Accsoon SEE · Supported-camera control depending on firmware · Vectorscope in Accsoon SEE · Waveform in Accsoon SEE · Zebra in Accsoon SEE
DC power connector5.5 × 2.1 mm socket, centre positive
Audio sampling frequency48 kHz
Audio bit depth16-bit
Input connector3.5 mm TRS – female · BNC – female · HDMI type A – female · USB-C – female
Output connector3.5 mm CTIA – female · BNC – female · HDMI type A – female · USB-C – female
3G-SDI input levelA · B
3G-SDI output levelA
Maximum HDMI Input Resolution4096x2160px
Maximum HDMI Input Frame Rate60fps
Colour LCD diagonal7″
USB output voltage5V
Maximum USB output current2A
Minimum DC source current3A
Number of 1/4″-20 mounting points2
Maximum USB-C output power10W
Display brightness1000nit
Display contrast ratio1000:1
Display resolution1920x1080px
Display pixel density323ppi
Viewing angle (horizontal × vertical)176x176°
Operating power consumption range12x28W
USB-C PD input voltage9x12x15V
HDMI output resolution4096x2160px
Maximum HDMI output frame rate60fps
Maximum SDI input resolution1920x1080px
Maximum SDI output resolution1920x1080px
Maximum SDI frame rate60fps
TouchscreenYes
Maximum 1D LUT points4096
Maximum 3D LUT points127
NP-F battery slots2
Display aspect ratio16:9
Operating systemAndroid
Display colour calibrationYes
Display backlight typeLED – edge-lit
Input3G-SDI, HDMI
Output3G-SDI · HDMI
