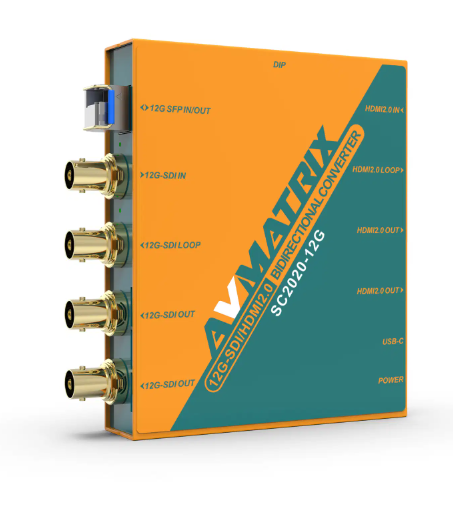

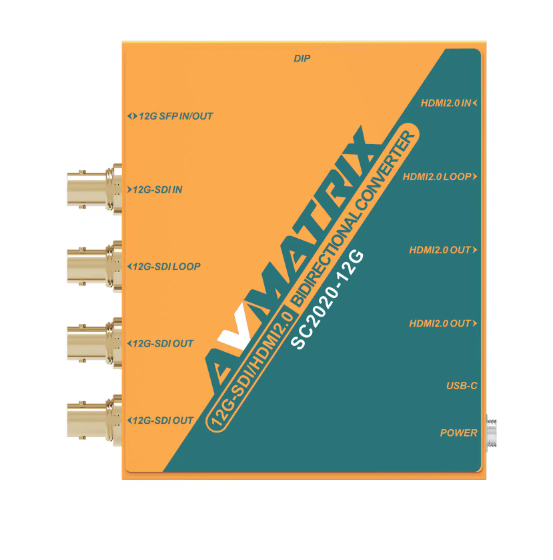

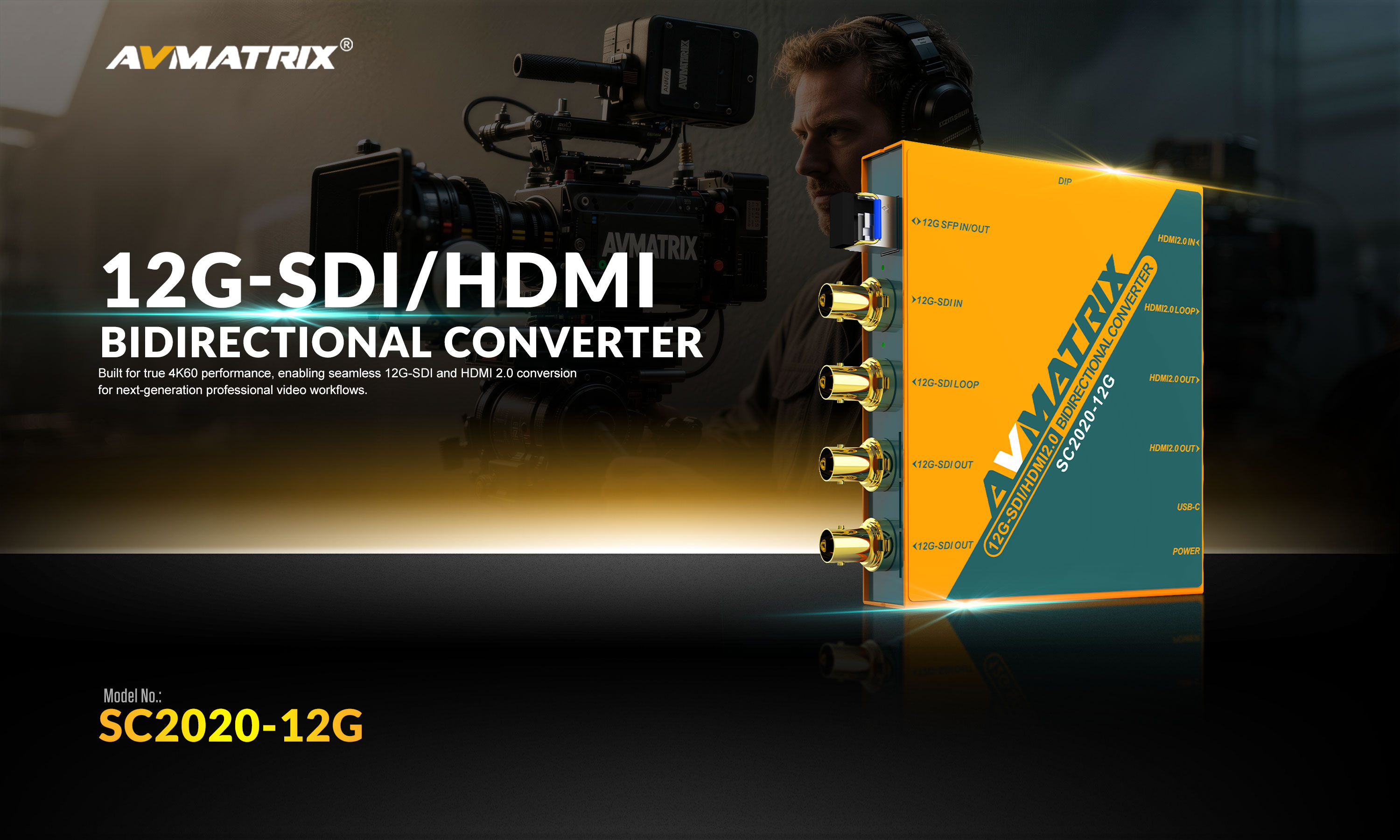

AVMatrix 12G-SDI/ HDMI 2.0 Bidirectional Converter With SFP Module TX

The AVMatrix 12G-SDI/ HDMI 2.0 Bidirectional Converter With SFP Module TX is a high-performance professional video conversion device designed for broadcast and live production workflows. Supporting bidirectional 12G-SDI and HDMI 2.0 conversion up to 4K60, optional SFP fiber transmission, multiple color spaces, and flexible PC/DIP switch control, it delivers reliable UHD signal processing in a compact form factor.

The AVMatrix 12G-SDI/ HDMI 2.0 Bidirectional Converter With SFP Module TX is an advanced 4K professional signal processing solution engineered for broadcast, live event production, and high-end AV integration. It provides seamless bidirectional conversion between 12G-SDI and HDMI 2.0, supporting ultra-high-definition video up to 4K60 for uncompromised image quality and performance.

Designed for flexible system integration, the device features HDMI 2.0 and 12G-SDI inputs with loop-through outputs for real-time monitoring and signal distribution. It also includes an optional SFP fiber module, enabling long-distance transmission over fiber infrastructure, making it suitable for large-scale production environments, outside broadcasts, and professional studio setups.

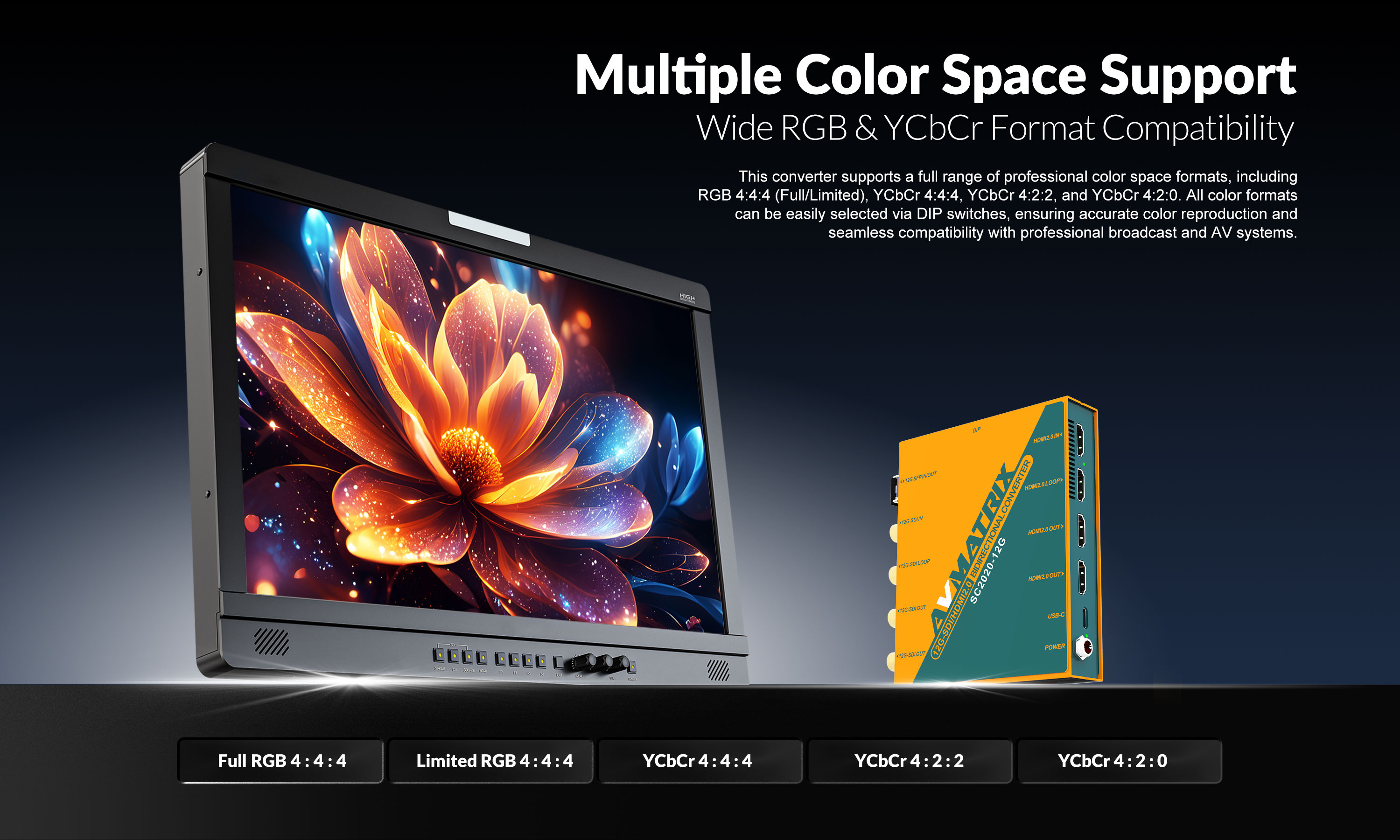

The converter supports multiple HDMI color space formats, including Full RGB 4:4:4, Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0, ensuring compatibility across a wide range of professional video equipment and display systems. Users can easily configure and control the device using DIP switches or PC-based software via USB Type-C, which also supports firmware upgrades and system management.

With its compact, durable design and wide operating voltage range, the AVMatrix TX converter is built for reliable continuous operation in demanding professional environments, offering a powerful combination of flexibility, performance, and ease of use.

Key Features

• Bidirectional 12G-SDI and HDMI 2.0 conversion
• Supports up to 4K60 UHD resolution

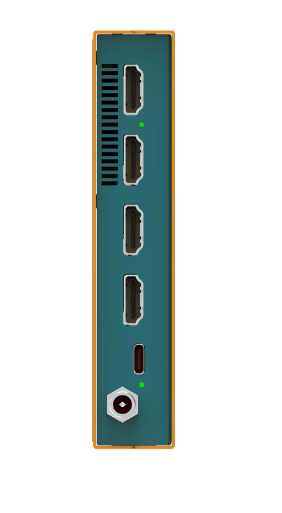

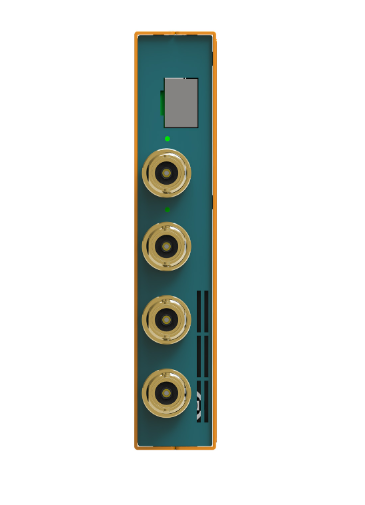

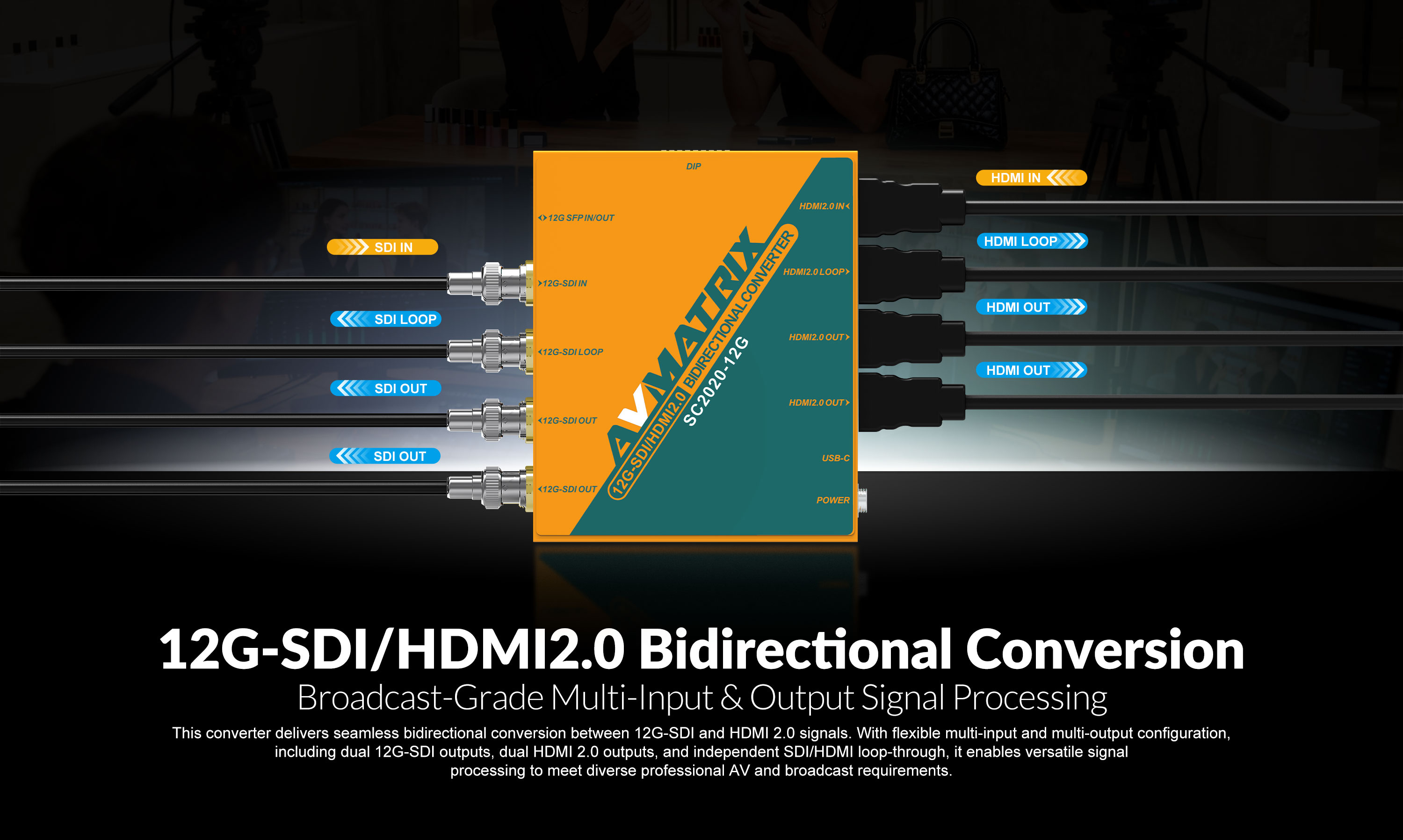

• HDMI 2.0 and 12G-SDI inputs with loop-out functionality

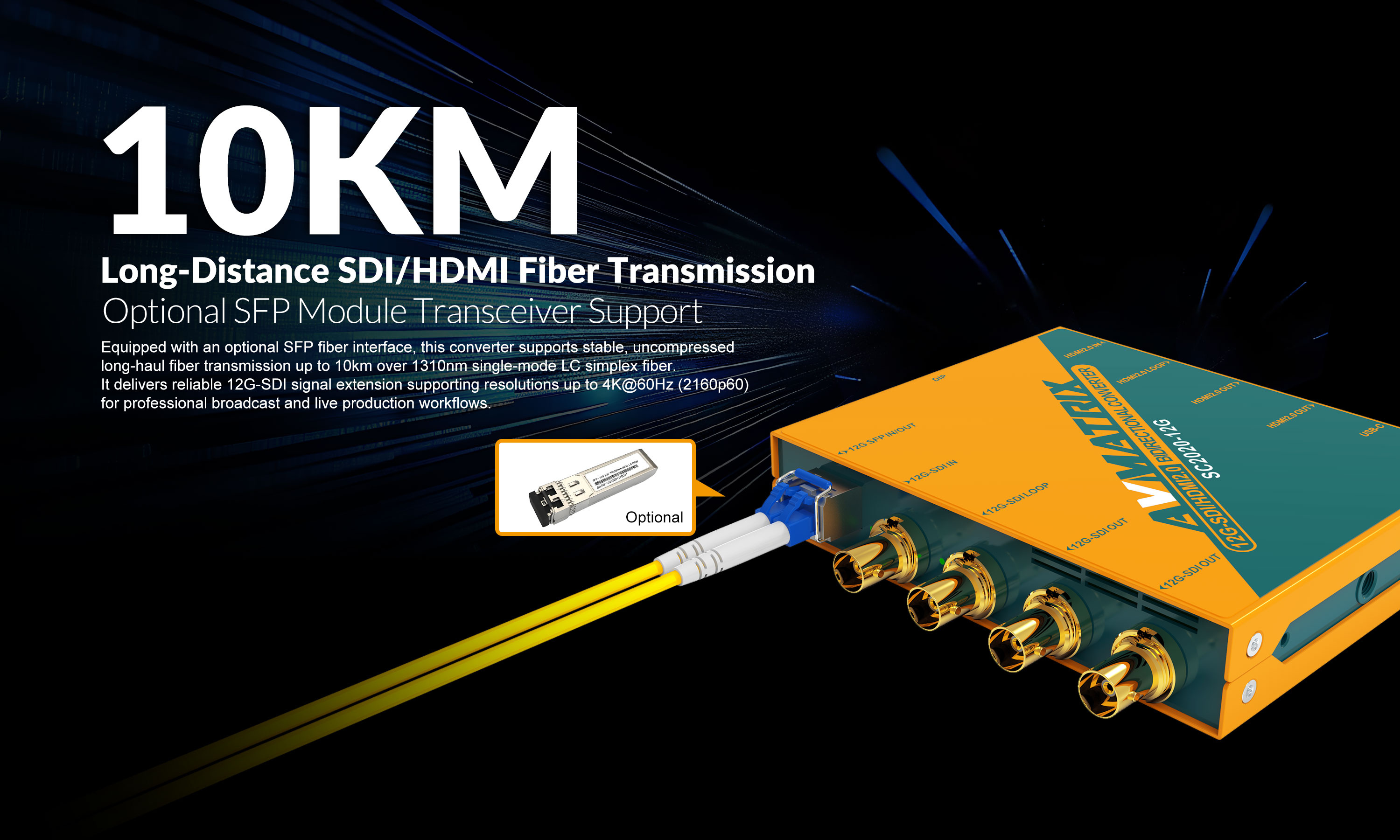

• Optional SFP fiber transceiver transmission support
• Multiple HDMI color space formats (RGB & YCbCr variants)
• USB Type-C for PC software control and firmware upgrades

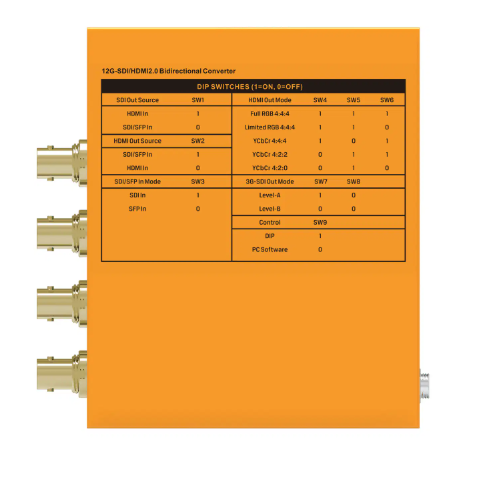

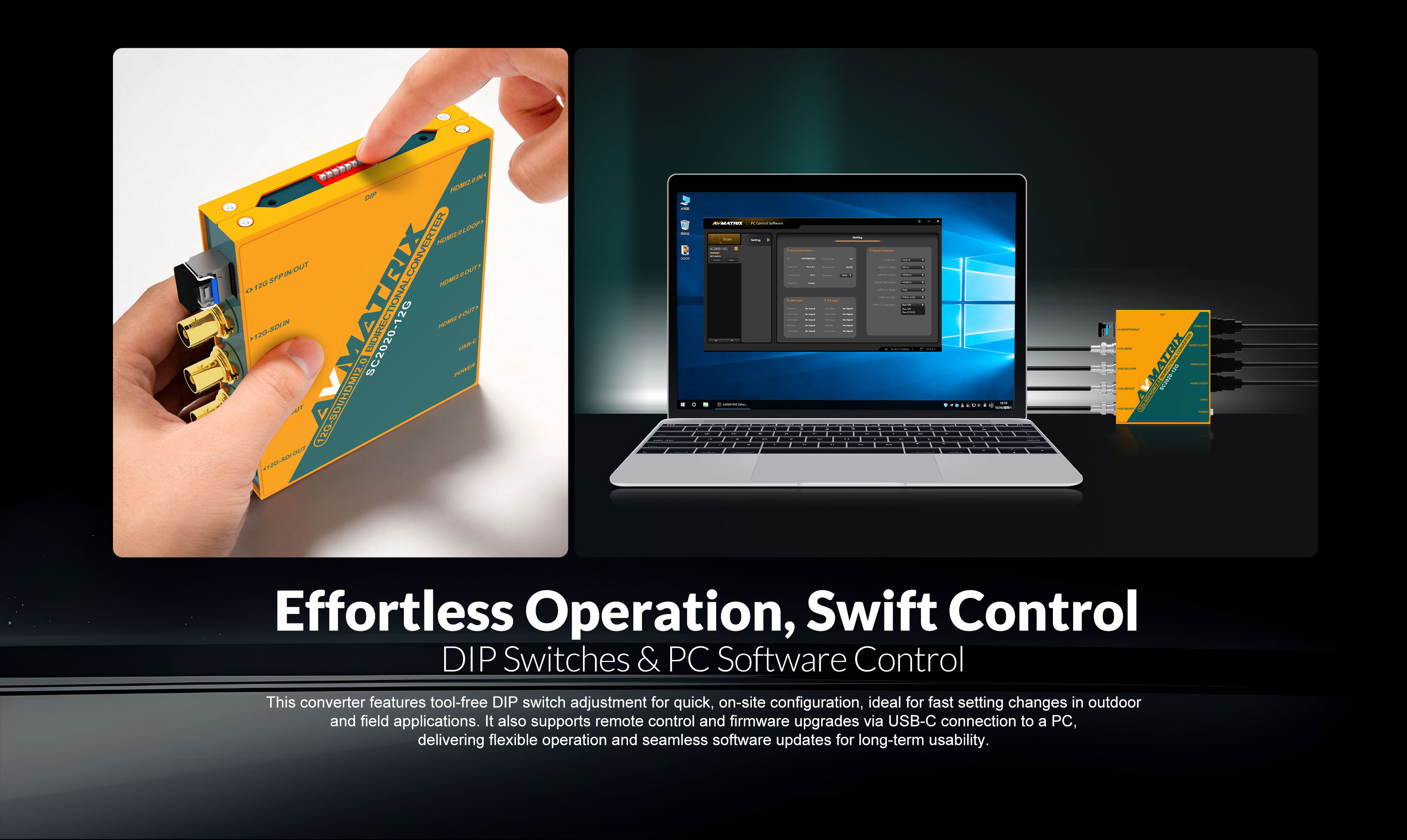

• Easy configuration via DIP switches and software control
• Professional-grade signal distribution and conversion
• Compact, rugged design for broadcast and AV environments
• Wide voltage input range for flexible installation
